Tianma TM070RDH10 LCD Module

Tianma TM070RDH10 LCD Module

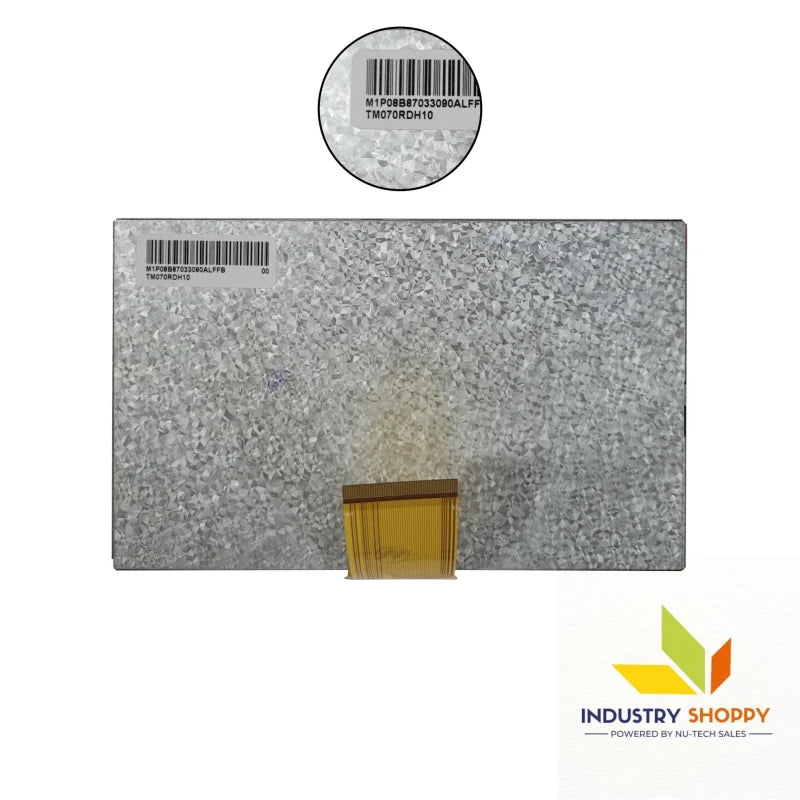

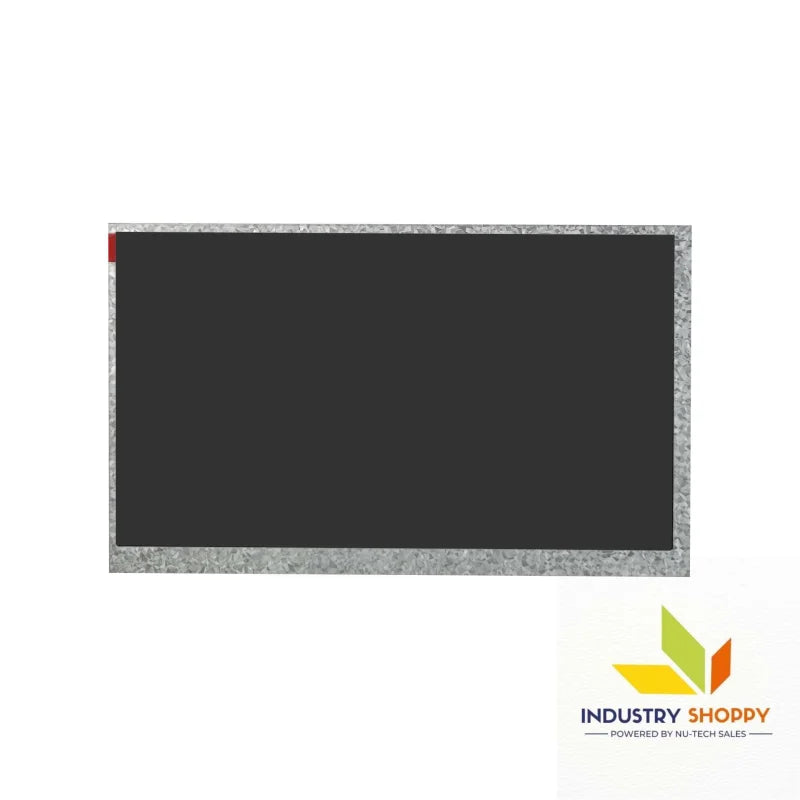

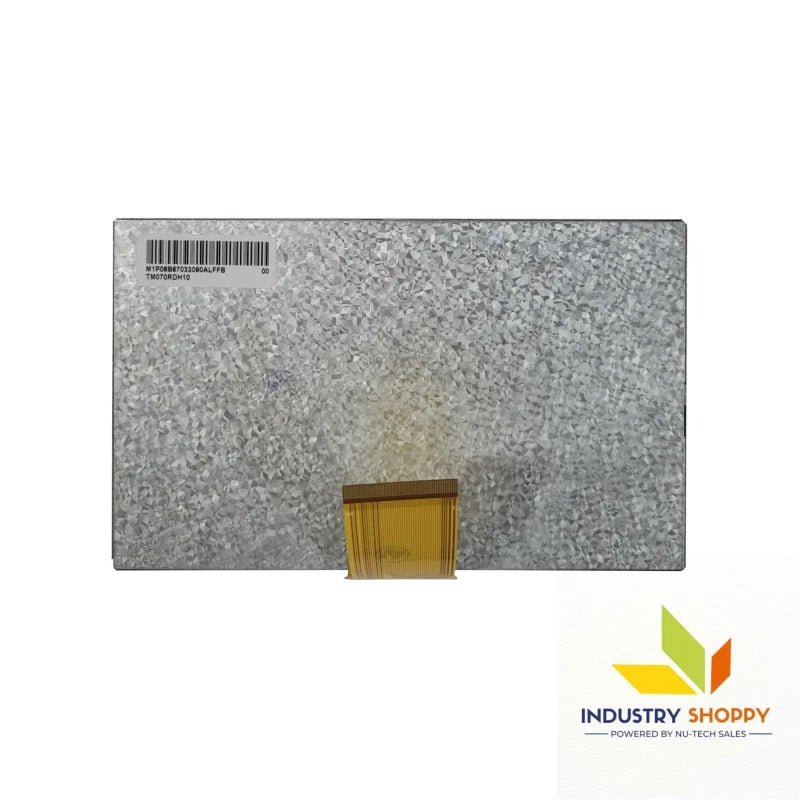

The Tianma TM070RDH10 is a 7.0-inch a-Si TFT-LCD module designed to provide high-quality display performance in compact applications. This module features a resolution of 800x480 (WVGA) and a pixel density of 133 PPI, delivering sharp, clear visuals with excellent color reproduction. The RGB Vertical Stripe pixel arrangement ensures vibrant and consistent color output, making it suitable for a wide range of applications that require accurate visual representation.

With a brightness of 500 cd/m² and a contrast ratio of 500:1, the module is designed to perform well in bright environments, ensuring optimal visibility even under challenging lighting conditions. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) ensure clear and consistent image quality from different positions, enhancing its flexibility and suitability for a variety of applications.

The LED backlight offers a 50,000-hour lifespan, ensuring long-term reliability. Furthermore, the antiglare surface treatment reduces reflections and enhances readability, making it ideal for use in environments with ambient light.

Key Features:

• Brand: Tianma
• Model: TM070RDH10
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 157.08(W) × 89.92(H) mm
• Outline Dimensions: 166.0(W) × 104.0(H) × 10.0(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 500 cd/m² (Typical), ideal for use in bright settings
• Contrast Ratio: 500:1 (Typical), ensuring high-quality visuals with sharp differentiation
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear viewing from multiple angles
• Backlight Type: LED with a 50,000-hour lifespan for long-term use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

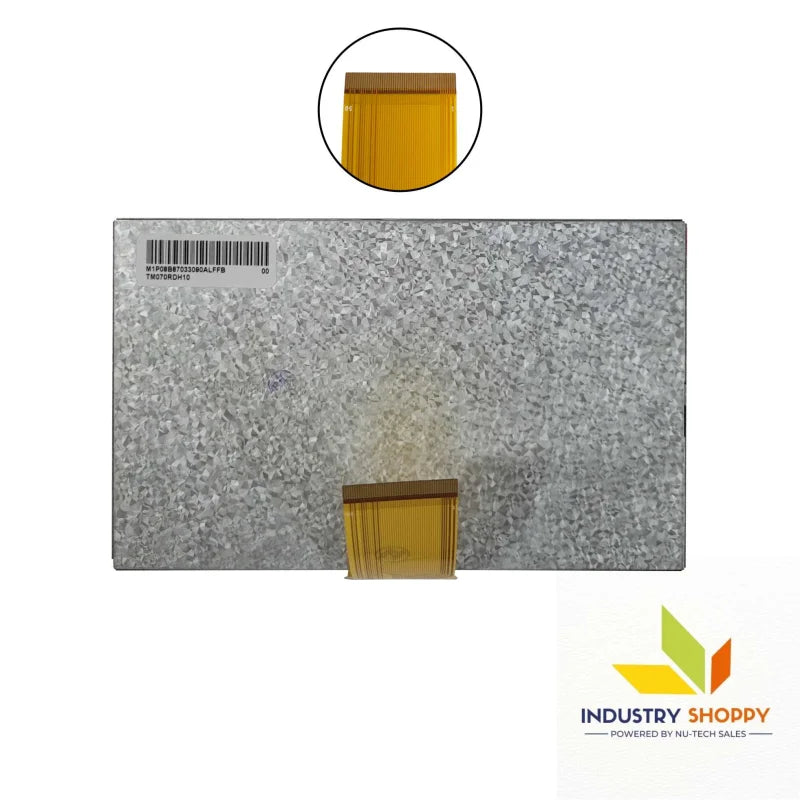

• Signal Interface: RGB (24-bit) with 50-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate in various environments
• Storage Temperature: -30°C to 80°C, suitable for flexible storage in varying conditions

Applications:

• Industrial Control Panels: Ideal for industrial systems requiring compact, high-performance displays
• Point-of-Sale (POS) Displays: Suitable for retail systems that demand high clarity and reliability in small form factors
• Medical Devices: Perfect for small medical equipment where color accuracy and clarity are crucial
• Embedded Systems: Suitable for embedded applications requiring a reliable and compact display

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight, which has a 50,000-hour lifespan, to ensure continued performance
