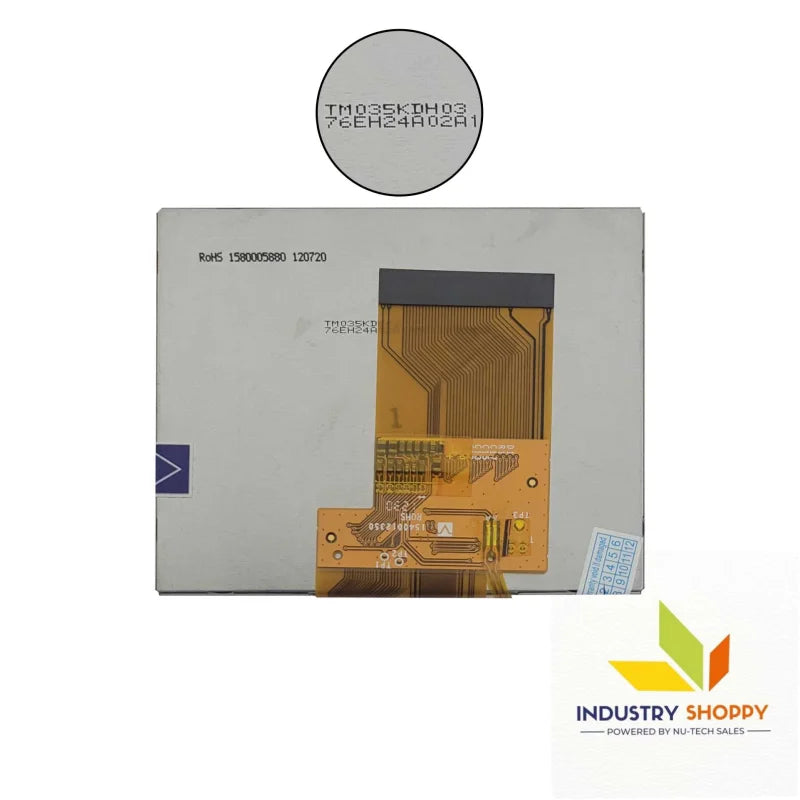

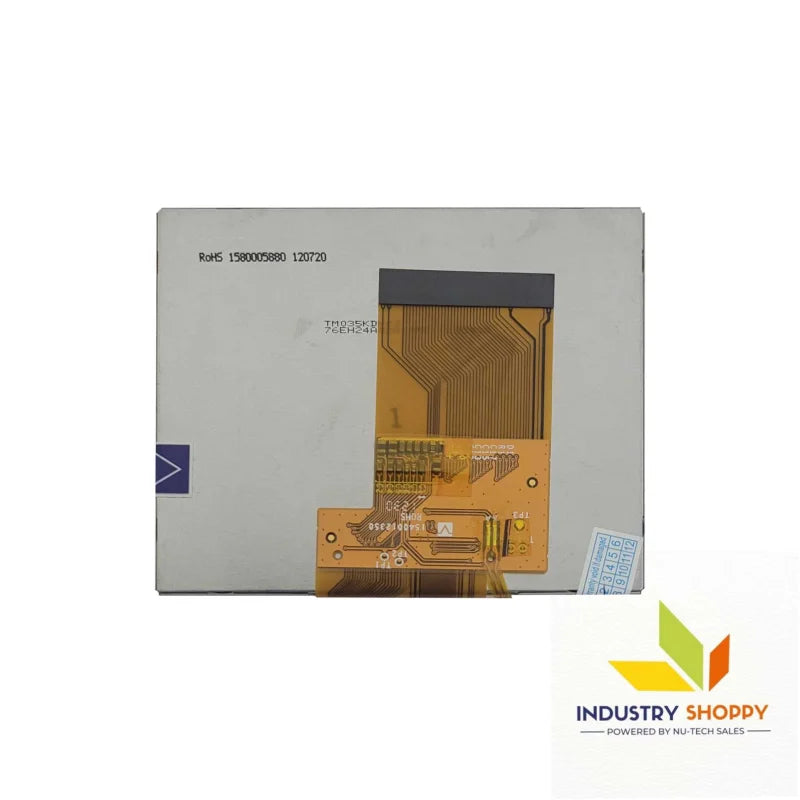

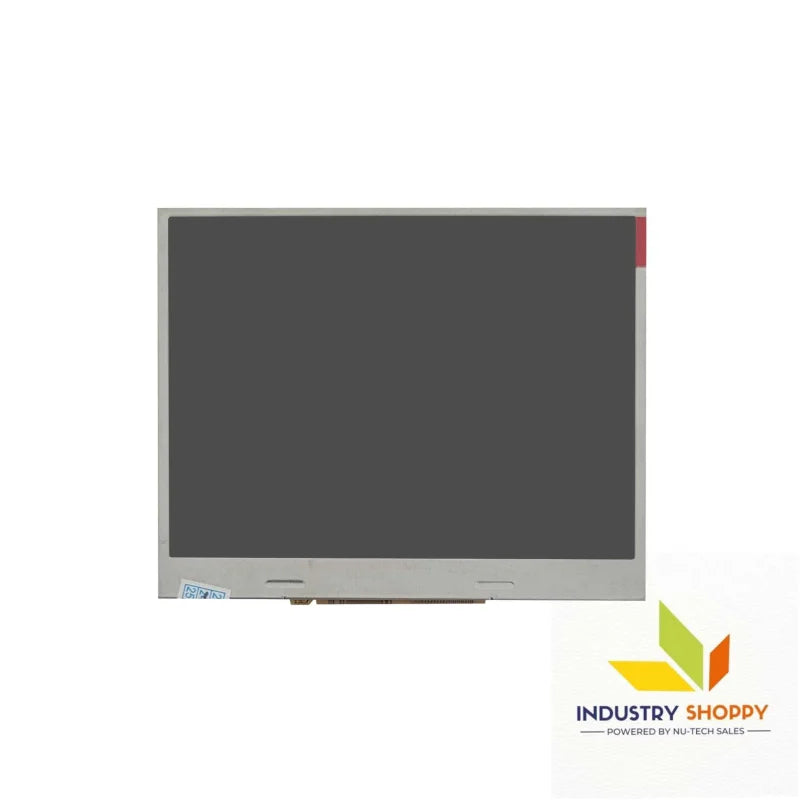

Tianma TM035KDH03 LCD Module

Tianma TM035KDH03 LCD Module

The Tianma TM035KDH03 is a compact 3.5-inch TFT-LCD module designed for embedded systems, handheld devices, and other applications where space is limited but high-quality display performance is required. With QVGA resolution (320x240) and a resistive touchscreen, this module offers excellent visual clarity and touch responsiveness for interactive applications.

Key Features:

• Brand: Tianma
• Model: TM035KDH03
• Diagonal Size: 3.5 inches
• Resolution: 320×240 (QVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for sharp color rendering
• Active Area: 70.08(W) × 52.56(H) mm
• Bezel Opening: 73.0(W) × 56.0(H) mm
• Outline Dimensions: 79.0(W) × 63.5(H) × 4.2(D) mm
• Surface Treatment: Antiglare, providing better readability in bright environments
• Brightness: 300 cd/m² (Typical)
• Contrast Ratio: 500:1 (Typical), ensuring clear image differentiation
• Viewing Angle: 50°/50°/40°/60° (L/R/U/D), allowing for good visibility from different angles
• Display Mode: Normally White, Transmissive, ensuring clear and bright images
• Response Time: 10/15 ms (Typical), reducing motion blur for smooth visuals
• Touch Type: Resistive touch, providing reliable and precise user input
• Backlight Type: LED backlight, providing long lifespan and energy efficiency

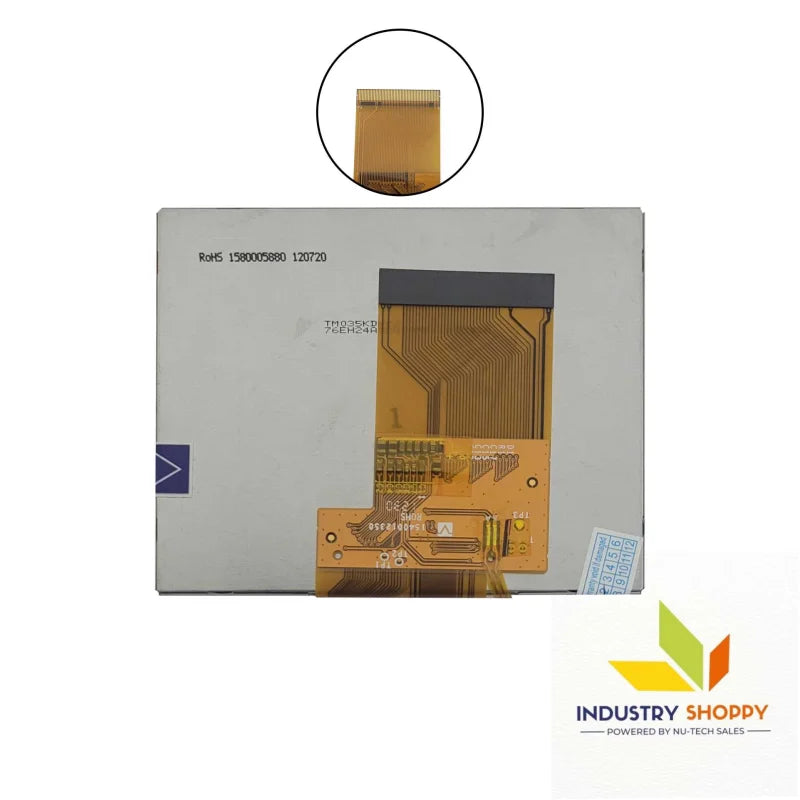

• Signal Interface: Parallel RGB, 18-bit, 24-pin FPC connector
• Input Voltage: 3.3V (Typical)
• Operating Temperature: -20°C to 70°C, suitable for a wide range of environments
• Storage Temperature: -30°C to 80°C, allowing safe storage in various conditions

Applications:

• Embedded Systems: Perfect for compact devices and embedded applications
• Point-of-Sale (POS) Terminals: Ideal for interactive customer-facing displays
• Industrial Control Panels: Suitable for human-machine interfaces (HMI) in industrial applications
• Consumer Electronics: Great for portable electronics and other small-scale gadgets

Technical Precautions:

• Handling: Handle the module with care, especially the touchscreen, to avoid damage
• ESD Protection: Follow electrostatic discharge precautions during installation
• Temperature Guidelines: Ensure the module is operated within the specified temperature range for optimal performance
• Mounting: Use secure mounting methods to protect the module from mechanical stress
