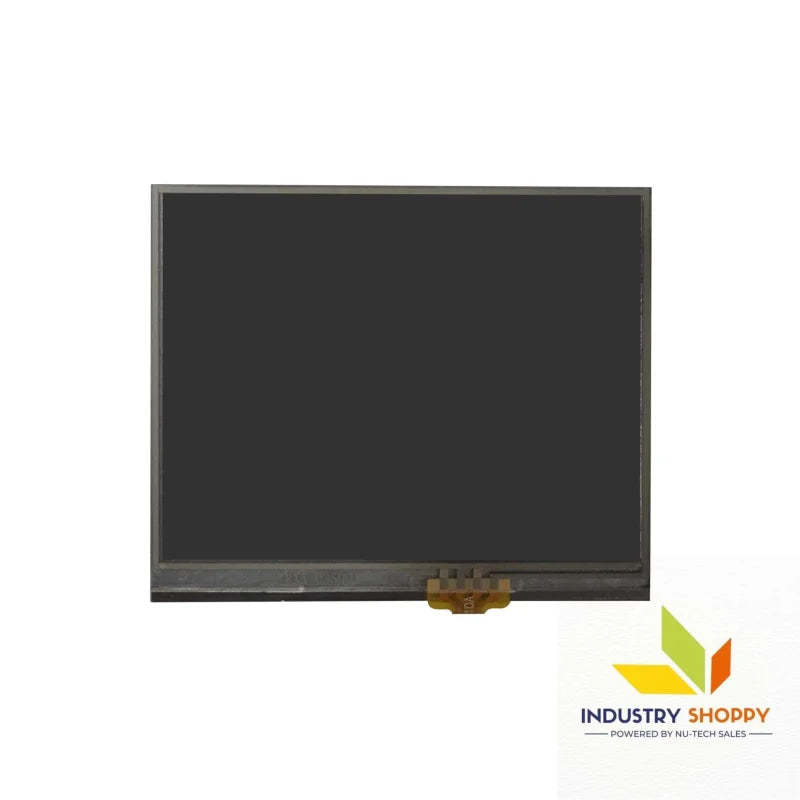

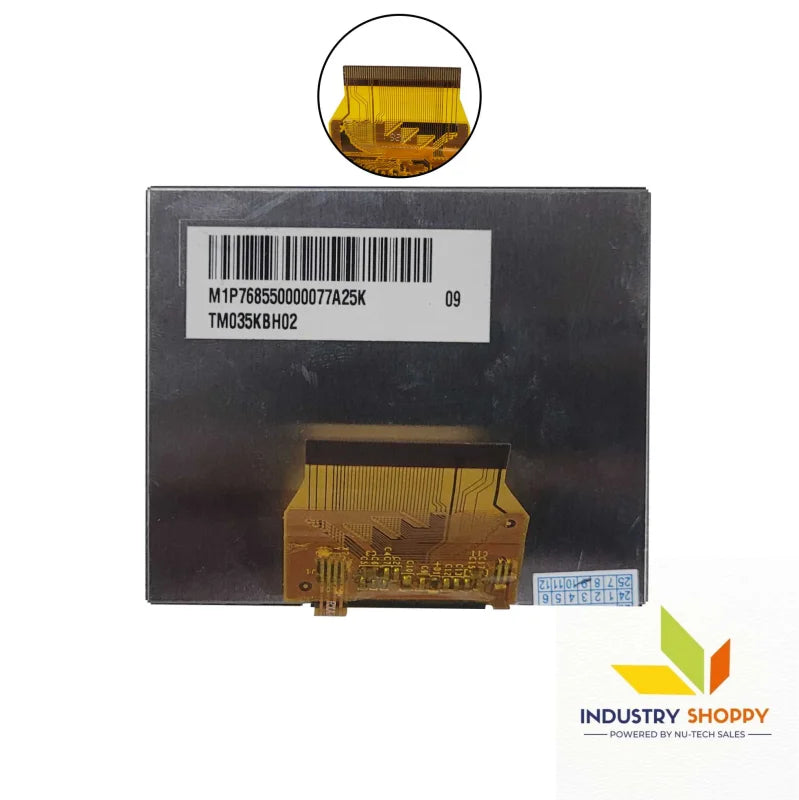

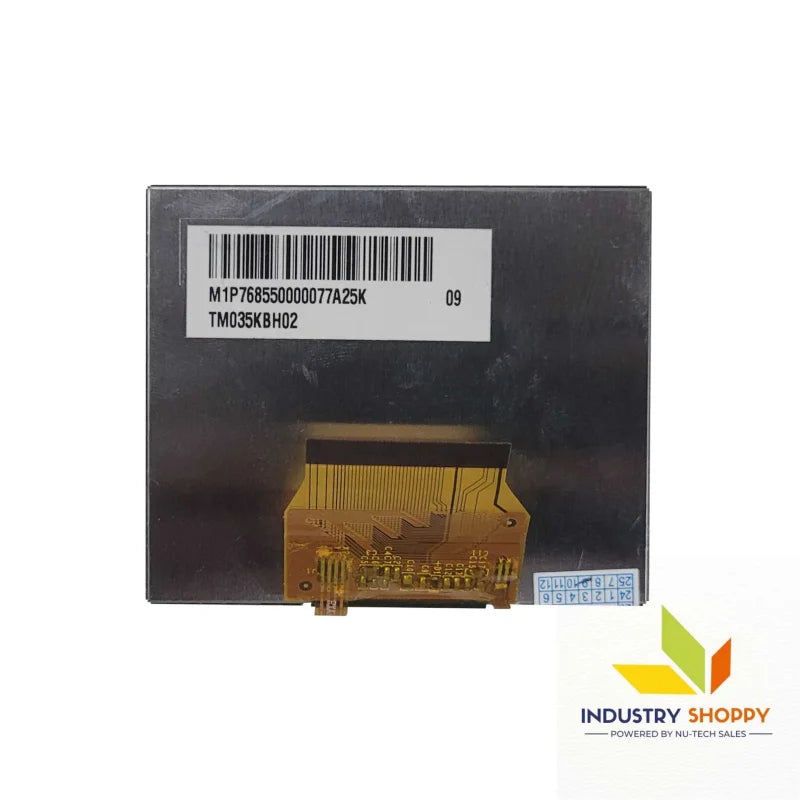

Tianma TM035KBH02 LCD Module with Touch Screen
The Tianma TM035KBH02 is a 3.5-inch a-Si TFT-LCD module with an integrated touch screen, designed to provide high-quality, responsive displays for a variety of applications. This compact module features a resolution of 320x480 (HVGA) and a pixel density of 180 PPI, ensuring crisp, clear visuals with excellent color reproduction. The inclusion of a resistive touch screen enables intuitive user interaction, making it ideal for devices requiring both visual output and touch functionality.
With a brightness of 400 cd/m² and a contrast ratio of 500:1, the TM035KBH02 offers good visibility in various lighting conditions. The module features wide viewing angles of 70°/70°/60°/70° (L/R/U/D), ensuring consistent image clarity from multiple viewing positions. Its low power consumption makes it suitable for battery-powered devices where energy efficiency is essential.
The display is equipped with an LED backlight, offering a lifespan of up to 50,000 hours, ensuring long-term reliability. The touch screen's durability and functionality enhance the user experience, while the antiglare surface treatment improves readability in environments with ambient light.
Key Features:
- Brand: Tianma
- Model: TM035KBH02
- Diagonal Size: 3.5 inches
- Resolution: 320×480 (HVGA), 180 PPI
- Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
- Active Area: 70.08(W) × 105.12(H) mm
- Bezel Opening: 73.08(W) × 108.12(H) mm
- Outline Dimensions: 77.6(W) × 113.6(H) × 7.6(D) mm
- Surface Treatment: Antiglare for enhanced readability in bright environments
- Brightness: 400 cd/m² (Typical), suitable for various lighting conditions
- Contrast Ratio: 500:1 (Typical), ensuring sharp visuals with clear differentiation
- Viewing Angle: 70°/70°/60°/70° (L/R/U/D), clear visibility from different angles
- Backlight Type: LED with a 50,000-hour lifespan for long-term use
- Display Mode: TN, Normally White, Transmissive
- Response Time: 25 ms (Typical, Tr/Td) for smooth, responsive visuals
- Signal Interface: RGB interface with 24-bit data width
- Input Voltage: 3.3V (Typical for VCC)
- Operating Temperature: -20°C to 70°C, designed for use in a wide range of environments
- Storage Temperature: -30°C to 80°C, suitable for flexible storage in varying conditions
Applications:
- Handheld Devices: Perfect for portable devices requiring compact, high-resolution displays with touch functionality
- Industrial Control Panels: Ideal for industrial systems where space is limited, but interactive, high-quality displays are necessary
- Point-of-Sale (POS) Displays: Reliable for retail and customer interaction systems that require both visual clarity and touch capability
- Medical Devices: Suitable for small medical equipment and diagnostic tools where touch interaction and display clarity are critical
Technical Precautions:
- Handling: Handle the module with care to prevent damage to the surface or internal components
- ESD Protection: Ensure proper electrostatic discharge (ESD) precautions during installation to protect the module
- Temperature Limits: Operate the module within the specified temperature range (-20°C to 70°C) for optimal longevity
- Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure reliability
- Backlight Maintenance: Regularly inspect the backlight for optimal performance, as it has a lifespan of 50,000 hours
