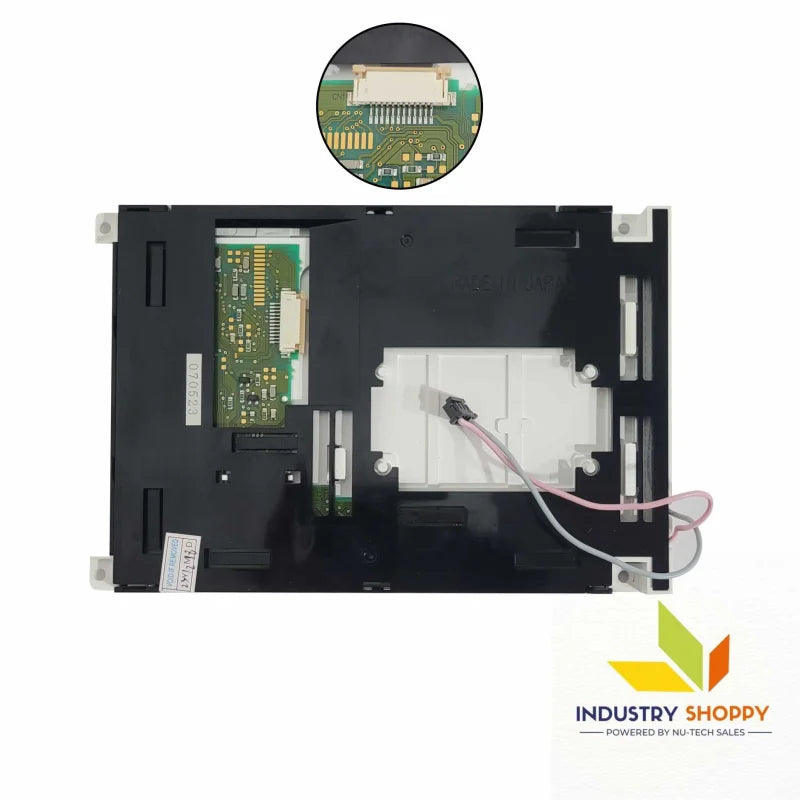

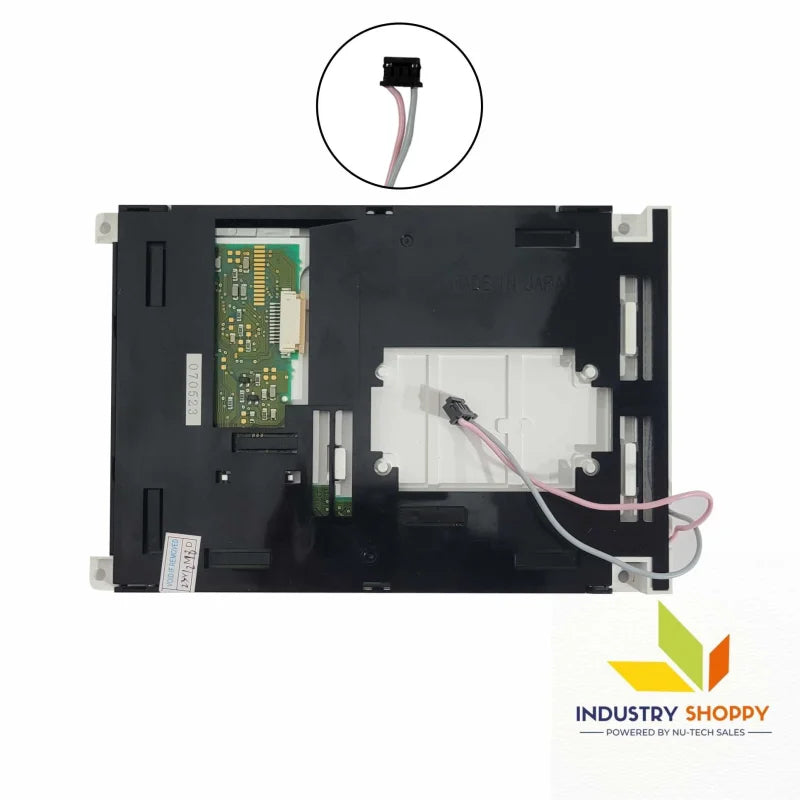

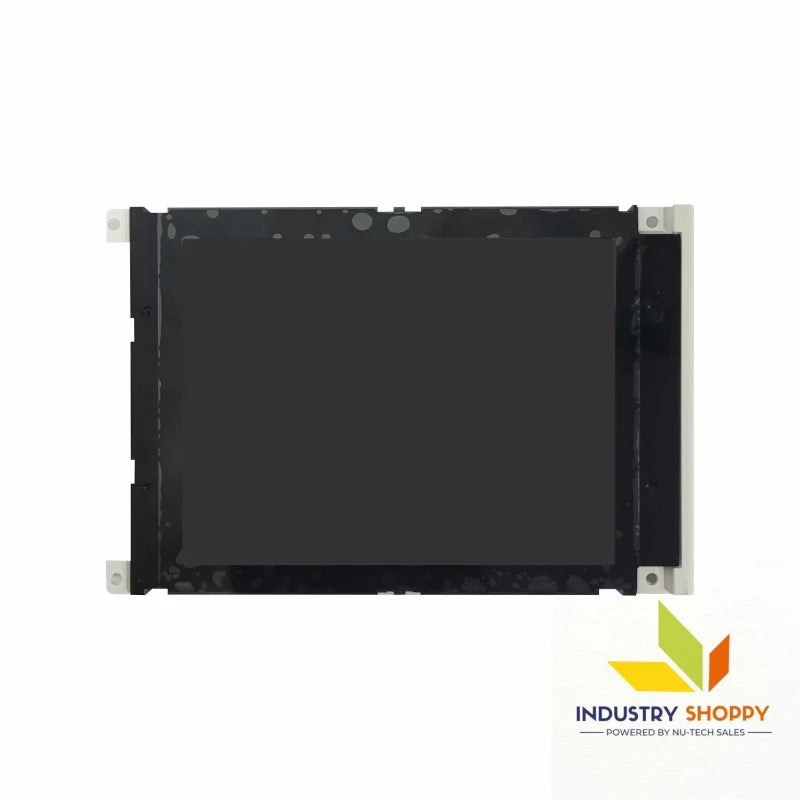

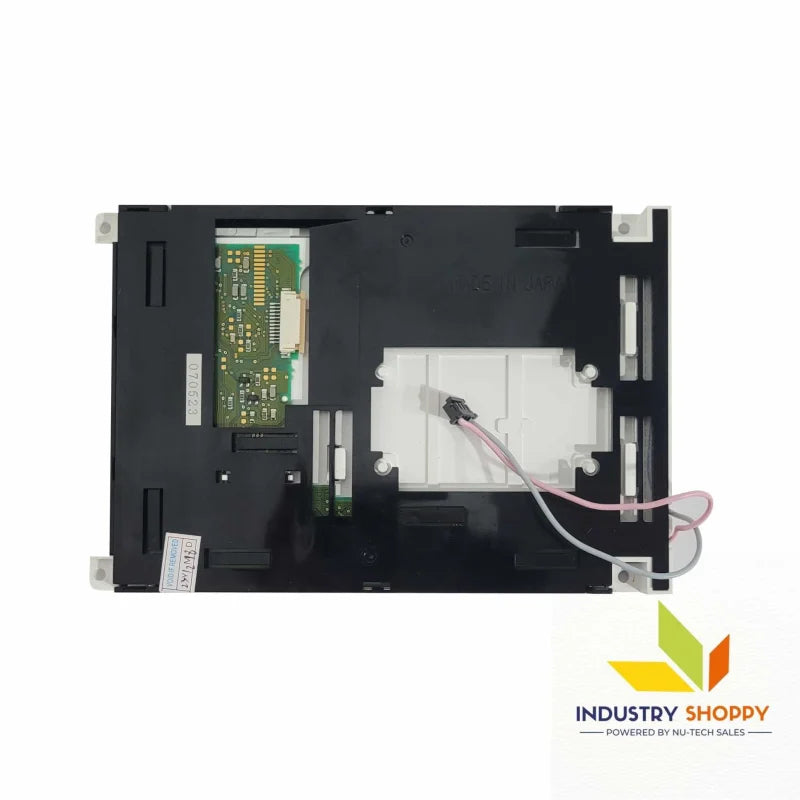

Stanley GMF32024HBTW LCD Module

Stanley GMF32024HBTW LCD Module

The Stanley GMF32024HBTW LCD Module is a versatile 7.2-inch display solution designed for applications where dependable monochrome visibility and robust construction are essential. Featuring a 320×240 resolution, it ensures sharp representation of both text and graphics, making it suitable for data-focused interfaces.

With a luminance rating of 100 cd/m² and a minimum contrast ratio of 3:1, this display offers clear performance under controlled lighting conditions, ideal for embedded systems, industrial panels, and legacy equipment replacements. The STN (Super Twisted Nematic) panel technology ensures excellent power efficiency and wide compatibility with various controllers.

The module supports STN, Black/White mode operation and uses a standard 8-bit parallel interface, offering straightforward integration into industrial and embedded applications. Equipped with a single CCFL backlight, the GMF32024HBTW maintains stable illumination for reliable long-term use.

Its operating temperature range from 0°C to 50°C makes it suitable for indoor and light industrial environments. This module is a practical choice for system builders seeking durability, clarity, and simple integration.

Key features :-

• Brand: Compatible (Stanley)
• Model: GMF32024HBTW
• Diagonal Size: 7.2"
• Resolution: 320×240
• Active Area: 121(W)×91(H) mm
• Outline Dimension: 166.9(W)×110(H)×12(D) mm
• Luminance: 100 cd/m²
• Contrast Ratio: 3:1 (Minimum)
• Response Time: 300 ms
• Panel Type: STN
• Operating Mode: STN, Black/White mode
• Signal Interface Type: 8-bit parallel interface
• Backlight: 1 pcs CCFL
• Operating Temperature: 0°C to 50°C

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
