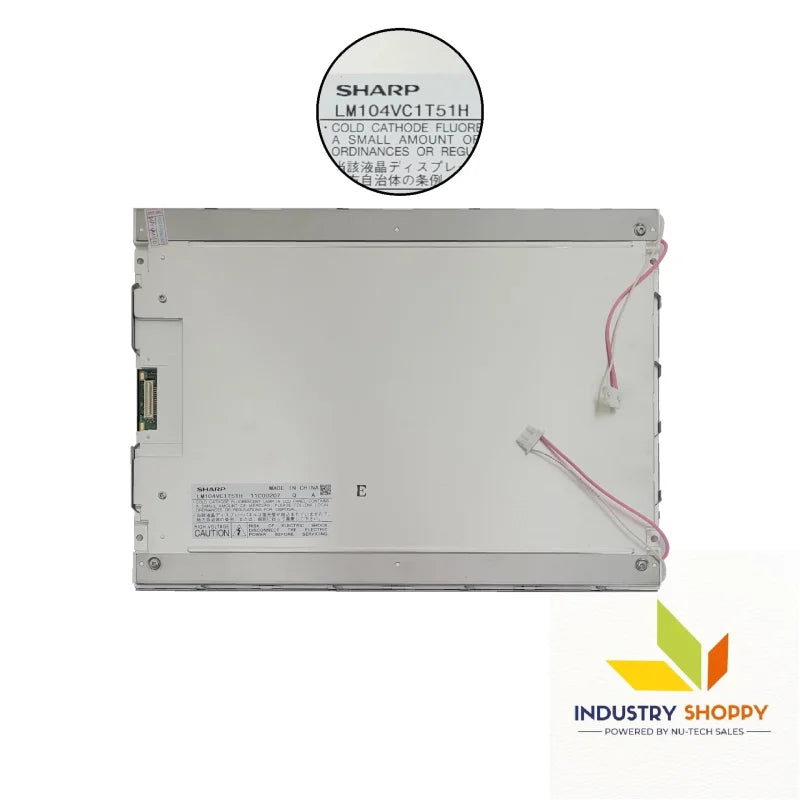

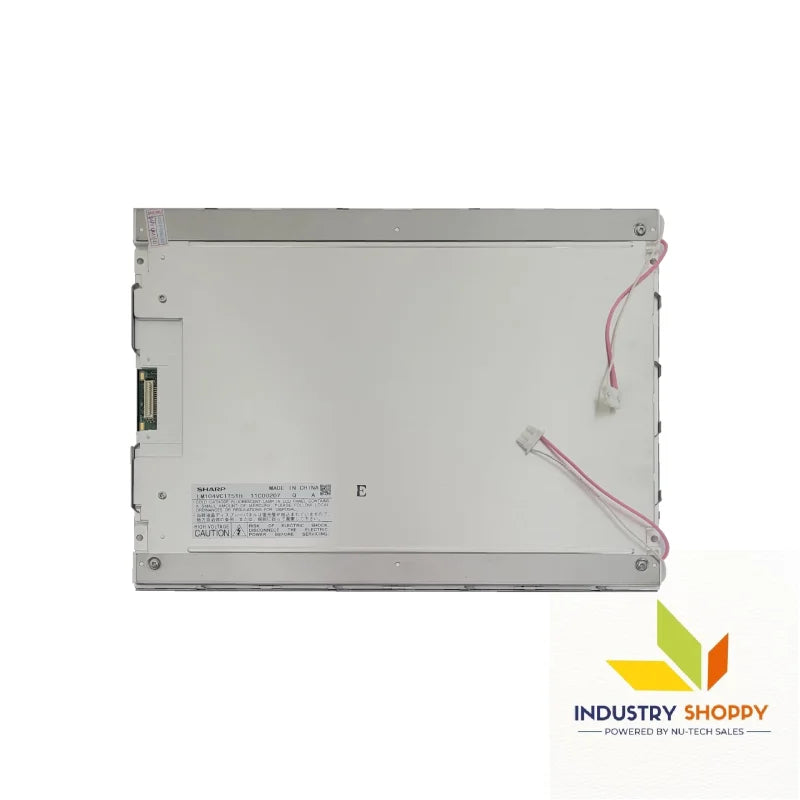

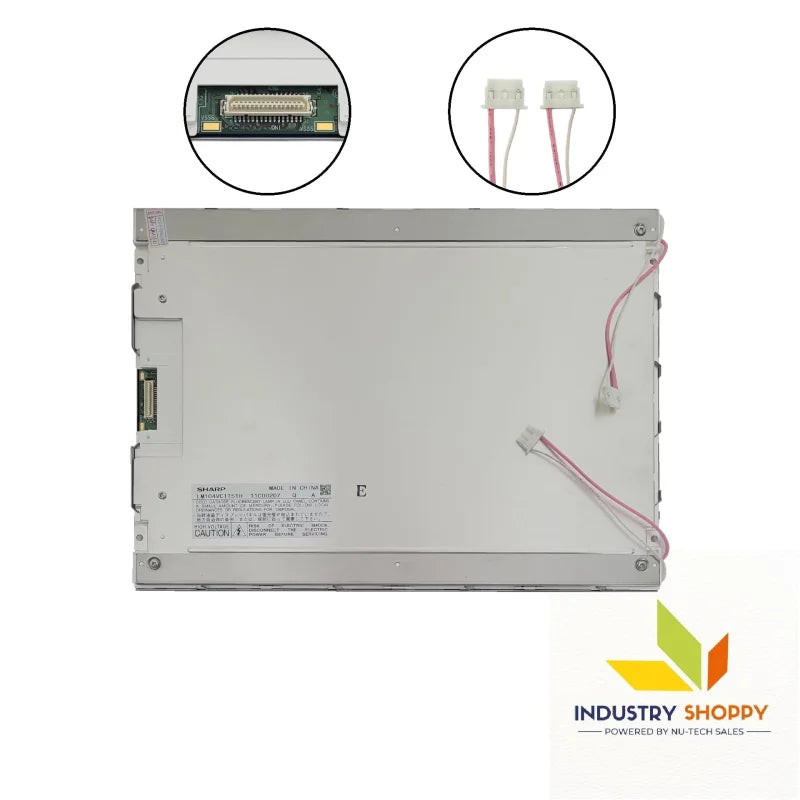

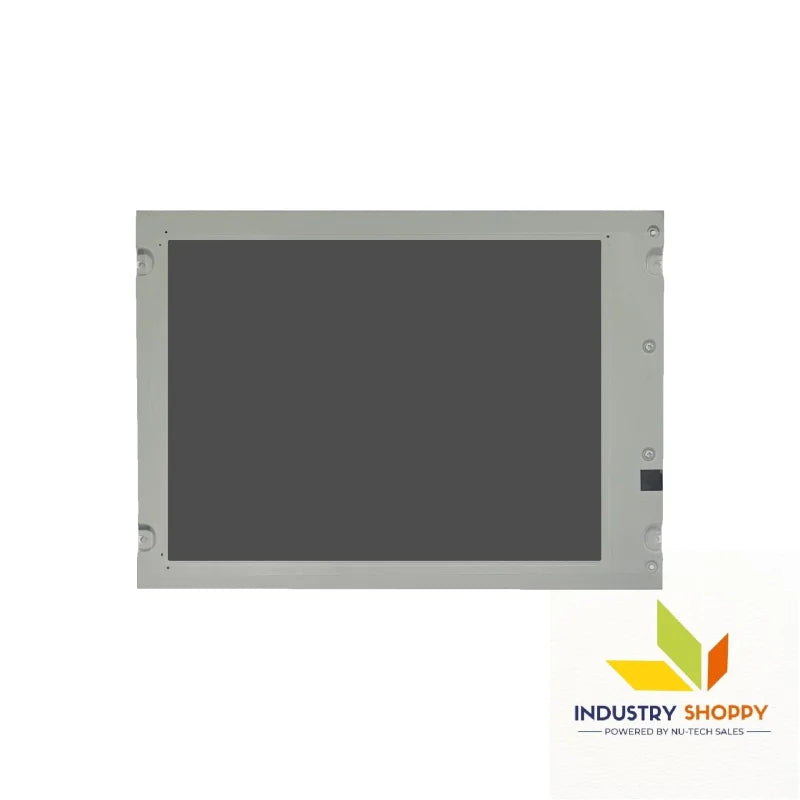

Sharp LM104VC1T51H LCD Module

Sharp LM104VC1T51H LCD Module

The Sharp LM104VC1T51H LCD Module is a reliable industrial-grade module designed for cost-effective and stable visual performance in embedded and legacy systems. Built using CSTN (Color Super-Twisted Nematic) technology, this display ensures consistent color reproduction, making it suitable for basic graphical interfaces and data monitoring applications.

Its STN, normally black, transmissive operating mode provides good contrast and readability under controlled lighting conditions. The RGB vertical stripe treatment enhances color clarity, making text and icons appear sharper compared to standard STN panels. Equipped with a durable CCFL backlight, the display offers long service life for continuous operation environments. Although specific parameters like luminance, contrast ratio, and dimensions are not provided,

Sharp’s industrial displays are known for wide compatibility, stable electrical performance, and high durability. This panel is ideal for equipment upgrades, instrument screens, medical devices, and industrial control systems that require dependable, legacy-friendly display technology.

Applications:

• Industrial control panels and machine interfaces

• Medical diagnostic equipment and portable devices

• Test and measurement instruments

• POS terminals and transaction systems

• Embedded systems requiring cost-effective color display



Technical Precautions:

• Avoid pressure on the LCD surface to prevent color distortion.

• Ensure proper CCFL inverter for stable backlight operation.

• Operate within temperature limits specified in device datasheet.

• Protect panel from moisture, dust, and vibration.

• Handle flex cables carefully to avoid tearing or connector damage.
