Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic CX-482-P Retroreflective Sensor
Panasonic

Panasonic CX-482-P Retroreflective Sensor

Product SKU: NTSSEN00073
Available:
Only 16 items in stock
16 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UCX482P
  • Type
:  Retroreflective Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$75.00
$110.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

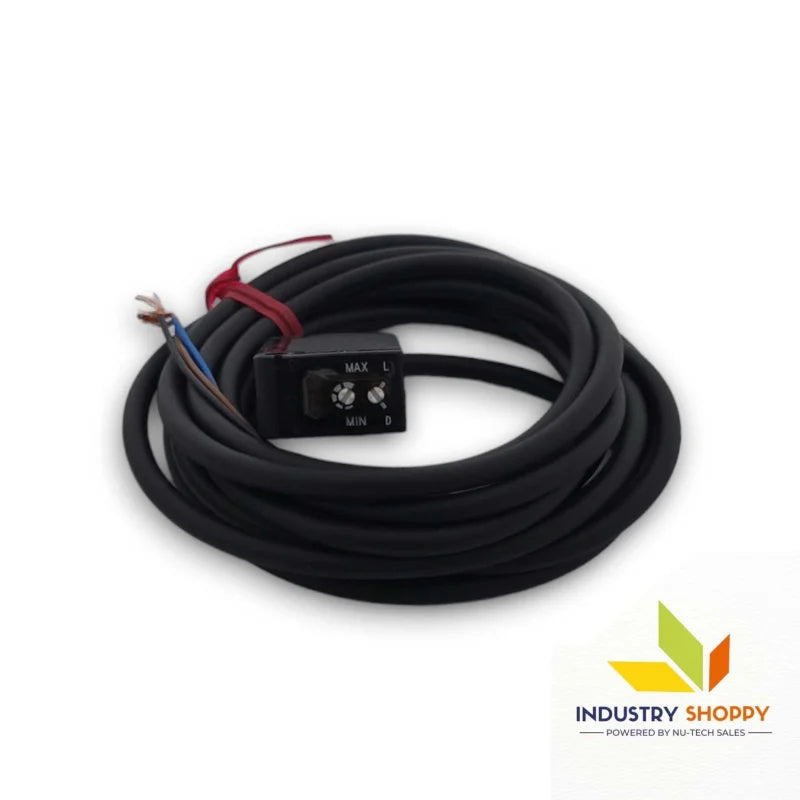

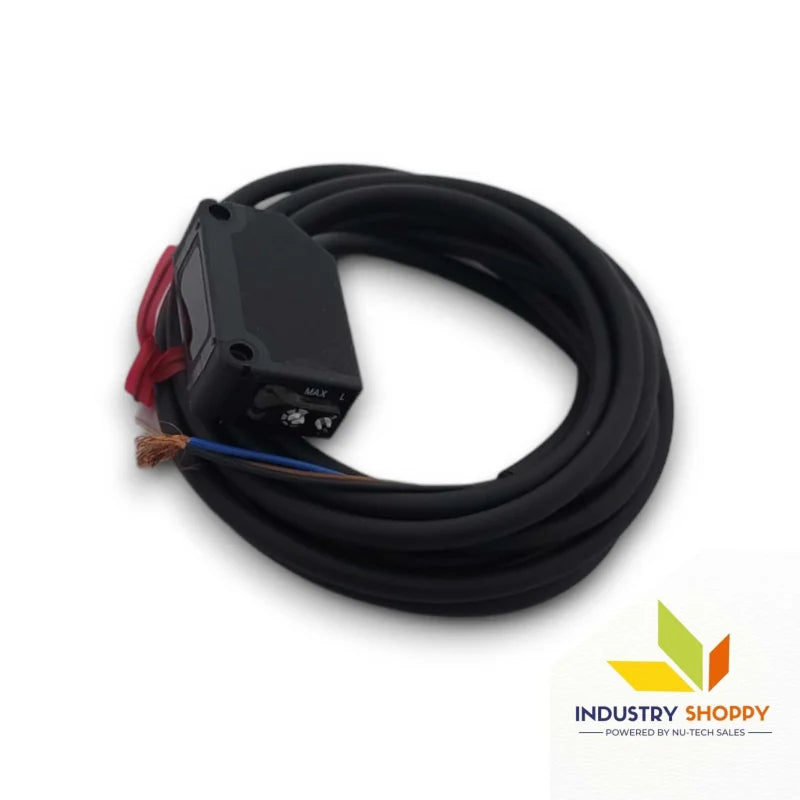

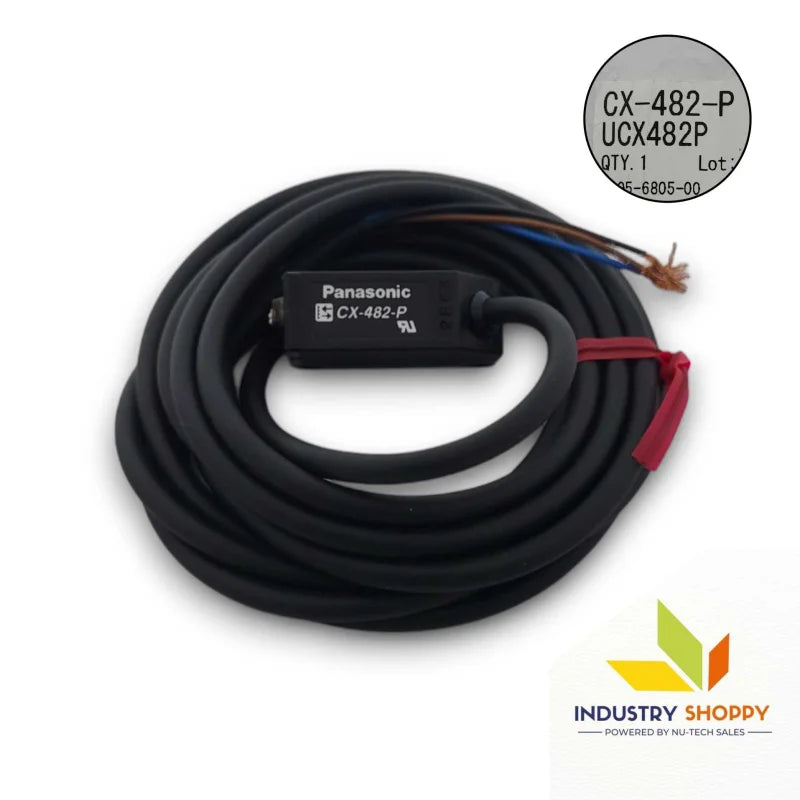

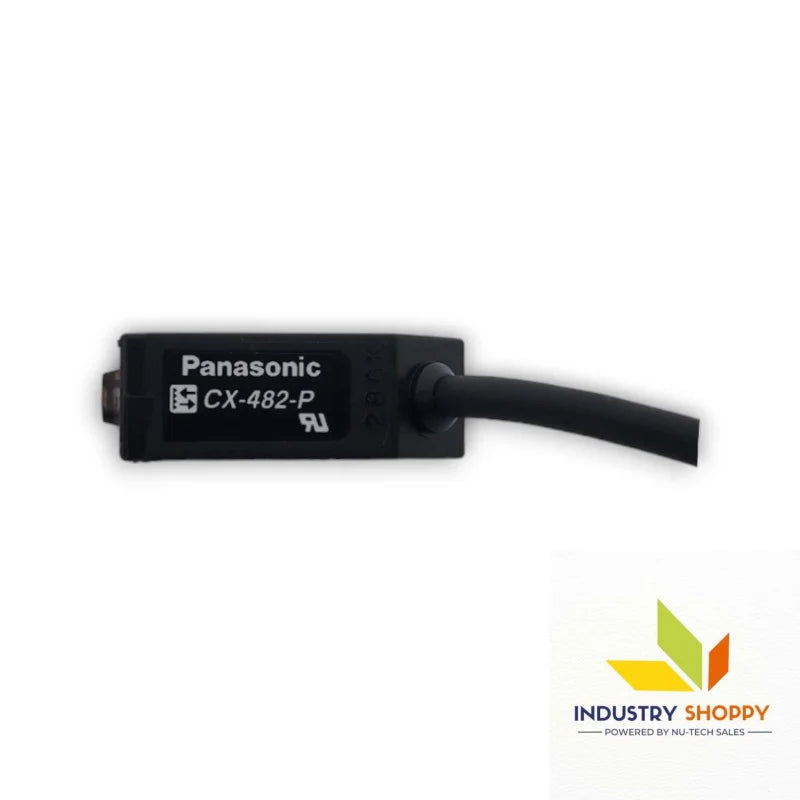

Panasonic CX-482-P Retroreflective Sensor

The Panasonic CX-482-Photoelectric Sensor (Part No. UCX482P) is a retroreflective photoelectric sensor designed for reliable and accurate detection in a wide range of applications. With a sensing range of 0.1 to 2 meters (0.328 to 6.562 ft), it can effectively detect objects of various materials, including transparent, translucent, and opaque objects that are Ø50 mm or more in diameter. The sensor features a PNP open-collector transistor output, which can operate in Light-ON or Dark-ON modes, offering flexibility for different applications.

The response time of 1 ms ensures quick detection and high-speed performance, while the IP67 protection makes it suitable for industrial environments, providing dust and water resistance. The sensor operates within a temperature range of -25°C to +55°C, making it versatile for use in challenging conditions. Additionally, it comes with built-in automatic interference prevention, allowing two sensors to be mounted close together without interference. The infrared LED emitting element, with a peak emission wavelength of 870 nm, ensures reliable operation even in various lighting conditions.

Key features :-

Brand Panasonic
Product name CX-482-P
Part Number UCX482P
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 0.1 to 2 m 0.328 to 6.562 ft

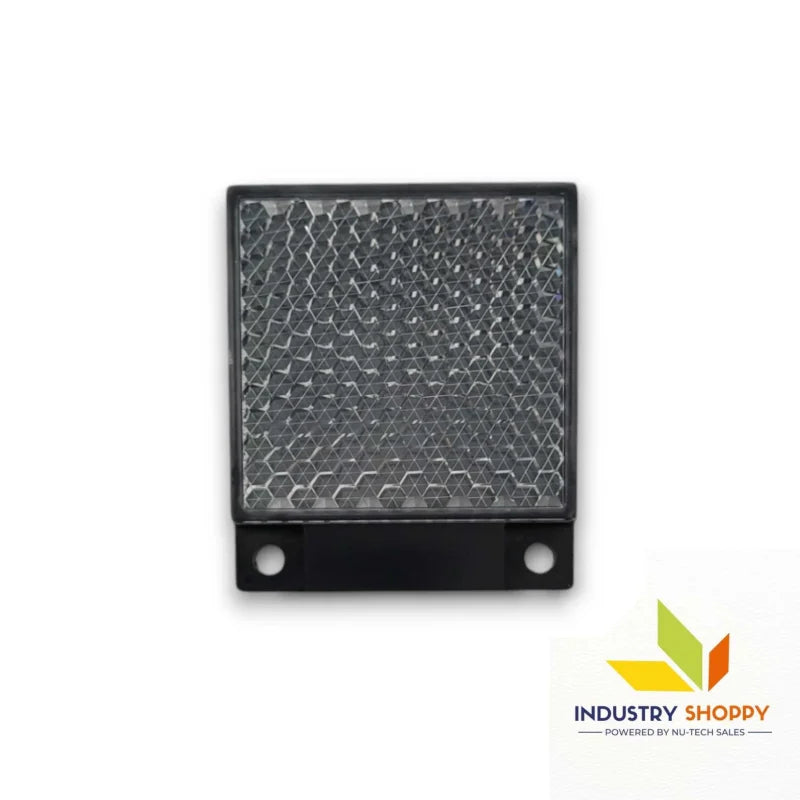

(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
Sensing Object Ø50 mm Ø1.969 in or more transparent , translucent or opaque object
(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
(Note) Make sure to confirm detection with an actual sensor before use.
Repeatability (Perpendicular to Sensing Axis) 0.5 mm 0.020 in or less
Hysteresis -
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 10 mA or less
Output PNP open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability Indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power Indicator -
Sensitivity Adjuster Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic Interference Prevention Function Incorporated(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Infrared LED
Emitting Element (Modulated): Peak Emission Wavelength 870 nm 0.034 mil
Material Enclosure: PBT (polybutylene terephthalate)
Lens: polycarbonate
Indicator cover: polycarbonate
Cable 0.2 mm23-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Industrial automation: For object detection on production lines.
  • Material handling: Detects objects in conveyors or sorting systems.
  • Packaging systems: Ideal for detecting presence or position in packaging machinery.
  • Robotics: Enables robots to sense objects in dynamic environments.
  • Safety systems: Used in industrial environments for safety checks and machine protection.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
