NTS SP14N003 LCD Module

NTS SP14N003 LCD Module

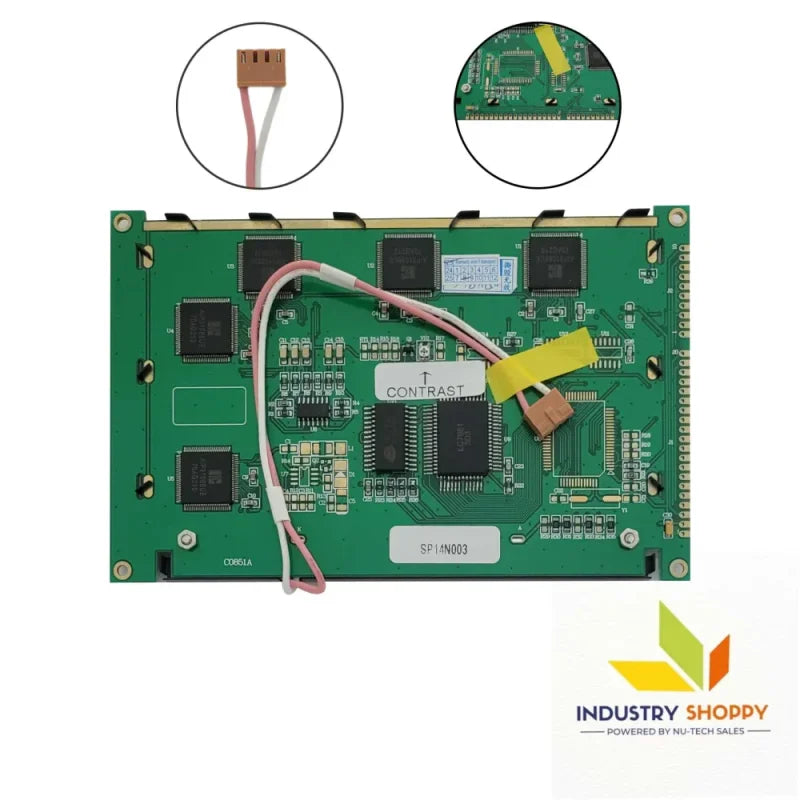

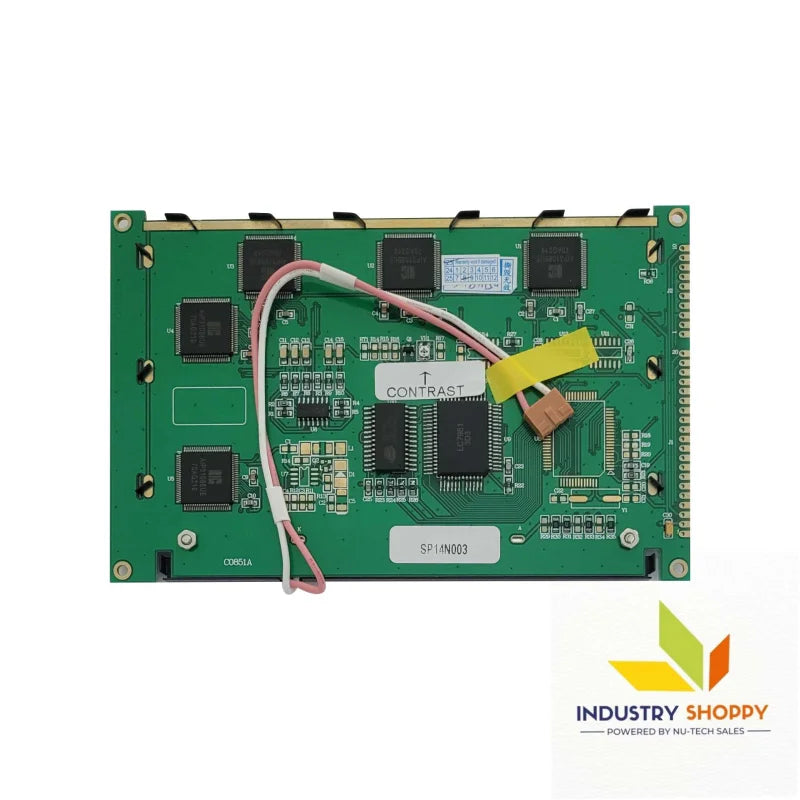

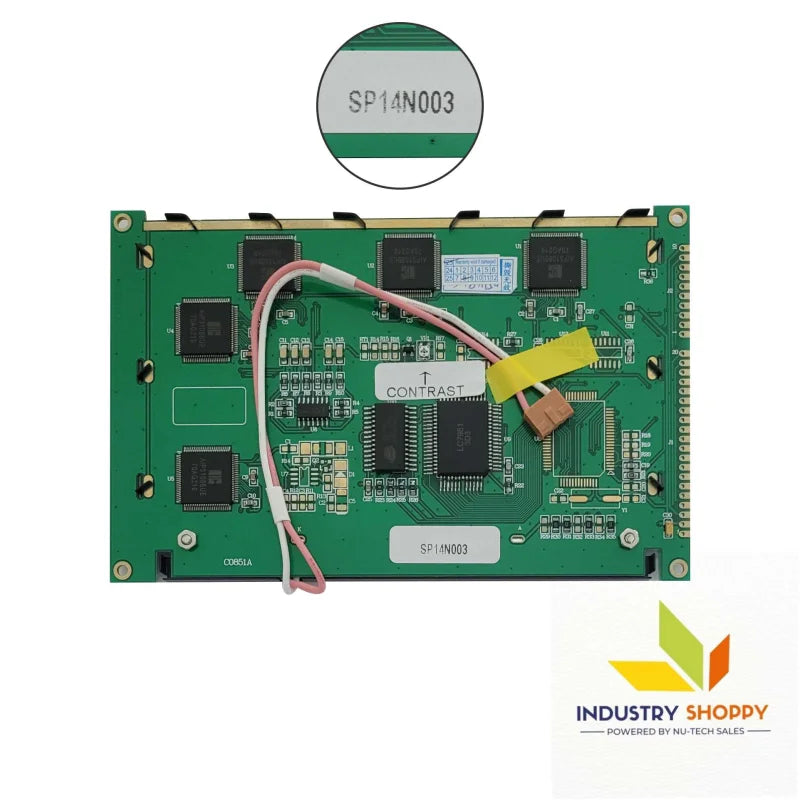

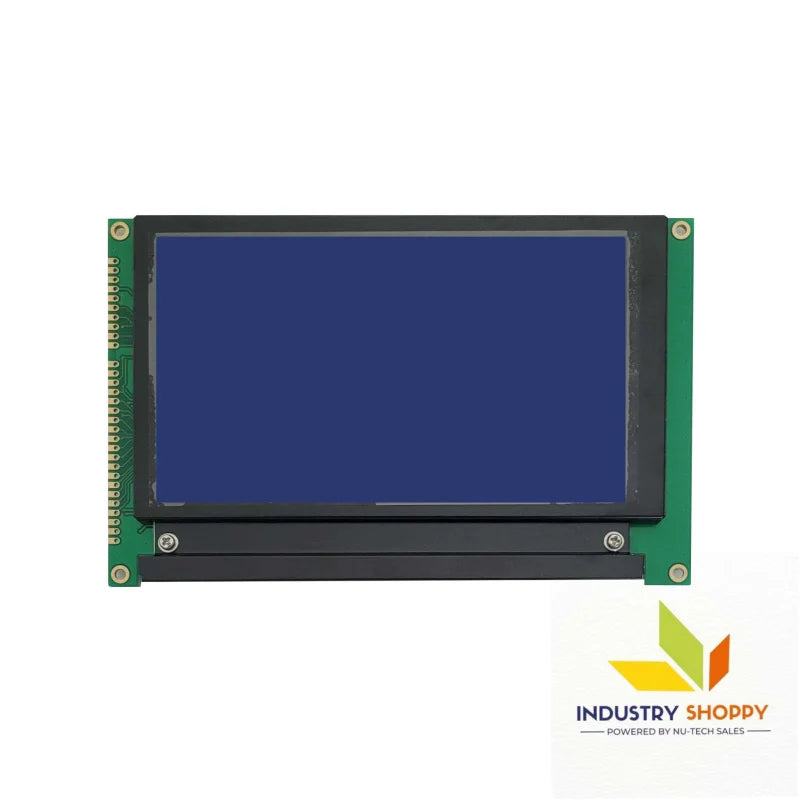

The NTS SP14N003 LCD Module offers dependable performance and sharp monochrome visuals in industrial and embedded system environments. Its 5.1-inch diagonal size paired with a 240×128 resolution ensures clear data representation at 50 PPI for user interfaces and control systems.

Built on STN-LCD technology with Blue Mode (Negative) Transmissive operation, the display delivers strong contrast and sharp text under various lighting conditions. The antiglare and hard coating (3H) surface enhances readability and protects against daily wear.

The module provides a luminance of 90 cd/m² and a 7:1 contrast ratio, balancing visibility and efficiency. The viewing angle of 40° (CR≥2) and response times of 160/110 ms (Tr/Td) allow stable performance in real-time applications.

Featuring an 8-bit parallel interface and 20-pin pad connection, the SP14N003 is easy to integrate. Its CCFL backlight ensures long-lasting brightness, and the unit operates reliably across 0 ~ 50°C, making it ideal for instrumentation, automation, and diagnostic devices.

Key Features:

• Brand: NTS
• Model: SP14N003
• Diagonal Size: 5.1"
• Resolution: 240×128 — 50 PPI
• Active Area: 119.97(W)×63.97(H) mm
• Outline Dimension: 159.4(H)×101(V)×11(D) mm
• Luminance: 90 cd/m² (Typical)
• Contrast Ratio: 7:1 (Typical) (TM)
• Viewing Angle: 40° (Typical) (CR≥2, Φ2-Φ1)
• Response Time: 160/110 ms (Typical) (Tr/Td)
• Panel Type: STN-LCD, LCM
• Treatment: Antiglare, Hard Coating (3H)
• Operating Mode: STN, Blue Mode (Negative), Transmissive
• Support Color: Monochrome
• Signal Interface Type: 8-bit Parallel, 20 pins Pad
• Frame Rate: 75Hz
• Power Supply: 5.0V (Typical)
• Backlight: CCFL [1 pcs], Without Driver
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: 20 ~ 60°C
• Vibration Level: 2.0G (19.6 m/s²)


Applications:

• Industrial Control Systems: Ideal for larger control panels that need high-quality, sharp visuals
• Interactive Kiosks: Perfect for self-service kiosks requiring vibrant, clear screens for user interaction
• Digital Signage: Suitable for large-format signage systems in public spaces or retail environments
• Medical Devices: Great for larger medical equipment requiring detailed visuals and easy readability

Technical Precautions:

• Handling: Handle carefully to prevent surface or internal damage
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance
