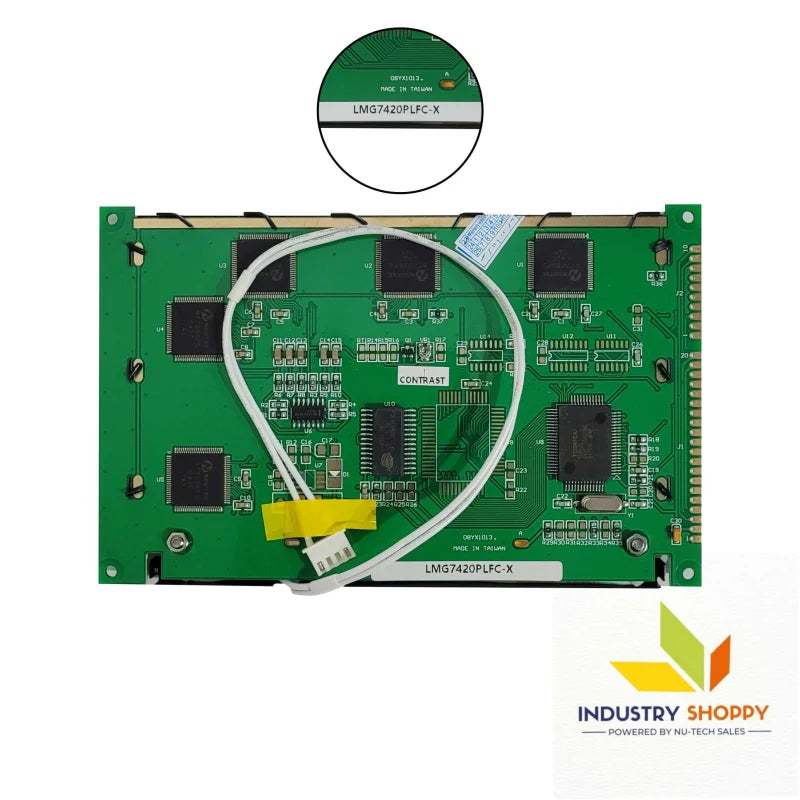

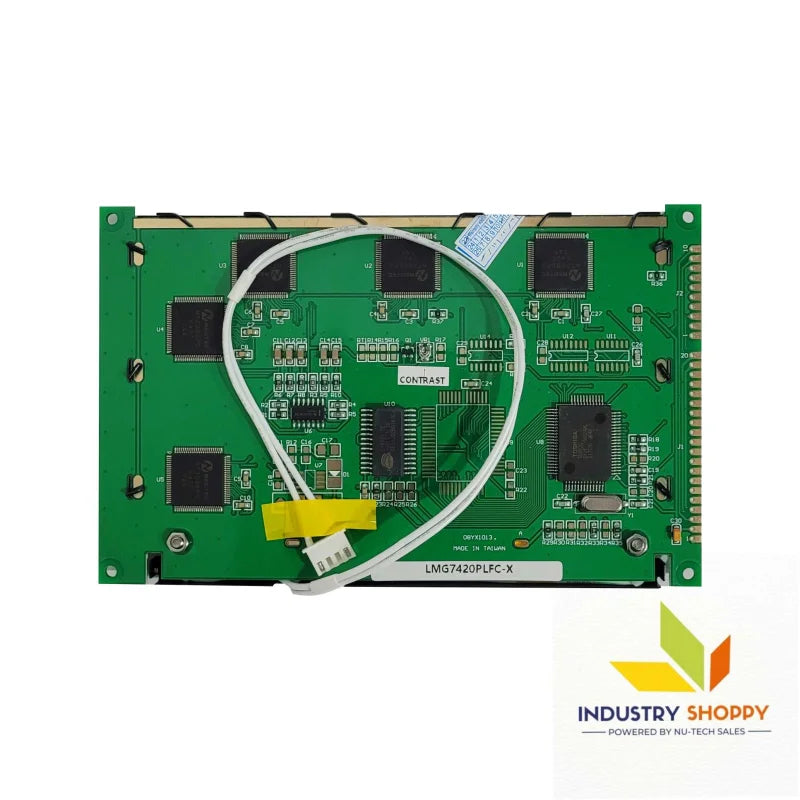

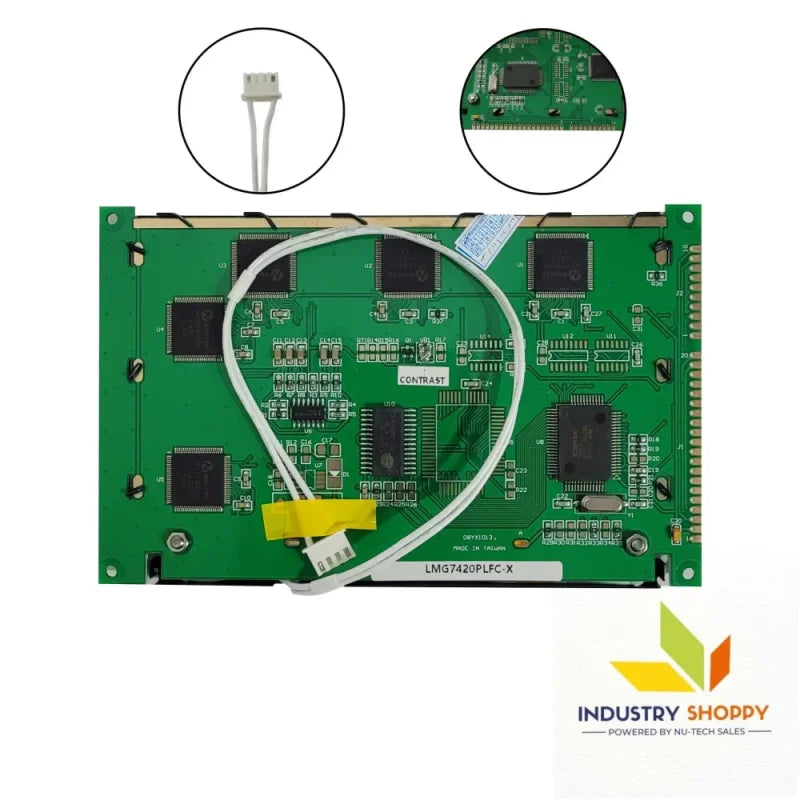

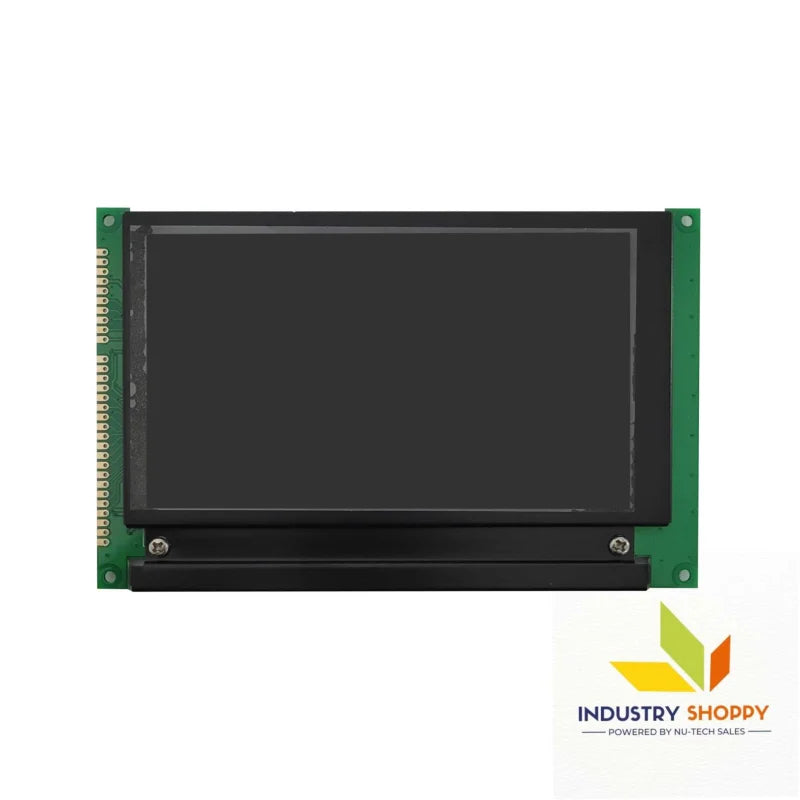

NTS LMG7420PLFC-X LCD Module

NTS LMG7420PLFC-X LCD Module

The NTS LMG7420PLFC-X LCD Module features a 5.1-inch display with a 240×128 resolution, offering clarity and precision with a 50PPI pixel density. It utilizes FSTN-LCD technology with a black/white negative display, ideal for applications requiring simple, monochrome visuals.

With a 150 cd/m² brightness and 20:1 contrast ratio, this module ensures readability in controlled lighting environments. The viewing angles of 40/40/40/40 provide consistent visibility from multiple directions.

Designed for reliable industrial use, this module supports an 8-bit parallel interface, and the 1 pcs CCFL backlight offers a lifespan of 50K hours, ensuring long-term performance. Its hard coating (3H) treatment enhances durability, making it suitable for harsh environments.

Operating at 5.0V, this module is versatile, supporting a wide range of systems and applications. The module is built to function in temperatures ranging from 0°C to 50°C, with a vibration level tolerance of 2.0G.

Key features :-

• Brand: NTS
• Model: LMG7420PLFC-X
• Diagonal Size: 5.1"
• Resolution: 240×128, 50PPI
• Active Area: 119.97(W)×63.97(H) mm
• Outline Dimension: 159.4(H)×101(V)×12(D) mm
• Luminance: 150 cd/m² (Typ.)
• Contrast Ratio: 20:1 (Typ.) (TM)
• Viewing Angle: 40/40/40/40 (Typ.) (CR≥2)
• Response Time: 160/110 (Typ.) (Tr/Td)
• Panel Type: FSTN-LCD, LCM
• Treatment: Antiglare, Hard coating (3H)
• Operating Mode: STN, Black/White (Negative), Transmissive
• Support Color: Monochrome
• Signal Interface Type: 8-bit parallel, 20 pins Connector
• Frame Rate: 75Hz
• Power Supply: 5.0V (Typ.)
• Backlight: CCFL [1 pcs], 50K hours, W/O Driver
• Weight: 180g (Typ.)
• Operating Temp.: 0 ~ 50 °C
• Storage Temp.: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²)

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
