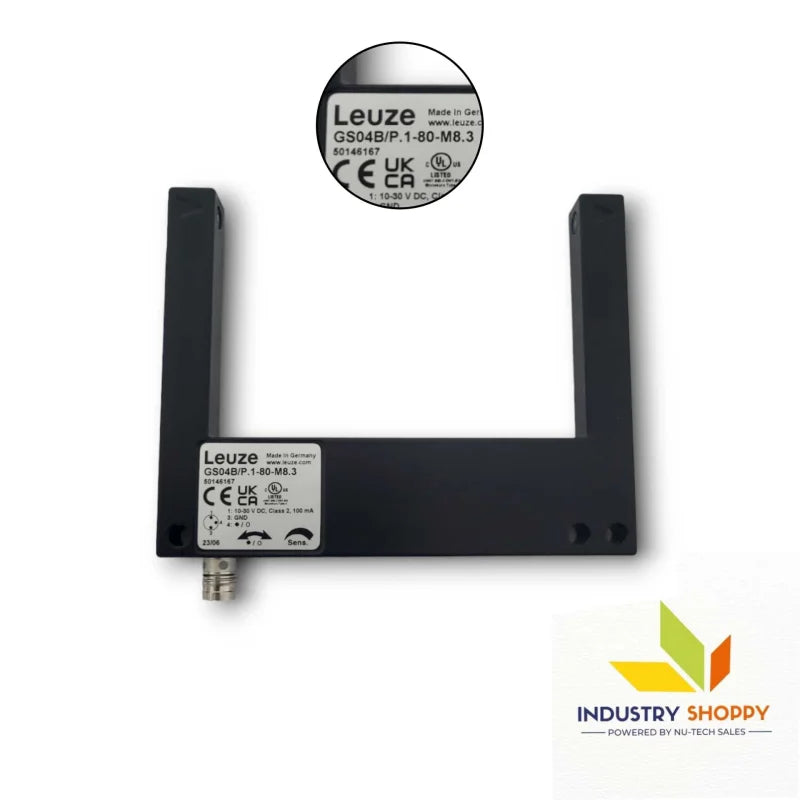

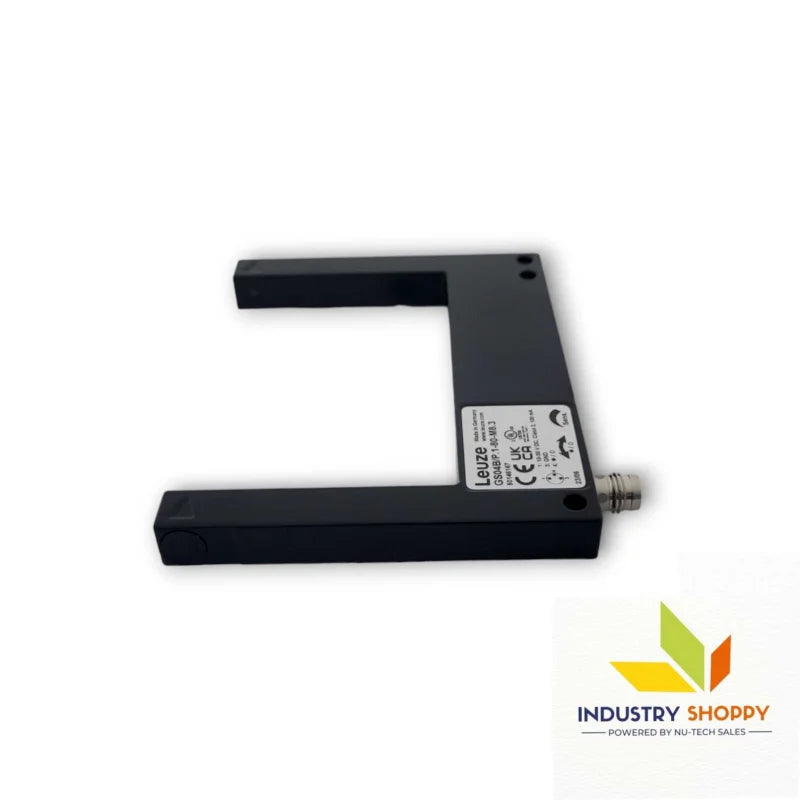

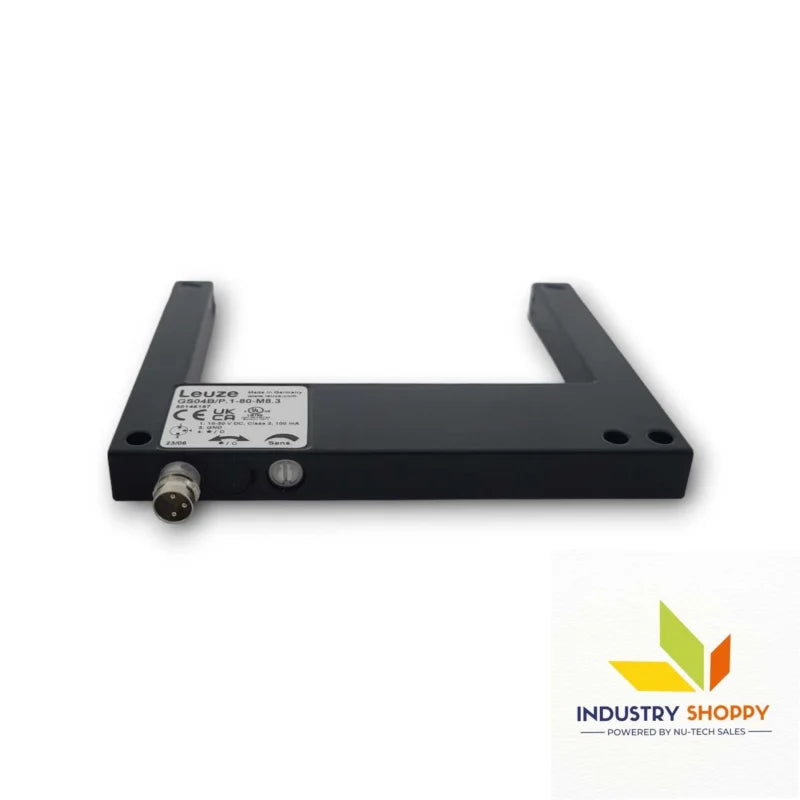

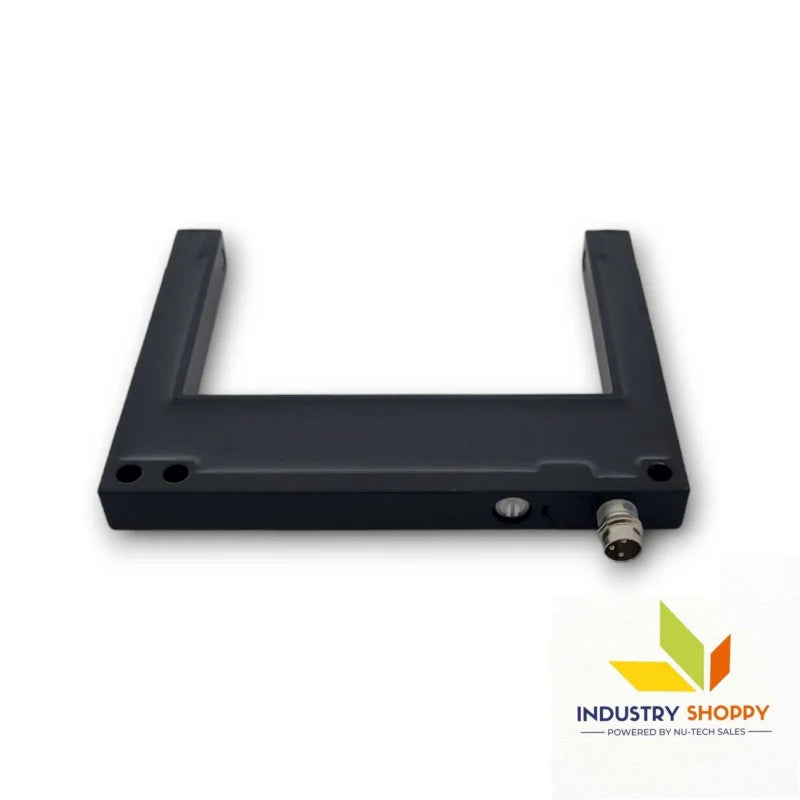

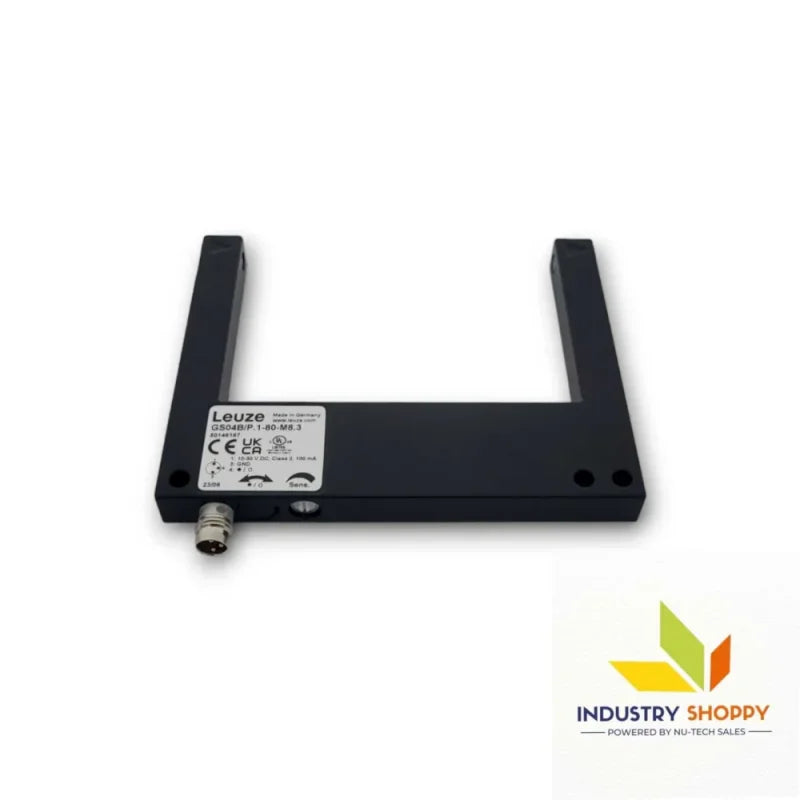

The Leuze GS04B/P.1-80-M8.3 Fork Sensor from the 04B series, fork sensors, also known as slot sensors, are a type of photoelectric sensor that uses a through-beam detection technology to identify objects passing through the space between its prongs. It features a fork design with a wide mouth width of 80 mm and a depth of 55 mm, making it suitable for applications requiring precise object detection.

Key Features:

• Part Number: 50146167
• Model Number: GS04B/p.1-80-M8.3
• Series: 04B
• Principle of Physics: Optical
• Application: Detection of small parts
• MTTF: 700.42 years (Mean Time To Failure)
• Light Source: LED, Red
• Wavelength: 660 nm
• Transmitted-Signal Shape: Pulsed
• Repeatability: 0.02 mm
• Minimum Object Diameter: 0.3 mm
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 to 30 V DC
• Residual Ripple: 0 to 15 % from UB
• Open-Circuit Current: 0 to 30 mA
• Switching Hysteresis: 100 µm
• Number of Digital Switching Outputs: 1 Piece(s)
• Type: Digital switching output
• Voltage Type: DC
• Switching Current, Max.: 100 mA
• Switching Voltage: High: ≥(UB-2V), Low: ≤ 2 V
• Switching Element: Transistor, PNP
• Switching Principle: Light/dark switchable
• Switching Frequency: 5,000 Hz
• Response Time: 0.1 ms
• Readiness Delay: 150 ms
• Number of Connections: 1 Piece(s)
• Function: Signal OUT, Voltage supply
• Type of Connection: Connector, M8 Male
• Material: Metal (Diecast zinc)
• No. of Pins: 3-pin
• Design: Fork
• Mouth Width: 80 mm
• Mouth Depth: 55 mm
• Dimensions (W x H x L): 10 mm x 100 mm x 80 mm
• Housing Material: Metal (Diecast zinc)
• Lens Cover Material: Glass
• Net Weight: 118 g
• Housing Color: Black, RAL 9005
• Type of Fastening: Through-hole mounting
• Type of Display: LED
• Number of LEDs: 1 Piece(s)
• Operational Controls: 270° potentiometer for sensitivity adjustment and light/dark switching
• Ambient Temperature, Operation: -25 to 60 °C
• Degree of Protection: IP 67
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2, DIN EN ISO 1389-1:2016 appendix C,D

Application: The GS04B/P.1-80-M8.3 sensor is designed for high precision detection of small parts in industrial environments. Its robust construction and versatile mounting options ensure reliable performance across various applications.

Technical Precautions:

• Ensure proper installation and secure connection to prevent operational issues.
• Adjust sensitivity carefully using the potentiometer to optimize detection performance.
• Maintain the sensor within the specified temperature range for optimal operation.
• Regularly inspect for any signs of wear or damage to ensure continued reliability.
