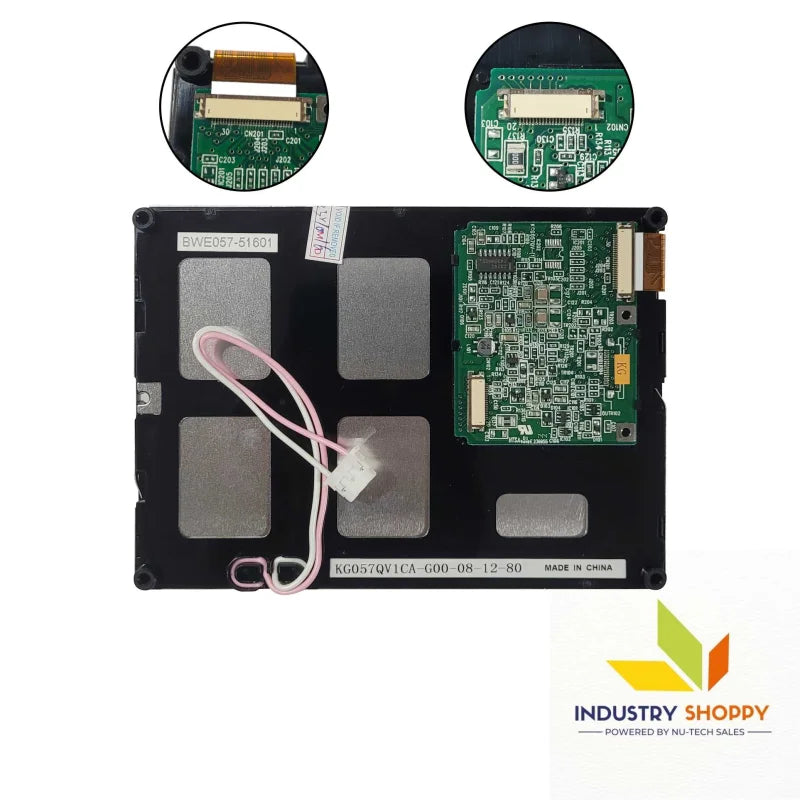

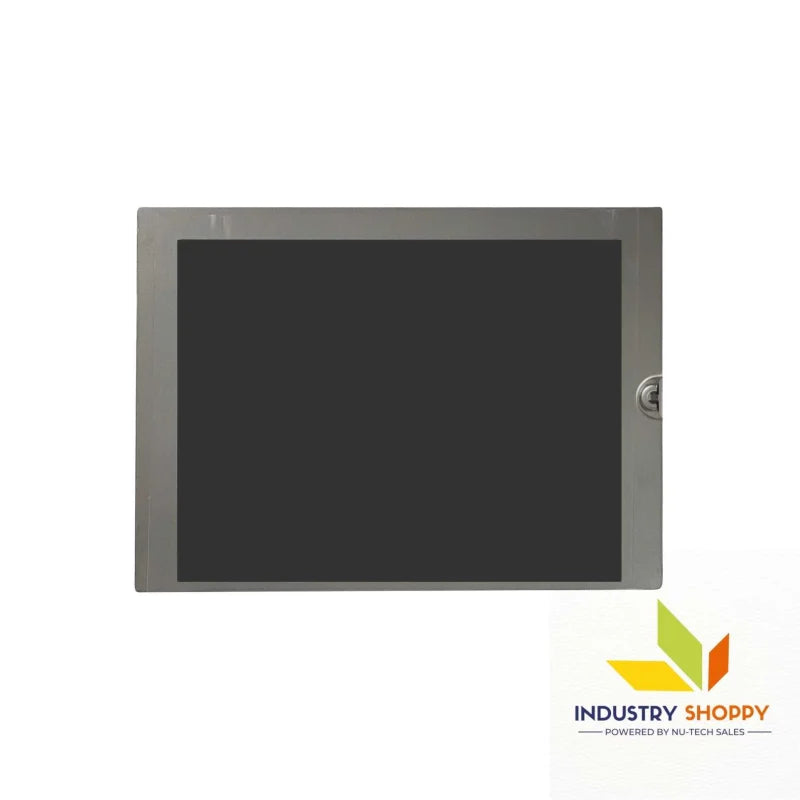

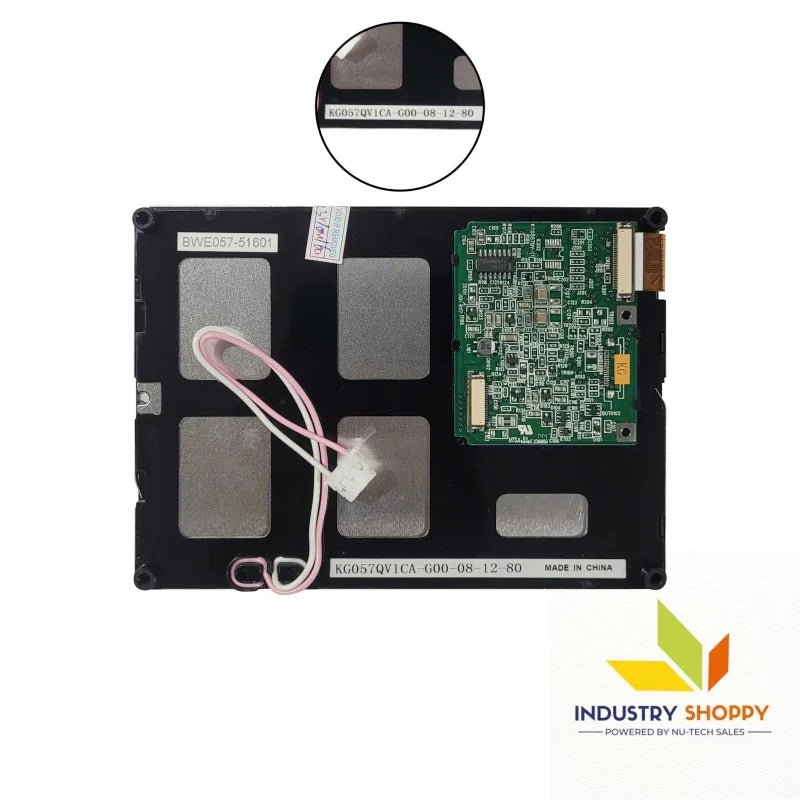

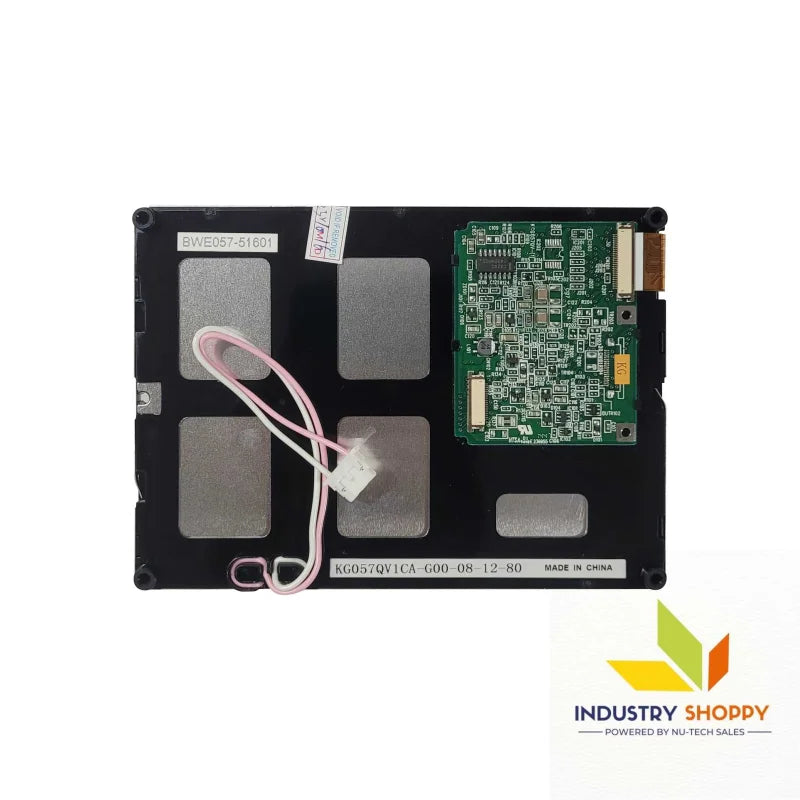

The Kyocera KG057QV1CA-G00 LCD Module is a high-quality 5.7-inch QVGA (320x240) display designed for industrial and embedded systems where clear and stable visuals are essential. With a pixel density of 70 PPI, it provides crisp imagery in a variety of environments.

This module boasts a 220 cd/m² luminance, ensuring visibility in most indoor settings, and offers a 10:1 contrast ratio for clear image definition. The display is capable of wide-angle viewing with 45/45/20/45-degree viewing angles, ensuring that the screen remains readable from different perspectives, though it’s best viewed directly.

Operating in STN, Black/White (Negative), Transmissive mode, the Kyocera KG057QV1CA-G00 excels at displaying monochrome text and images with high contrast. It uses FSTN-LCD technology with a glare-free (0% haze) treatment, making it ideal for applications requiring reduced reflections in bright environments.

With a CCFL backlight (58,000 hours life expectancy) and a 75Hz frame rate, this display offers stable performance in various industrial applications, operating within temperatures from 0°C to 60°C.

Key features :-

• Brand: Kyocera
• Model: KG057QV1CA-G00
• Diagonal Size: 5.7"
• Resolution: 320×240, QVGA, 70 PPI
• Active Area: 115.18(W)×86.38(H) mm
• Outline Dimension: 144(H)×104.8(V)×13.2(D) mm
• Luminance: 220 cd/m² (Typical)
• Contrast Ratio: 10:1 (Typical) (TM)
• Viewing Angle: 45/45/20/45 (Typical) (CR≥2)
• Response Time: 210/130 ms (Typical) (Tr/Td)
• Panel Type: FSTN-LCD, LCM
• Operating Mode: STN, Black/White (Negative), Transmissive
• Support Color: Monochrome
• Signal Interface Type: Parallel Data (1ch, 4-bit), 20 pins Connector
• Frame Rate: 75Hz
• Power Supply: 3.3/5.0V (Typical) (VDD)
• Backlight: CCFL [1 pc], 58K hours, Optional
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -20°C to 60°C

Applications:

• Industrial Control Systems Clear interface for equipment monitoring and control.
• Medical Instruments Reliable display for diagnostic tools.
• Testing Devices Precise display for measurement readings.
• Embedded Devices Compact and efficient for space-constrained systems.
• HMI Systems Robust visual output for human-machine interfaces.

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
