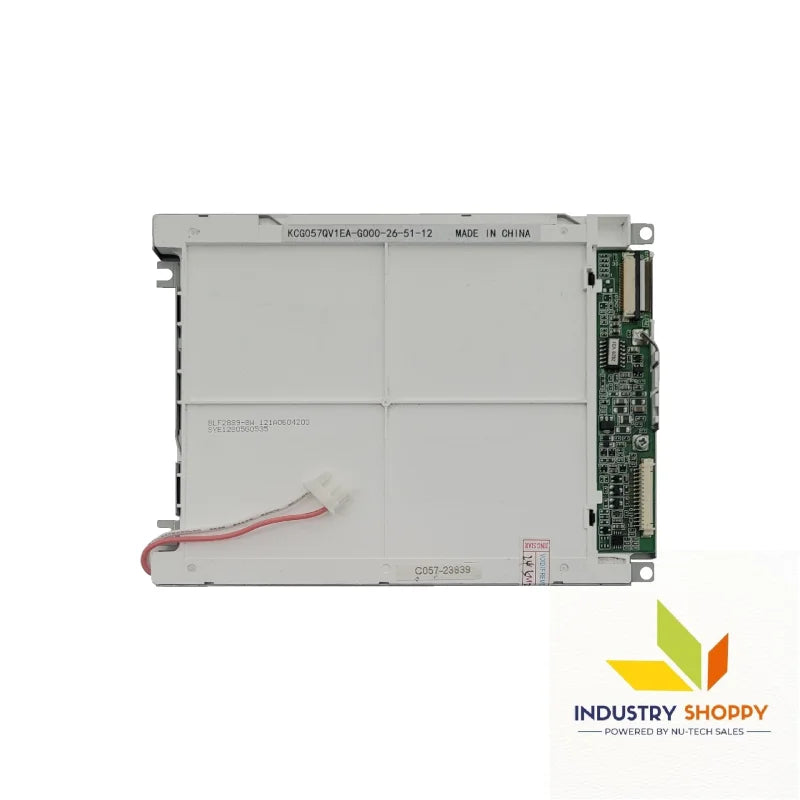

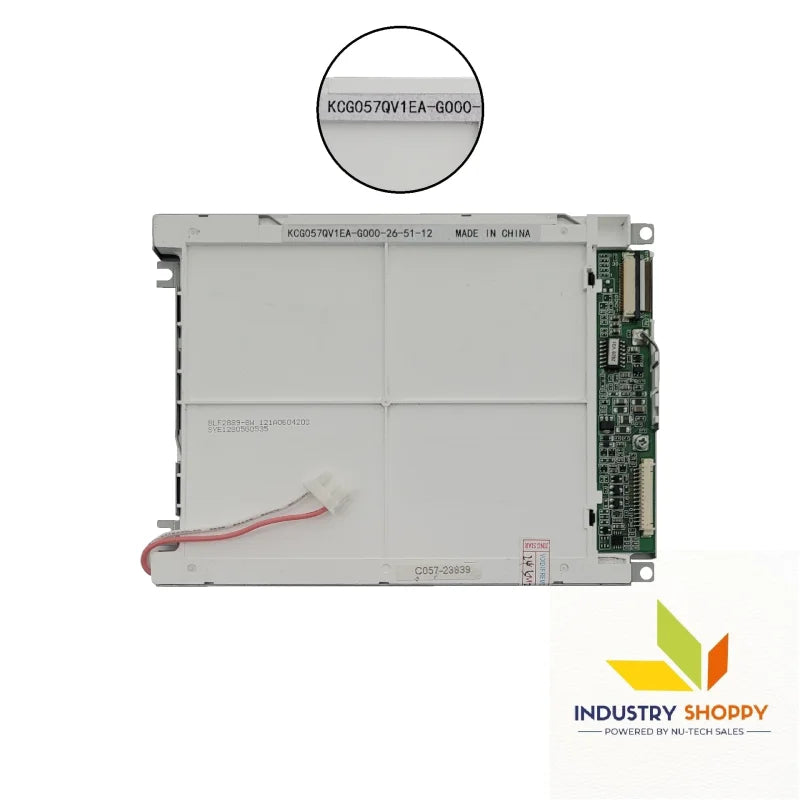

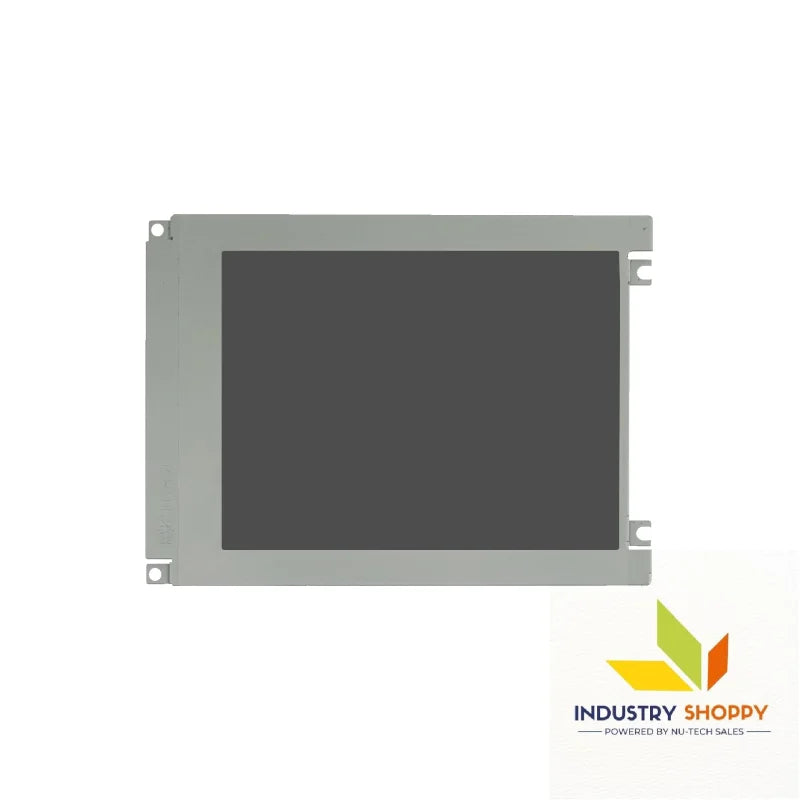

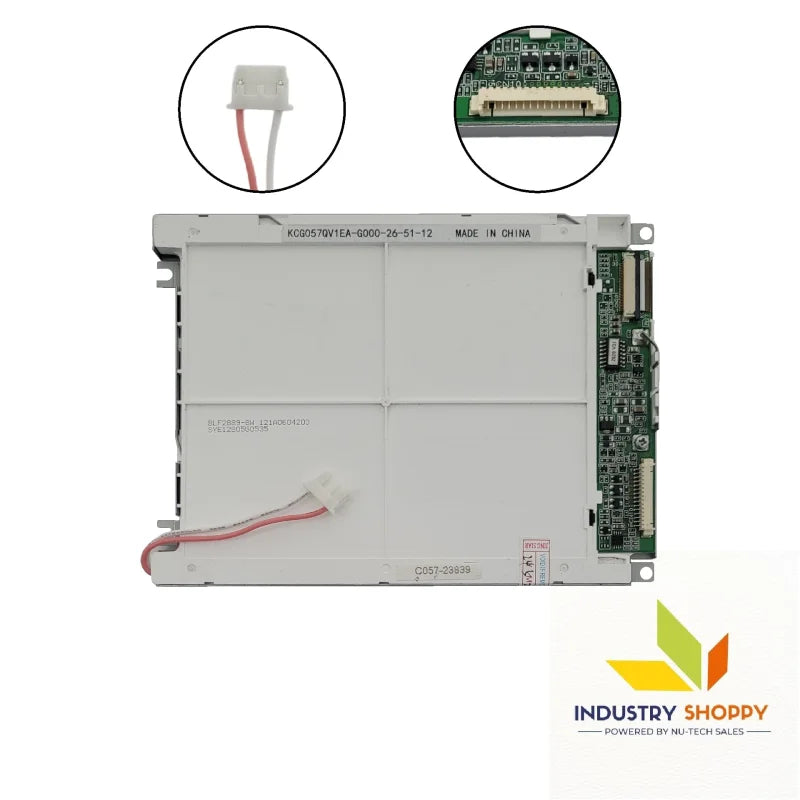

Kyocera KCG057QV1EA-G000 LCD Module

Kyocera KCG057QV1EA-G000 LCD Module

The Kyocera KCG057QV1EA-G000 LCD Module is a durable and reliable display solution designed for industrial and commercial applications that require stable performance and excellent visibility. Featuring a QVGA resolution of 320×240 pixels and a 70 PPI density, it delivers clear and readable output suitable for HMIs, handheld terminals, and control panels. The display offers a 250 cd/m² luminance and a 55:1 contrast ratio, making it ideal for indoor environments with consistent lighting.

With its STN, normally black, transmissive technology, users benefit from improved readability and reduced eye strain. The module includes a 1-piece CCFL backlight with a long life of 54,000 hours, ensuring sustained brightness over long-term use. The 15-pin parallel interface allows easy integration into existing systems. Its wide operating temperature range of 0°C to 60°C and robust construction ensure dependable operation in industrial settings.

Applications:

• Ideal for industrial HMIs and operator panels.

• Suitable for medical equipment displays.

• Used in POS terminals and handheld devices.

• Perfect for instrumentation and control system displays.

Technical Precautions:

• Avoid direct sunlight exposure to maintain contrast performance.

• Ensure stable 3.3/5 V power supply for optimal operation.

• Do not apply excessive force to the LCD surface.

• Maintain proper inverter/driver design for CCFL backlight to prevent flicker.
