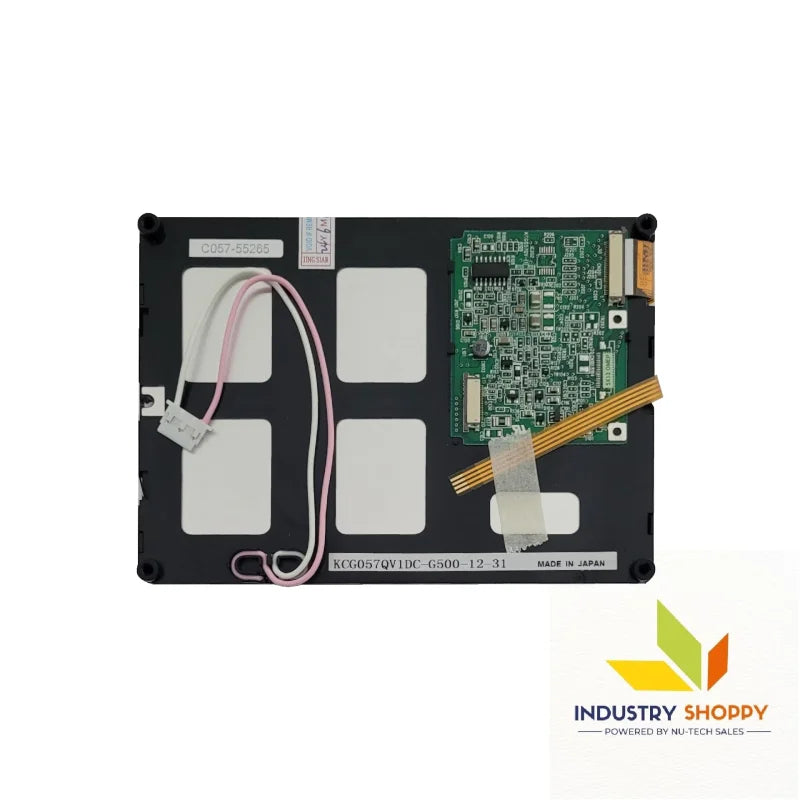

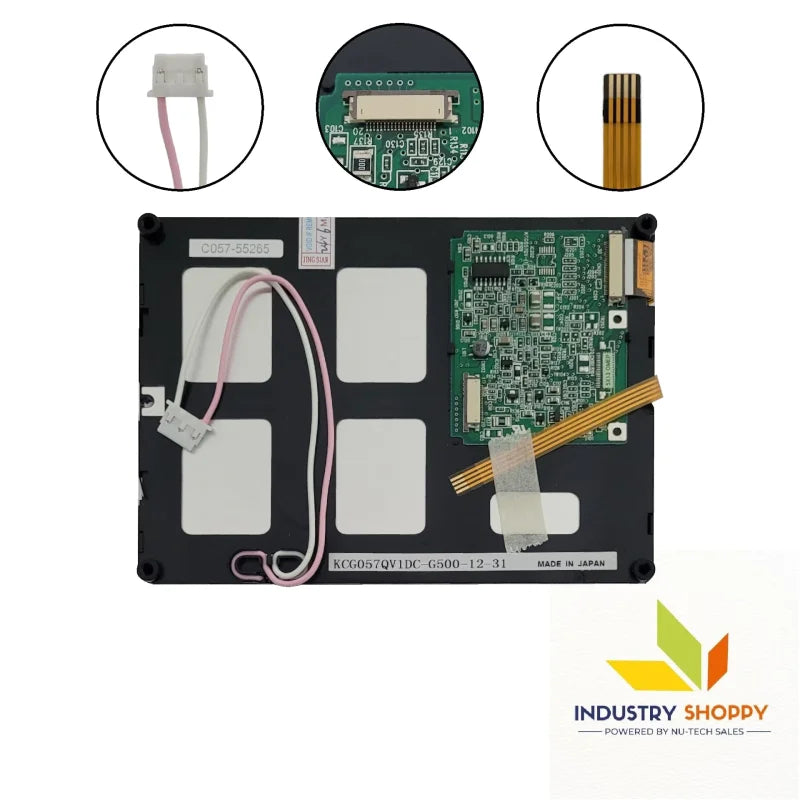

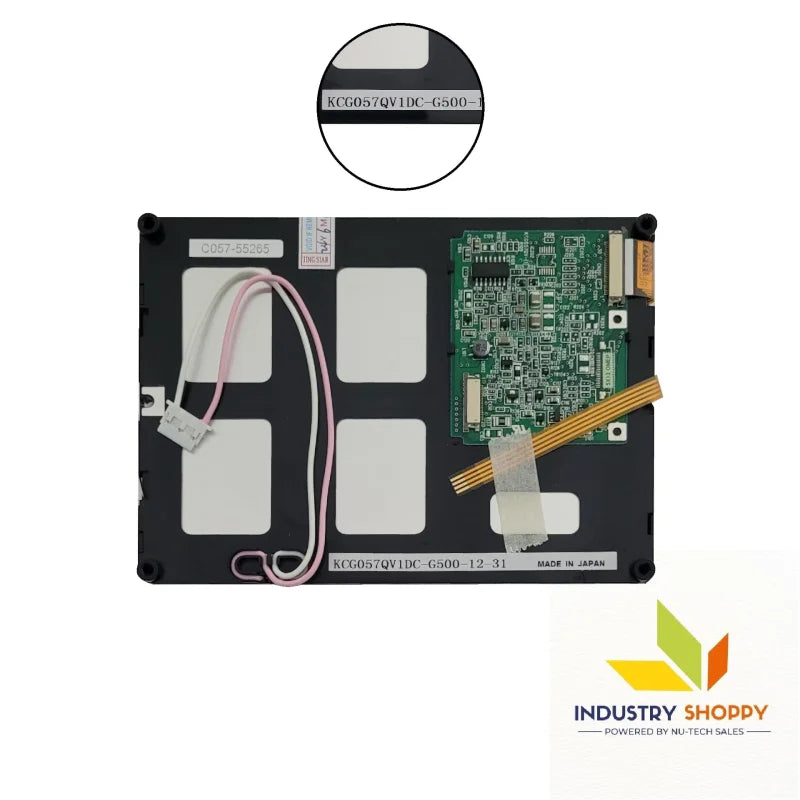

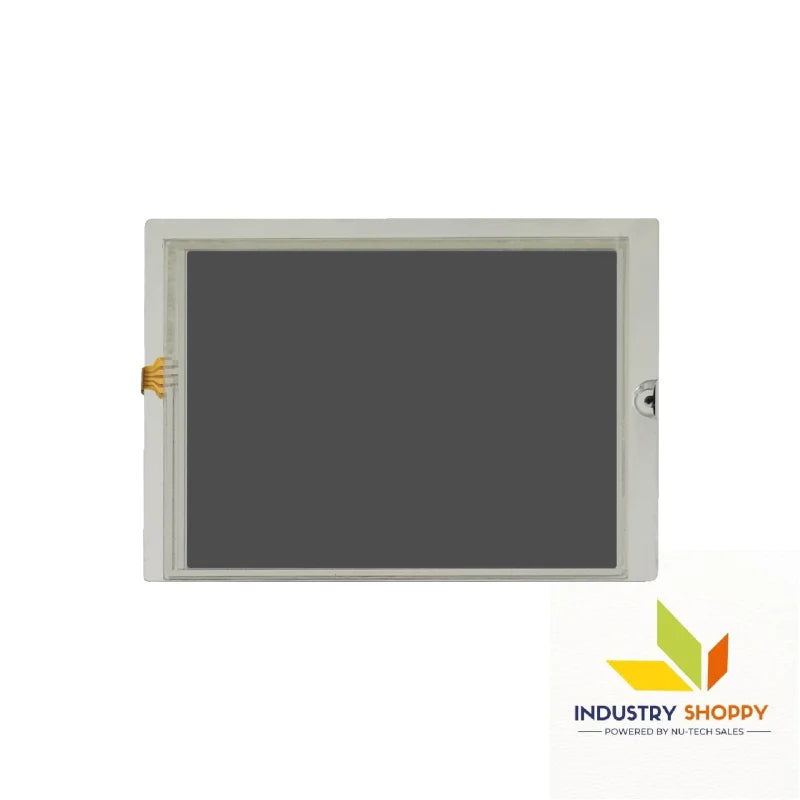

Kyocera KCG057QV1DC-G500 LCD Module With Touch

Kyocera KCG057QV1DC-G500 LCD Module with Touch

The Kyocera KCG057QV1DC-G500 LCD Module with Touch is a robust and reliable display designed for industrial, medical, and commercial equipment requiring stable visual performance. It features a QVGA resolution of 320×240 pixels with a 70 PPI density, delivering crisp and clear output suitable for HMIs, handheld terminals, and instrumentation panels.

With a brightness of 280 cd/m² and a 55:1 contrast ratio, it ensures comfortable viewing in controlled indoor environments. The display uses STN, normally black, transmissive technology, offering improved readability and reduced color washout.

Its RGB vertical stripe structure ensures consistent color reproduction at 38% NTSC. A durable CCFL backlight with a long lifespan of 75,000 hours provides reliable illumination for long-term operation. The 20-pin parallel interface allows smooth integration into legacy and modern devices. Operating between 0°C and 60°C, this module excels in demanding industrial environments.

Applications:

• Industrial HMI panels and operator interfaces.

• Medical monitoring equipment and display modules.

• POS terminals, barcode devices, and kiosks.

• Measurement and test instruments requiring stable displays.

Technical Precautions:

• Maintain stable 3.3/5V power supply to avoid display flicker.

• Avoid direct pressure on the LCD to prevent damage.

• Ensure proper inverter/driver design for CCFL backlight.

• Do not expose the module to extreme heat or sunlight for prolonged periods.
