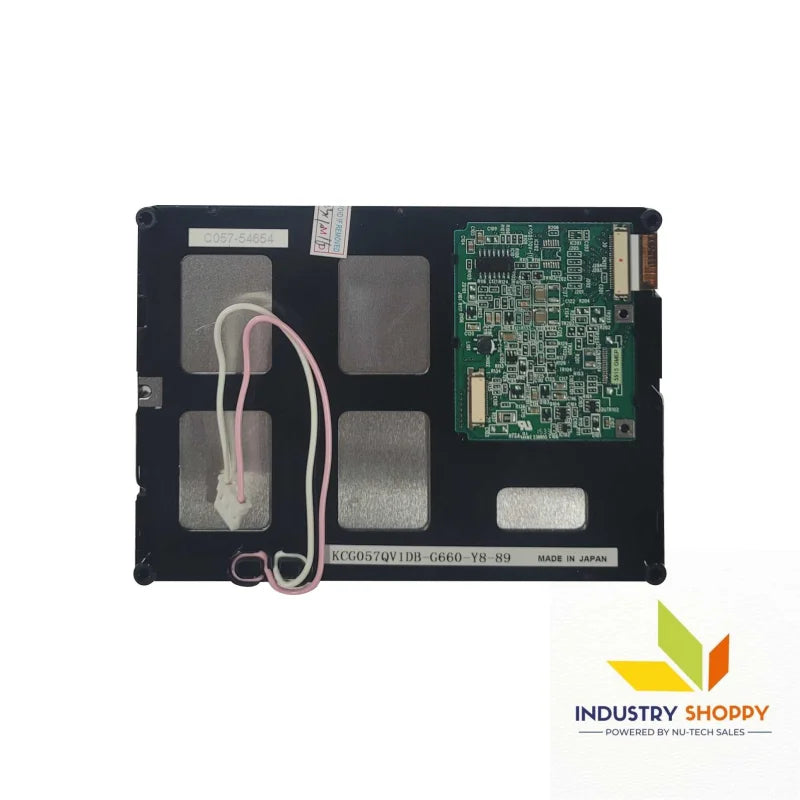

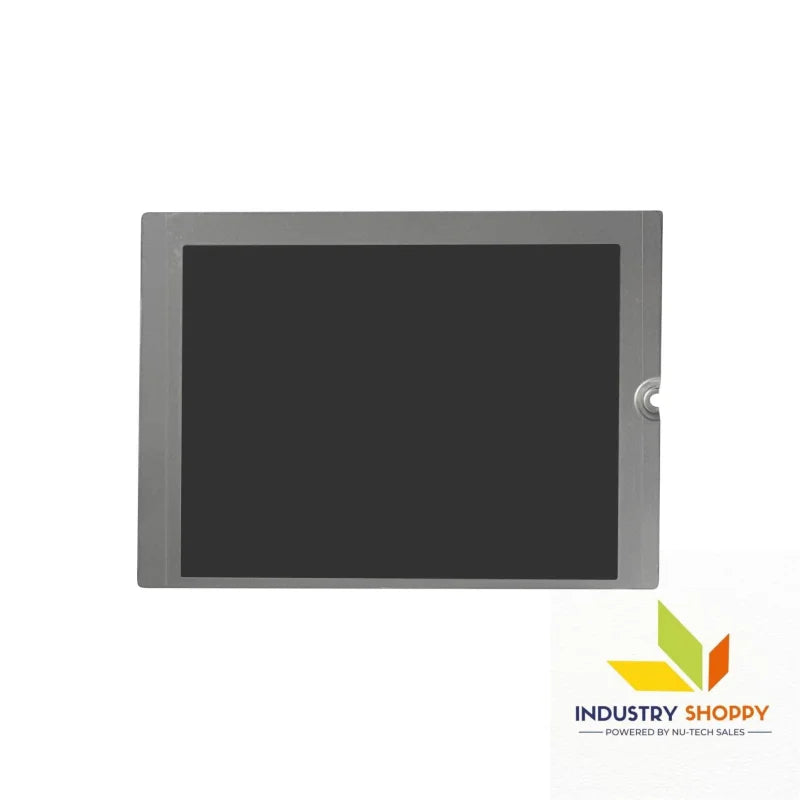

Kyocera KCG057QV1DB-G660 LCD Module

Kyocera KCG057QV1DB-G660 LCD Module

The Kyocera KCG057QV1DB-G660 LCD Module is a robust 5.7" CSTN-LCD display designed for industrial applications. Featuring a resolution of 320×240 (QVGA) and a pixel density of 70 PPI, this module ensures clear and vibrant visuals. It operates in a normally black, transmissive mode, offering a typical contrast ratio of 60:1 and a viewing angle of 50°/50°/20°/35° (left/right/up/down). The LCD supports color output with a CCFL backlight, making it suitable for various lighting conditions. With dimensions of 144(H) × 104.8(V) × 13.2(D) mm and a 75Hz frame rate, it’s designed for applications that demand reliability and clarity. Its compact design and efficient performance make it ideal for control systems, industrial equipment, and handheld devices.

Key Features:

• Brand: Kyocera

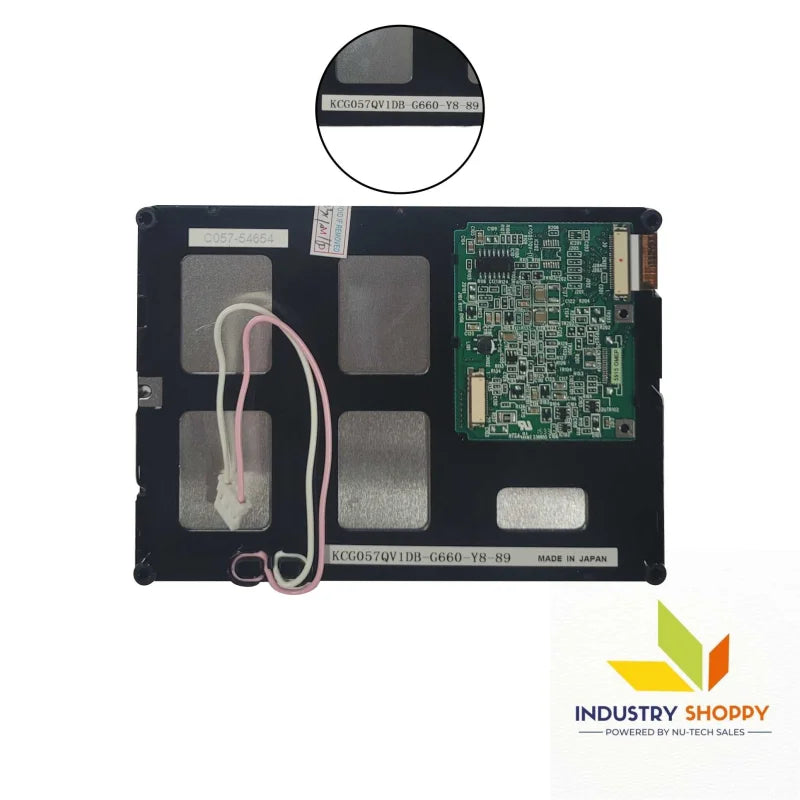

• Model Number: KCG057QV1DB-G660
• Diagonal Size: 5.7 inches
• Panel Type: CSTN-LCD (Color Super Twisted Nematic)
• Resolution: 320(RGB) × 240 (QVGA) with a pixel density of 70 PPI for sharp visuals
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 115.2 mm (W) × 86.4 mm (H)
• Bezel Opening: 119.4 mm (W) × 90.6 mm (H)
• Outline Dimensions: 144 mm (H) × 104.8 mm (V) × 13.2 mm (D)
• Contrast Ratio: 60:1 (Typical) for good image clarity
• Viewing Angles: 50° left/right, 20° up, and 35° down (CR≥2) for versatile display options
• Response Time: 180 ms (Tr), 170 ms (Td) for smooth transitions
• Operating Mode: STN, Normally Black, Transmissive for effective visibility
• Color Support: Capable of displaying color visuals
• Light Source: CCFL (Cold Cathode Fluorescent Lamp)
• Frame Rate: 75 Hz for dynamic content display

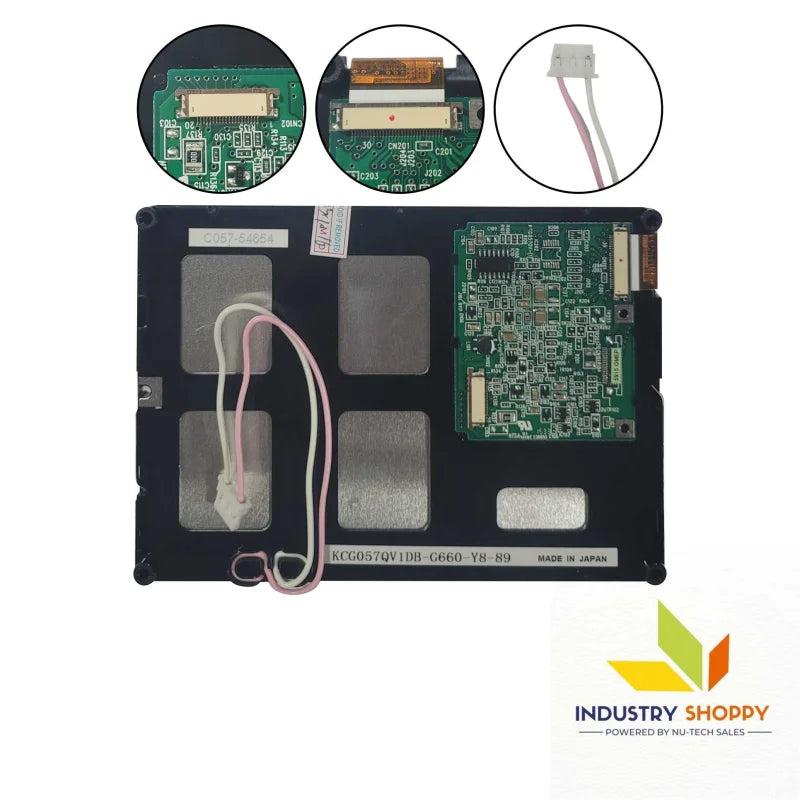

• Interface Type: Parallel Data (1 channel, 8-bit) with a 20-pin connector

Applications:

The Kyocera KCG057QV1DB-G660 LCD Module is ideal for a variety of applications, including industrial control systems, handheld devices, automotive displays, and portable electronic devices. Its compact size, high contrast ratio, and reliable performance make it an excellent choice for environments where visibility and durability are crucial.

Technical Precautions:

• Handle the module carefully to avoid damaging the screen.
• Follow ESD precautions during installation to protect sensitive components.
• Ensure proper ventilation to prevent overheating.
• Store the display within the specified temperature range for optimal longevity.
• Power off equipment before making connections to avoid electrical damage.
• Avoid exposing the module to moisture or extreme temperatures.
