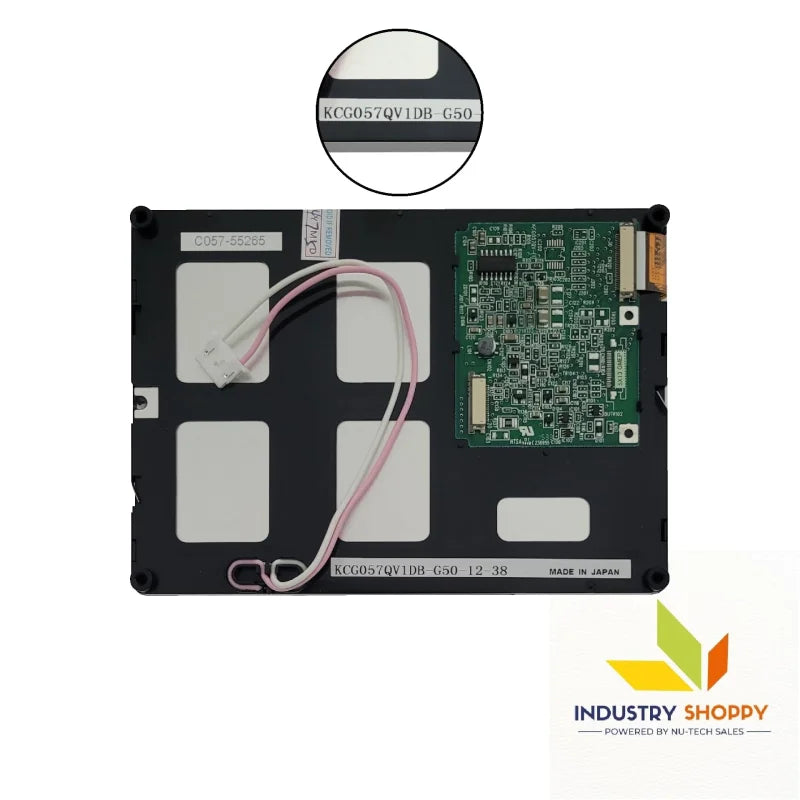

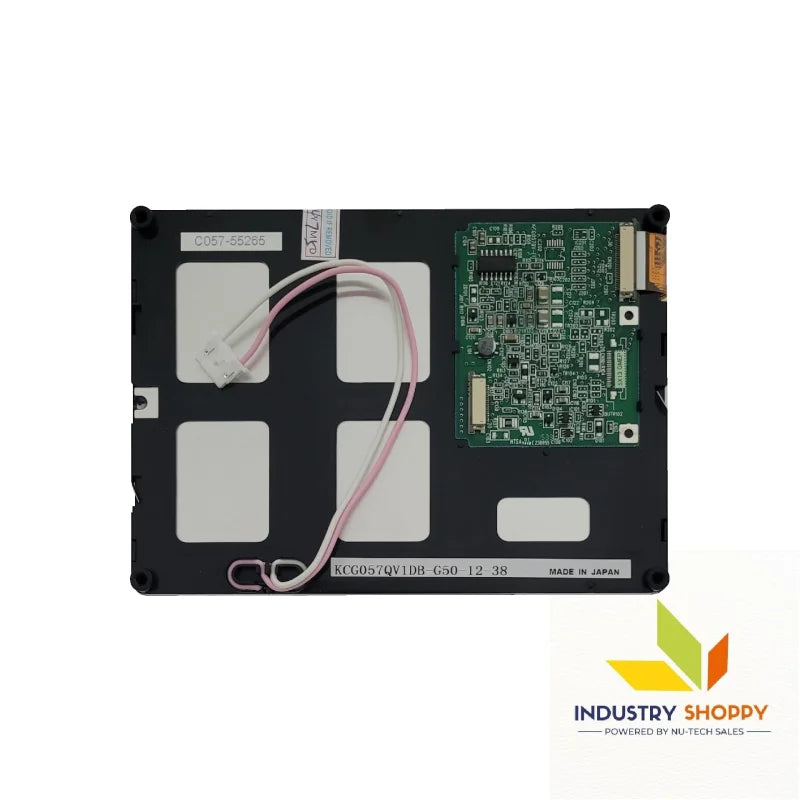

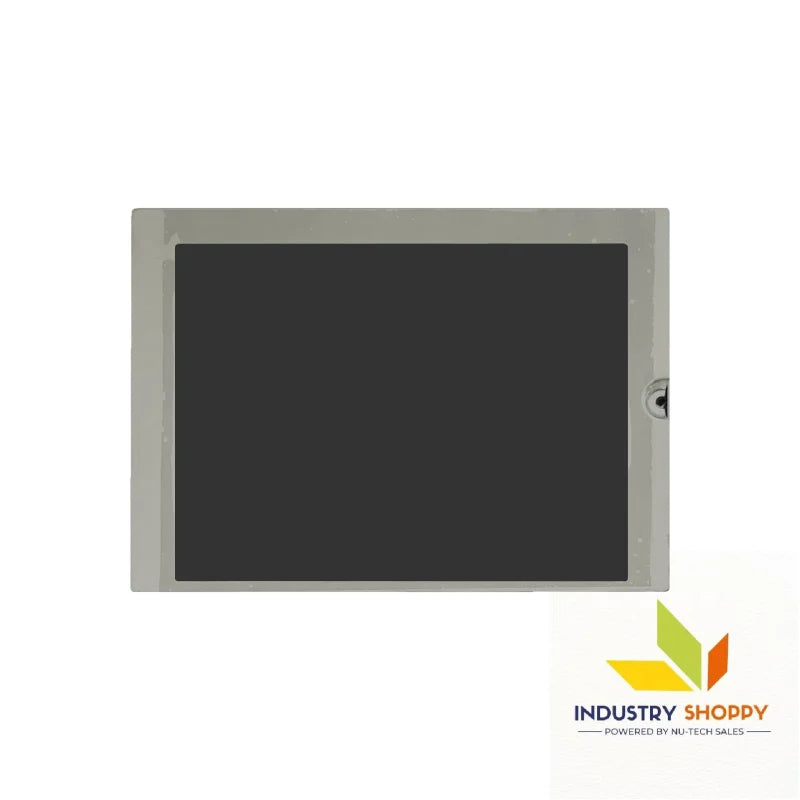

Kyocera KCG057QV1DB-G50 LCD Module

Kyocera KCG057QV1DB-G50 LCD Module

The Kyocera KCG057QV1DB-G50 LCD Module is a 5.7-inch QVGA (320x240) display designed to deliver reliable visual performance for embedded and industrial applications. Its 350 cd/m² luminance ensures sufficient brightness for both indoor and semi-outdoor environments. A 55:1 contrast ratio enables clear image rendering, making it suitable for graphical and text-based user interfaces.

The module’s 50/50/20/35-degree viewing angles provide flexible visibility for devices where the display is viewed off-axis. Built with CSTN-LCD technology, the panel runs in STN, Normally Black, Transmissive mode, supporting a wide range of color tones at 38% NTSC coverage.

With a response time of 180/170 ms (Tr/Td) and a steady 75Hz frame rate, the module is a dependable option for static and low-motion content. Its CCFL backlight supports up to 75,000 hours of operational life, enhancing system longevity. The Parallel Data (1ch, 8-bit) interface and 3.3/5.0V power supply make it easy to integrate across various platforms.

Key features :-

• Brand: Kyocera
• Model: KCG057QV1DB-G50
• Diagonal Size: 5.7"
• Resolution: 320×240, QVGA, 70 PPI
• Active Area: 115.2(W)×86.4(H) mm
• Outline Dimension: 144(W)×104.8(H)×13.2(D) mm
• Luminance: 350 cd/m² (Typical)
• Contrast Ratio: 55:1 (Typical) (TM)
• Viewing Angle: 50/50/20/35 (Typical) (CR≥2)
• Response Time: 180/170 ms (Typical) (Tr/Td)
• Panel Type: CSTN-LCD, LCM
• Treatment: RGB Vertical Stripe
• Operating Mode: STN, Normally Black, Transmissive
• Support Color: Color, 38% NTSC

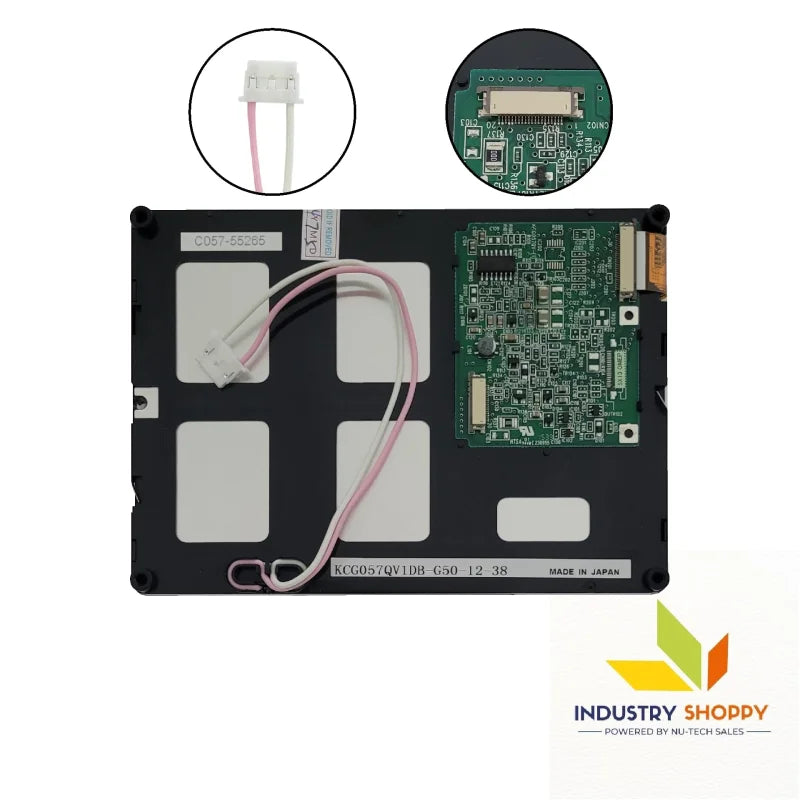

• Signal Interface Type: Parallel Data (1ch, 8-bit), 20 pins Connector
• Frame Rate: 75Hz
• Power Supply: 3.3/5.0V (Typical) (VDD)
• Backlight: 1 pcs CCFL, 75K hours, Optional
• Weight: 175g
• Operating Temperature: -20 ~ 60°C
• Storage Temperature: 0 ~ 60°C

Applications:

• Industrial Terminals Reliable for HMI and control interfaces.
• Medical Instruments Clear visualization for diagnostics.
• Testing Equipment Stable output in measurement systems.
• Embedded Systems Compact fit for integrated device displays.
• Point-of-Sale Devices Practical for transaction screens.

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
