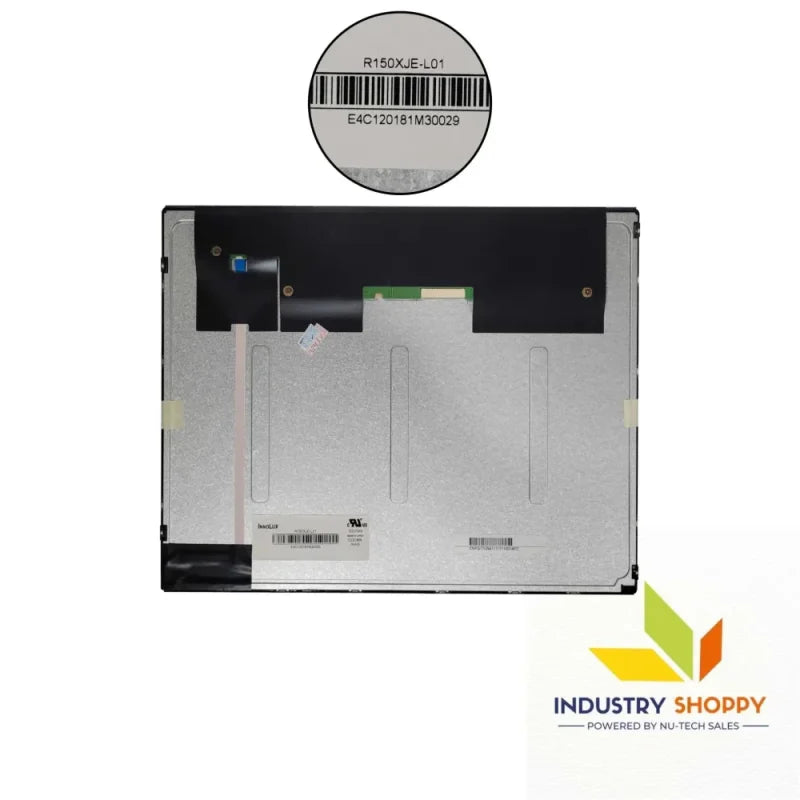

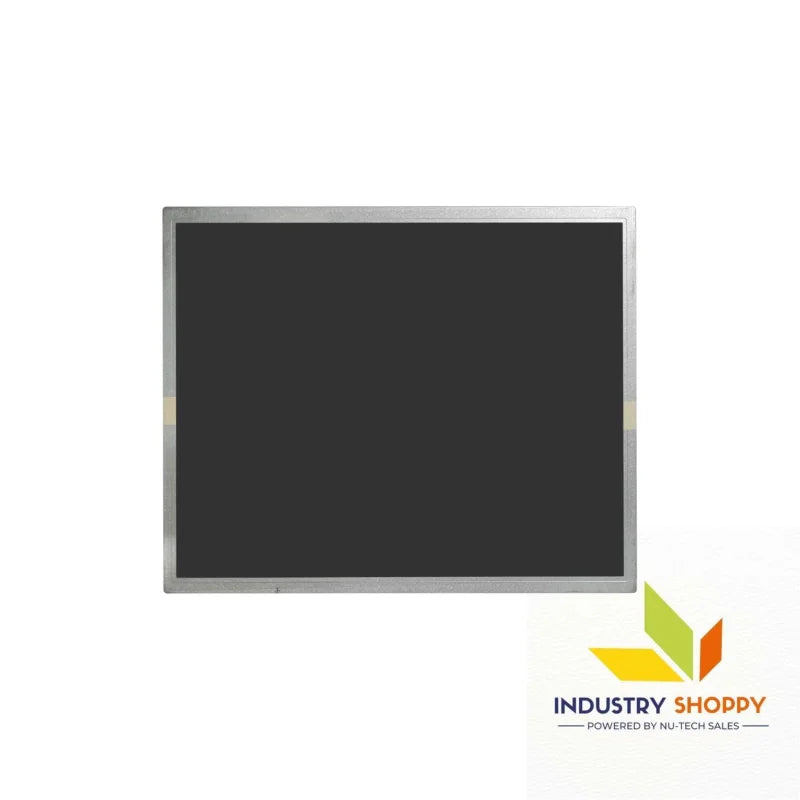

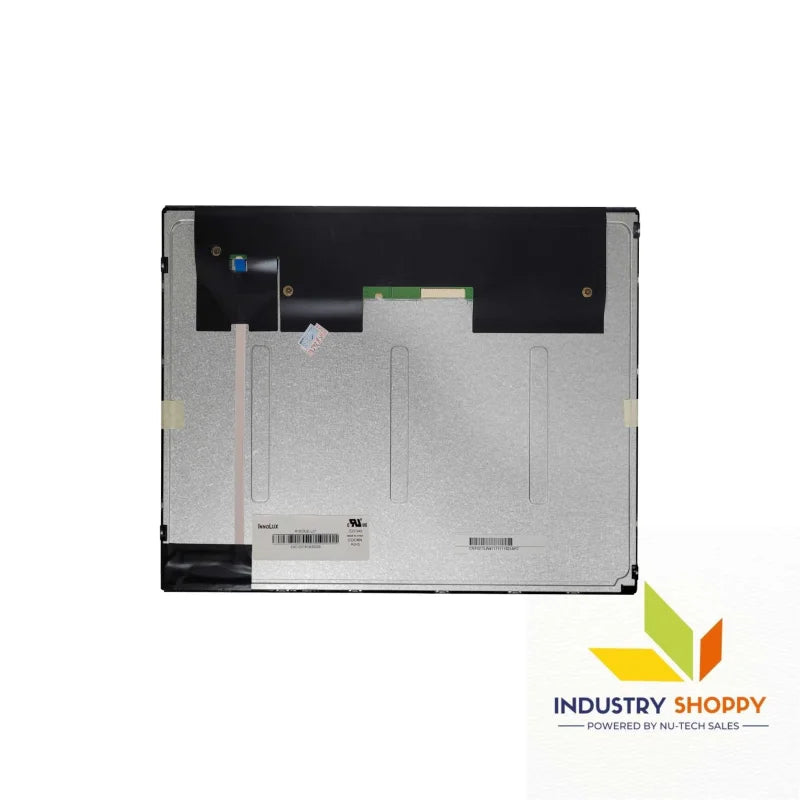

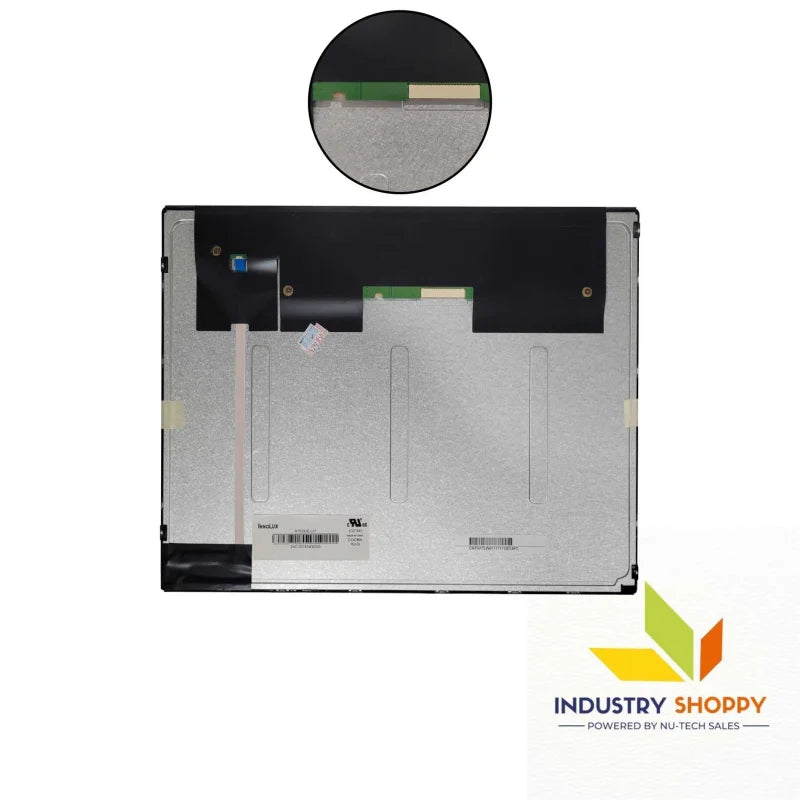

Innolux R150XJE-L01 LCD Module

The Innolux R150XJE-L01 LCD Module is a widely used LCD module in industrial and medical applications. It features a 15.0 inch diagonal a-Si TFT-LCD display panel with a high contrast ratio of 2500:1, ensuring clear and vibrant images. This module includes an integral WLED backlight system with a built-in LED driver, providing efficient illumination without the need for additional components. With a resolution of 1024(RGB)×768 pixels and a pixel density of 85PPI, it delivers sharp visuals suitable for detailed industrial and medical imaging tasks.

Key Features:

• Brand: Innolux
• Model P/N: R150XJE-L01
• Diagonal Size: 15.0"

• Panel Type: a-Si TFT-LCD, LCM

• Resolution: 1024(RGB)×768, XGA, 85PPI

• Pixel Format: RGB Vertical Stripe

• Active Area: 304.128(W)×228.096(H) mm

• Bezel Opening: 307.4(W)×231.3(H) mm

• Outline Dimensions: 326.5(H)×253.5(V) ×9.6(D) mm

• Treatment: Antiglare, Hard coating (3H)

• Luminance: 350 cd/m² (Typ.)

• Contrast Ratio: 2500:1 (Typ.) (TM)

• View Direction: Symmetry

• Response Time: 15/10 (Typ.)(Tr/Td) ms

• Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

• Operating Mode: Super MVA, Normally Black, Transmissive

• Support Color: 262K/16.2M, 72% NTSC

• Light Source: WLED, 50K hours, With LED Driver

• Weight: 700±50g

• Designed For: Healthcare

• Frame Rate: 60Hz

• Touch Panel: Without

• Interface Type: LVDS (1 ch, 6/8-bit), 20 pins Connector

• Power Supply: 3.3V (Typ.)
• Operating Temperature: -10 ~ 65 °C
• Storage Temperature: -25 ~ 65 °C

Technical Precautions:

• Handle the front polarizer with care to avoid scratches or damage.
• Always power off the supply before inserting or disconnecting the module from the input connector.
• Promptly wipe off any water drops to prevent discoloration or spots on the screen.
• Handle the module delicately to avoid breakage or cracking from drops or impacts.
• Do not attempt to open or modify the module assembly.
• During insertion or removal of the Signal Interface Connector, avoid rotating or tilting to prevent damage to the panel.
• Extreme temperature conditions may affect luminance and response time, so operate within specified temperature ranges for optimal performance.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Our engineers carefully entered all the details of this module based on the datasheet. However, mistakes can happen even with our best efforts. Please double-check all specifications before use.
