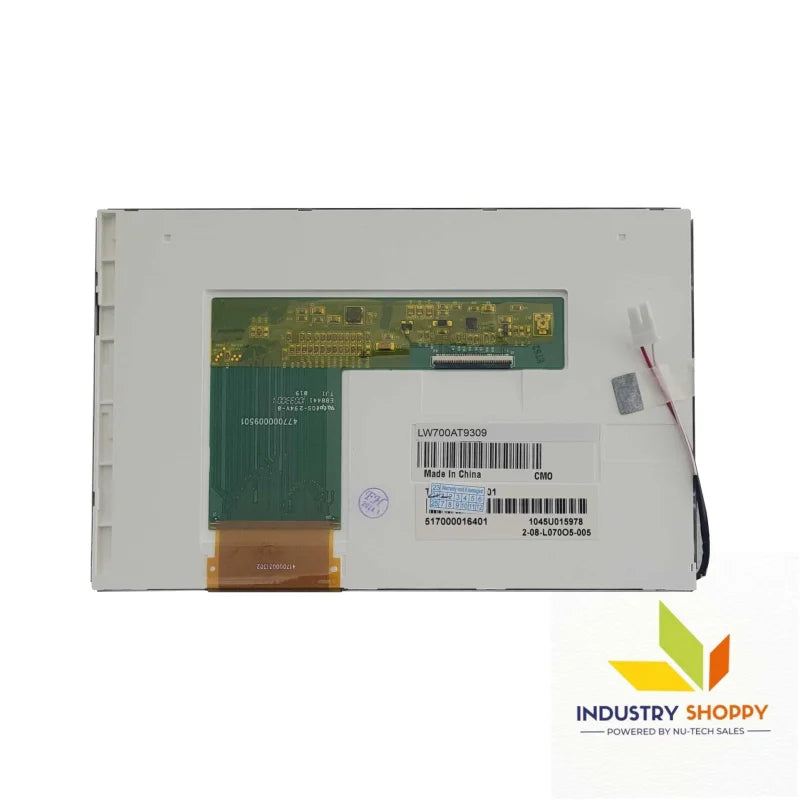

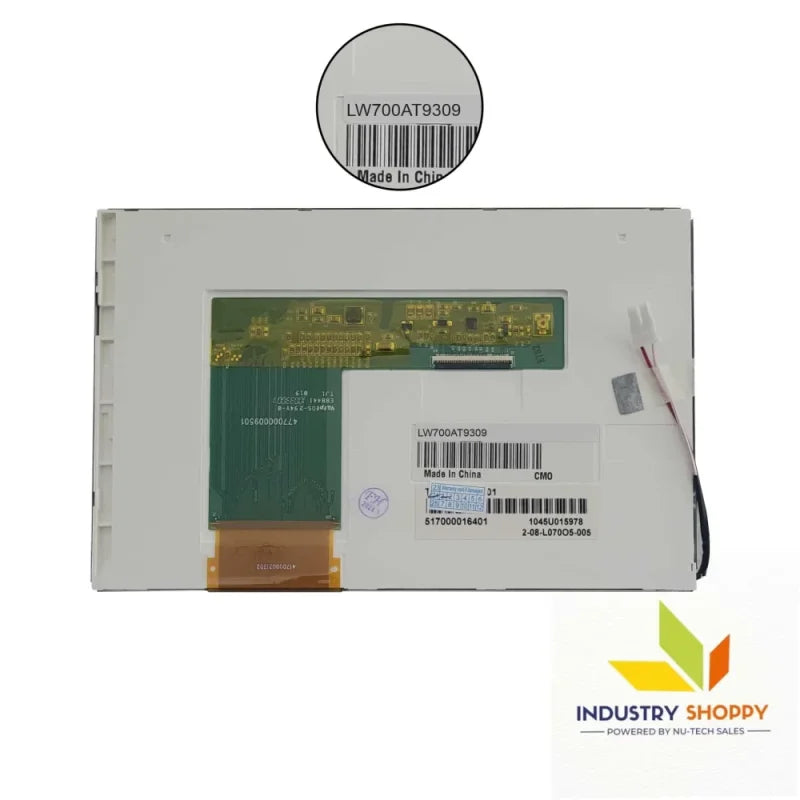

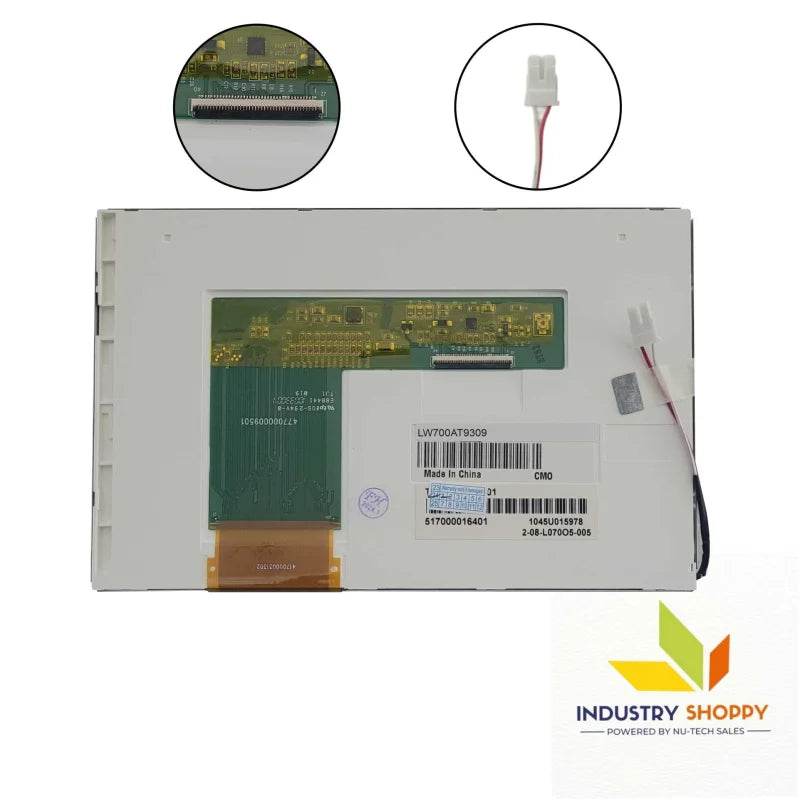

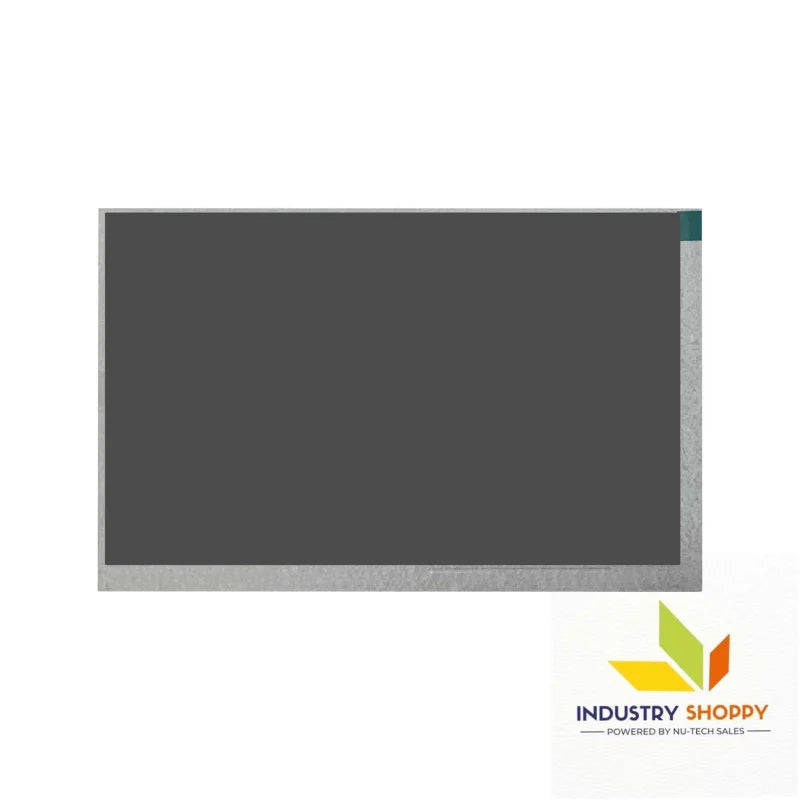

Innolux LW700AT9309 LCD Module

Innolux LW700AT9309 LCD Module

The Innolux LW700AT9309 is a 7.0-inch a-Si TFT-LCD module designed for high-performance applications requiring a larger display size and exceptional visual clarity. With a resolution of 1024x600 (WSVGA) and a pixel density of 170 PPI, this module delivers sharp, vibrant visuals, making it ideal for a variety of industrial, commercial, and consumer applications.

The brightness of 500 cd/m² and contrast ratio of 500:1 ensure clear, easy-to-read images in environments with varying light conditions. The wide viewing angles of 80°/80°/60°/80° (L/R/U/D) provide consistent visual performance from multiple directions, making it suitable for devices that require good image quality from different viewing perspectives.

Equipped with a LED backlight, the module offers long lifespan, ensuring energy-efficient and reliable performance over time. The antiglare surface treatment reduces reflections and enhances readability, improving the display’s performance in bright environments such as industrial settings and outdoor applications.

Key Features:

• Brand: Innolux
• Model: LW700AT9309
• Diagonal Size: 7.0 inches
• Resolution: 1024×600 (WSVGA), 170 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 156.4(W) × 88.2(H) mm
• Outline Dimensions: 162(W) × 94.5(H) × 7.2(D) mm
• Surface Treatment: Antiglare for better visibility in bright environments
• Brightness: 500 cd/m² (Typical), ideal for use in varying light conditions
• Contrast Ratio: 500:1 (Typical), ensuring clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), providing excellent image clarity from different angles
• Backlight Type: LED with a long lifespan for energy efficiency and reliable performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for a wide range of operating environments
• Storage Temperature: -30°C to 80°C, flexible storage conditions

Applications:

• Industrial Control Panels: Suitable for use in industrial systems that require a larger display with high clarity and vibrant colors
• Medical Devices: Ideal for medical devices and diagnostic tools where clear visibility and large display size are needed
• Point-of-Sale (POS) Displays: Perfect for retail applications that require an easy-to-read display with vibrant colors
• Portable Devices: Well-suited for handheld devices that require a larger display in a compact form factor

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
