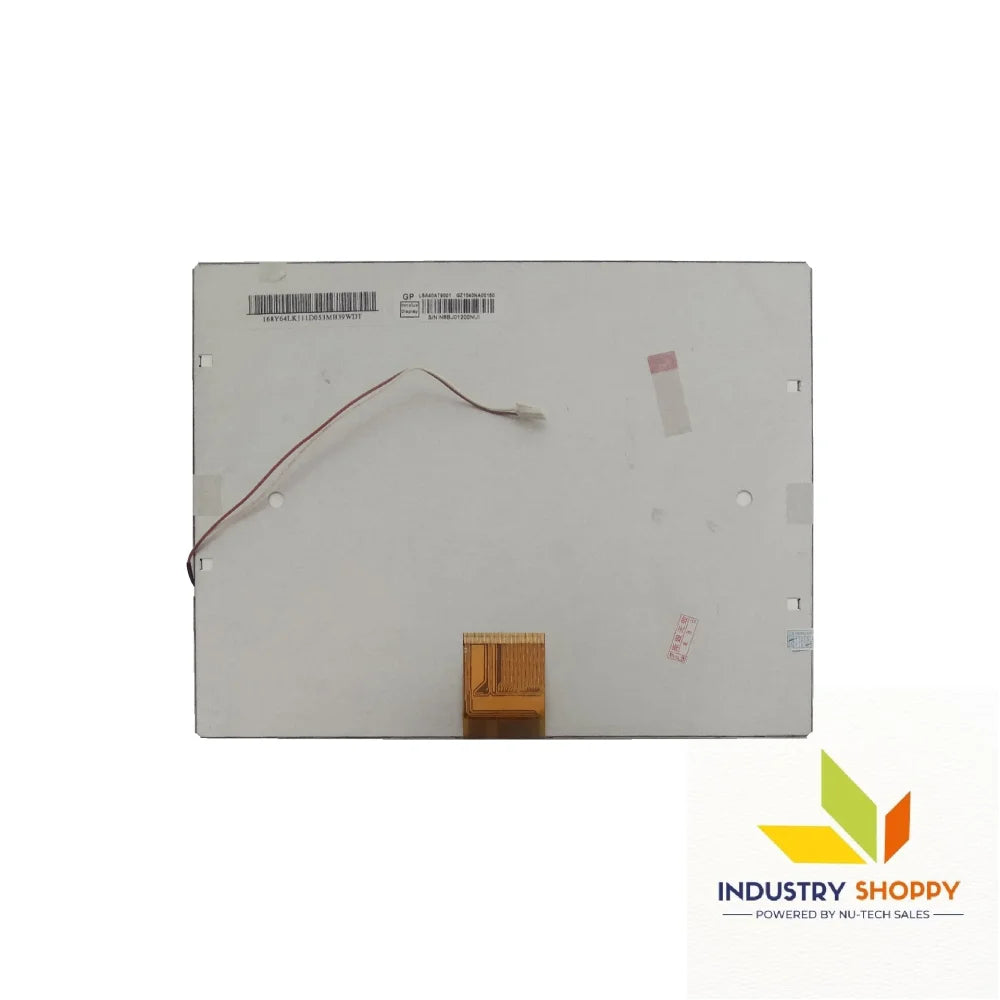

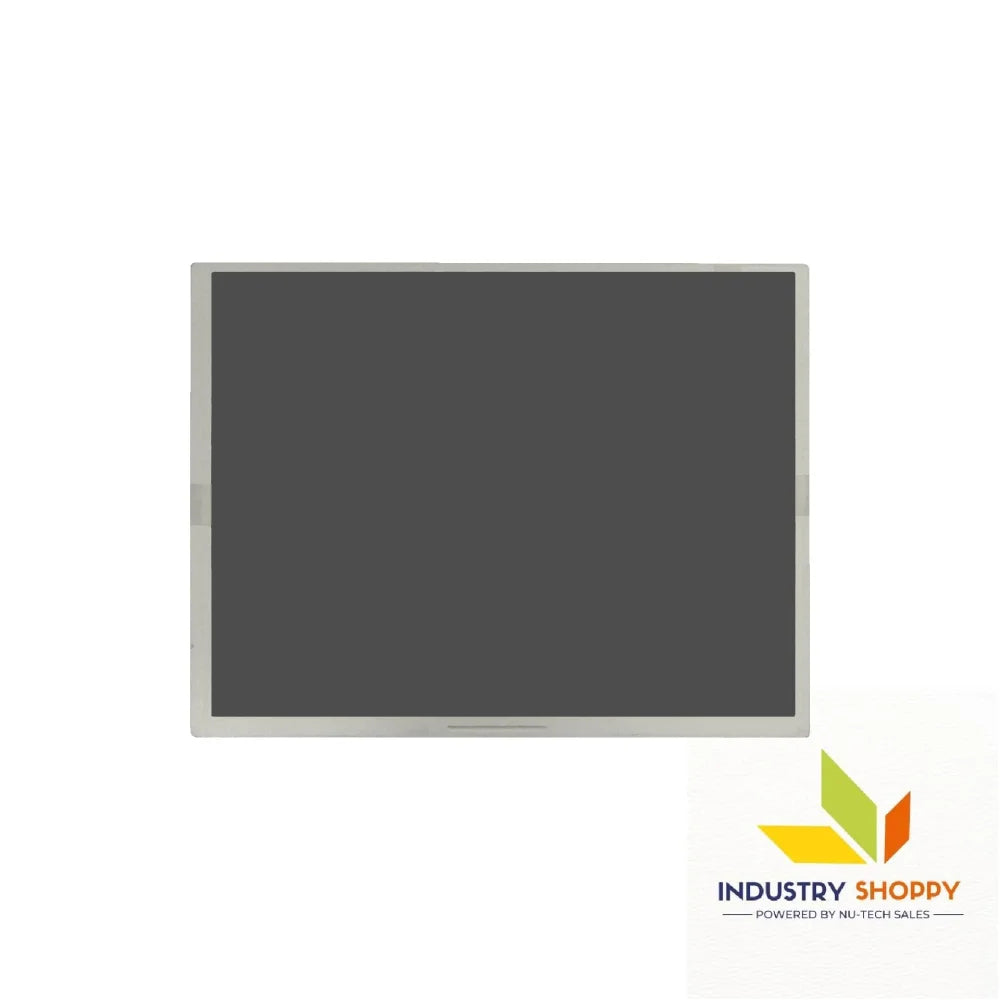

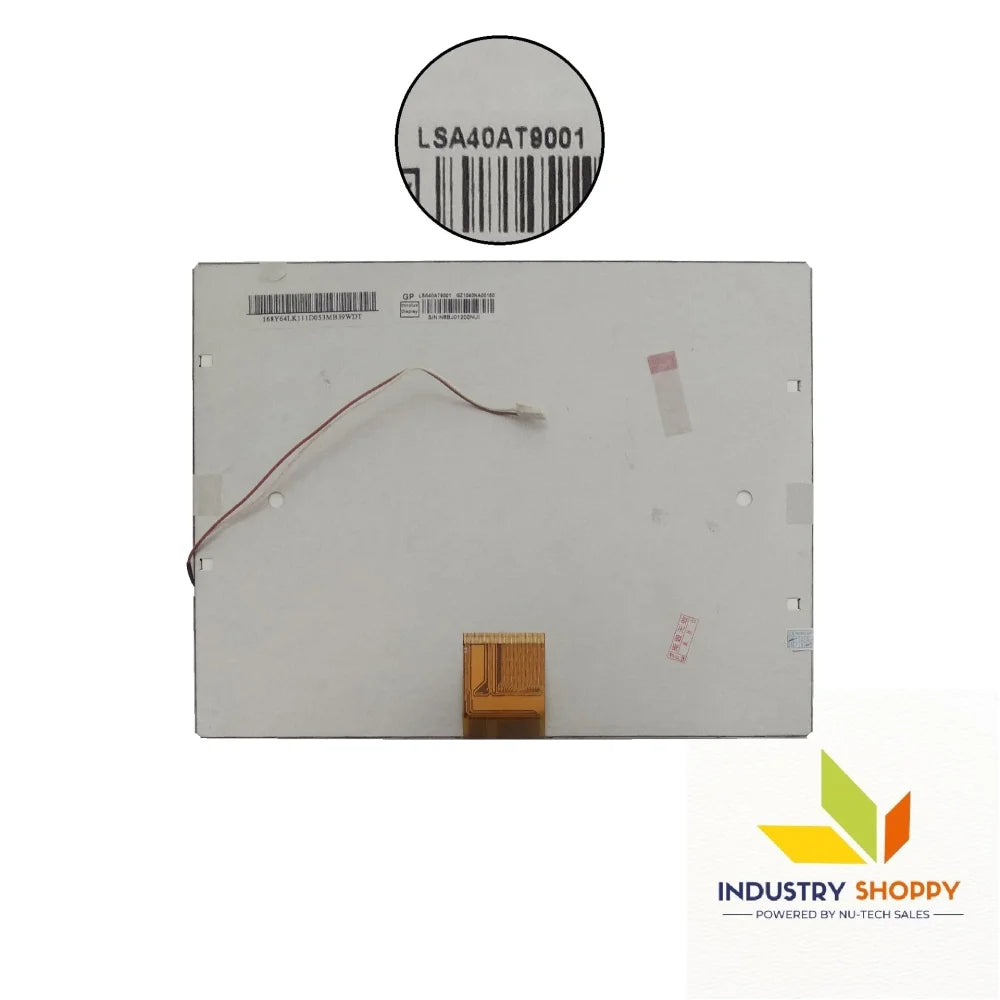

Innolux LSA40AT9001 LCD Module

Innolux LSA40AT9001 LCD Module

The Innolux LSA40AT9001 LCD Display is a 10.4-inch a-Si TFT-LCD display, renowned for its reliability and versatility in both consumer and industrial applications. With a resolution of 800×600 SVGA and a pixel density of 96 PPI, it delivers crisp, clear visuals with true-to-life color accuracy, thanks to its RGB Vertical Stripe pixel configuration. This display features a brightness level of 250 cd/m² and a contrast ratio of 500:1, making it suitable for environments with varying lighting conditions. Additionally, the hard coating (3H) on the surface offers excellent scratch resistance and reduces glare, ensuring durability and enhanced readability.

Key Features:

• Brand: Innolux
• Model: LSA40AT9001
• Diagonal Size: 10.4 inches
• Resolution: 800×600 (SVGA), 96 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and clear image rendering
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 214.2(W) × 162.5(H) mm
• Outline Dimensions: 228.4(W) × 175.4(H) × 6.2(D) mm, compact and slim for easy integration
• Surface Treatment: Hard coating (3H) to resist scratches and enhance durability
• Brightness: 250 cd/m² (Typical), suitable for indoor environments with moderate lighting
• Contrast Ratio: 500:1 (Typical), offering clear differentiation between dark and light content
• Viewing Angle: 70°/70°/50°/60° (Left/Right/Up/Down), ensuring good visibility from various angles
• Optimal View Direction: 6 o'clock
• Display Colors: 262K/16.2M (50% NTSC) for decent color fidelity
• Response Time: 10/15 ms (Typical, Tr/Td) for responsive visuals with reduced motion blur
• Operating Mode: TN, Normally White, Transmissive, effective for clear and sharp displays
• Backlight Type: WLED with a 20,000-hour lifespan, efficient and reliable
• Frame Rate: Standard 60Hz with advanced MEMC Circuit options for enhanced motion clarity (120Hz and 240Hz)

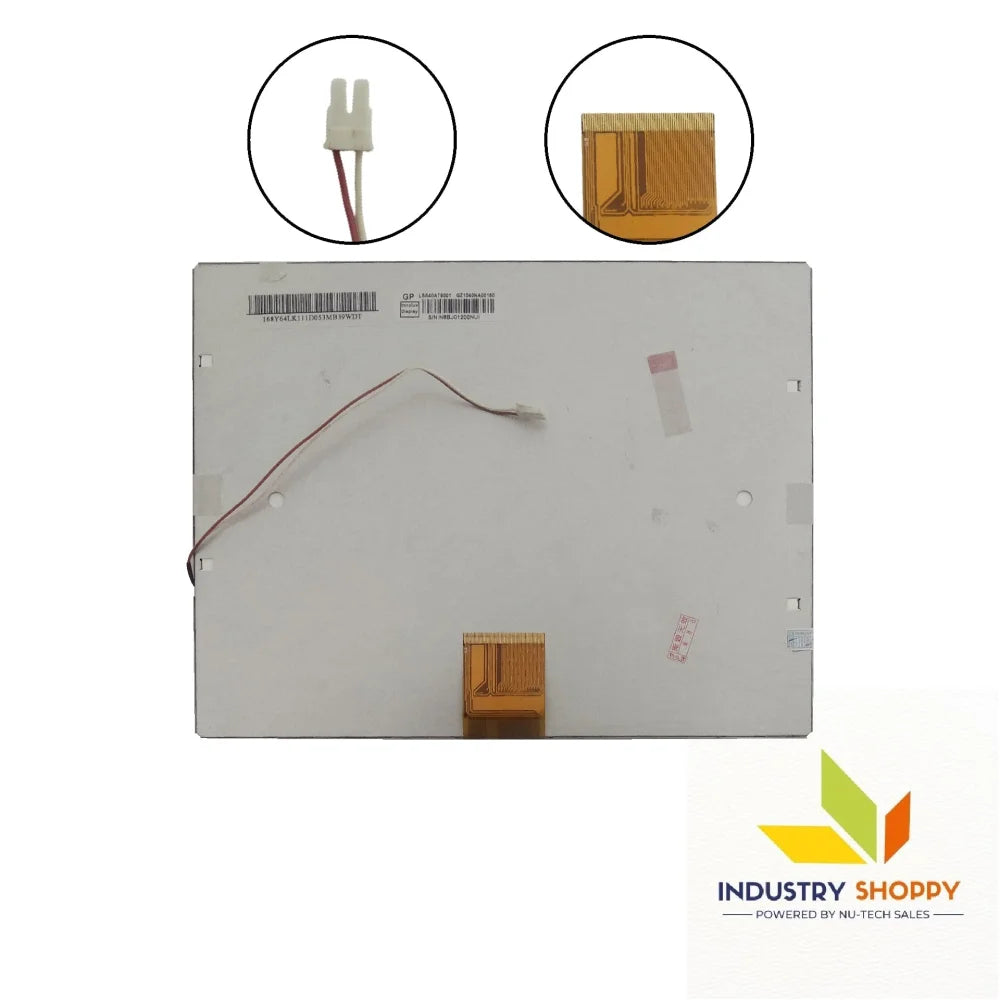

• Signal Interface: Parallel RGB (1 channel, 6/8-bit), 60-pin FPC connection
• Power Supply: 3.3V (Typical for VCC) / 10.5V (Typical for AVDD)
• Operating Temperature: -10°C to 50°C, suitable for various indoor settings
• Storage Temperature: -20°C to 60°C, supporting secure and flexible storage conditions

Applications:

The Innolux LSA40AT9001 is ideal for:

• Digital Photo Frames: Delivers clear and vibrant visuals for personal or commercial photo displays.
• Portable DVD Players: Compact size and decent brightness make it perfect for portable media devices.
• Industrial Devices: Suitable for compact monitoring systems where clear and stable display is necessary.
• Kiosks and Terminals: Ideal for user interfaces in public information systems and control terminals.

Technical Precautions:

• Handling Care: Ensure careful handling to protect the module’s hard-coated surface from damage.
• Connection Instructions: Power off the display before making connections to avoid electrical issues.
• Temperature Limits: Keep operations within the specified temperature range (-10°C to 50°C) to maintain optimal performance.
• Mounting Guidelines: Use approved fittings for secure installation, especially in industrial environments.
• Backlight Maintenance: Note the backlight’s lifespan of 20,000 hours; plan regular inspections for long-term reliability.
