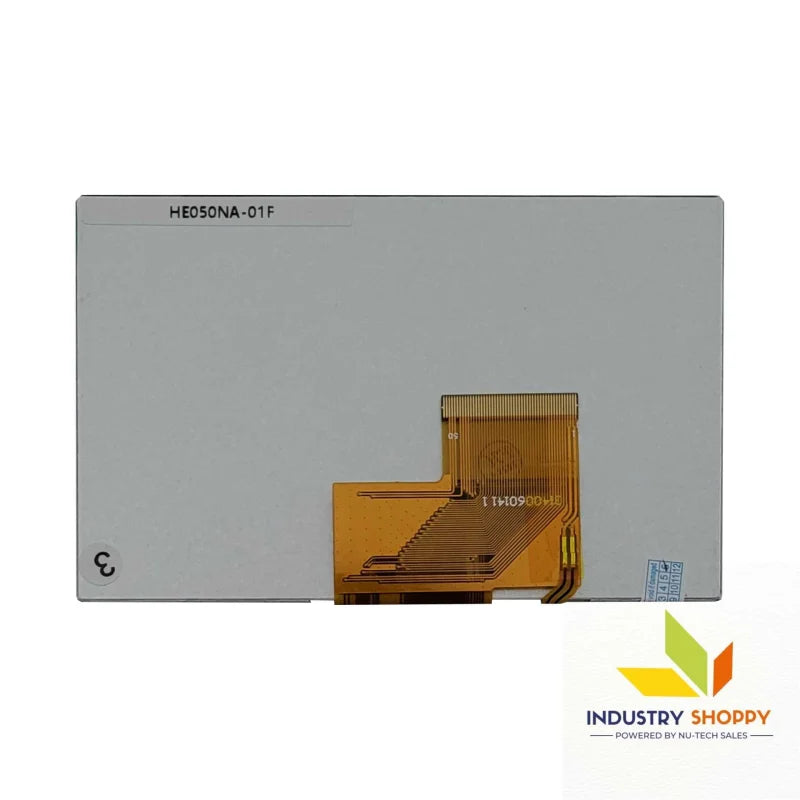

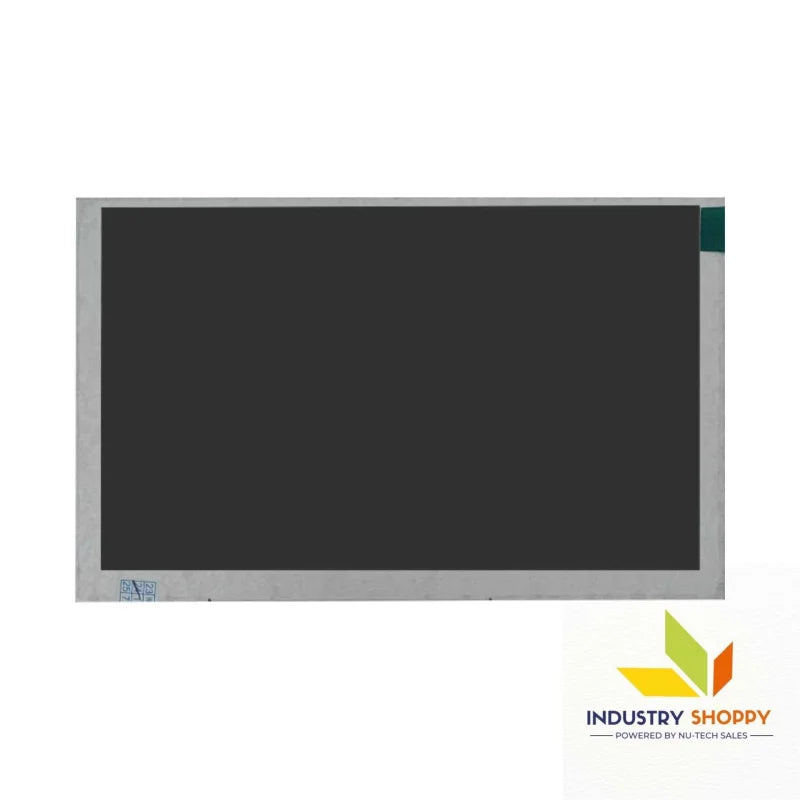

Innolux HE050NA-01F LCD Module

Innolux HE050NA-01F LCD Module

The Innolux HE050NA-01F is a 5.0-inch a-Si TFT-LCD module designed for high-performance applications requiring compact, high-quality displays. With a resolution of 800x480 (WVGA) and a pixel density of 160 PPI, this display offers sharp, clear visuals with excellent color reproduction, making it ideal for a wide range of applications in industrial, medical, and commercial sectors.

Featuring a brightness of 500 cd/m² and a contrast ratio of 500:1, this module delivers clear visibility in environments with high ambient light. The wide viewing angles of 80°/80°/60°/80° (L/R/U/D) ensure consistent image clarity from various viewing positions, enhancing its versatility for use in applications that require different viewpoints.

The module is equipped with a LED backlight, providing long lifespan and energy-efficient performance. The antiglare surface treatment further improves readability, reducing reflections in bright environments, making it suitable for use in industrial and medical devices, as well as point-of-sale (POS) applications.

Key Features:

• Brand: Innolux

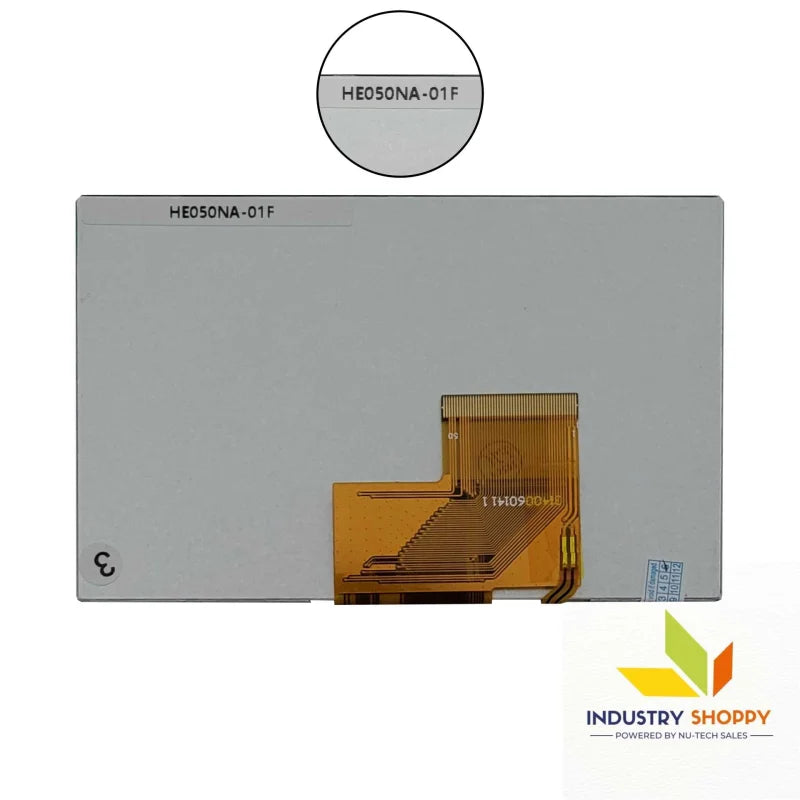

• Model: HE050NA-01F
• Diagonal Size: 5.0 inches
• Resolution: 800×480 (WVGA), 160 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 108(W) × 64.8(H) mm
• Bezel Opening: 110.2(W) × 67.3(H) mm
• Outline Dimensions: 116(W) × 71.6(H) × 6.5(D) mm
• Surface Treatment: Antiglare for better visibility in bright environments
• Brightness: 500 cd/m² (Typical), ideal for use in high-ambient light settings
• Contrast Ratio: 500:1 (Typical), delivering clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), ensuring consistent visual quality from various angles
• Backlight Type: LED with a long lifespan, ensuring energy-efficient and reliable performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth visuals

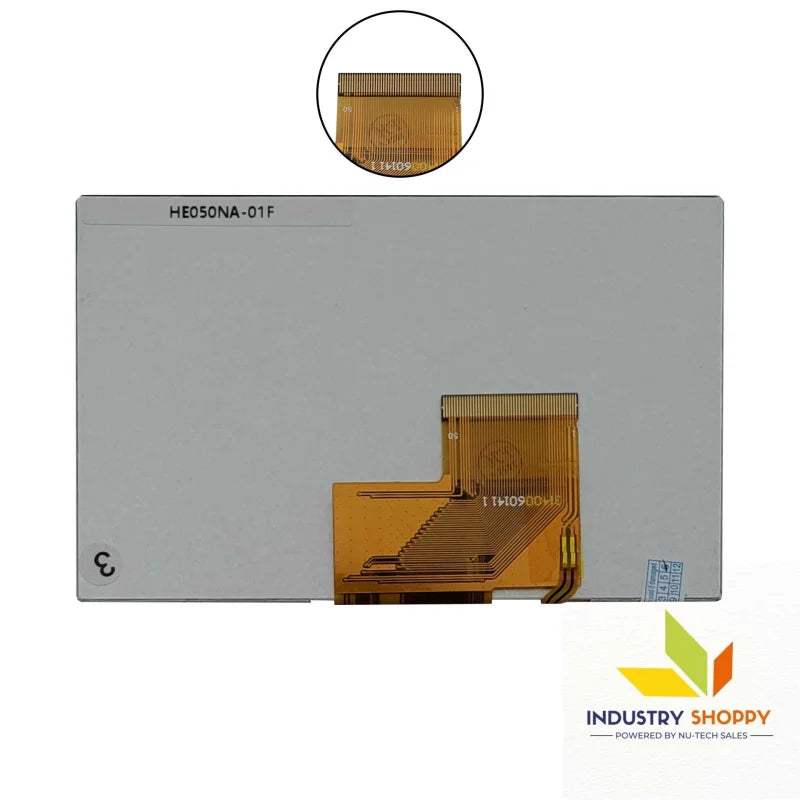

• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for a variety of operational conditions
• Storage Temperature: -30°C to 80°C, providing flexibility for storage

Applications:

• Industrial Control Panels: Ideal for use in industrial systems where space is limited, and high-quality visual output is essential
• Medical Devices: Suitable for small medical equipment and diagnostic tools that require clear, high-resolution displays
• Point-of-Sale (POS) Displays: Perfect for retail applications requiring compact displays with high brightness and vibrant colors
• Portable Devices: Well-suited for handheld devices that need a compact, high-quality display

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
