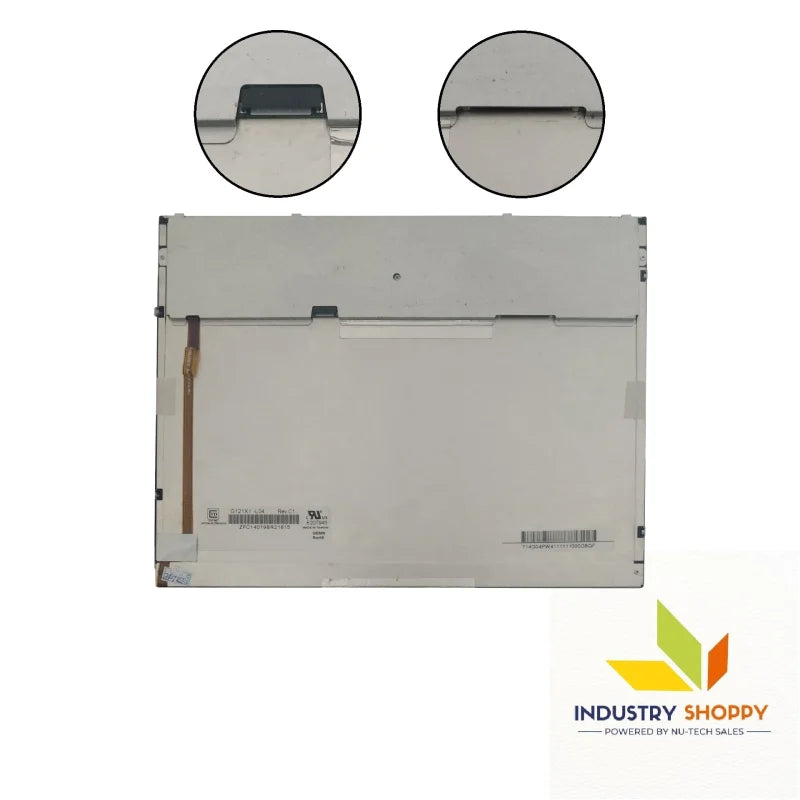

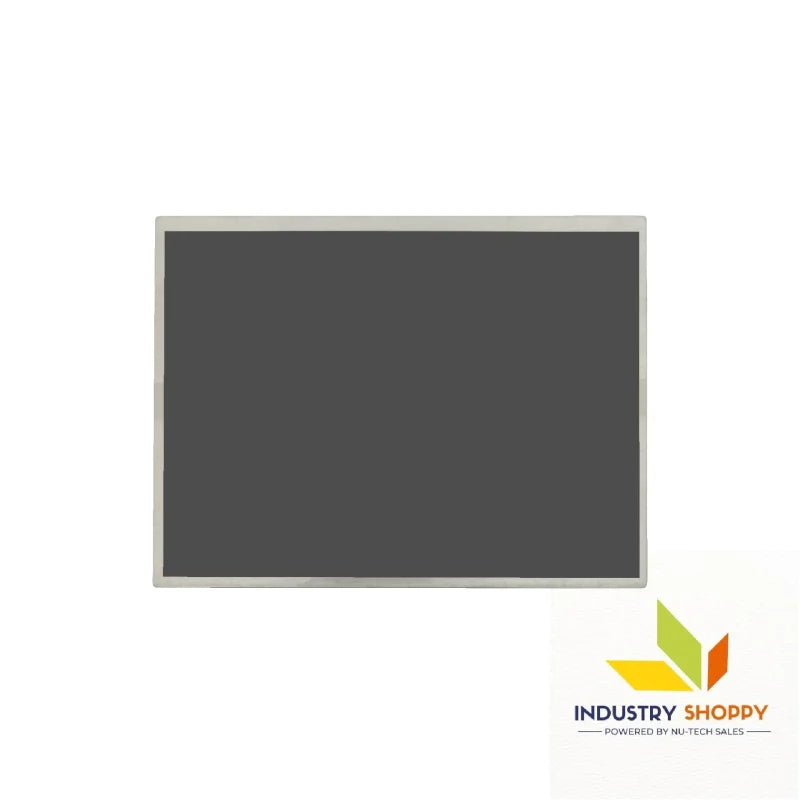

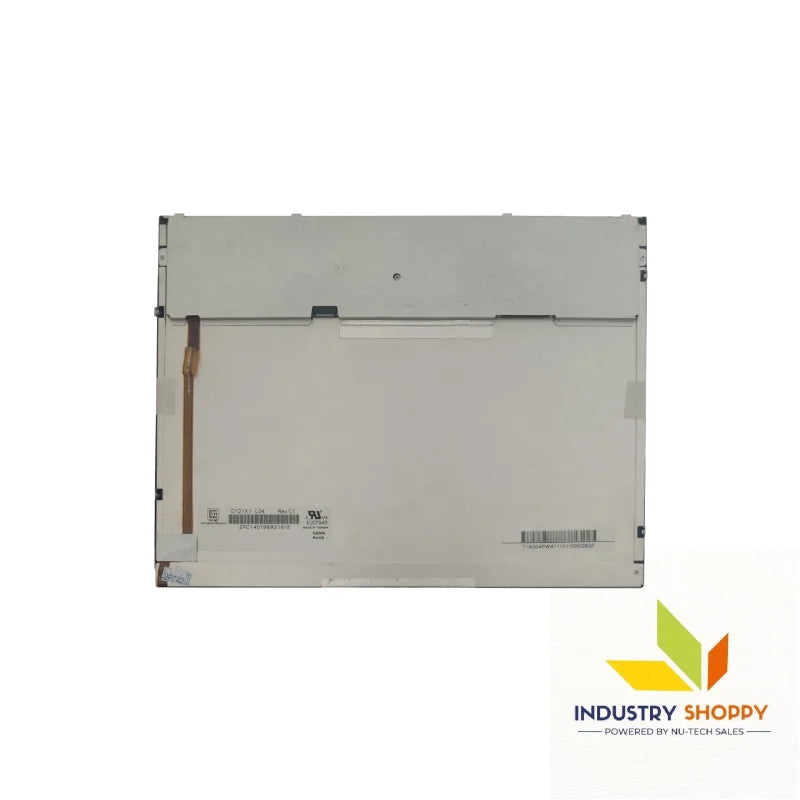

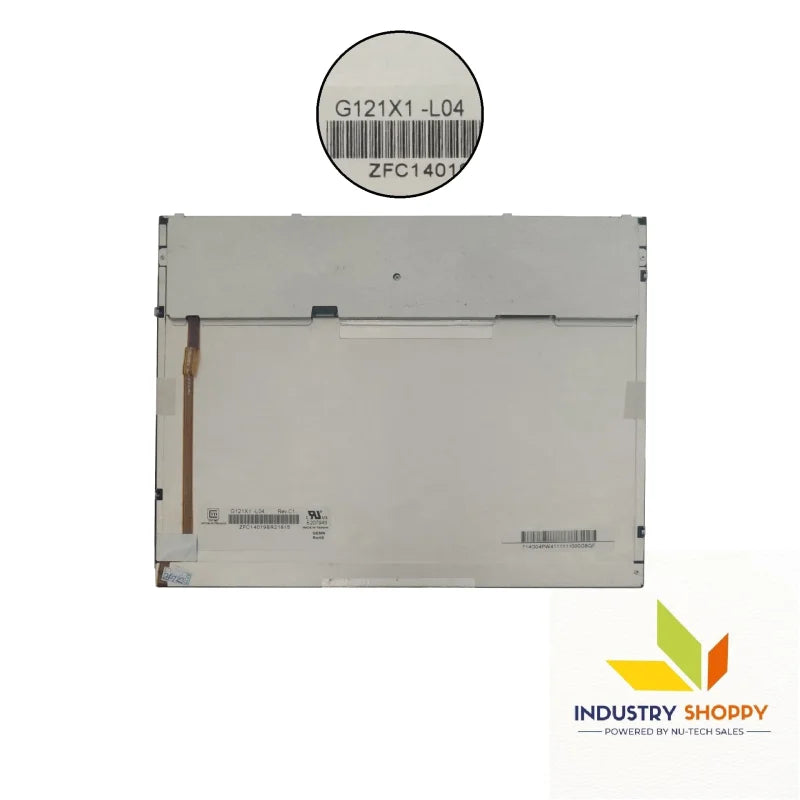

Innolux G121X1-L04 LCD Module

Innolux G121X1-L04 LCD Module

The Innolux G121X1-L04 is a high-performance 12.1-inch a-Si TFT-LCD module designed for professional and industrial applications that require vibrant display quality and durability. Featuring a resolution of 800×600 (SVGA) and a pixel density of 100 PPI, this display provides clear, crisp visuals for a wide range of devices. The RGB Vertical Stripe pixel arrangement ensures consistent color reproduction and sharp image quality.

With a brightness of 400 cd/m², this module performs well in environments with moderate to high ambient lighting. The contrast ratio of 700:1 provides deep blacks and bright whites, ensuring detailed and vibrant images. The viewing angle of 85°/85°/80°/80° (L/R/U/D) guarantees excellent visibility from multiple directions, making it ideal for multi-user applications.

The WLED backlight technology ensures energy efficiency and provides a long lifespan of 50,000 hours, offering reliable performance for extended periods. The antiglare surface treatment minimizes reflections, improving visibility in bright conditions and enhancing the overall user experience.

Key Features:

• Brand: Innolux
• Model: G121X1-L04
• Diagonal Size: 12.1 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for high-quality image rendering
• Active Area: 246.0(W) × 184.5(H) mm
• Bezel Opening: 249.0(W) × 188.5(H) mm
• Outline Dimensions: 270.5(W) × 202.0(H) × 8.4(D) mm
• Surface Treatment: Antiglare for reduced reflections and improved readability
• Brightness: 400 cd/m² (Typical), ideal for moderate lighting conditions
• Contrast Ratio: 700:1 (Typical), providing clear differentiation between light and dark areas
• Viewing Angle: 85°/85°/80°/80° (L/R/U/D), ensuring clarity from various directions
• Backlight Type: WLED with a 50,000-hour lifespan for long-lasting performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 10 ms (Typical, Tr/Td) for smooth visuals with minimal blur
• Signal Interface: 24-bit Parallel RGB (1 channel, 8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: 0°C to 50°C, suitable for a wide range of indoor environments
• Storage Temperature: -20°C to 60°C, flexible storage options in diverse environments

Applications:

• Industrial Displays: Ideal for use in industrial control systems and equipment requiring clear and durable screens
• Point-of-Sale (POS) Systems: Excellent for retail kiosks and customer-facing displays
• Medical Equipment: Suitable for diagnostic and medical devices where high visual clarity is essential
• Gaming Devices: Perfect for handheld gaming consoles and portable media players

Technical Precautions:

• Handling: Handle with care to prevent damage to the screen and internal components
• ESD Protection: Follow electrostatic discharge (ESD) precautions to protect sensitive internal circuits
• Temperature Compliance: Ensure the display operates within the recommended temperature range (0°C to 50°C) for consistent performance
• Installation Guidelines: Avoid excessive pressure on connectors to maintain long-term reliability
• Backlight Maintenance: Regularly inspect the backlight, which has a 50,000-hour lifespan, for continued performance
