Innolux G121I1-L01 LCD Module

Innolux G121I1-L01 LCD Module

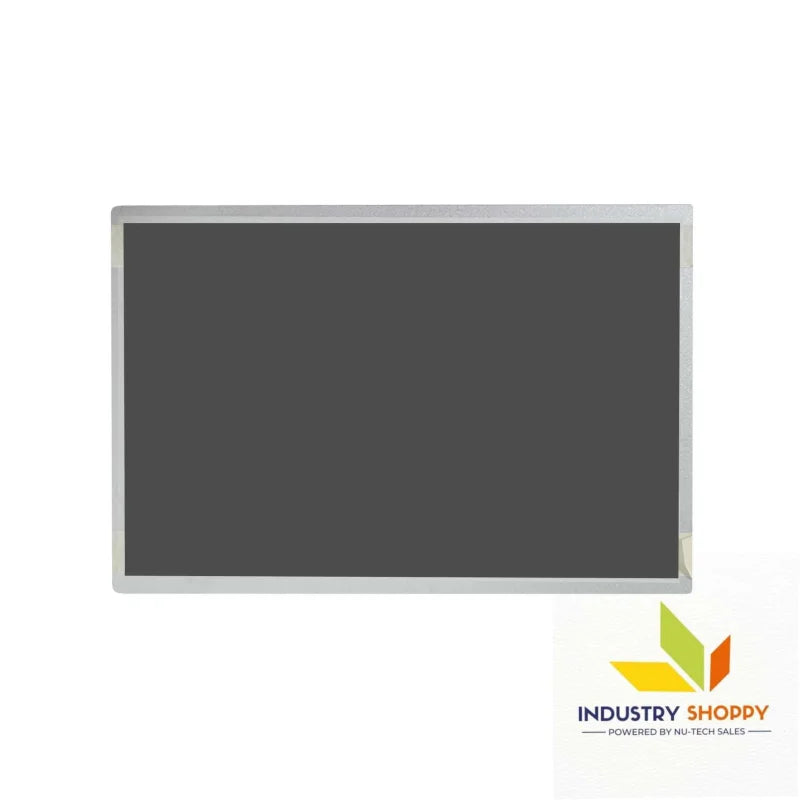

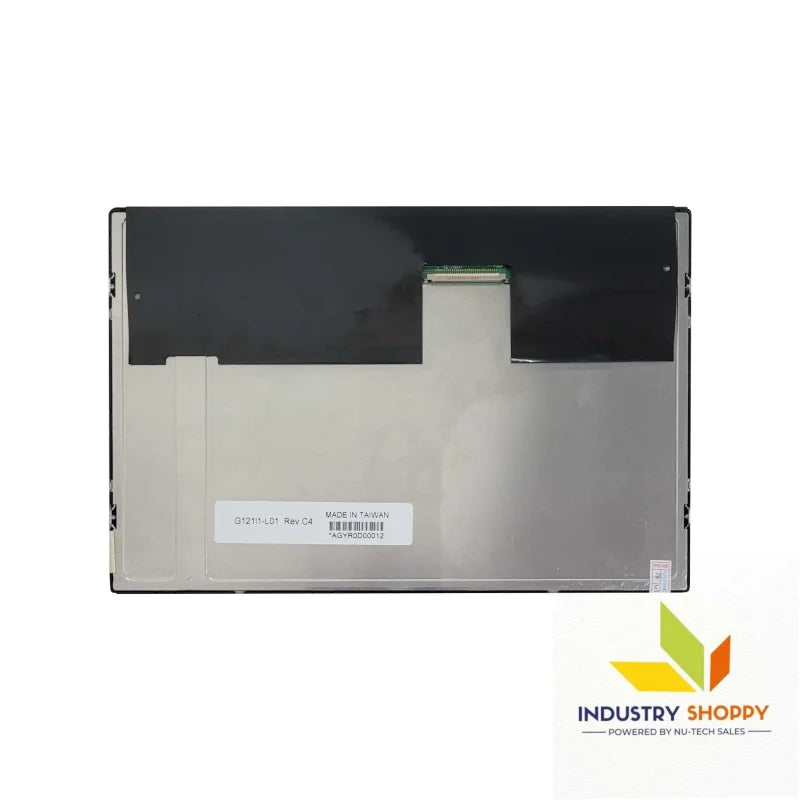

The Innolux G121I1-L01 is a 12.1-inch a-Si TFT-LCD module designed to deliver high-performance displays for industrial and commercial applications. With a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this module offers clear and sharp visuals, making it suitable for a wide range of applications that require high-quality displays in a larger form factor.

The brightness of 350 cd/m² and contrast ratio of 600:1 ensure clear and crisp visuals, even in environments with moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure consistent image clarity from multiple directions, making this display versatile for applications that require viewing from different angles.

Equipped with a LED backlight, the G121I1-L01 module is energy-efficient and has a long lifespan, offering reliable performance over time. Its antiglare surface treatment reduces reflections and enhances readability, making it ideal for use in industrial and commercial settings where displays need to be visible in various lighting conditions.

Key Features:

• Brand: Innolux

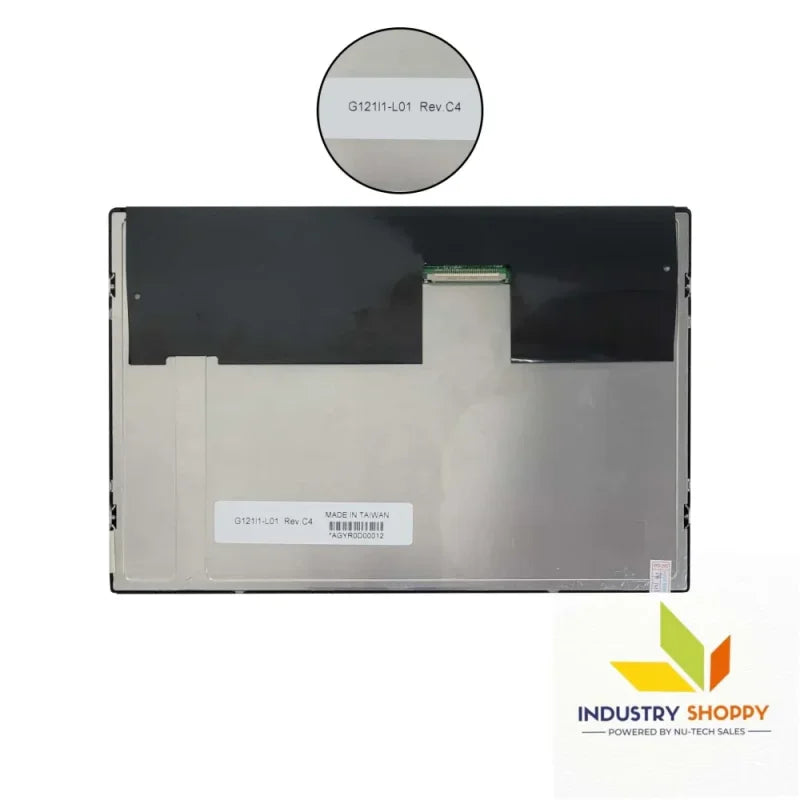

• Model: G121I1-L01
• Diagonal Size: 12.1 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 246.0(W) × 184.5(H) mm
• Bezel Opening: 248.0(W) × 186.0(H) mm
• Outline Dimensions: 270.0(W) × 210.0(H) × 6.5(D) mm
• Surface Treatment: Antiglare for better visibility in bright environments
• Brightness: 350 cd/m² (Typical), suitable for moderate ambient light conditions
• Contrast Ratio: 600:1 (Typical), delivering crisp visuals with high differentiation between light and dark
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing excellent image clarity from all angles
• Backlight Type: LED with a long lifespan for energy efficiency and reliable performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth, responsive visuals

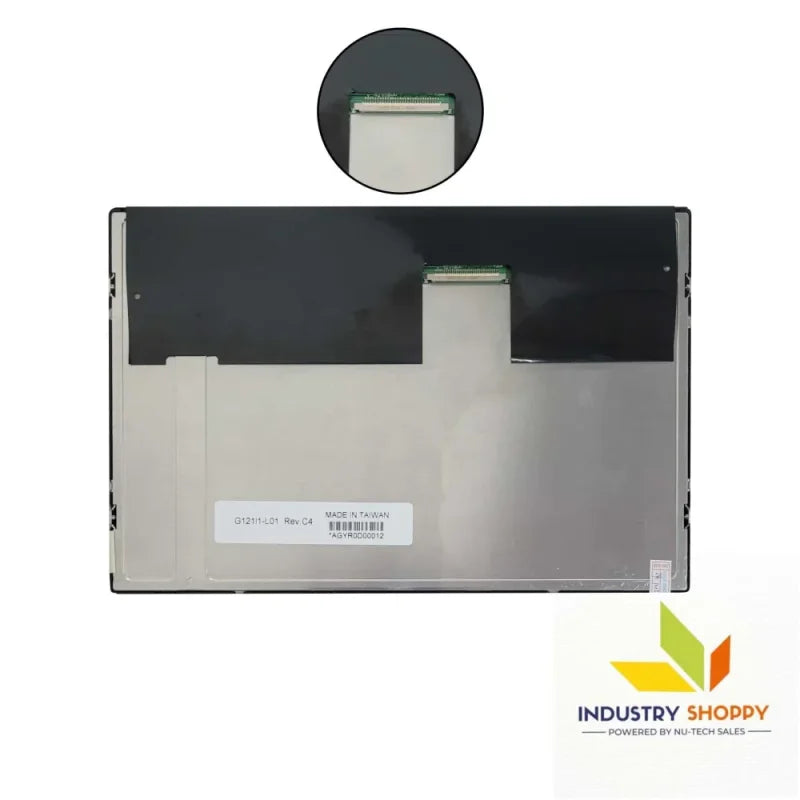

• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, ensuring stable performance across a wide range of environmental conditions
• Storage Temperature: -30°C to 80°C, flexible storage options

Applications:

• Industrial Control Panels: Ideal for use in industrial environments that require a larger display with high visibility and reliable performance
• Medical Devices: Suitable for medical equipment and diagnostic tools requiring large, clear, and reliable displays
• Point-of-Sale (POS) Displays: Perfect for retail and commercial applications requiring an easy-to-read display
• Portable Devices: Suitable for handheld devices requiring a larger screen size in a compact module

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
