Innolux G104X1-L04 LCD Module

Innolux G104X1-L04 LCD Module

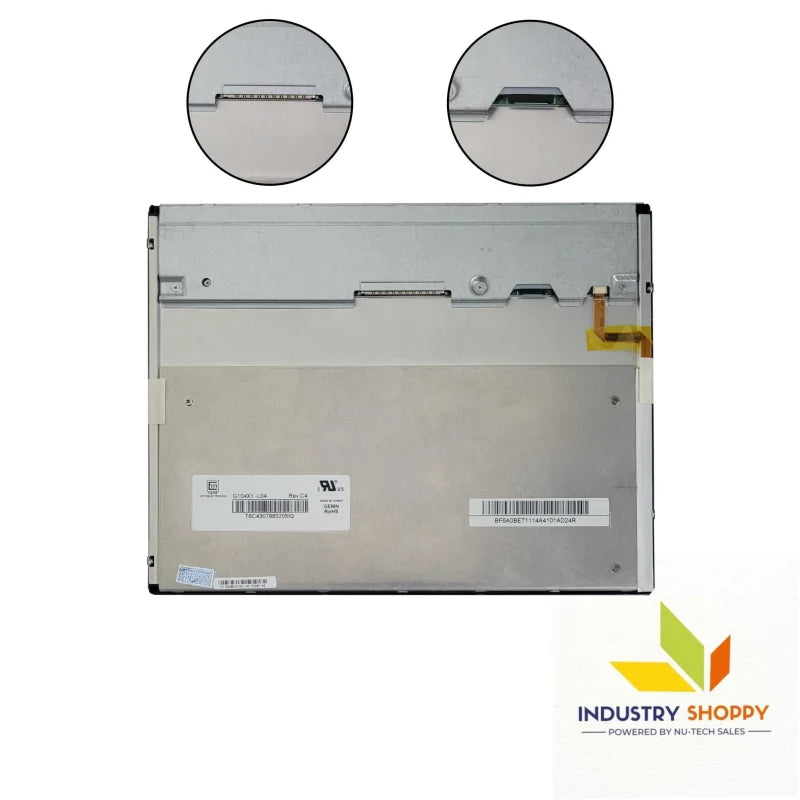

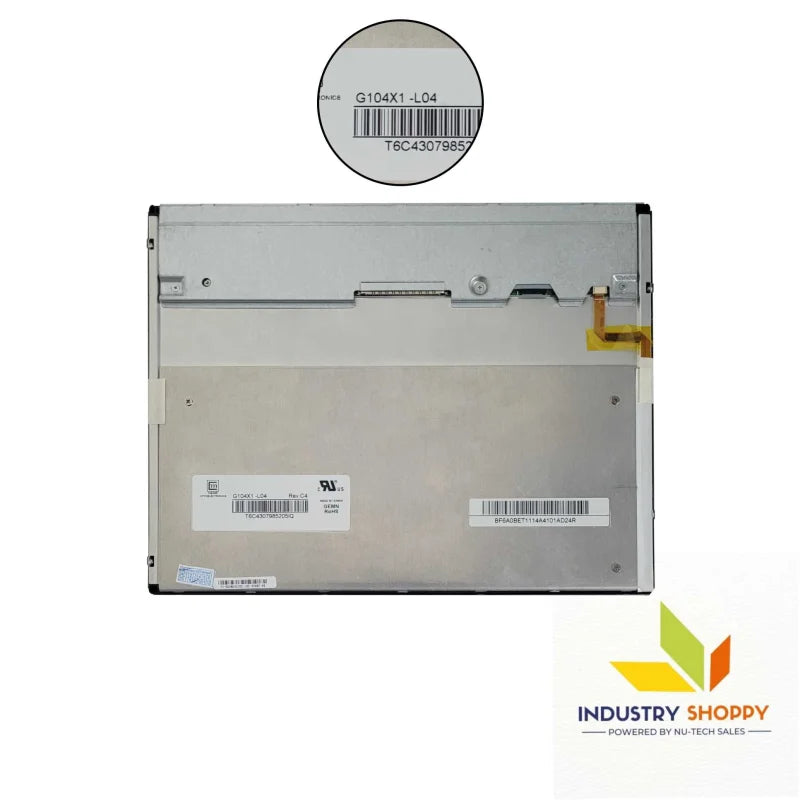

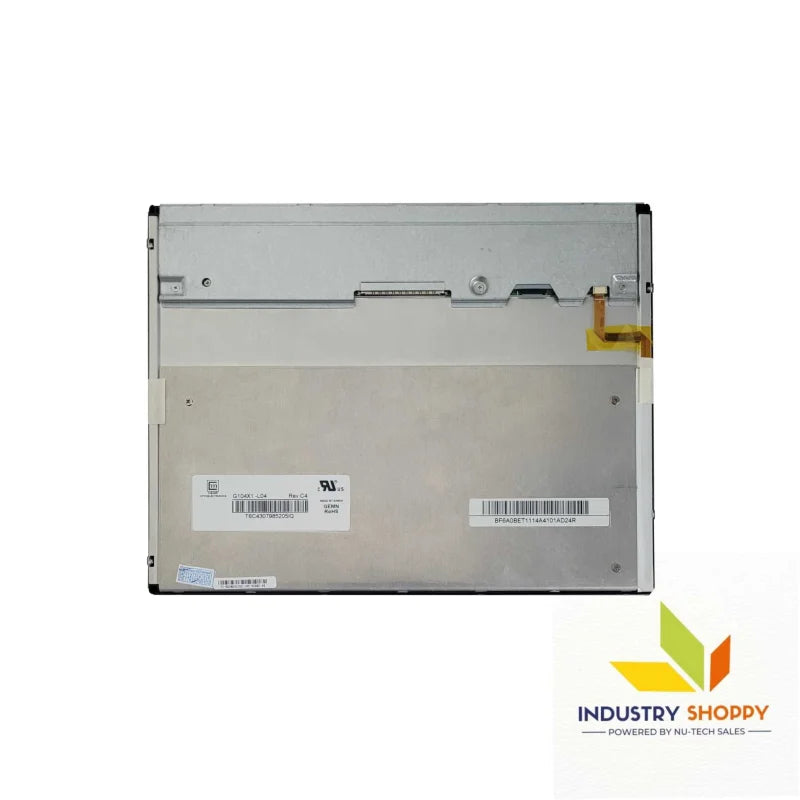

The Innolux G104X1-L04 is a 10.4-inch a-Si TFT-LCD module designed for high-performance applications that require excellent display quality and reliability. With a resolution of 800x600 (SVGA) and a pixel density of 96 PPI, this module offers clear and sharp visuals suitable for a variety of commercial, industrial, and medical applications.

The brightness of 450 cd/m² and a contrast ratio of 600:1 ensure that the visual output remains bright and clear, even in environments with moderate lighting. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) make the module ideal for applications requiring consistent image clarity from different viewing positions, ensuring versatile usage in a wide range of settings.

The LED backlight system provides long-lasting performance and energy efficiency, enhancing the module's reliability for extended use. The antiglare surface treatment minimizes reflections and improves readability, making it suitable for demanding environments where display clarity is crucial, even in bright or ambient lighting conditions.

Key Features:

• Brand: Innolux
• Model: G104X1-L04
• Diagonal Size: 10.4 inches
• Resolution: 800×600 (SVGA), 96 PPI
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 213.2(W) × 160.4(H) mm
• Outline Dimensions: 239.0(W) × 178.8(H) × 7.2(D) mm
• Surface Treatment: Antiglare for reduced reflections and enhanced readability
• Brightness: 450 cd/m² (Typical), suitable for moderate ambient light conditions
• Contrast Ratio: 600:1 (Typical), ensuring clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), delivering consistent image clarity from various angles
• Backlight Type: LED for enhanced energy efficiency and long lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, ideal for use in a variety of environments
• Storage Temperature: -30°C to 80°C, providing flexibility for storage

Applications:

• Industrial Control Panels: Suitable for use in industrial settings requiring a medium-sized, high-quality display
• Medical Devices: Ideal for medical equipment that demands clarity and precision in the visual output
• Point-of-Sale (POS) Displays: Perfect for retail systems that need a compact, vibrant display
• Portable Devices: Great for handheld devices that require a clear, medium-sized display in a compact module

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Ensure electrostatic discharge (ESD) precautions are followed during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) to maintain optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to maintain consistent performance throughout its lifespan
