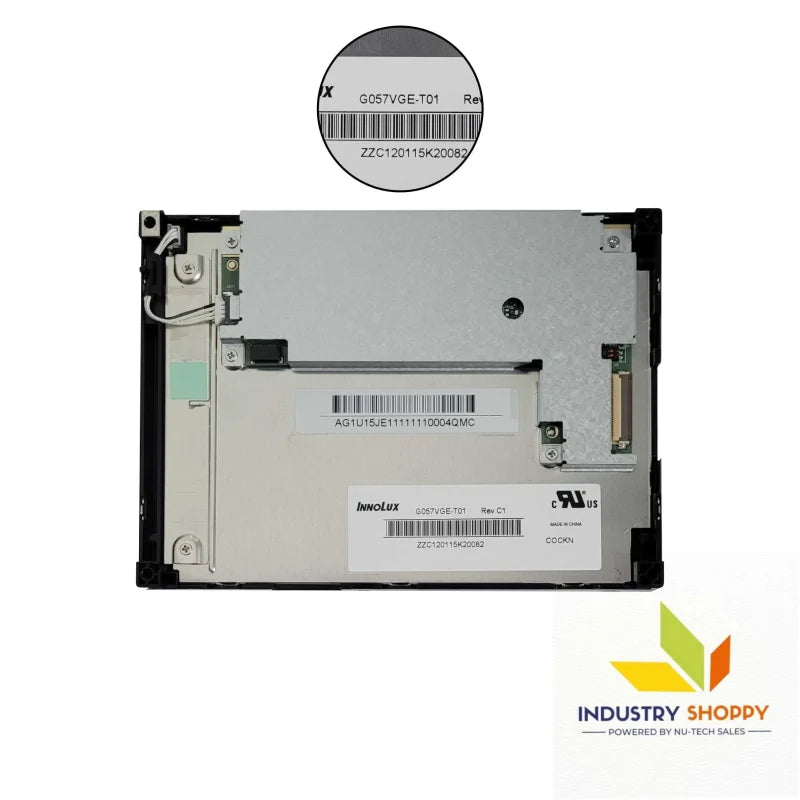

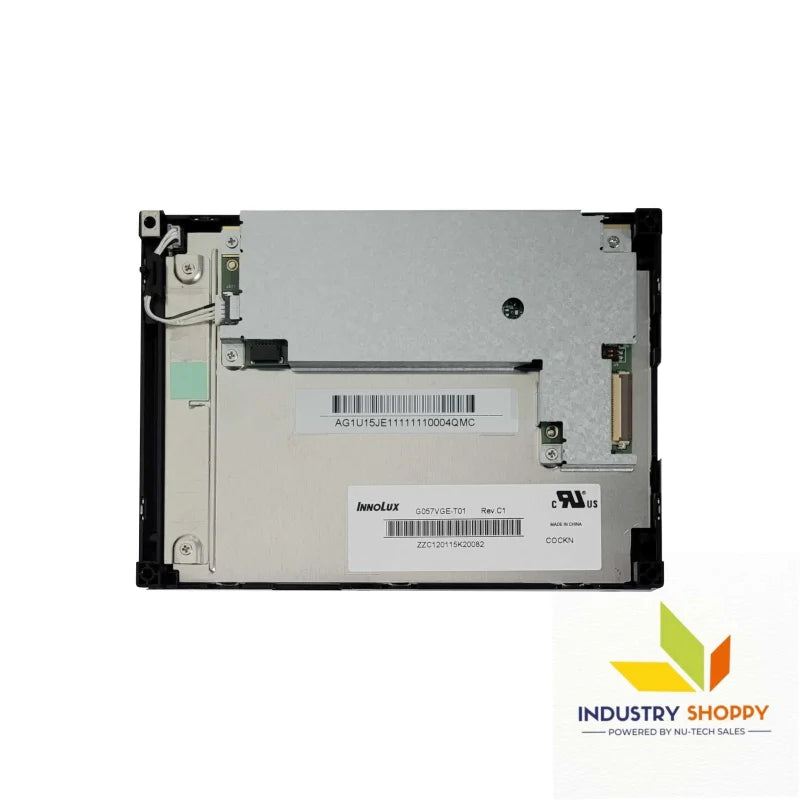

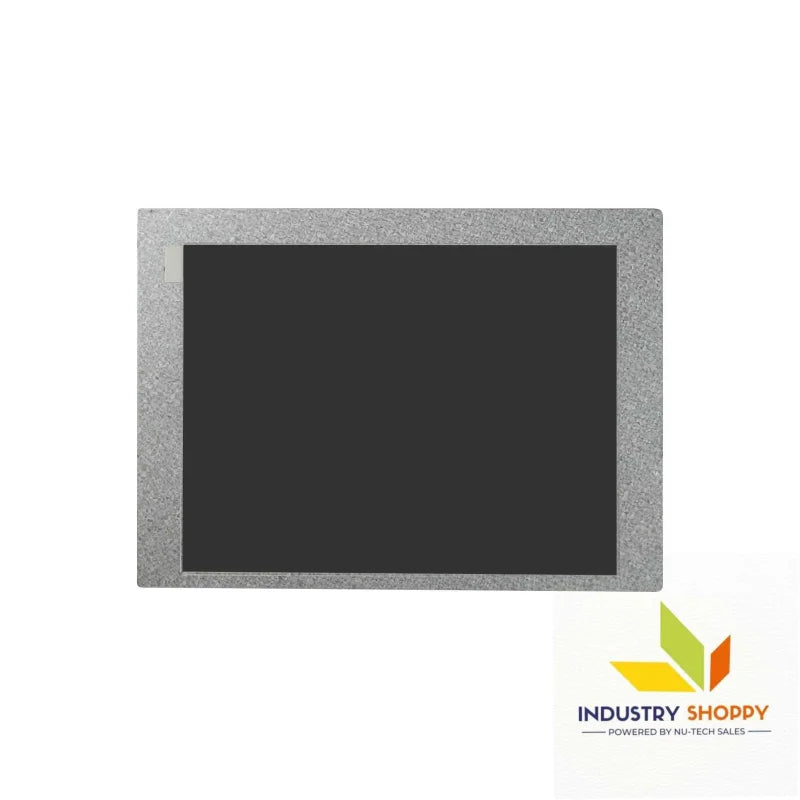

Innolux G057VGE-T01 LCD Module

The Innolux G057VGE-T01 is a 5.7-inch a-Si TFT-LCD module designed for applications that require a compact display with high-quality visual output. Offering a resolution of 640x480 (VGA) and a pixel density of 116 PPI, this module provides clear and sharp visuals, making it suitable for industrial and commercial applications where space is limited but high-quality display performance is crucial.

With a brightness of 500 cd/m² and a contrast ratio of 500:1, the G057VGE-T01 ensures vibrant and sharp images, even in moderate ambient lighting. The wide viewing angles of 80°/80°/60°/80° (L/R/U/D) allow for consistent clarity from various viewing positions, making it ideal for applications that require viewing from different angles.

The module comes with an LED backlight, offering energy efficiency and a long lifespan, making it reliable for extended use. Its antiglare surface treatment reduces reflections and enhances readability, ensuring the module performs well in environments with varying lighting conditions.

Key Features:

• Brand: Innolux
• Model: G057VGE-T01
• Diagonal Size: 5.7 inches
• Resolution: 640×480 (VGA), 116 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 115.2(W) × 86.4(H) mm
• Bezel Opening: 118.2(W) × 89.4(H) mm
• Outline Dimensions: 129.6(W) × 98.3(H) × 7.8(D) mm
• Surface Treatment: Antiglare to reduce reflections and improve visibility
• Brightness: 500 cd/m² (Typical), suitable for moderate ambient lighting conditions
• Contrast Ratio: 500:1 (Typical), ensuring clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), delivering consistent image clarity from different angles
• Backlight Type: LED for energy efficiency and long lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

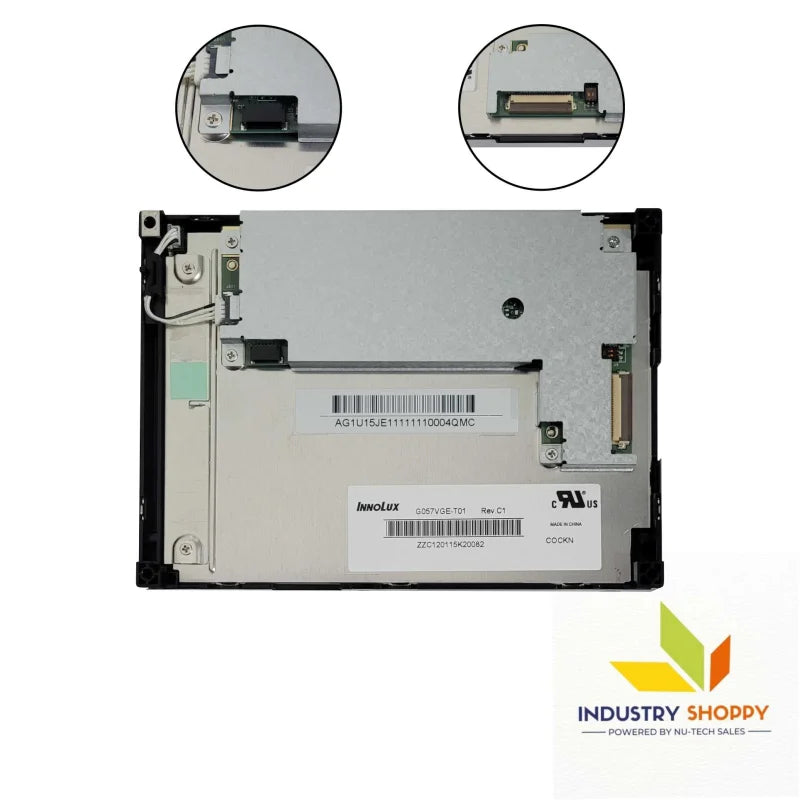

• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, ensuring reliable performance across a wide range of environments
• Storage Temperature: -30°C to 80°C, providing flexibility for storage

Applications:

• Industrial Control Panels: Ideal for compact systems that require high-quality displays in industrial environments
• Medical Devices: Suitable for small medical equipment requiring clear and crisp visuals
• Point-of-Sale (POS) Displays: Perfect for retail systems requiring a vibrant display in a compact form factor
• Portable Devices: Great for handheld devices where space and visual clarity are crucial

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight for continued performance throughout its lifespan
