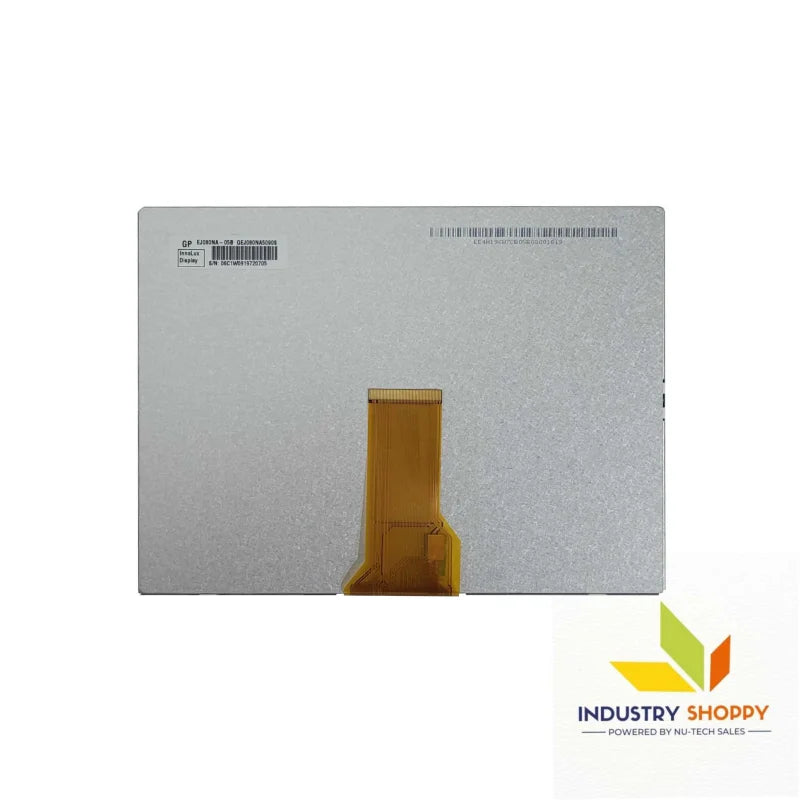

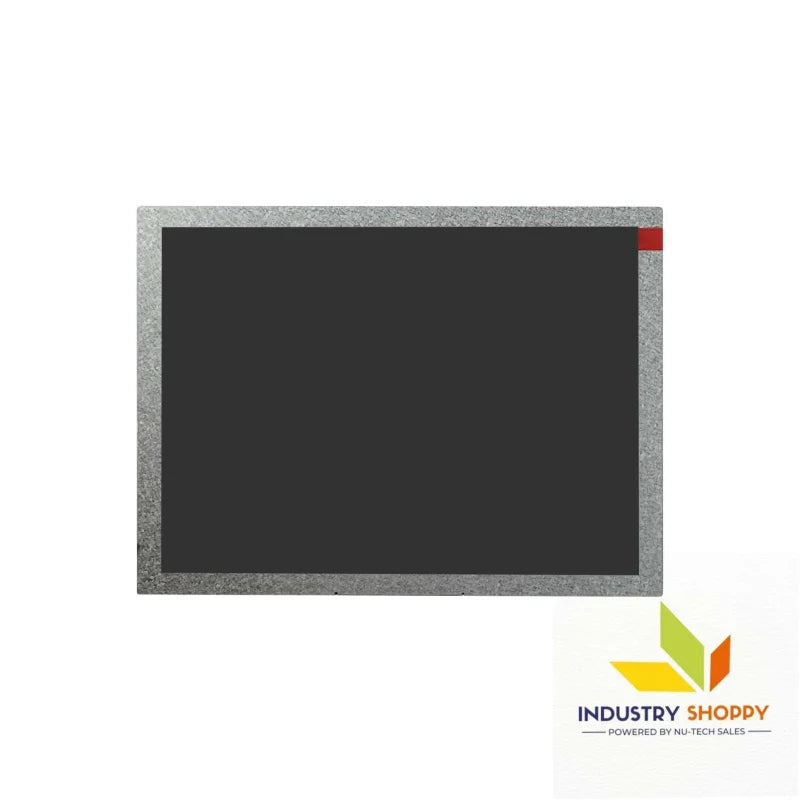

Innolux EJ080NA-05B LCD Module

Innolux EJ080NA-05B LCD Module

The Innolux EJ080NA-05B is an 8.0-inch a-Si TFT-LCD module designed for high-performance applications that require clear, high-quality displays in a compact form factor. With a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this module provides crisp, sharp visuals that are ideal for industrial, medical, and commercial devices.

With a brightness of 450 cd/m² and a contrast ratio of 500:1, the EJ080NA-05B offers excellent image clarity and brightness, even in environments with ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure that the visual output remains clear from multiple angles, providing versatile usability in applications that require multiple viewing positions.

The module also features an LED backlight, which provides energy-efficient performance with a long lifespan, ensuring the display can be used for extended periods without degradation. The antiglare surface treatment helps reduce reflections, improving readability in bright or high-light environments, making it a versatile option for a wide range of professional applications.

Key Features:

• Brand: Innolux

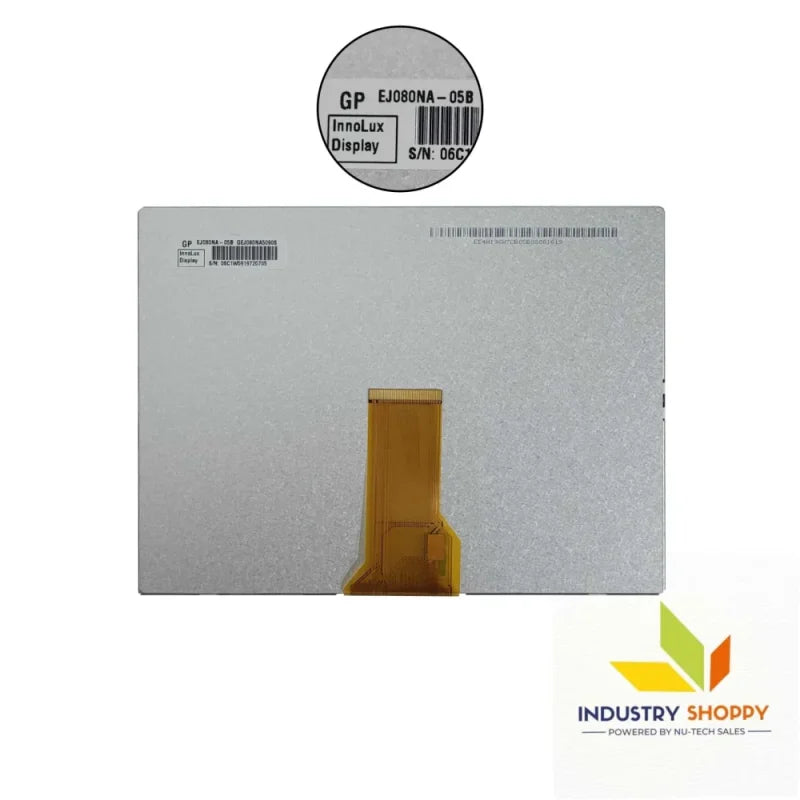

• Model: EJ080NA-05B
• Diagonal Size: 8.0 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 172.8(W) × 129.6(H) mm
• Bezel Opening: 175.6(W) × 132.6(H) mm
• Outline Dimensions: 186.5(W) × 141.2(H) × 7.5(D) mm
• Surface Treatment: Antiglare to reduce reflections and enhance readability
• Brightness: 450 cd/m² (Typical), suitable for moderate ambient lighting conditions
• Contrast Ratio: 500:1 (Typical), ensuring clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), delivering consistent image clarity from various angles
• Backlight Type: LED for energy efficiency and long lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

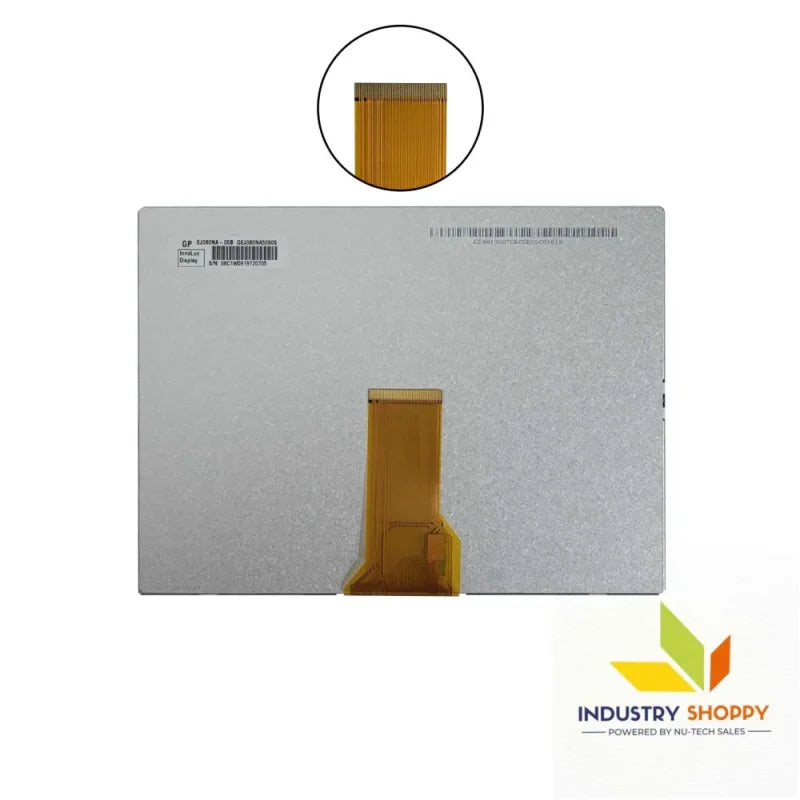

• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to perform reliably across various environments
• Storage Temperature: -30°C to 80°C, suitable for flexible storage conditions

Applications:

• Industrial Control Panels: Ideal for industrial applications requiring a medium-sized display with high-quality visuals
• Medical Devices: Suitable for use in small medical devices and diagnostic equipment where clarity is critical
• Point-of-Sale (POS) Displays: Perfect for retail systems that require a compact and vibrant display
• Portable Devices: Suitable for portable devices requiring a high-quality display with efficient power usage

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Ensure electrostatic discharge (ESD) precautions are followed during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance over time
