Innolux AT102TN03-V.9 LCD Module

Innolux AT102TN03-V.9 LCD Module

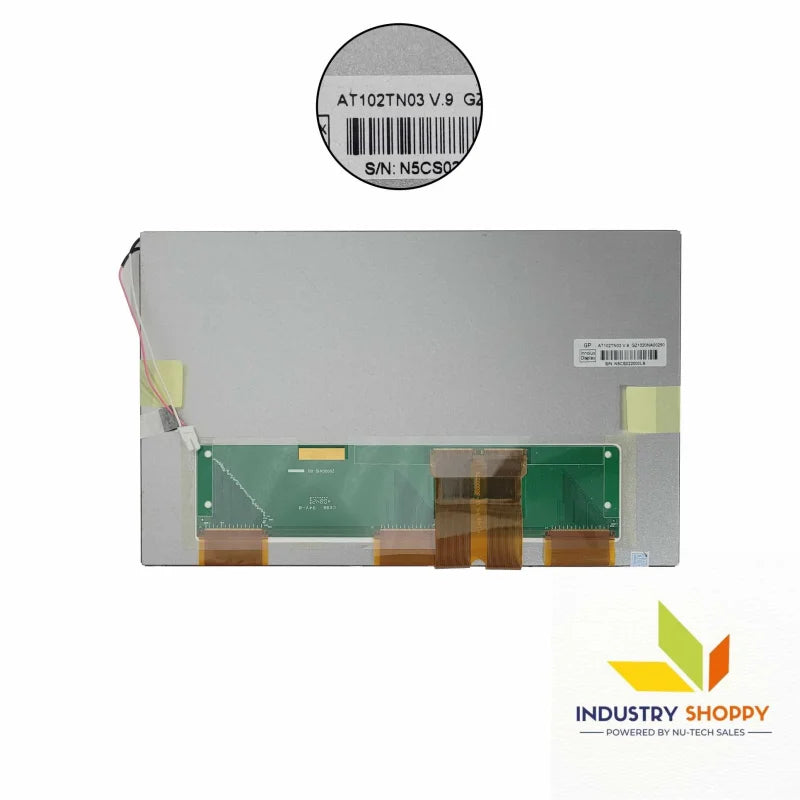

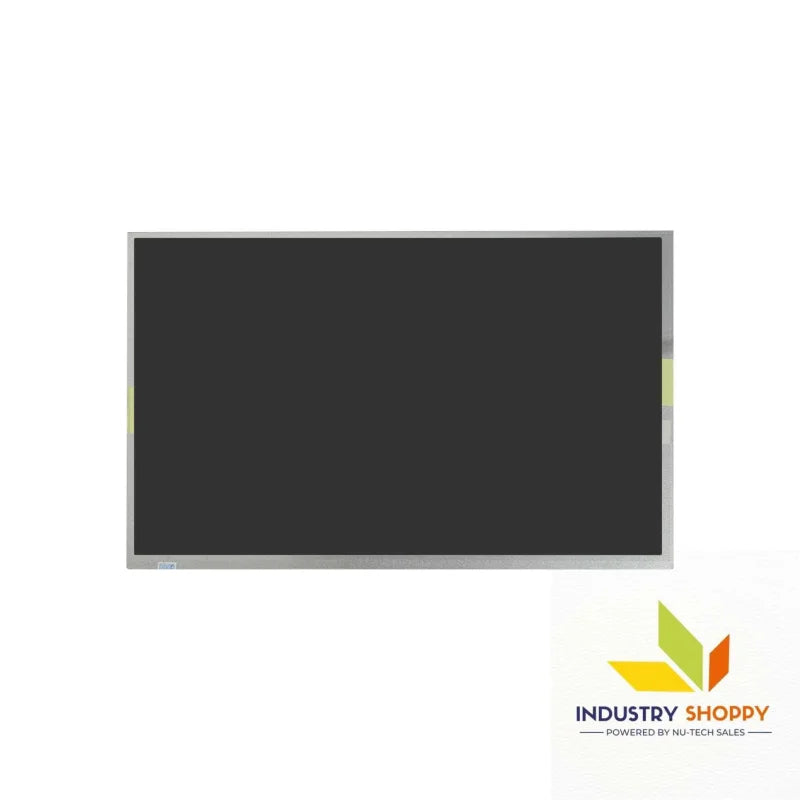

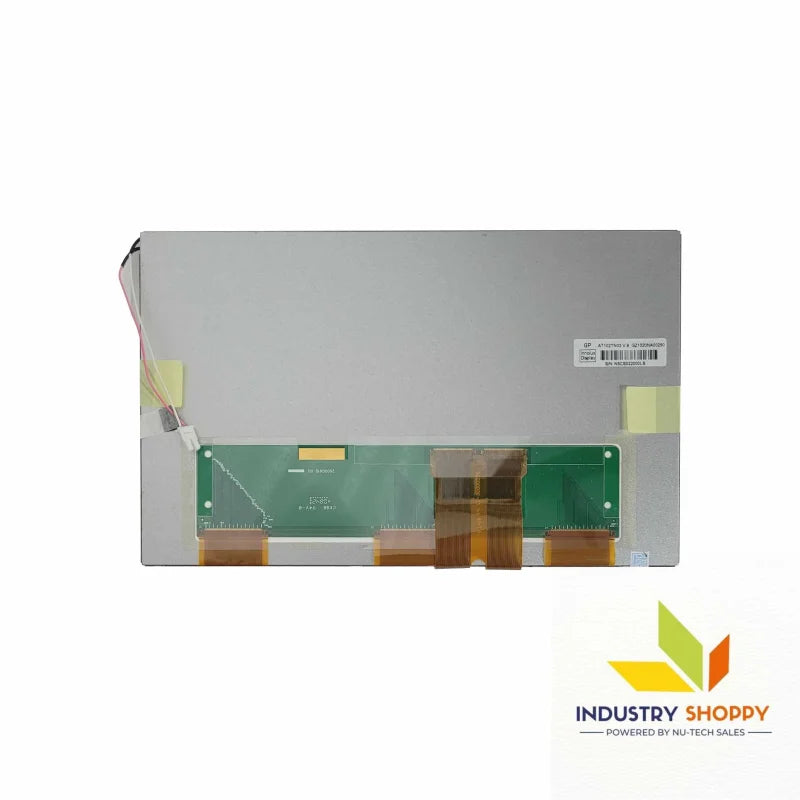

The Chimei Innolux AT102TN03-V.9 LCD Module is a 10.2-inch TFT-LCD display designed for high-quality visual applications. With a resolution of 800×480 WVGA, it offers sharp image clarity and a 91 PPI pixel density. The RGB vertical stripe pixel format ensures vibrant and accurate color representation. The module features 250 cd/m² brightness, making it suitable for various lighting conditions, and a 300:1 contrast ratio for clear and detailed imagery.

The display offers wide viewing angles (65°/65°/45°/65°) with optimal viewing from the 6 o'clock position. It supports 262K colors with 50% NTSC for rich, true-to-life colors. The antiglare surface treatment minimizes reflections, enhancing visibility. A quick response time of 15ms (rise) and 20ms (fall) ensures smooth transitions in fast-moving visuals. The module’s WLED backlight offers a 20,000-hour lifespan.

Designed for use in Digital Photo Frames and Portable DVD Players, this module operates across a wide temperature range (-30°C to 85°C), making it durable for both operating and storage conditions. With a TTL (1 channel, 6-bit) signal interface and 60 pins FPC, it ensures compatibility with various systems.

Key Features

• Display Size: 10.2 inches for compact yet clear viewing.
• Resolution: WVGA 800×480, delivering sharp and crisp visuals.
• Pixel Density: 91 PPI for high pixel clarity.
• Pixel Format: RGB vertical stripe for vivid color output.
• Brightness: 250 cd/m² for comfortable readability.
• Contrast Ratio: 300:1 for enhanced depth and clarity.
• Viewing Angles: 65°/65°/45°/65° (CR≥10), allowing multiple viewing positions.
• Optimal Viewing Direction: Best viewed from the 6 o'clock position.
• Color Display: 262K colors with 50% NTSC for accurate color representation.
• Surface Treatment: Antiglare for reduced reflections and improved visibility.
• Response Time: Quick 15ms rise and 20ms fall time for smooth transitions.
• Backlight: WLED (3S10P) with a lifespan of 20,000 hours, providing consistent illumination.
• Panel Type: TN, Normally White, Transmissive for standard performance.
• Frame Rate: 60Hz standard, with options for 120Hz and 240Hz (MEMC circuits).

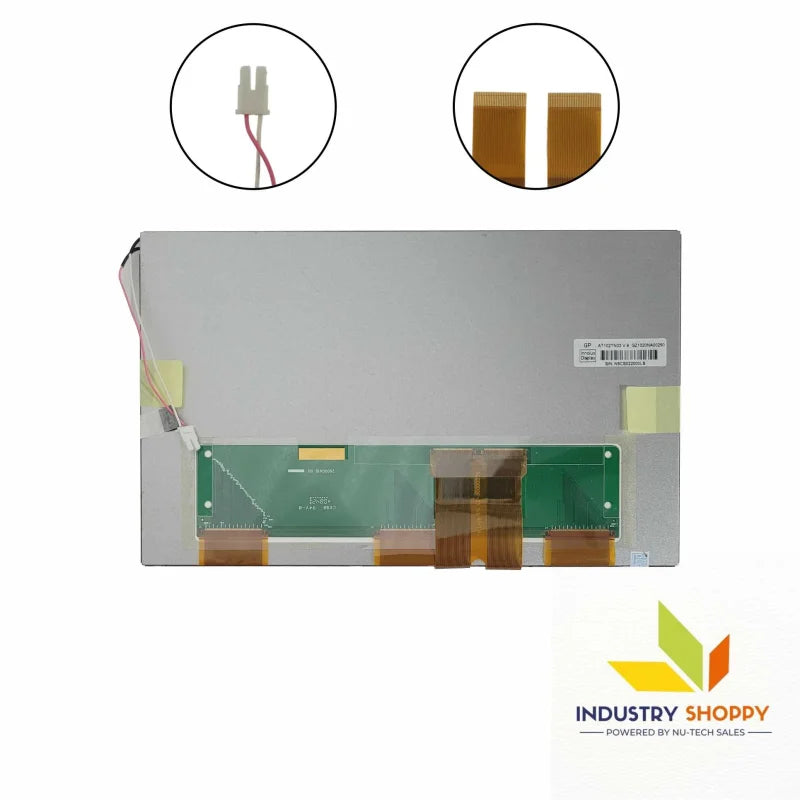

• Signal Interface: TTL (1 channel, 6-bit) with 60-pin FPC for seamless connectivity.
• Power Supply: 3.3V/9.2V/16V/-7V input for versatile applications.
• Operating Temperature: Works in extreme conditions, ranging from -30°C to 85°C.
• Storage Temperature: Suitable for storage in temperatures from -30°C to 85°C.
