Innolux AT102TN03-V.8 LCD Module

Innolux AT102TN03-V.8 LCD Module

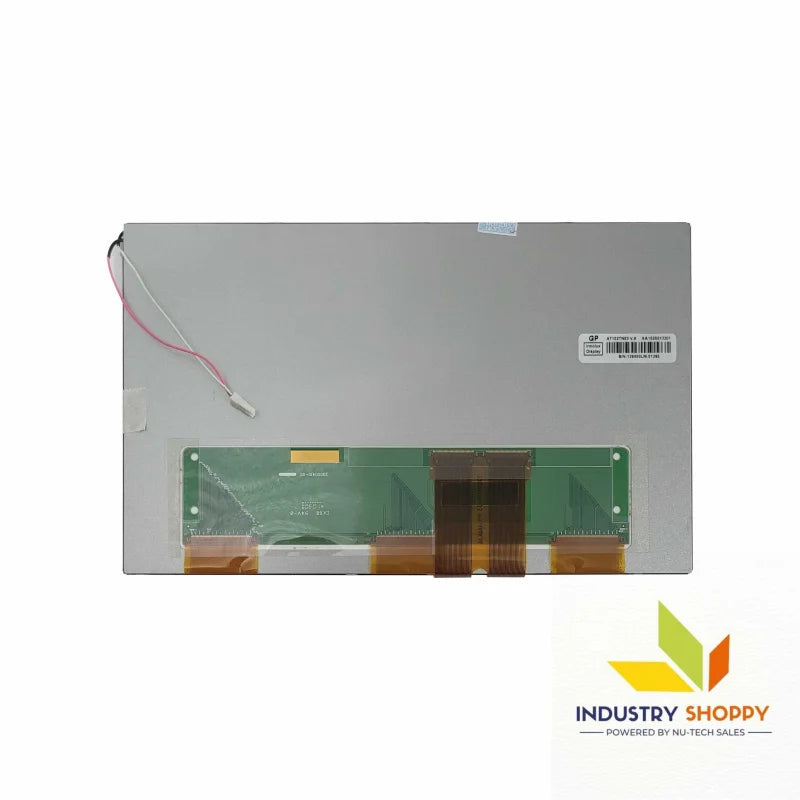

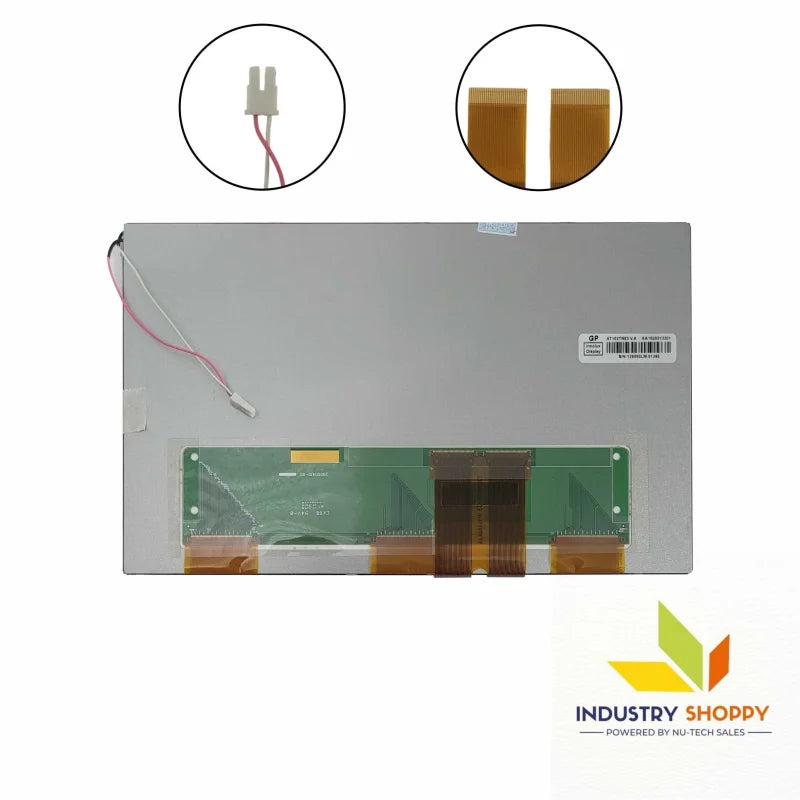

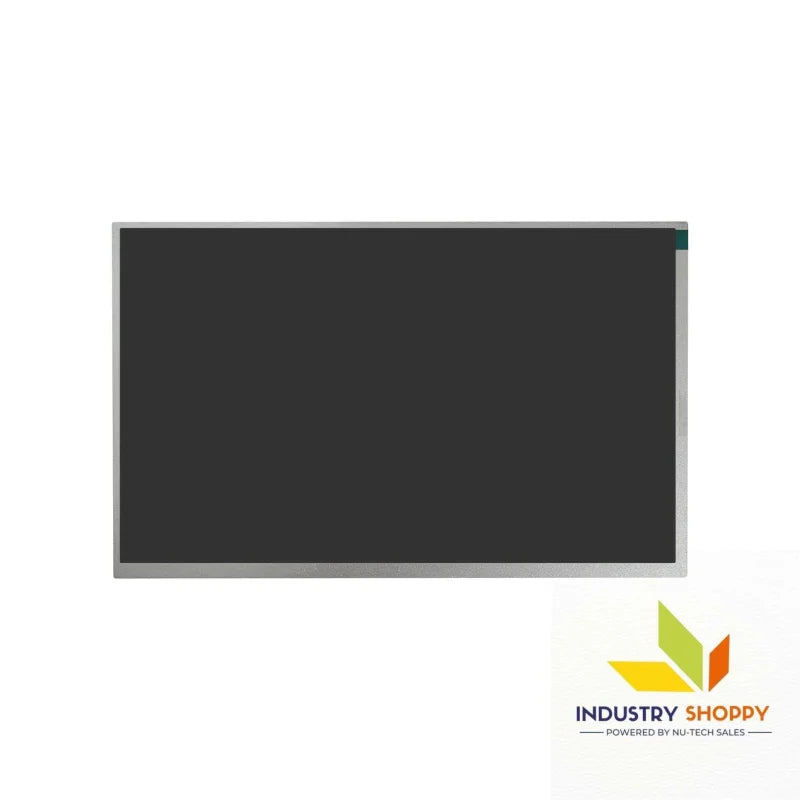

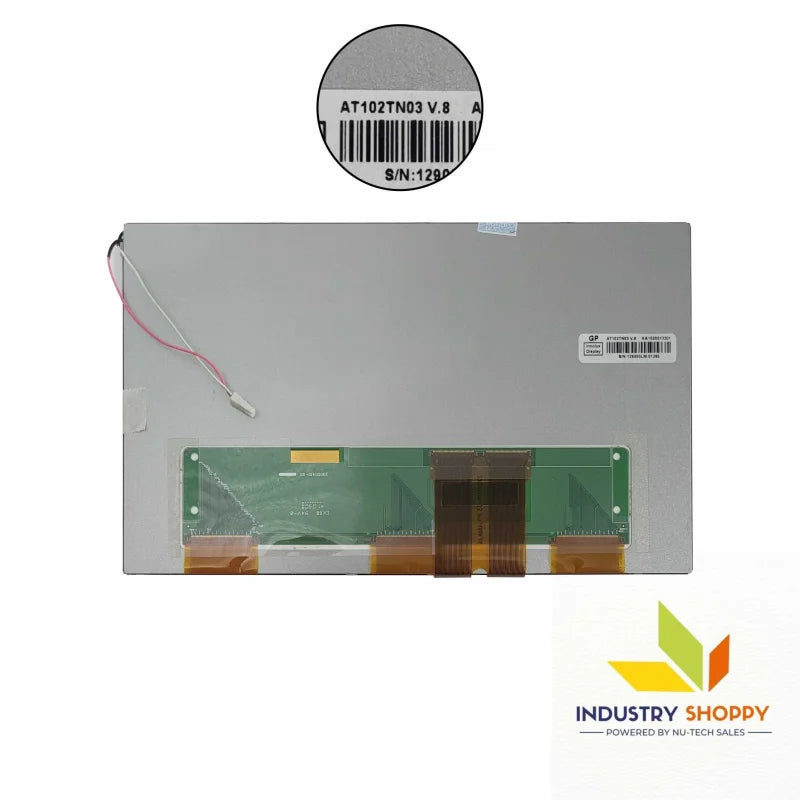

The Innolux AT102TN03-V.8 LCD Module is a 10.2-inch a-Si TFT-LCD designed for automotive and industrial applications, offering excellent performance and durability. With a WVGA resolution of 800×480 (91 PPI) and RGB vertical stripe pixel format, it ensures sharp and vibrant visuals. The 350 cd/m² brightness and antiglare surface enhance readability in various lighting conditions, while the 300:1 contrast ratio delivers vivid image clarity.

Its wide viewing angles (65°/65°/45°/65°) and optimized 6 o'clock viewing direction make it ideal for diverse display needs. The fast response time of 15/20ms (Tr/Td) ensures smooth transitions, and the WLED backlight with a 20,000-hour lifespan guarantees reliability. Compact with a lightweight build (309g), this module is easy to integrate with TTL signal interface (60 pins FPC).

Engineered for durability, it operates efficiently in extreme temperatures (-30°C to 85°C), making it perfect for challenging environments.

Key Features

• Display Size: 10.2-inch TFT-LCD for versatile applications.
• Resolution: WVGA 800×480 for sharp and detailed visuals.
• Pixel Density: 91 PPI ensures high clarity.
• Color Format: RGB vertical stripe for vivid color reproduction.
• Brightness: 350 cd/m² provides excellent visibility.
• Contrast Ratio: 300:1 for enhanced image depth.
• Viewing Angles: 65°/65°/45°/65° (CR≥10) suitable for multiple perspectives.
• Optimal Viewing Direction: 6 o'clock for specific use cases.
• Color Display: 262K colors with 50% NTSC color gamut.
• Surface Treatment: Antiglare coating reduces reflections.
• Response Time: Fast 15ms rise and 20ms fall for smooth visuals.
• Backlight Type: Long-lasting 3S10P WLED with 20,000-hour life.
• Panel Type: TN, Normally White, Transmissive for standard applications.
• Signal Interface: TTL (1 channel, 6-bit) with 60-pin FPC for easy integration.
• Active Area: 222(W)×132.48(H) mm for ample display space.
• Bezel Opening: 225.3(W)×135.7(H) mm ensures precise fitting.
• Outline Dimensions: Compact 235(W)×145.8(H)×6.4(D) mm.
• Input Voltage: Operates on 3.3/9.2/16/-7V (VCC/AVDD/VGH/VGL).
• Operating Temperature: Functions reliably in extreme conditions (-30°C to 85°C).
• Storage Temperature: Withstands storage in temperatures from -30°C to 85°C.
• Refresh Rate: Standard 60Hz with enhanced 120Hz and 240Hz options.
