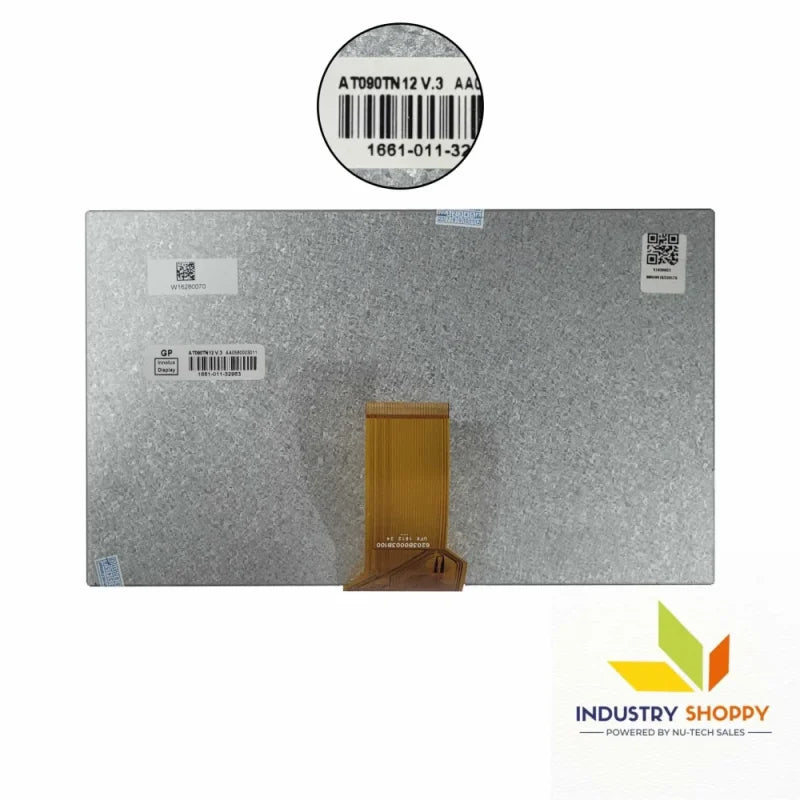

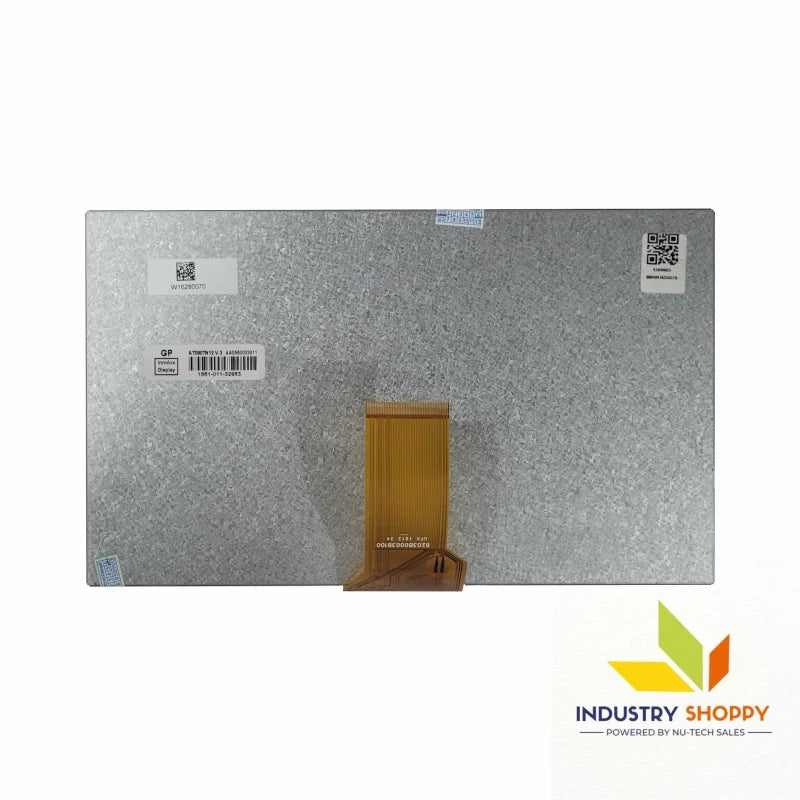

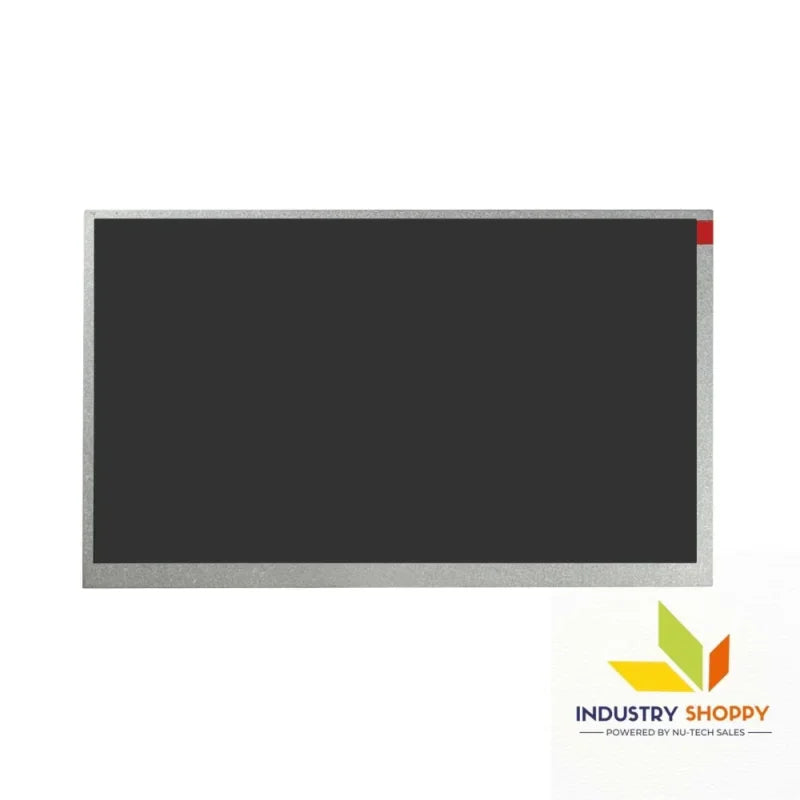

Innolux AT090TN12-V.3 LCD Module

Innolux AT090TN12-V.3 LCD Module

The Innolux AT090TN12-V.3 is a 9.0-inch a-Si TFT-LCD module designed for applications requiring a high-quality, compact display solution. With a resolution of 800x480 (WVGA) and a pixel density of 100 PPI, this module offers sharp, clear visuals, making it an ideal choice for industrial, automotive, and commercial applications where display clarity is crucial.

The AT090TN12-V.3 features a brightness of 450 cd/m² and a contrast ratio of 500:1, providing vibrant colors and crisp details, even in environments with moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure that the display maintains clarity from multiple angles, making it versatile for applications requiring consistent visual output from different perspectives.

Equipped with an LED backlight, the AT090TN12-V.3 provides energy efficiency and a long lifespan, making it suitable for extended use in demanding environments. The antiglare surface treatment further enhances visibility by reducing reflections, ensuring clear readability in a variety of lighting conditions.

Key Features:

• Brand: Innolux
• Model: AT090TN12-V.3
• Diagonal Size: 9.0 inches
• Resolution: 800×480 (WVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 198.5(W) × 120.0(H) mm
• Bezel Opening: 201.0(W) × 123.0(H) mm
• Outline Dimensions: 212.0(W) × 139.0(H) × 7.5(D) mm
• Surface Treatment: Antiglare for improved visibility in various lighting conditions
• Brightness: 450 cd/m² (Typical), suitable for moderate ambient light
• Contrast Ratio: 500:1 (Typical), ensuring vibrant and clear image differentiation
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing consistent clarity from different positions
• Backlight Type: LED for energy efficiency and a long operational lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth, responsive visuals

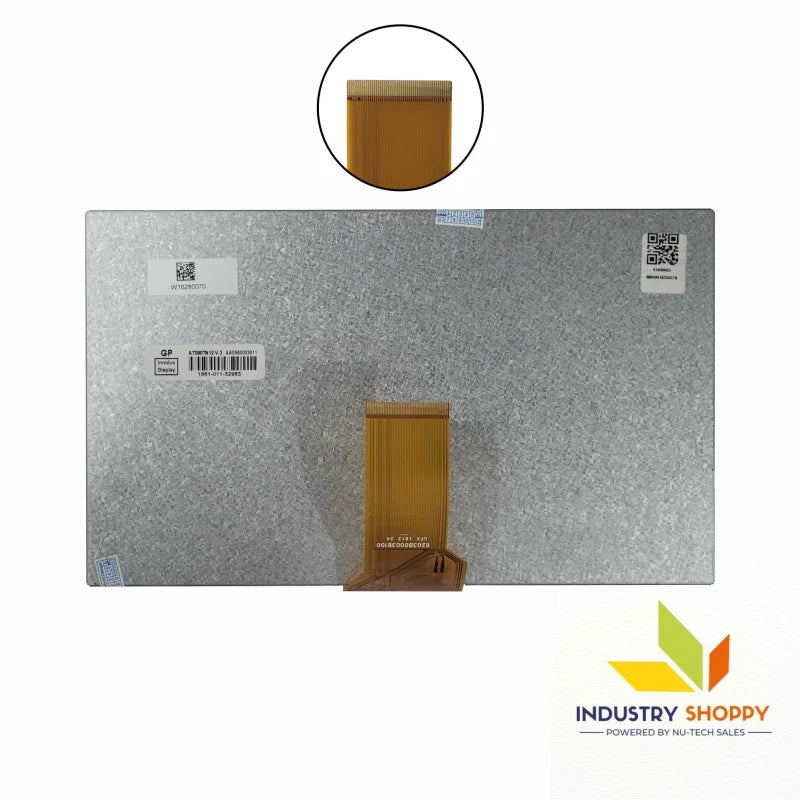

• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate reliably in various environments
• Storage Temperature: -30°C to 80°C, providing flexibility for storage

Applications:

• Industrial Control Panels: Perfect for industrial applications requiring a medium-sized, high-quality display
• Automotive Displays: Suitable for automotive systems where clear and responsive visuals are needed
• Point-of-Sale (POS) Displays: Ideal for retail applications requiring vibrant and clear displays
• Portable Devices: Great for portable devices that need a compact, energy-efficient display with high clarity

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
