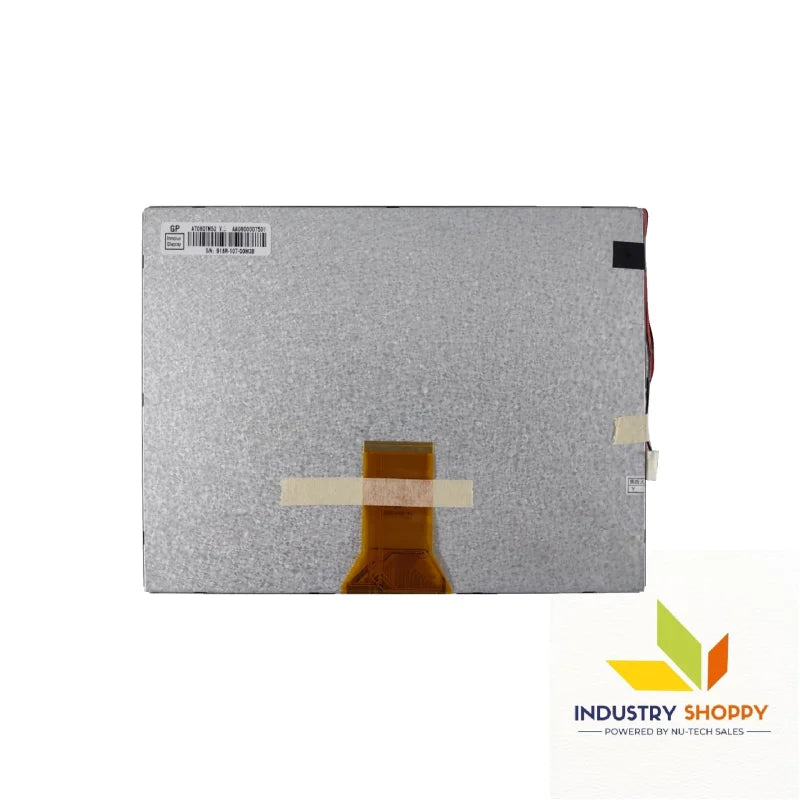

Innolux AT080TN52-V.1 LCD Module

Innolux AT080TN52-V.1 LCD Module

The Innolux AT080TN52-V.1 is an 8.0-inch a-Si TFT-LCD module designed for applications that require a compact display with high-quality visuals. With a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this module provides clear, sharp, and detailed visuals, making it suitable for various industrial, commercial, and portable device applications.

The AT080TN52-V.1 offers a brightness of 400 cd/m² and a contrast ratio of 500:1, ensuring vibrant images and clear text even in environments with moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) provide consistent clarity, allowing the display to be easily viewed from multiple angles, making it versatile for applications that require various viewing perspectives.

Equipped with an LED backlight, this module offers energy efficiency and a long operational lifespan, providing extended performance in a wide range of devices. The antiglare surface treatment enhances visibility, reducing reflections and improving readability in bright environments, ensuring superior performance in varying lighting conditions.

Key Features:

• Brand: Innolux
• Model: AT080TN52-V.1
• Diagonal Size: 8.0 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 162.0(W) × 121.5(H) mm
• Bezel Opening: 165.0(W) × 124.0(H) mm
• Outline Dimensions: 177.2(W) × 131.6(H) × 7.5(D) mm
• Surface Treatment: Antiglare for better visibility in bright environments
• Brightness: 400 cd/m² (Typical), ideal for moderate ambient light conditions
• Contrast Ratio: 500:1 (Typical), ensuring clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), ensuring clarity from multiple angles
• Backlight Type: LED for enhanced energy efficiency and longer lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to perform reliably in various environments
• Storage Temperature: -30°C to 80°C, offering flexible storage options

Applications:

• Industrial Control Panels: Ideal for industrial systems where compact displays with high-quality visuals are essential
• Medical Devices: Suitable for small medical equipment and diagnostic tools that require clear, reliable visuals
• Point-of-Sale (POS) Displays: Perfect for retail applications requiring a compact display with vibrant colors and high clarity
• Portable Devices: Ideal for handheld devices needing energy-efficient and high-performance displays

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Follow electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to maintain its performance over time
