Innolux AT070TN92-V.1 LCD Module

Innolux AT070TN92-V.1 LCD Module

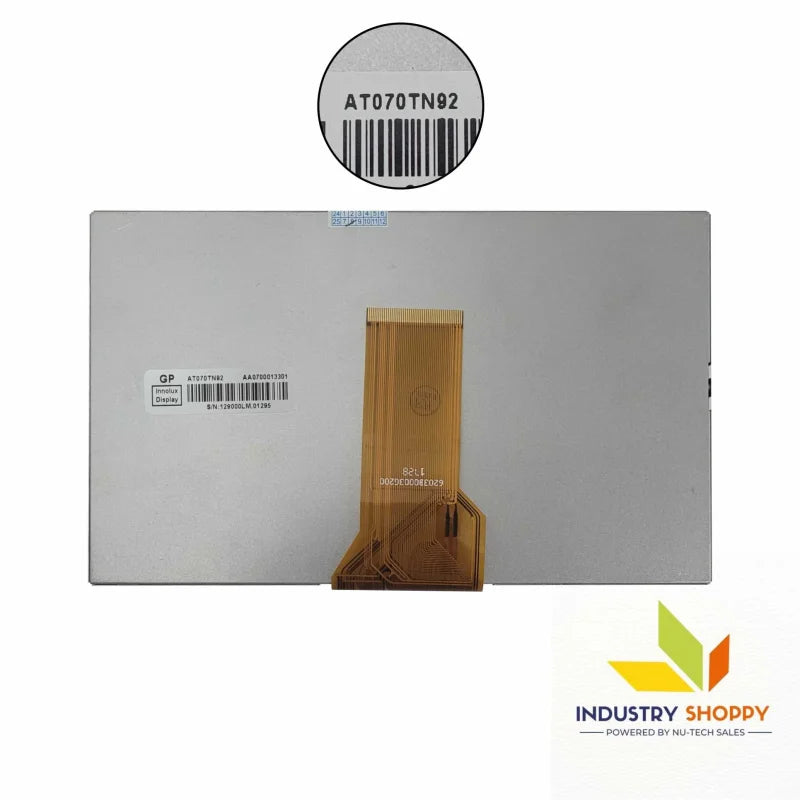

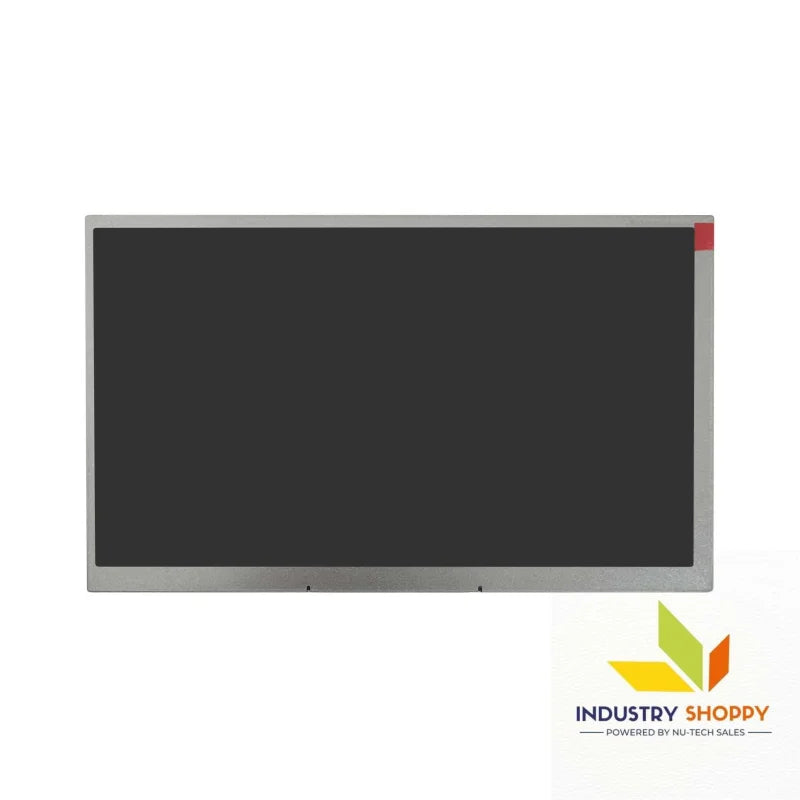

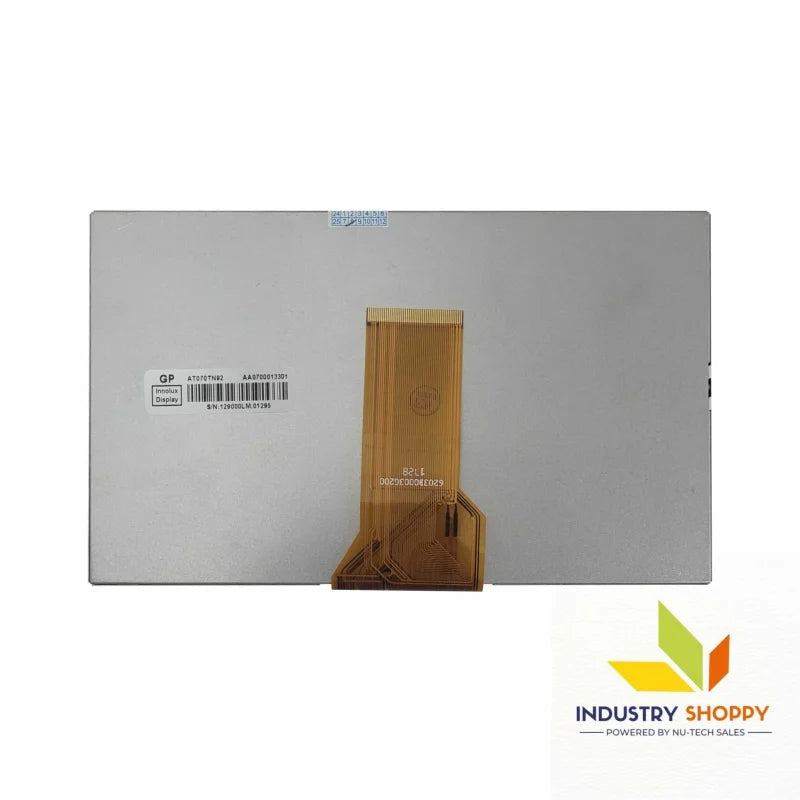

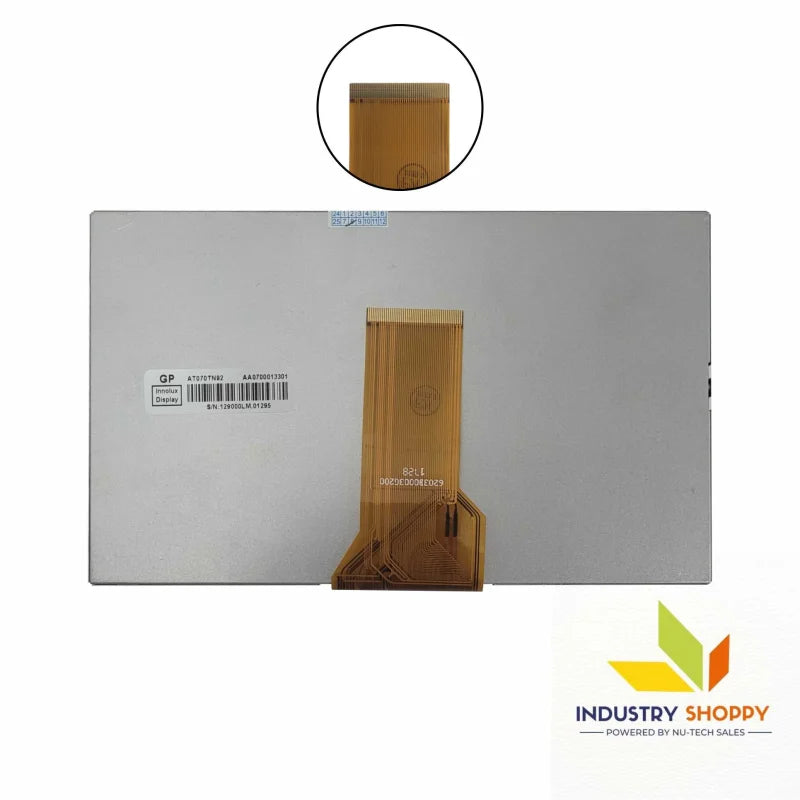

The Innolux AT070TN92-V.1 is a 7.0-inch a-Si TFT-LCD module designed for applications requiring a high-quality, compact display solution. With a resolution of 800x480 (WVGA) and a pixel density of 133 PPI, this module delivers clear and vibrant visuals, making it an ideal choice for industrial, automotive, and consumer applications where display clarity is essential.

This module features a brightness of 500 cd/m² and a contrast ratio of 500:1, ensuring bright and clear images even in moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure that the display remains legible and vibrant from multiple angles, providing flexibility for various applications.

The AT070TN92-V.1 is equipped with an LED backlight, which offers energy efficiency and a long operational lifespan. The antiglare surface treatment enhances readability in environments with high ambient light by reducing reflections, making the display more user-friendly in bright surroundings.

Key Features:

• Brand: Innolux
• Model: AT070TN92-V.1
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 157.4(W) × 89.4(H) mm
• Outline Dimensions: 168.5(W) × 107.6(H) × 7.5(D) mm
• Surface Treatment: Antiglare for improved visibility in bright conditions
• Brightness: 500 cd/m² (Typical), ensuring visibility in moderate ambient light
• Contrast Ratio: 500:1 (Typical), providing clear differentiation between light and dark areas
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), offering clarity from various viewing positions
• Backlight Type: LED for energy efficiency and long-lasting performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for reliable operation in varying environments
• Storage Temperature: -30°C to 80°C, offering flexible storage options

Applications:

• Industrial Control Panels: Suitable for systems where a high-quality compact display is essential
• Automotive Displays: Ideal for automotive systems that require clear and responsive visuals
• Point-of-Sale (POS) Displays: Perfect for retail applications requiring a small yet vibrant display
• Portable Devices: Great for portable consumer devices needing energy-efficient, high-quality displays

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
