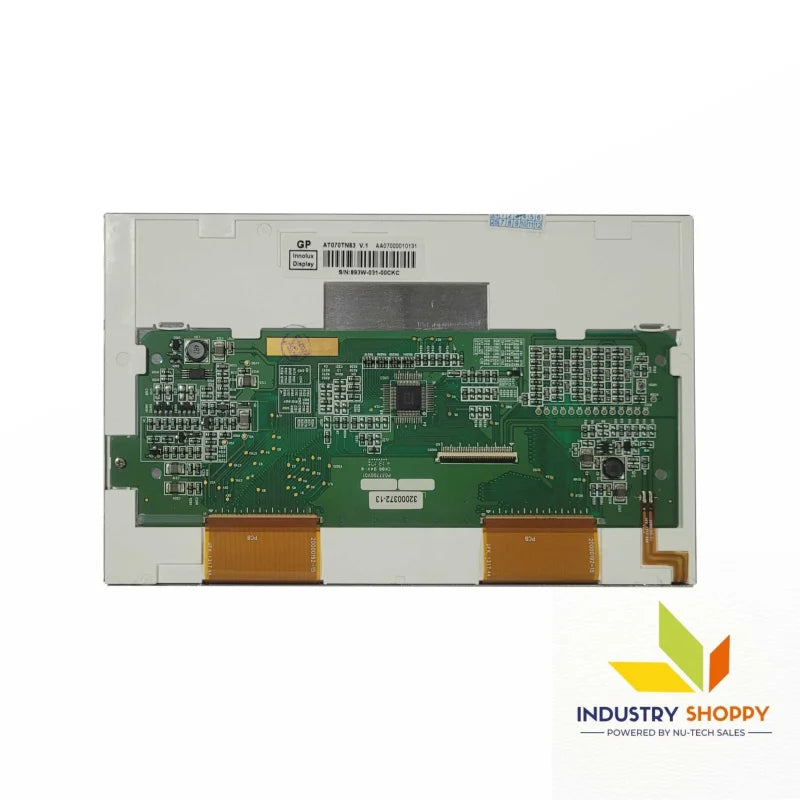

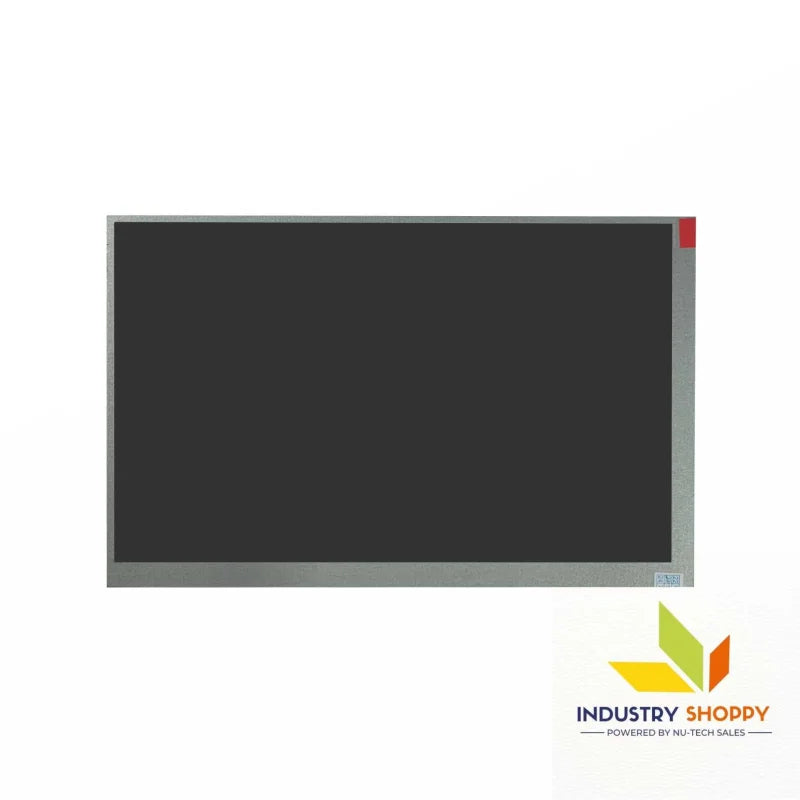

Innolux AT070TN83-V.1 LCD Module

Innolux AT070TN83-V.1 LCD Module

The Innolux AT070TN83-V.1 is a 7.0-inch a-Si TFT-LCD module designed for a wide range of applications that require compact, high-performance displays. Featuring an 800x480 (WVGA) resolution with a pixel density of 133 PPI, this module offers clear and vibrant visuals, ideal for use in industrial, automotive, and consumer electronics.

With a brightness of 500 cd/m² and a contrast ratio of 500:1, the display ensures high-quality image clarity, even in moderate ambient light conditions. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) allow for consistent image visibility from various positions, making it perfect for devices that need to maintain clarity from different angles.

Equipped with an LED backlight, the AT070TN83-V.1 provides energy-efficient performance and a long operational lifespan. The antiglare surface treatment enhances readability and minimizes reflections, improving visibility in bright environments. This module is ideal for space-constrained applications where performance and display quality are crucial.

Key Features:

• Brand: Innolux

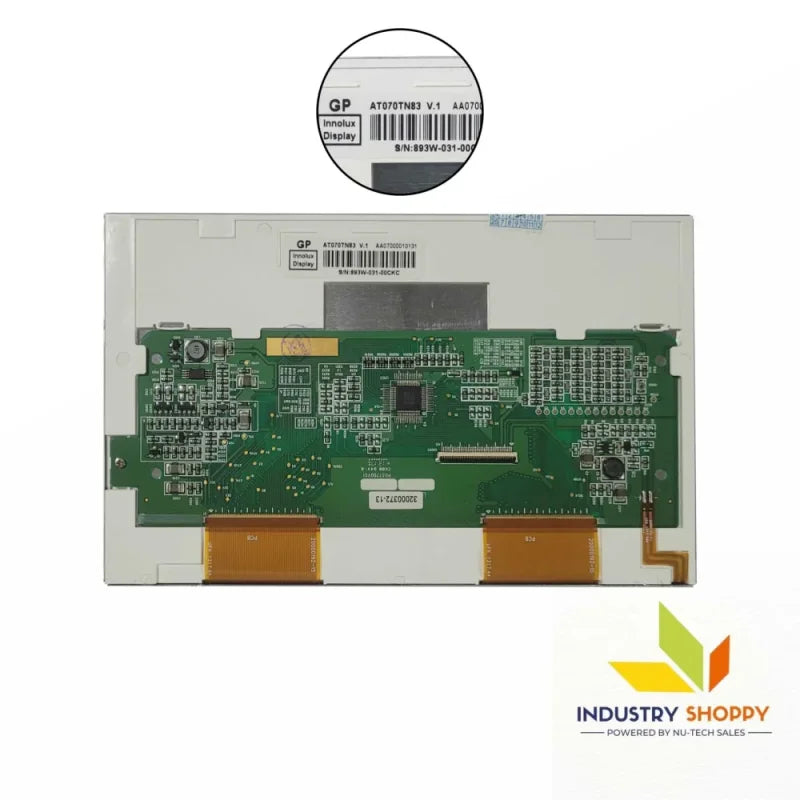

• Model: AT070TN83-V.1
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 157.4(W) × 89.4(H) mm
• Outline Dimensions: 168.5(W) × 107.6(H) × 7.5(D) mm
• Surface Treatment: Antiglare for improved visibility in bright environments
• Brightness: 500 cd/m² (Typical), ensuring clear visuals
• Contrast Ratio: 500:1 (Typical), delivering high contrast for vivid image quality
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing clear visuals from multiple angles
• Backlight Type: LED, offering energy efficiency and longevity
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

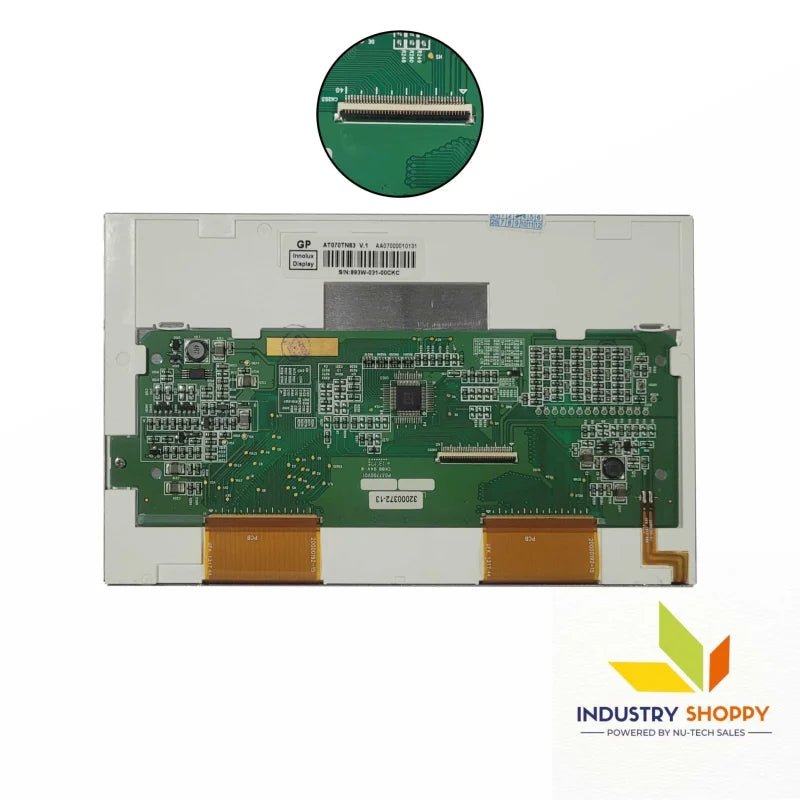

• Signal Interface: LVDS (1 channel, 6/8-bit), 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for varied environments
• Storage Temperature: -30°C to 80°C for flexible storage options

Applications:

• Industrial Control Panels: Ideal for compact industrial displays that require high image clarity
• Automotive Displays: Perfect for in-vehicle systems needing vibrant and readable screens
• Point-of-Sale (POS) Displays: Suitable for retail systems that demand a small, high-quality display
• Portable Devices: Great for handheld devices where performance and energy efficiency are essential

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to prevent damage
• Temperature Limits: Ensure operation within the recommended temperature range (-20°C to 70°C) for best performance
• Installation Guidelines: Avoid excessive pressure on connectors to maintain reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance
