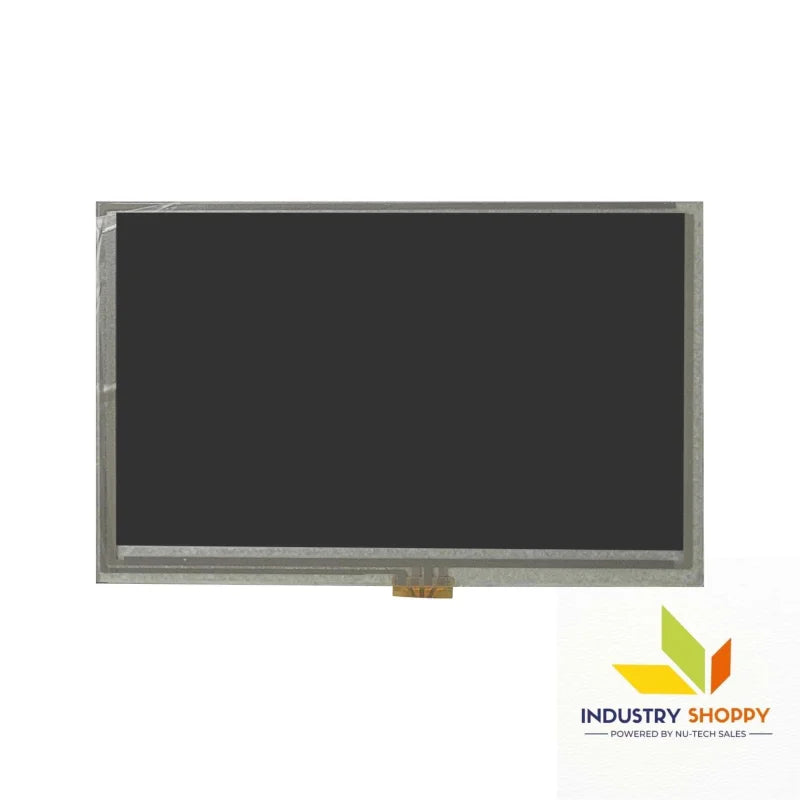

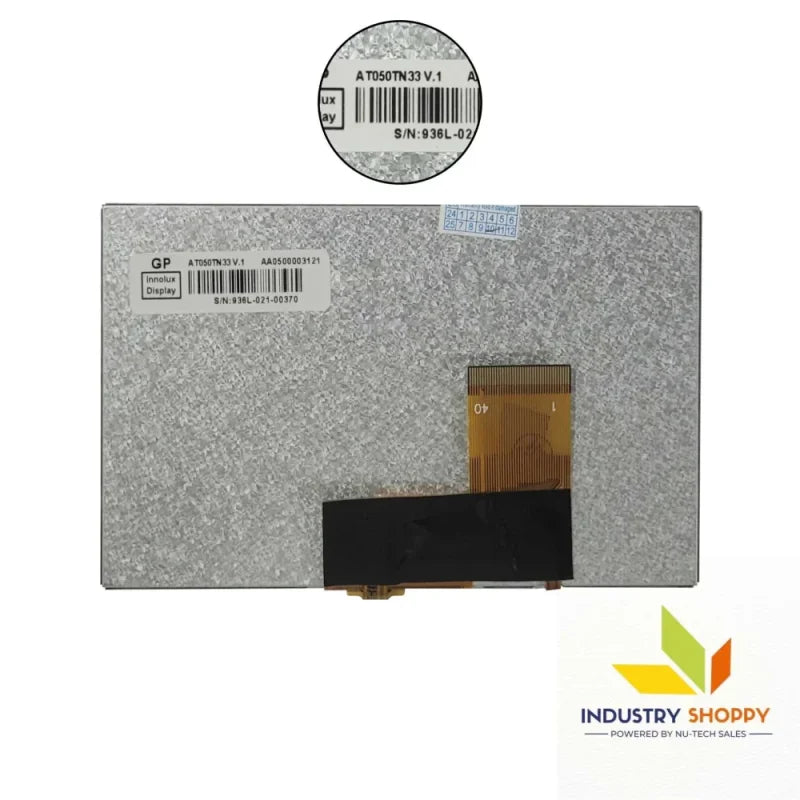

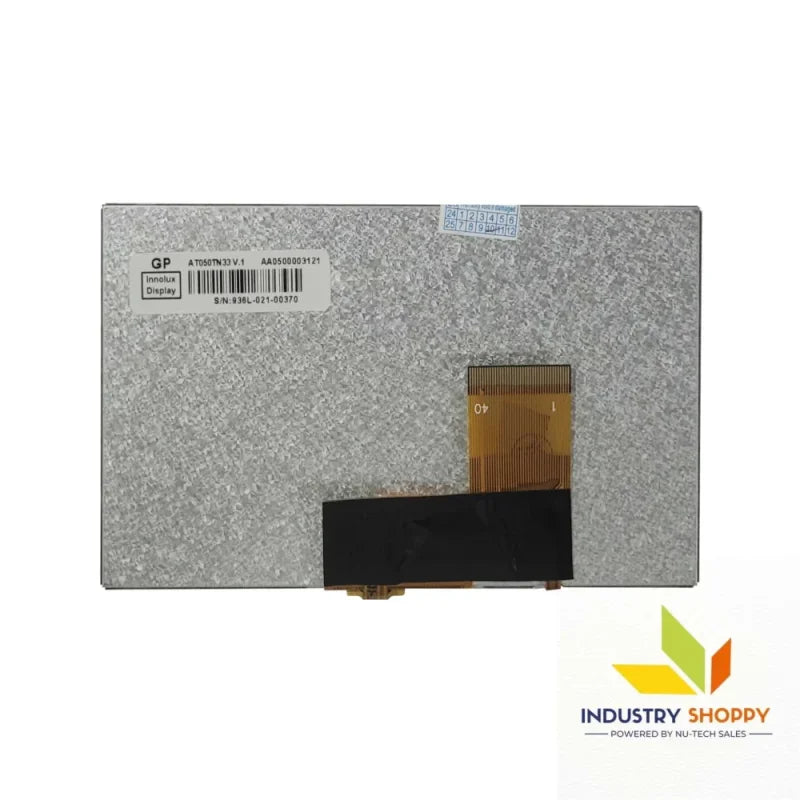

Innolux AT050TN33-V.1+Touch LCD Module

Innolux AT050TN33-V.1+Touch LCD Module

The Innolux AT050TN33-V.1+Touch is a 5.0-inch a-Si TFT-LCD module with an integrated capacitive touchscreen, designed for applications that demand both high-quality visuals and interactive functionality. The module offers an 800x480 (WVGA) resolution with a pixel density of 160 PPI, providing sharp, clear visuals and an enhanced user experience.

This module features a brightness of 500 cd/m² and a contrast ratio of 500:1, ensuring vibrant and clear images even in bright environments. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) allow for consistent image clarity from multiple angles, making it ideal for a variety of applications.

Equipped with an LED backlight, the module provides energy efficiency and a long operational lifespan. The antiglare surface treatment reduces reflections, enhancing readability and ensuring that the display remains visible in bright environments. The integrated capacitive touch functionality adds interactivity, making it suitable for applications where touch input is required.

Key Features:

• Brand: Innolux
• Model: AT050TN33-V.1+Touch
• Diagonal Size: 5.0 inches
• Resolution: 800×480 (WVGA), 160 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 111.36(W) × 62.52(H) mm
• Bezel Opening: 114.4(W) × 65.4(H) mm
• Outline Dimensions: 125.3(W) × 78.8(H) × 7.9(D) mm
• Surface Treatment: Antiglare for better readability in bright environments
• Brightness: 500 cd/m² (Typical), providing clear and bright visuals
• Contrast Ratio: 500:1 (Typical), ensuring vivid color contrast
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), offering clear visibility from various angles
• Backlight Type: LED for energy-efficient performance with a long lifespan
• Display Mode: TN, Normally White, Transmissive
• Touch Type: Capacitive touch for enhanced interactivity
• Response Time: 25 ms (Typical, Tr/Td) for smooth interaction

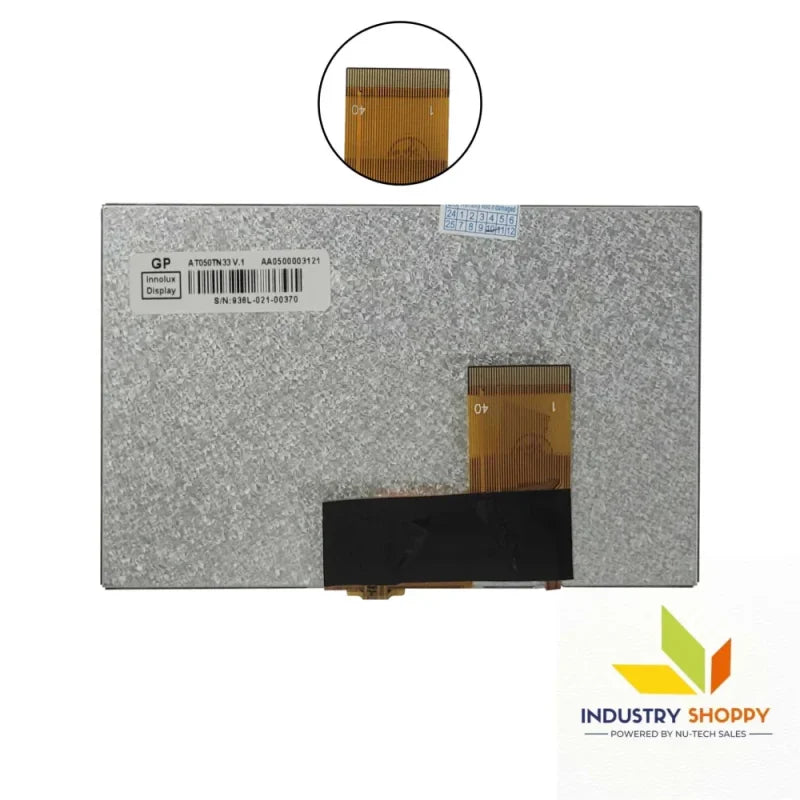

• Signal Interface: LVDS (1 channel, 6/8-bit), 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, for reliable performance in various environments
• Storage Temperature: -30°C to 80°C, allowing flexible storage options

Applications:

• Industrial Control Panels: Ideal for industrial devices requiring interactive touch functionality and high-quality visuals
• Automotive Displays: Perfect for automotive applications where touch interaction and clarity are needed
• Point-of-Sale (POS) Displays: Suitable for retail systems that require both high-quality visuals and user interactivity
• Portable Devices: Great for handheld devices where touch functionality and energy efficiency are essential

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Operate within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain long-term reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance
