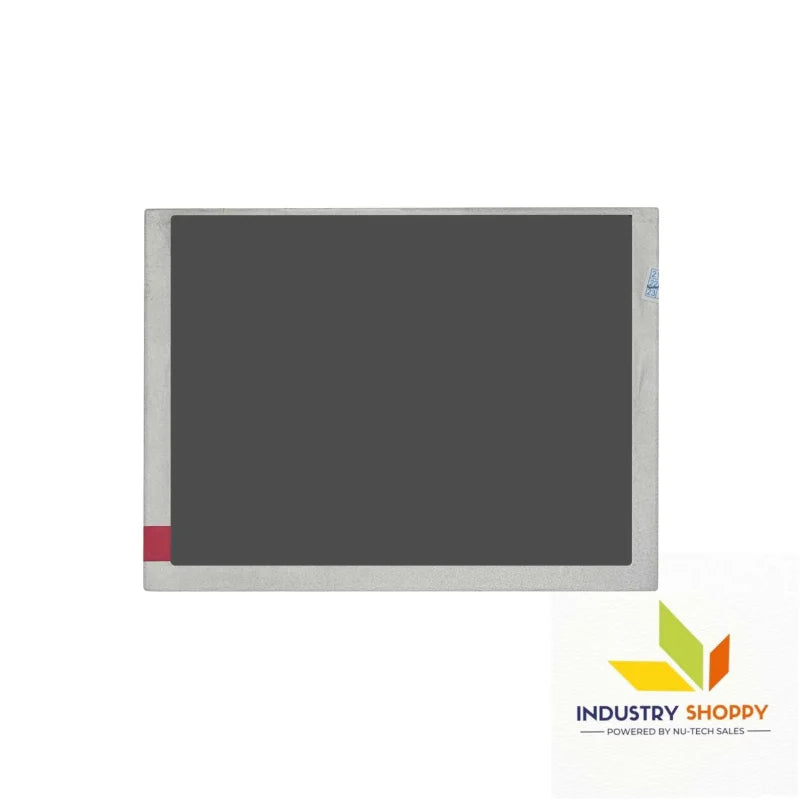

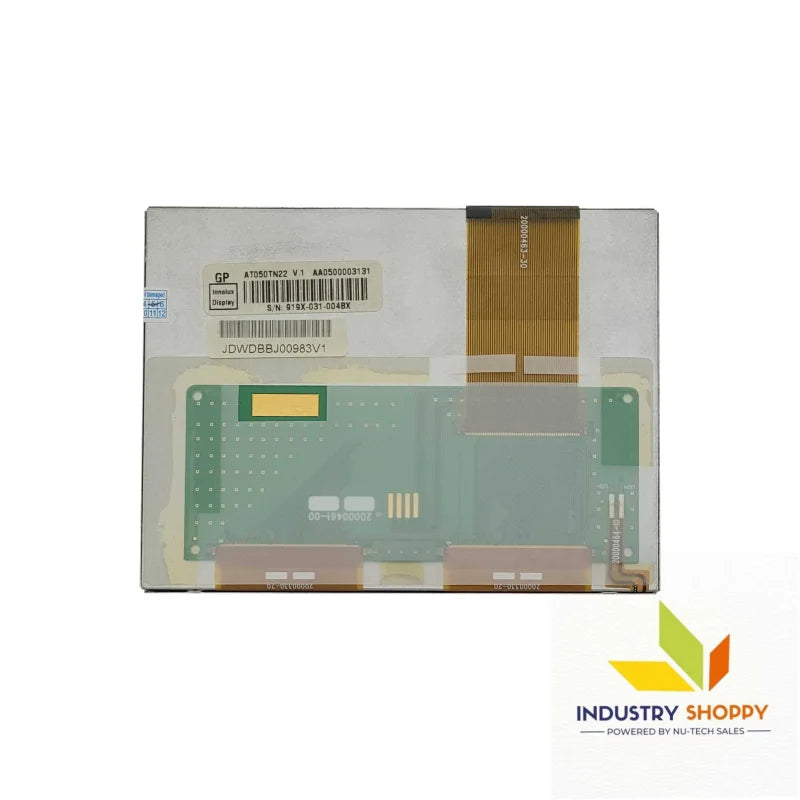

Innolux AT050TN22-V.1 LCD Module

Innolux AT050TN22-V.1 LCD Module

The Innolux AT050TN22-V.1 is a 5.0-inch a-Si TFT-LCD module designed for applications requiring high-quality visuals in a compact form. With a resolution of 800x480 (WVGA) and a pixel density of 160 PPI, this display offers clear and vibrant visuals, making it ideal for a variety of industrial and consumer electronics.

The brightness of 500 cd/m² and a contrast ratio of 500:1 ensure excellent image clarity, even in moderately bright environments. With wide viewing angles of 80°/80°/80°/80° (L/R/U/D), the module allows for consistent image quality from multiple perspectives, ensuring that the display is clear and visible from different angles.

The LED backlight provides energy efficiency and a long lifespan, while the antiglare surface treatment helps to reduce reflections and improve visibility, even in environments with high ambient light.

Key Features:

• Brand: Innolux

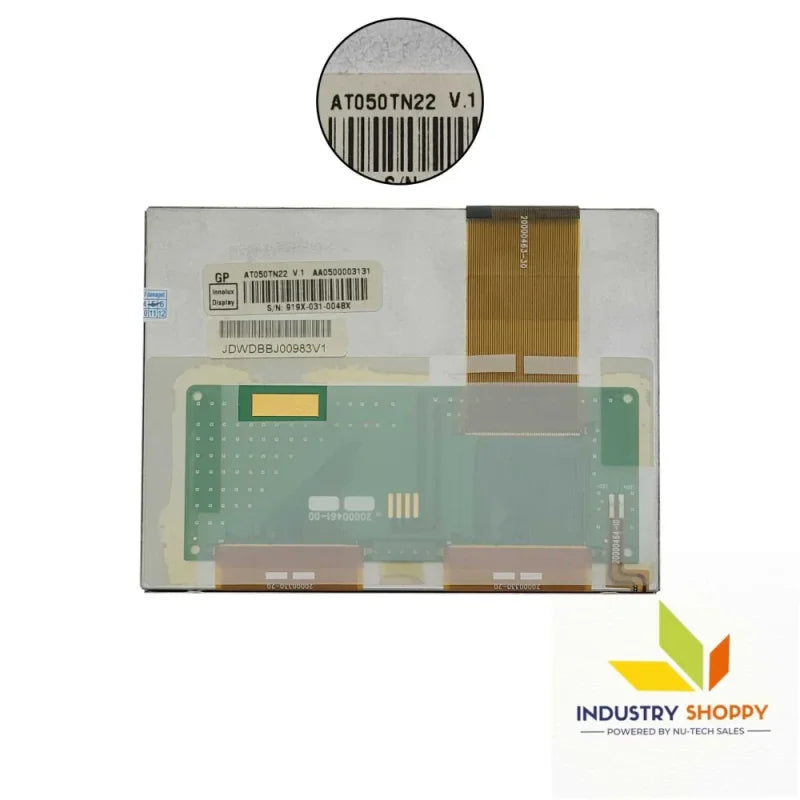

• Model: AT050TN22-V.1
• Diagonal Size: 5.0 inches
• Resolution: 800×480 (WVGA), 160 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 111.36(W) × 62.52(H) mm
• Bezel Opening: 114.4(W) × 65.4(H) mm
• Outline Dimensions: 125.3(W) × 78.8(H) × 7.9(D) mm
• Surface Treatment: Antiglare for improved readability in bright environments
• Brightness: 500 cd/m² (Typical), ensuring clear, bright images
• Contrast Ratio: 500:1 (Typical), delivering vivid colors and clear differentiation
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing clear visibility from various angles
• Backlight Type: LED for energy-efficient performance and a long operational lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth visuals

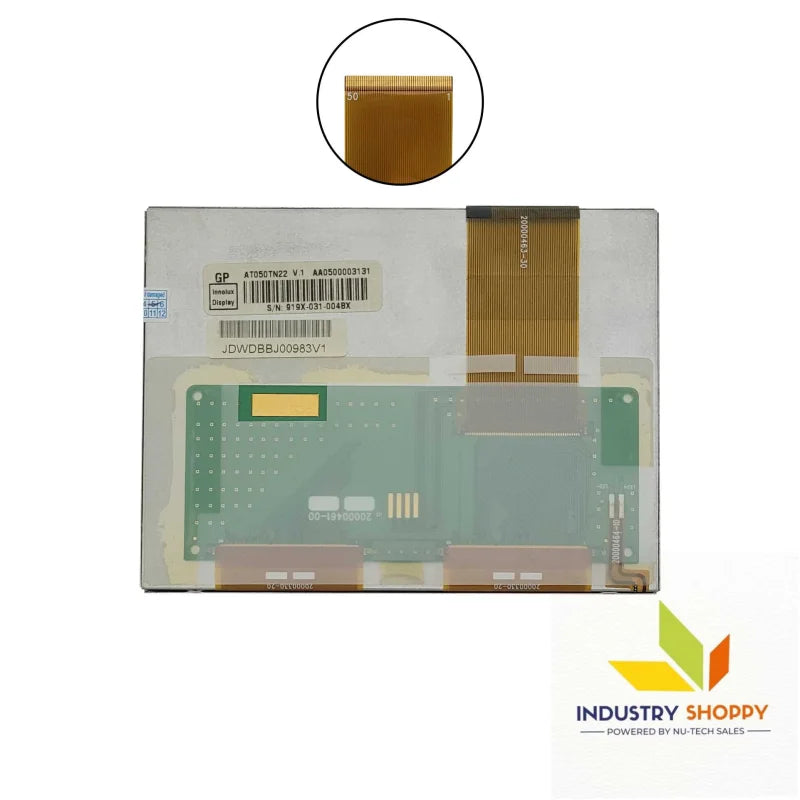

• Signal Interface: LVDS (1 channel, 6/8-bit), 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, ensuring reliable performance in a wide range of conditions
• Storage Temperature: -30°C to 80°C, suitable for flexible storage

Applications:

• Industrial Control Panels: Ideal for compact industrial systems that require high-quality displays
• Automotive Displays: Perfect for automotive applications needing reliable and clear visuals
• Point-of-Sale (POS) Displays: Suitable for small retail displays where space is limited but quality is crucial
• Portable Devices: Great for handheld devices where performance, visibility, and energy efficiency are key

Technical Precautions:

• Handling: Handle with care to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure operation within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain long-term reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance
