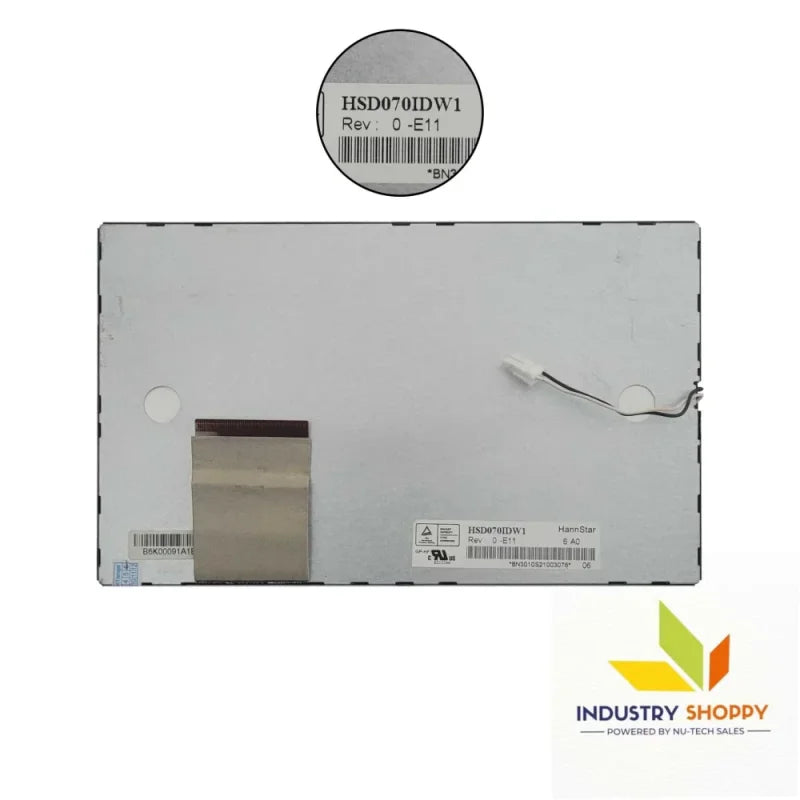

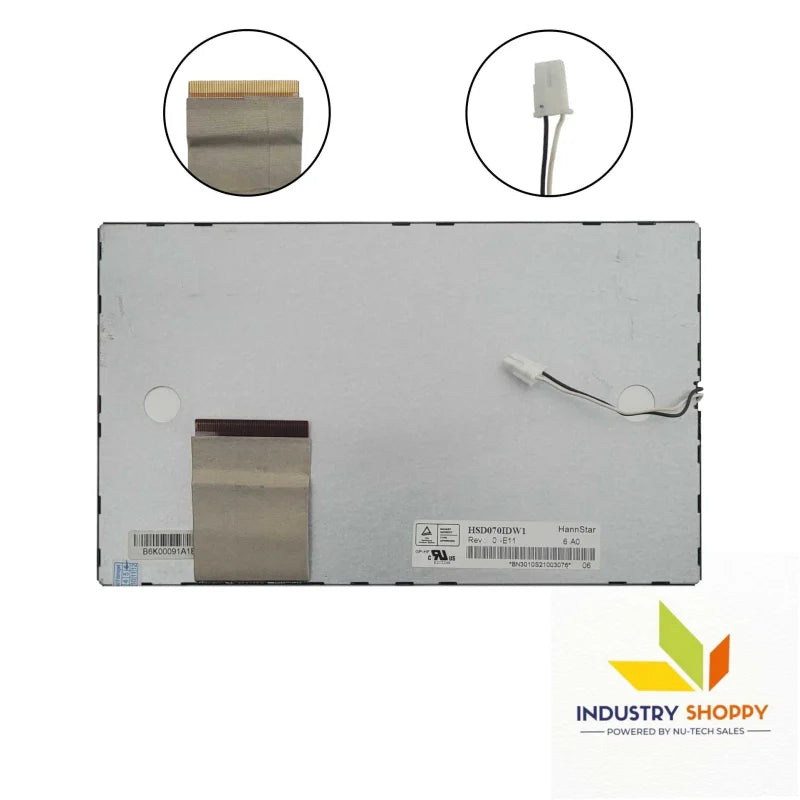

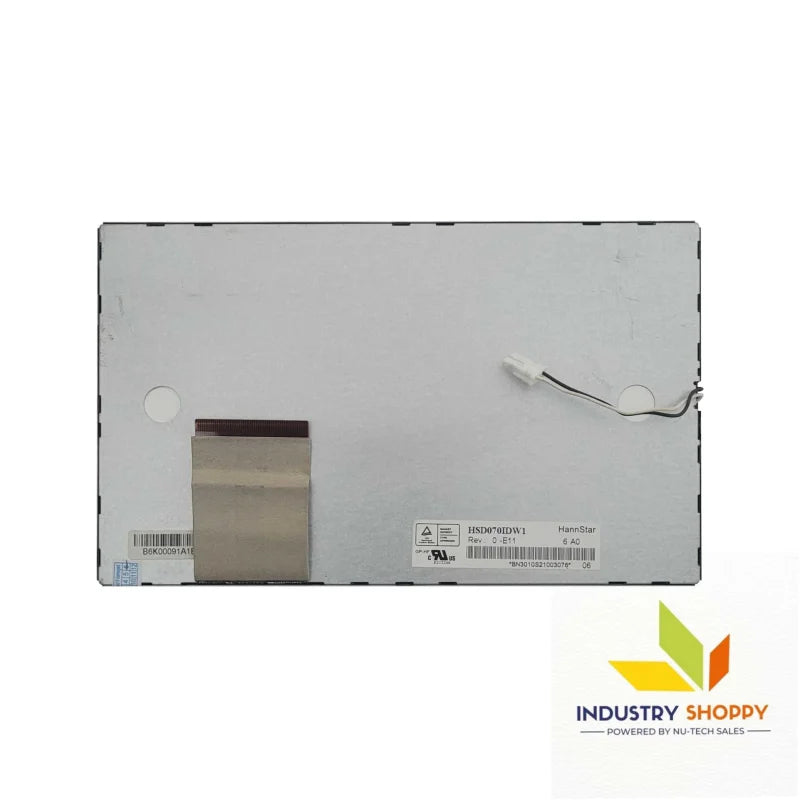

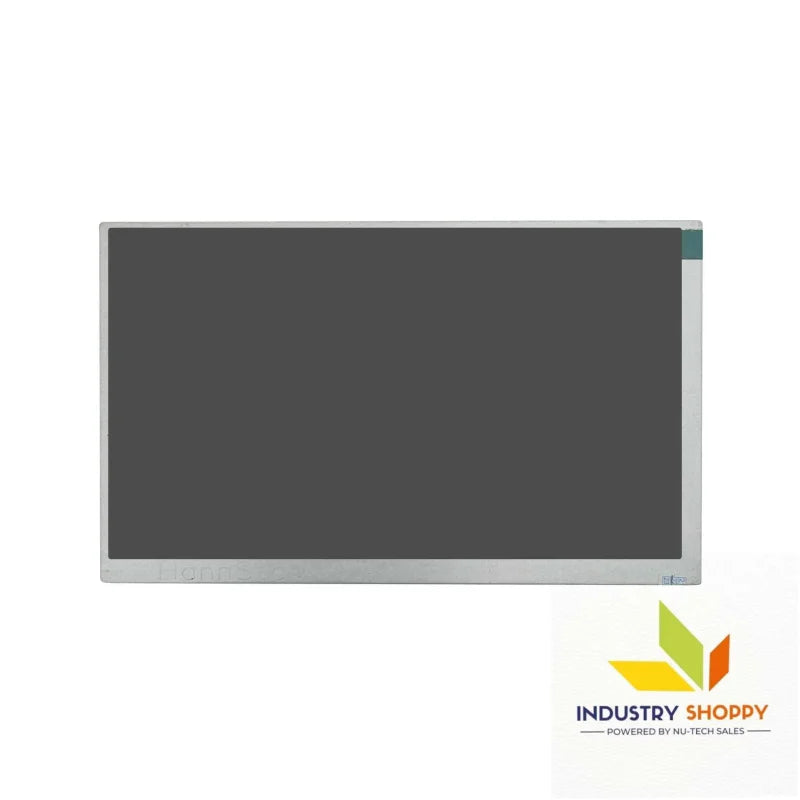

HannStar HSD070IDW1-Rev.0 LCD Module

HannStar HSD070IDW1-Rev.0 LCD Module

The HannStar HSD070IDW1-Rev.0 is a 7.0-inch a-Si TFT-LCD module designed for applications where compact displays with high visual clarity are required. With a resolution of 800x480 (WVGA) and a pixel density of 133 PPI, this module delivers sharp, clear visuals with good color fidelity, making it suitable for use in a variety of devices, including industrial control panels, handheld devices, and point-of-sale (POS) systems.

The module features a brightness of 450 cd/m² and a contrast ratio of 500:1, ensuring vibrant visuals in various lighting conditions. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) allow for clear image visibility from different perspectives, adding versatility for applications that require multiple viewing angles.

Equipped with an LED backlight, the HSD070IDW1-Rev.0 offers energy-efficient operation and a long operational lifespan. Additionally, the antiglare surface treatment reduces reflections, improving readability in bright environments.

Key Features:

• Brand: HannStar
• Model: HSD070IDW1-Rev.0
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 152.4(W) × 91.44(H) mm
• Bezel Opening: 155.4(W) × 94.44(H) mm
• Outline Dimensions: 163.0(W) × 100.4(H) × 4.8(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 450 cd/m² (Typical), ideal for use in various lighting conditions
• Contrast Ratio: 500:1 (Typical), providing high-quality images with clear differentiation
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear visibility from different angles
• Backlight Type: LED for energy-efficient operation and long lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth, responsive visuals
• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for various environmental conditions
• Storage Temperature: -30°C to 80°C, allowing for flexible storage options

Applications:

• Handheld Devices: Ideal for compact, portable devices requiring high-quality displays
• Industrial Control Panels: Suitable for industrial systems with limited space but requiring clear and vibrant visuals
• Point-of-Sale (POS) Displays: Perfect for retail systems needing a compact display with vibrant color
• Medical Devices: Great for small medical equipment where visual clarity is essential

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance over time
