EDT EW50853FLW LCD Module

EDT EW50853FLW LCD Module

The EDT EW50853FLW is a 5.0-inch a-Si TFT-LCD module designed for applications that demand compact size and high-quality visual output. With a resolution of 800x480 (WVGA) and a pixel density of 160 PPI, this module provides sharp, clear visuals with excellent color fidelity, making it ideal for use in handheld devices, industrial equipment, and consumer electronics.

This module features a brightness of 450 cd/m² and a contrast ratio of 500:1, ensuring vivid images that remain visible even in bright environments. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) ensure consistent image clarity from various perspectives, making it a versatile option for applications requiring multiple viewing angles.

Equipped with an LED backlight, the EW50853FLW offers energy efficiency and a long operational lifespan, making it well-suited for prolonged use. The antiglare surface treatment reduces reflections and improves readability, especially in bright surroundings.

Key Features:

• Brand: EDT

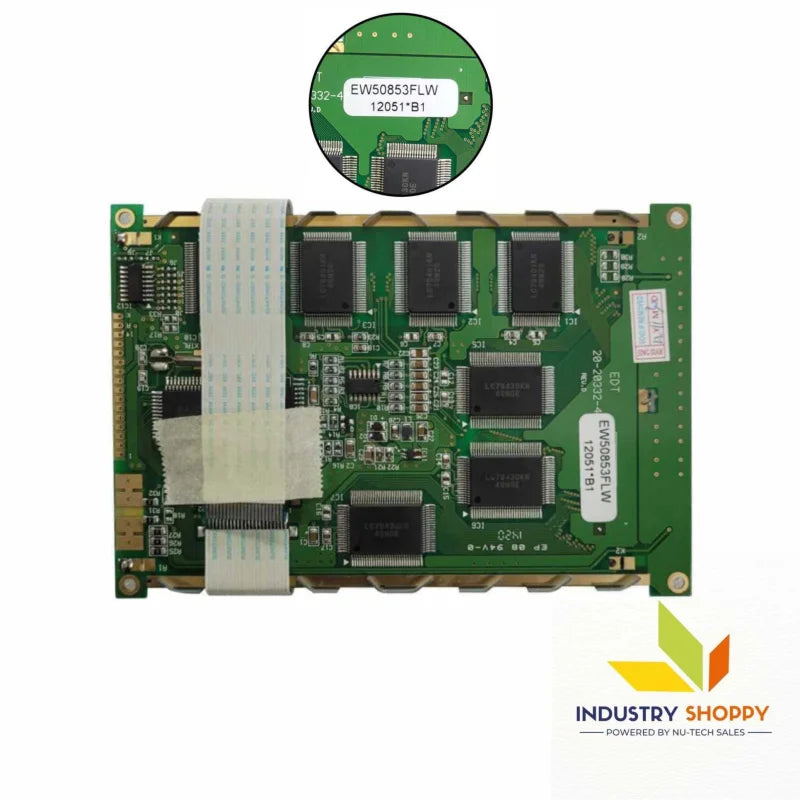

• Model: EW50853FLW
• Diagonal Size: 5.0 inches
• Resolution: 800×480 (WVGA), 160 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 108.0(W) × 64.8(H) mm
• Bezel Opening: 111.0(W) × 68.0(H) mm
• Outline Dimensions: 120.0(W) × 77.0(H) × 6.5(D) mm
• Surface Treatment: Antiglare to enhance readability in bright environments
• Brightness: 450 cd/m² (Typical), ideal for visibility in various lighting conditions
• Contrast Ratio: 500:1 (Typical), providing clear, high-contrast images
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear image clarity from different angles
• Backlight Type: LED for energy-efficient performance and extended lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth, responsive visuals

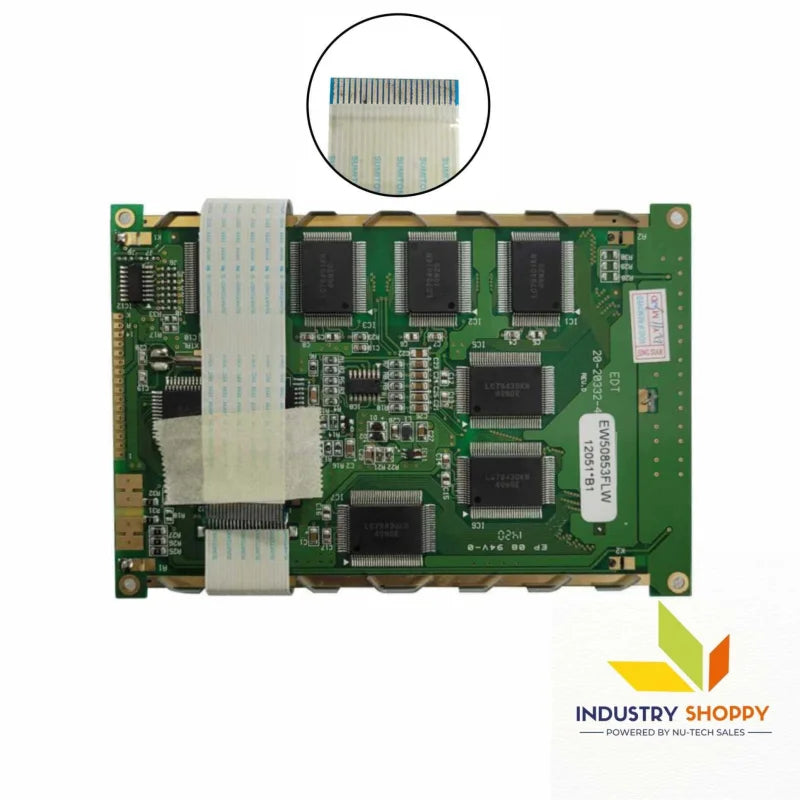

• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for use in diverse environments
• Storage Temperature: -30°C to 80°C, flexible for different storage conditions

Applications:

• Handheld Devices: Ideal for use in portable devices requiring a compact, high-quality display
• Industrial Control Panels: Perfect for industrial systems with limited space but requiring high-resolution visuals
• Point-of-Sale (POS) Displays: Suitable for retail systems needing a vibrant, small display
• Medical Devices: Great for small medical equipment requiring clear, accurate visuals

Technical Precautions:

• Handling: Handle carefully to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
