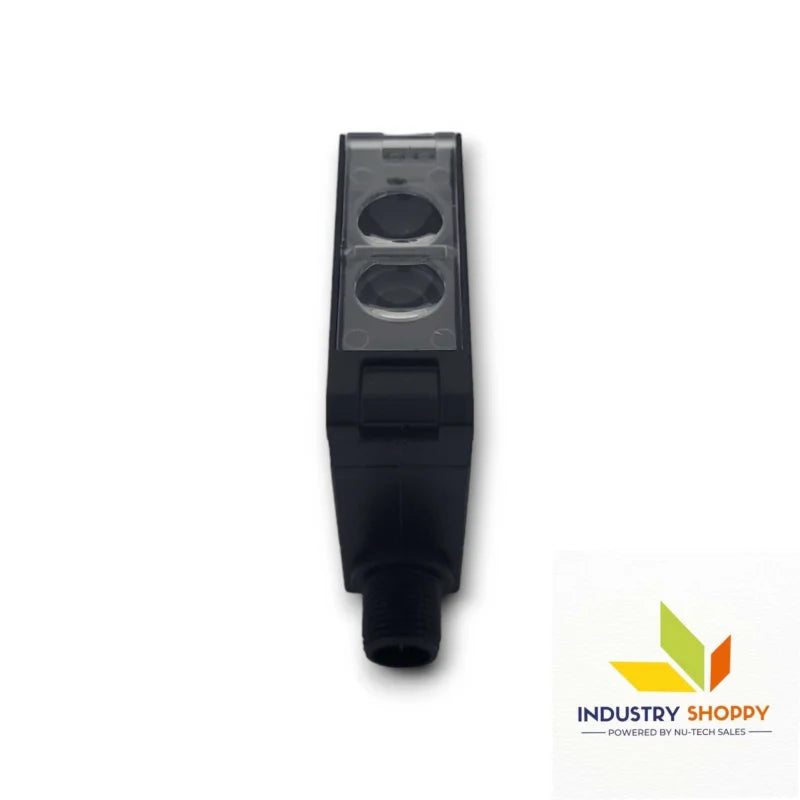

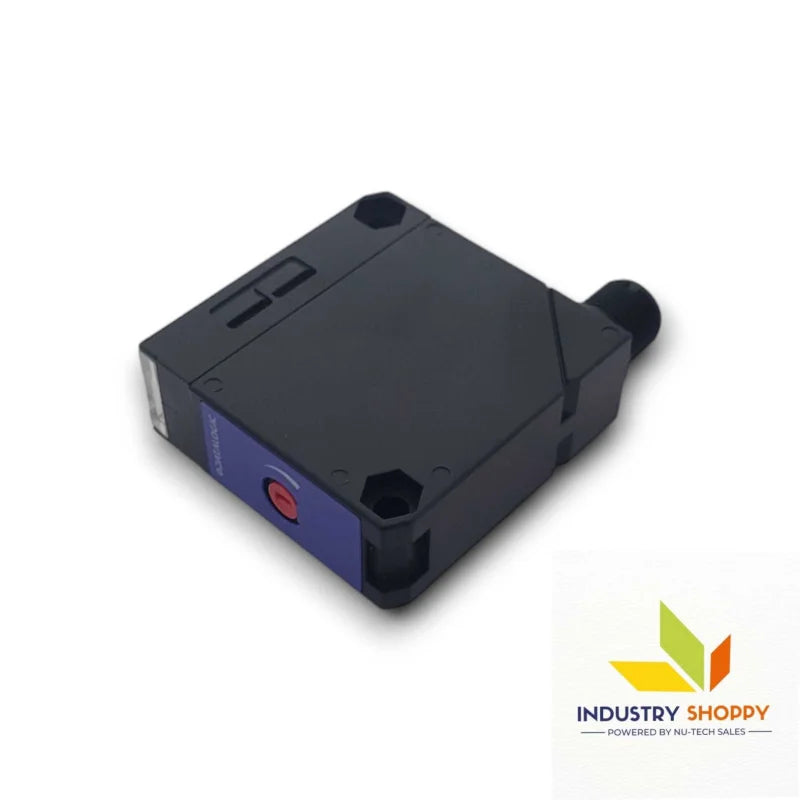

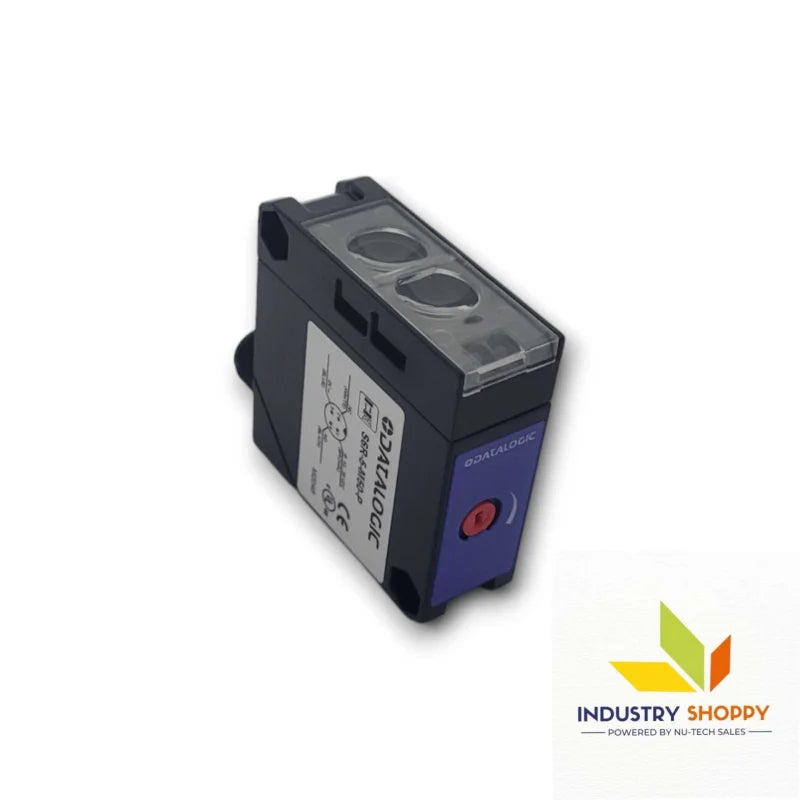

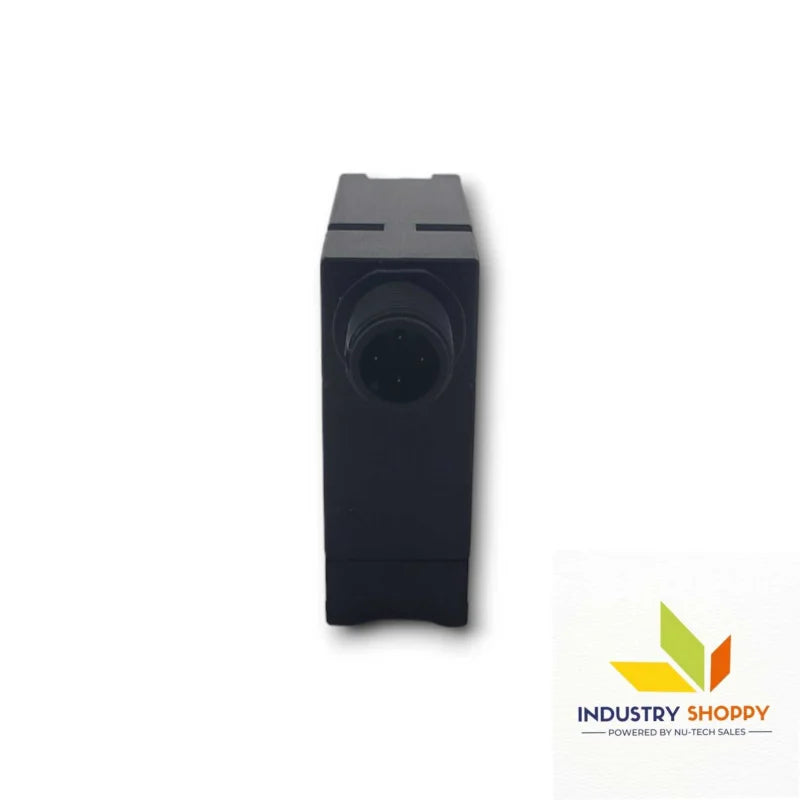

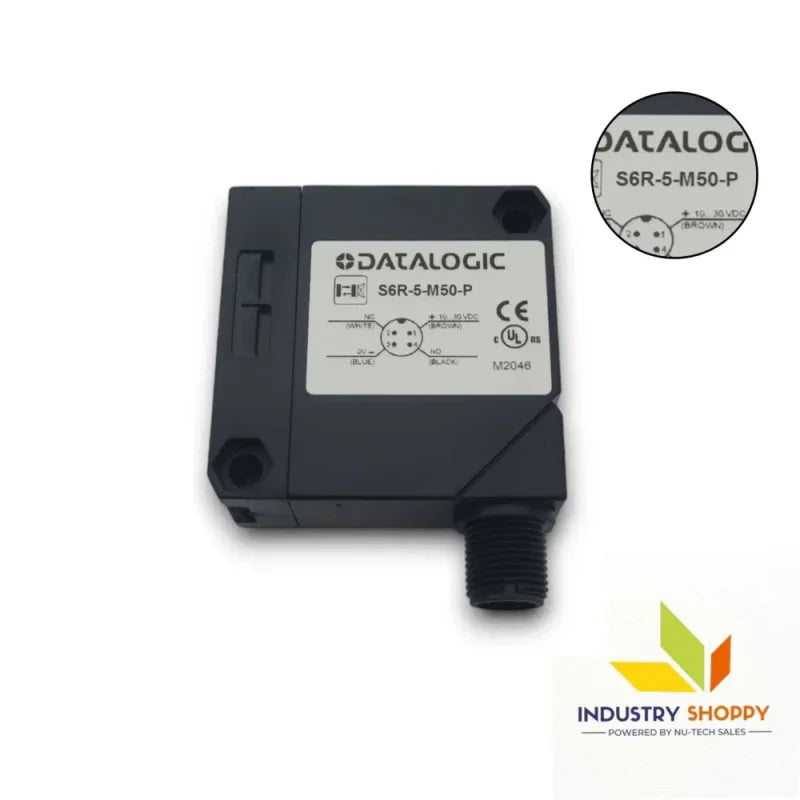

Datalogic S6R-5-M50-P Photoelectric Sensor

Datalogic S6R-5-M50-P Photoelectric Sensor

The Datalogic S6R-5-M50-P Photoelectric Sensor (Product No. S5N-PR-5-B01-PP, Part No. 952001041) is a compact, high-performance sensor designed for reliable object detection in industrial automation systems. Featuring a polarized retroreflective optical function, it uses a white LED light source (400–700 nm) to ensure accurate detection of reflective and shiny surfaces while minimizing false readings from background reflections. With a sensing distance up to 400 mm, the sensor is suitable for both short- and mid-range applications.

Its 100 µs response time and 500 Hz switching frequency allow for dependable performance in moderately fast-moving operations. The sensor supports PNP or NPN outputs, with both normally open (NO) and normally closed (NC) configurations for flexible integration. The IP67-rated housing, made of PBT and nickel-plated brass, along with a PMMA lens, ensures durability in harsh industrial environments.

Operating on 10–30 VDC with low power consumption (≤ 35 mA), the S6R-5-M50-P is vibration- and shock-resistant, and performs reliably across a wide temperature range of -25°C to +55°C.

Key features :-

Applications :-

• Object Detection: Ideal for detecting presence or absence of items on conveyors and assembly lines.
• Packaging Systems: Used to verify product placement before sealing or labeling.
• Material Handling: Detects objects for counting or positioning in logistics and warehousing.
• Transparent Object Detection: Reliable detection of reflective or clear packaging using polarized retroreflective optics.
• Machine Safety Feedback: Ensures machine elements are in correct positions before activation.
• Automation Cells: Provides position or trigger feedback for robotic and automated processes.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
