Datalogic S5N-PL-5-C01-PP Photoelectric Sensor

Datalogic S5N-PL-5-C01-PP Photoelectric Sensor

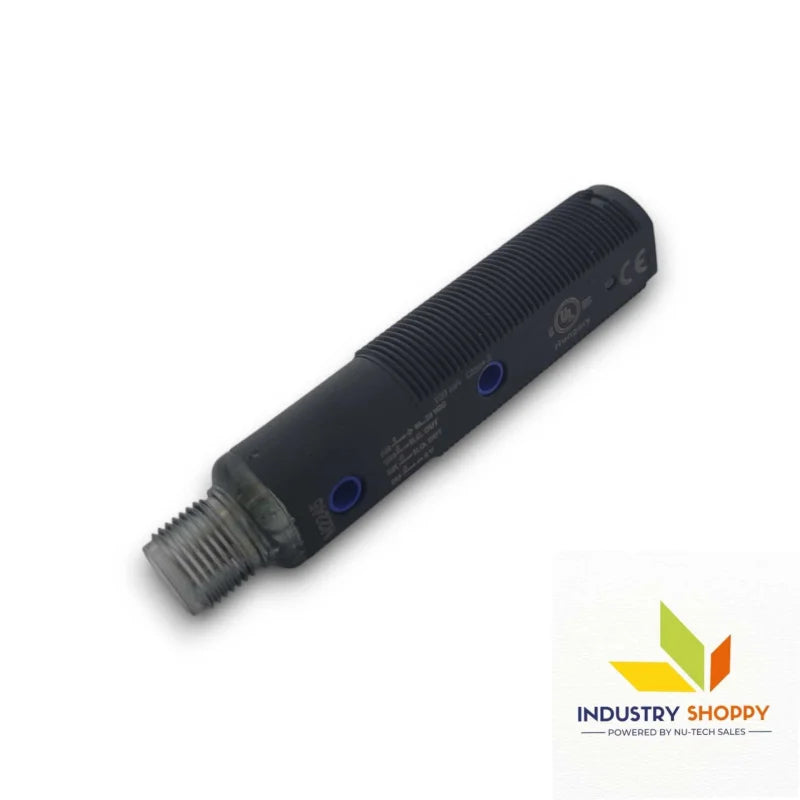

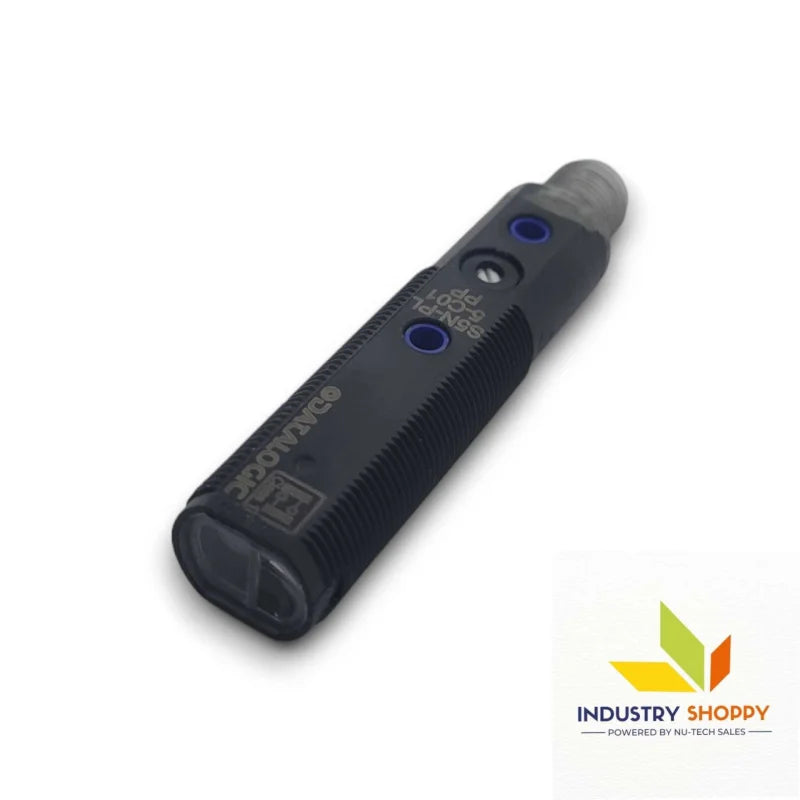

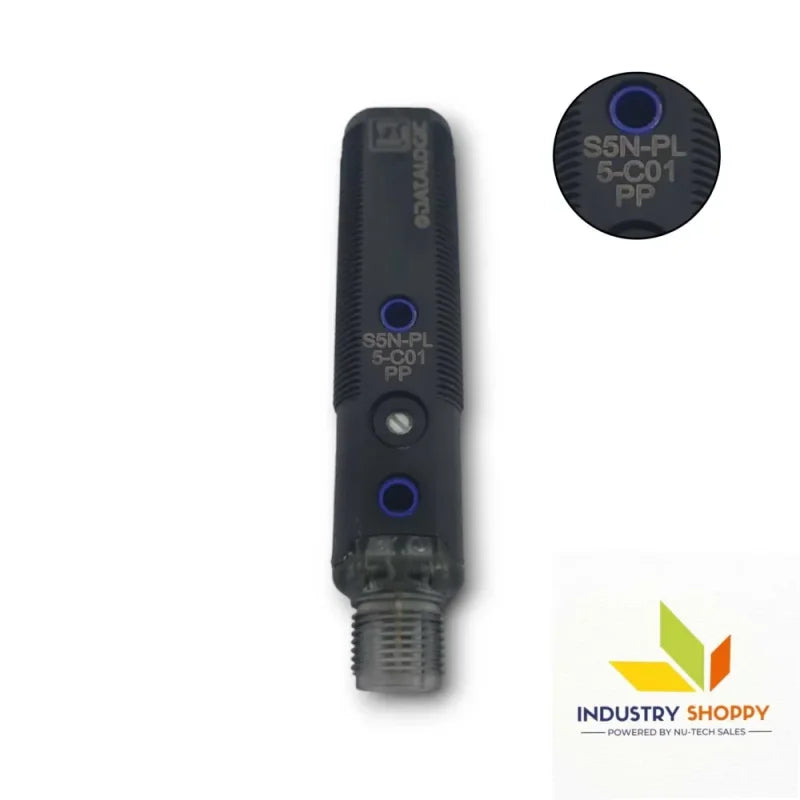

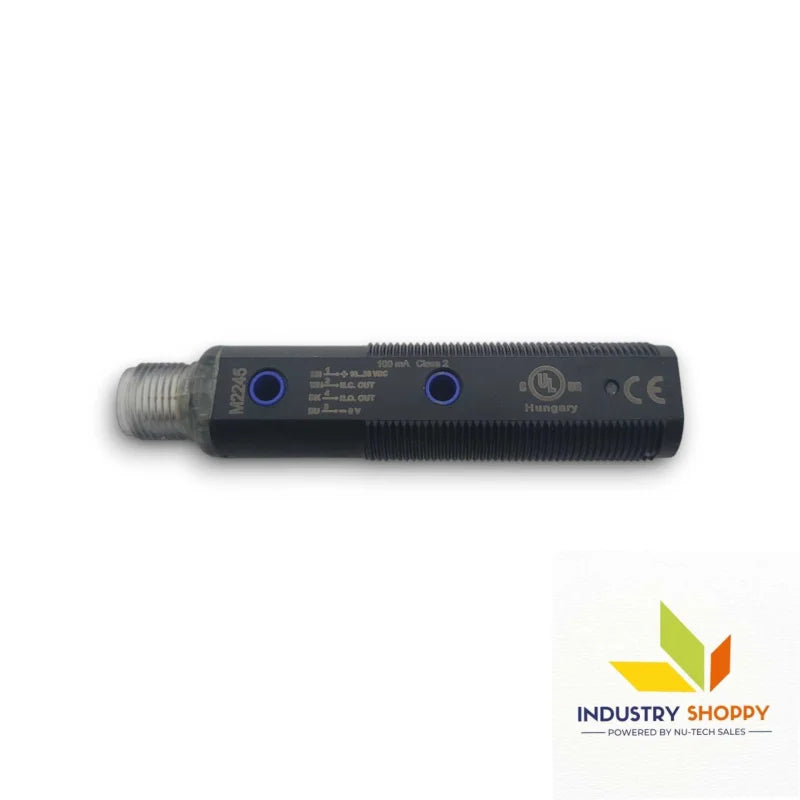

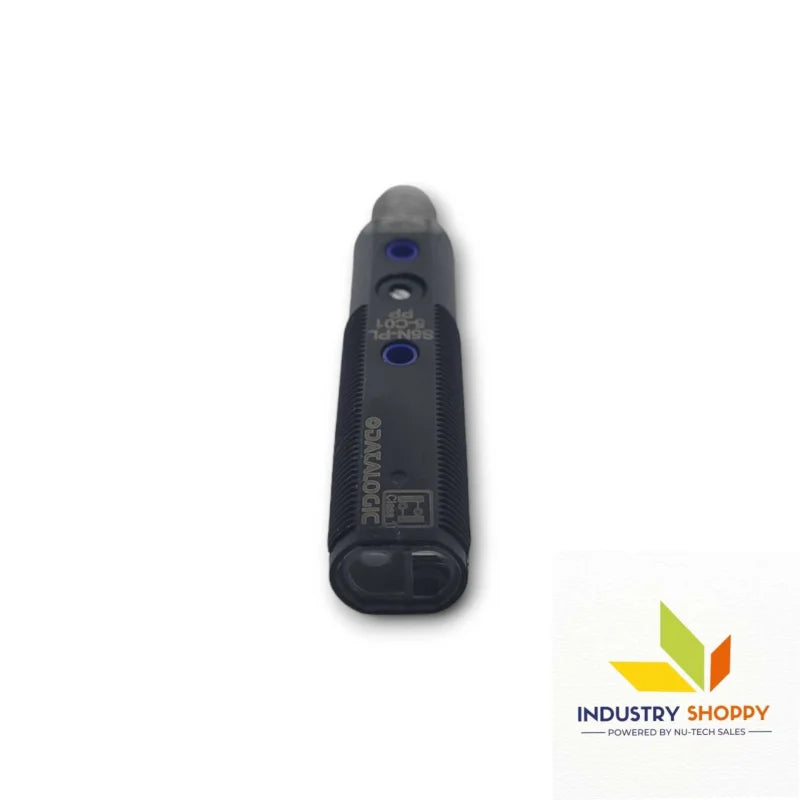

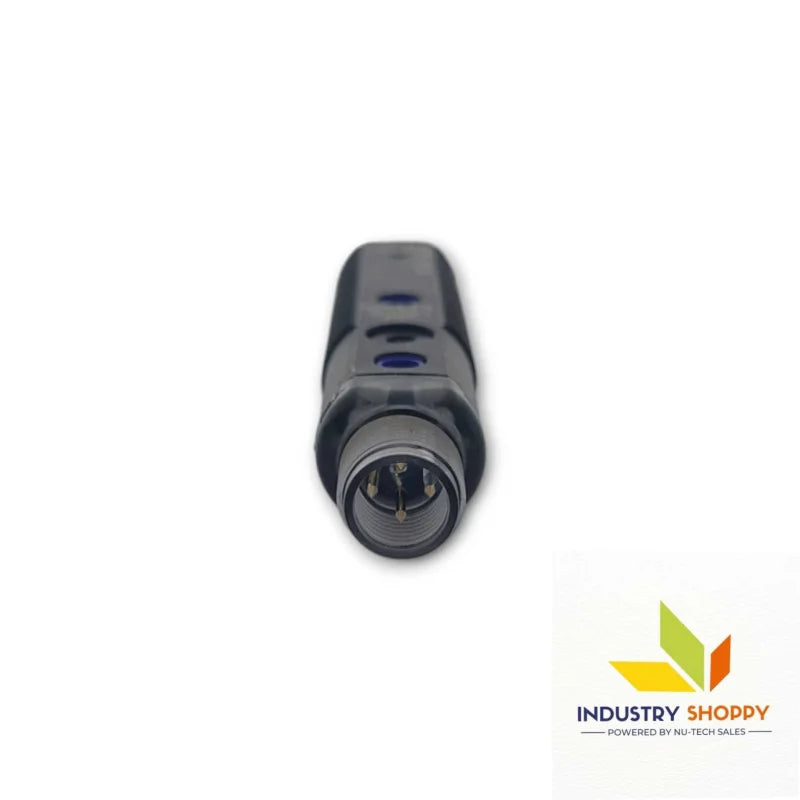

The Datalogic S5N-PL-5-C01-PP is a high-performance diffuse beam photoelectric sensor designed for precision object detection at close to mid-range distances. With a nominal sensing distance of 350 mm using a white Kodak target (90% reflectivity), it delivers reliable results in demanding automation environments. Featuring a red LASER emitter, it ensures accurate, focused detection with a response time of just 333 µs and a switching frequency of 1.5 kHz for high-speed operations.

Its M18 tubular plastic housing with radial (90°) optics offers flexibility for installations in tight or angled spaces, and the PNP output with NO+NC configuration ensures versatile integration with most control systems. The sensor also includes short-circuit and reverse polarity protection, and onboard LED indicators provide real-time status feedback (output and stability).

Built for industrial durability, the S5N-PL-5-C01-PP is IP67-rated, shock and vibration resistant, and operates in temperatures ranging from -10°C to +50°C. Whether in packaging, material handling, or part positioning, this sensor is a smart solution for compact, high-speed automation setups requiring reliable laser-based detection.

Key features :-

Applications :-

• Precise Object Detection
  Ideal for detecting small or light-colored targets in fast-moving applications.
• Compact Industrial Machinery
  M18 cylindrical design with radial optics allows side-facing mounting in tight spaces.
• Automation and Assembly Lines
  Fast switching and laser precision are perfect for synchronized production tasks.
• Status Monitoring
  Built-in output and stability LEDs offer clear diagnostic signals during operation.
• Reliable in Harsh Conditions
  With IP67 protection and rugged housing, it’s suitable for dusty or moist environments.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
