Datalogic S5N-PA-5-T01-PP Photoelectric Sensor

Datalogic S5N-PA-5-T01-PP Photoelectric Sensor

The Datalogic S5N-PA-5-T01-PP is a precision-engineered photoelectric sensor designed to detect clear and transparent objects with outstanding accuracy. Utilizing the polarized retroreflective principle, this sensor ensures reliable operation at a nominal sensing distance of 1.7 meters, making it ideal for applications requiring detection of PET bottles, glass, or clear plastic.

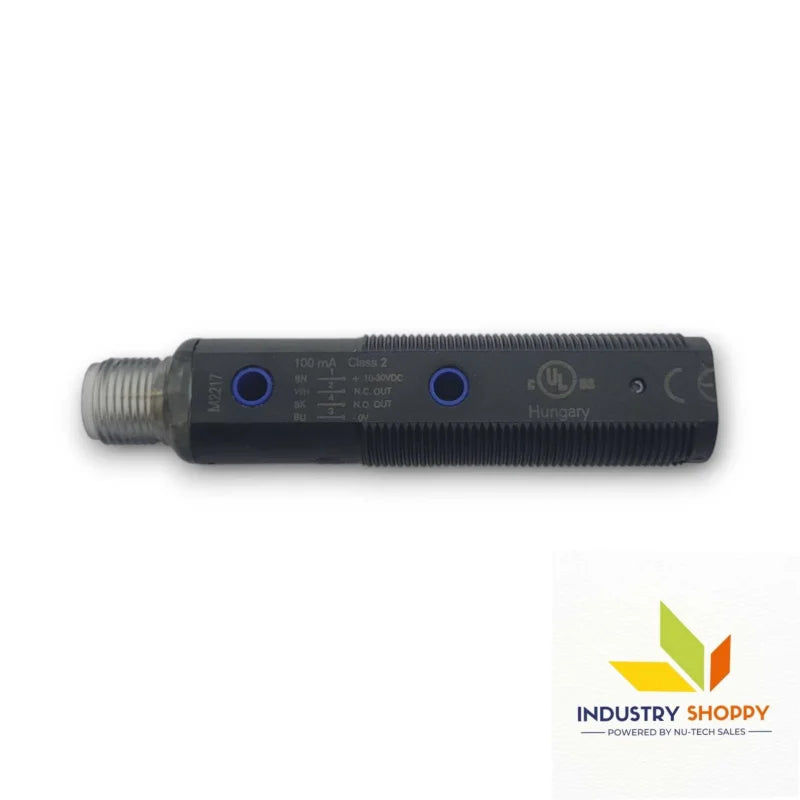

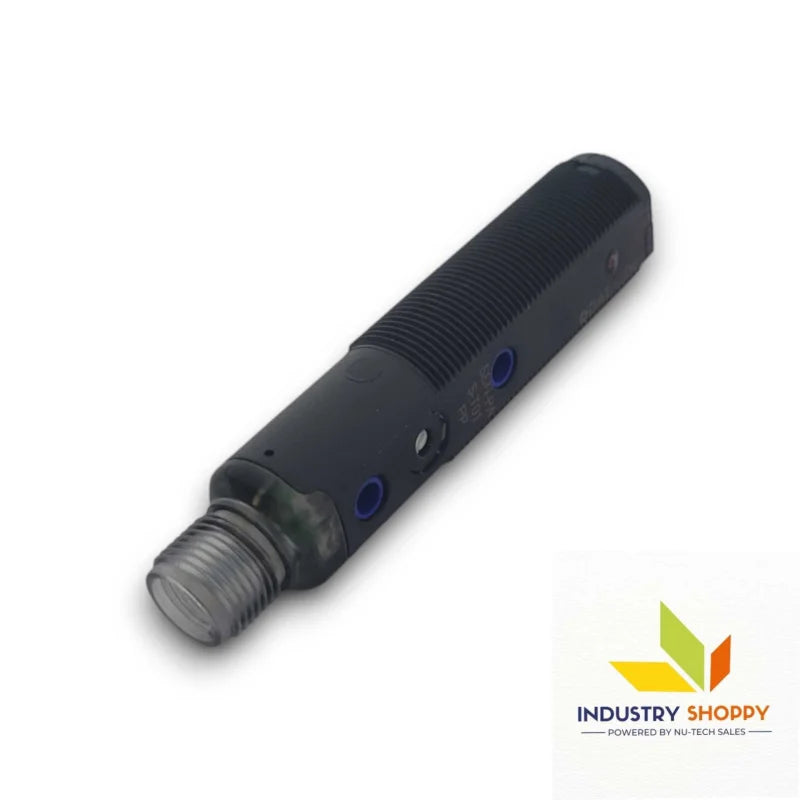

Housed in a tubular M18 plastic body with a radial 90° optic position, it offers compact flexibility for various mounting configurations. The sensor features a red LED emitter, with a quick 500 µs response time and 1 kHz switching frequency, enabling it to perform effectively even in fast-moving processes. The sensitivity trimmer allows fine adjustments for optimal performance depending on object clarity and background.

Equipped with PNP NO+NC outputs, short-circuit and reverse polarity protection, and dual LED indicators (yellow for output, green for stability), the S5N-PA-5-T01-PP is ready for demanding industrial environments. Certified to IP67, it withstands shocks, vibrations, and a wide temperature range, offering dependable detection performance in packaging lines, bottling plants, and other automated systems handling transparent objects.

Key features :-

Applications :-

• Transparent Object Detection
  Ideal for sensing glass, PET bottles, or clear plastic on conveyors.
• Packaging Lines
  Ensures detection of see-through materials in bottling or sealing machines.
• High-Speed Automation
  Fast response and switching for rapid object flow in production lines.
• Compact Mounting Solutions
  Radial 90° optic in an M18 body for side-facing installations in tight spaces.
• Industrial Reliability
  IP67-rated build with EMC protection for rugged, interference-heavy environments.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
