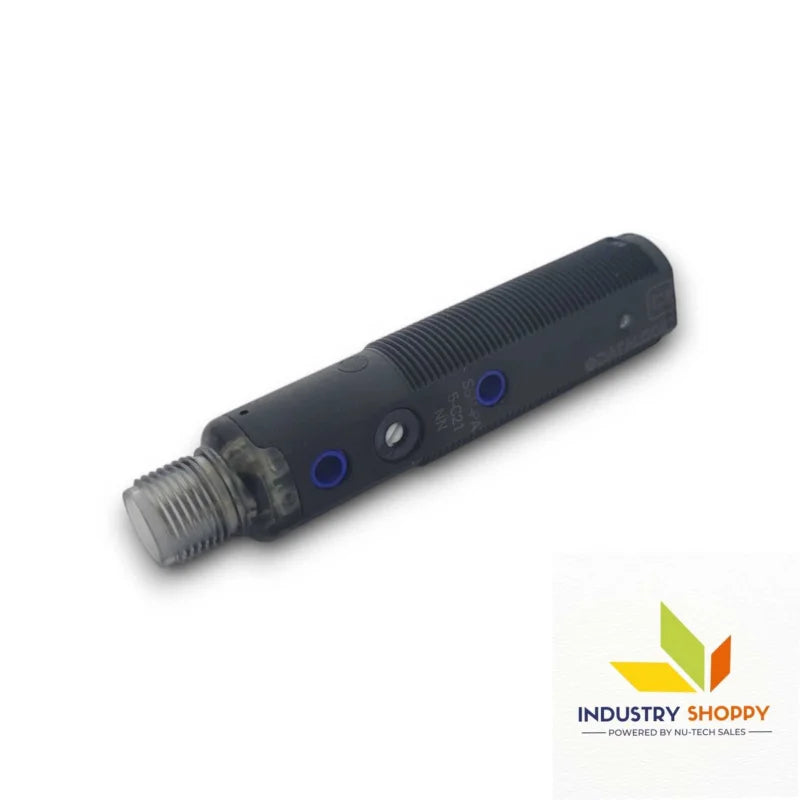

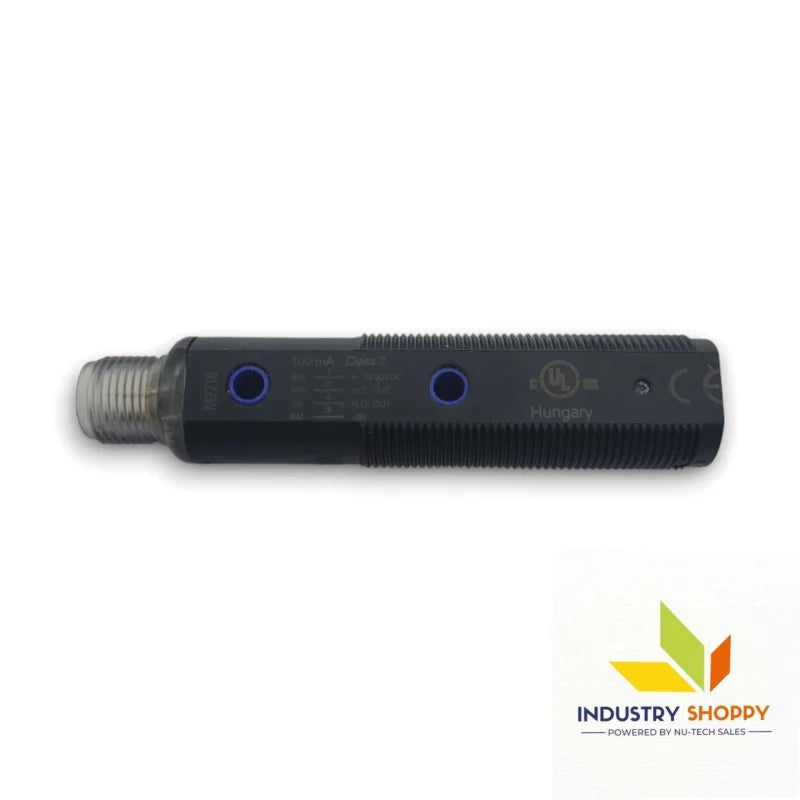

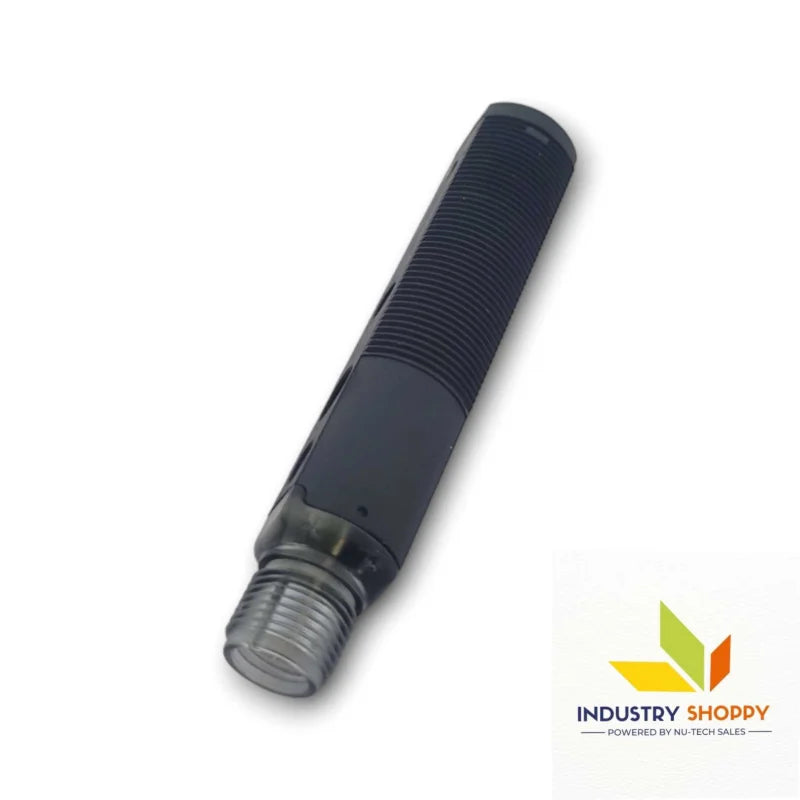

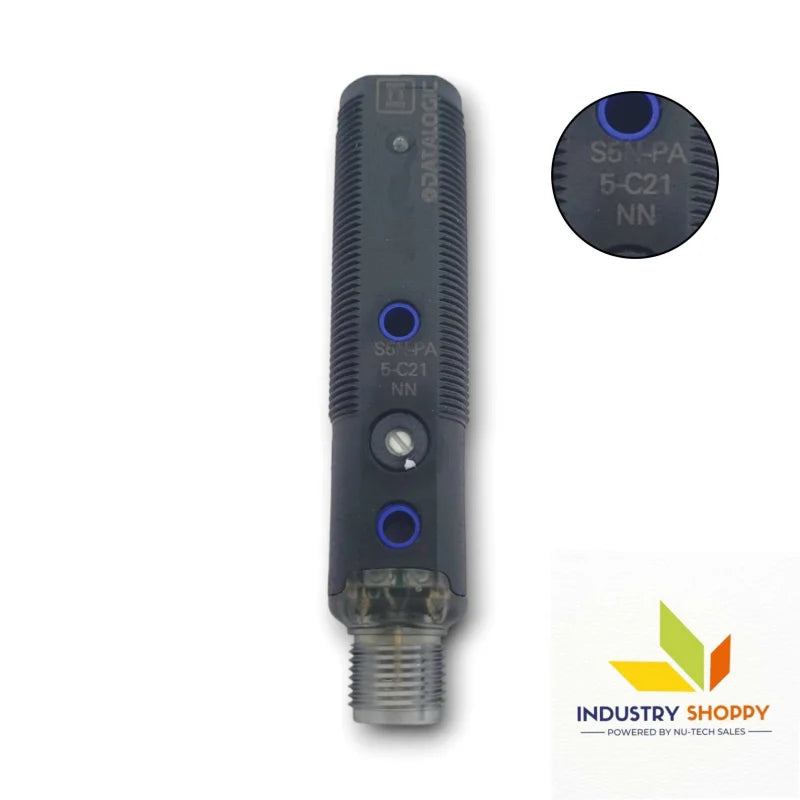

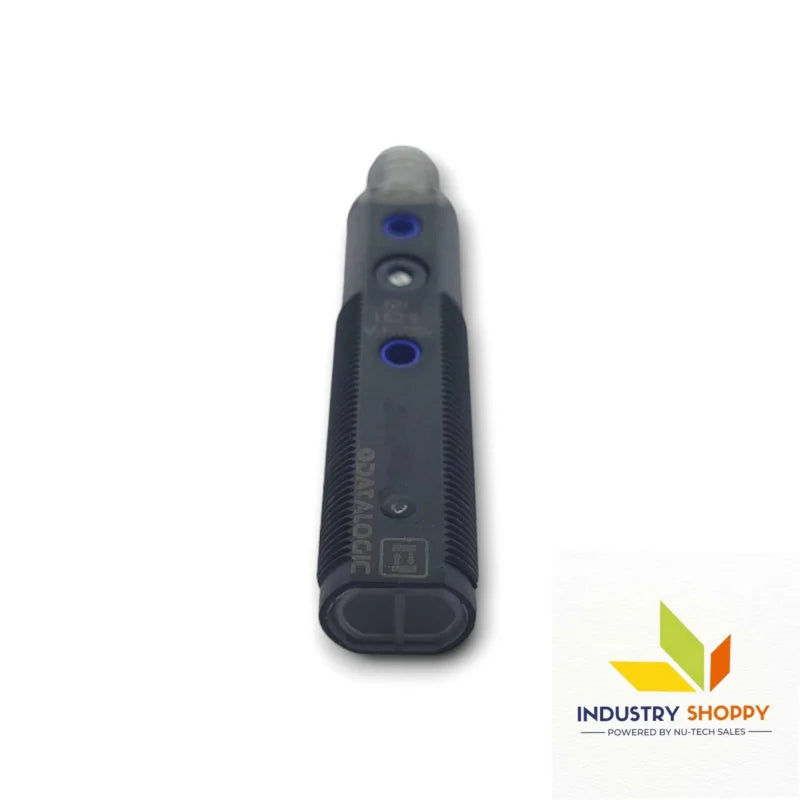

Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor
Datalogic

Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor

Product SKU: NTSSEN00021
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand: Datalogic
  • Part Number: 952002191
  • Supply voltage:  10 – 30 VDC
  • Response time: 500µs
  • Output type: NPN NO+NC
  • Type of connection: M12 connector
$85.00
$100.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Datalogic S5N-PA-5-C21-NN Photoelectronic Sensor

The Datalogic S5N-PA-5-C21-NN Photoelectric Sensor (952002191)is a reliable and compact diffuse beam photoelectric sensor designed for accurate object detection in industrial applications. Featuring an infrared LED emitter, this sensor can detect objects up to 400 mm away using a white target (Kodak 90%, 100 × 100 mm), providing consistent performance even with low-reflectivity materials.

With NPN NO+NC output configuration, this sensor offers flexible integration with a wide range of control systems. The response time of 500 µs and 1 kHz switching frequency ensures quick and precise operation in high-speed automation environments. Sensitivity can be easily adjusted via a built-in trimmer, allowing fine-tuning for specific applications.

Constructed with a durable M18 tubular housing made from PBT and PMMA, and protected to IP67 standards, the sensor is built to withstand challenging environments involving dust, moisture, shock, and vibrations. The M12 connector supports fast and secure connections, while LED indicators provide real-time feedback on status and stability. This makes the S5N-PA-5-C21-NN ideal for applications in packaging, robotics, and material handling.


Applications

  • Object detection in conveyor and packaging systems

  • Presence sensing in assembly lines

  • Material handling and sorting operations

  • Automation in manufacturing equipment


Technical Precautions

  • Adjust sensitivity using trimmer for different object surfaces.

  • Operate within 10–30 V DC supply voltage limits.

  • Avoid strong ambient light or reflective interference.

  • Ensure secure M12 connector installation to maintain IP67 protection.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberS5N-PA-5-C21-NN
Part Number952002191
SeriesS5N
Nominal sensing distance400 mm
Sensitivity adjustmentTrimmer
Function PrincipleDiffuse beam
NotesWhite target Kodak 90% 100 x 100 mm
DescriptionTubular M18 - axial optic
Optic positionRadial 90°
FunctionsDiffuse beam
Output typeNPN NO + NC
Output FunctionNO + NC
Switching frequency1 kHz
Response time500 µs
Operating Voltage10 … 30 VDC
No-load supply current≤ 35 mA
Load current≤ 100 mA
Leakage current≤ 10 µA
Output voltage drop≤ 2 V @ iLoad = 100 mA
LED indicatorsYellow OUTPUT LED, Green STABILITY LED
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionLED Infrared
Interference to external lightAccording to EN 60947-5-2:2020
Impulsive Overvoltage ProtectionYes
Insulation resistance> 20 MΩ, 500 VDC between electronics and housing
Contact resistance500 VAC 1 min, between electronics and housing
DimensionsØ18 x 67 mm
Housing MaterialPlastic - PBT / PMMA

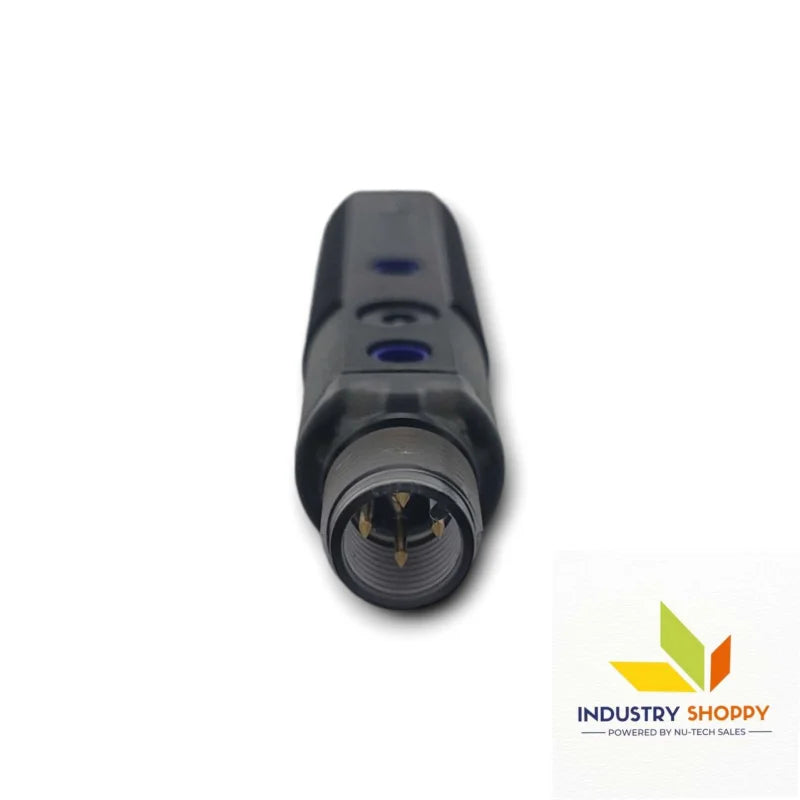

ConnectionsM12 plug
Active Head MaterialPMMA
Storage temperature-25 … +70 °C
MaterialPlastic - PBT / PC
Diameter/DimensionM18
ApprovalsCE, cULus
EMC compatibilityEN 60947-5-2
Shocks and vibrations0.5 mm amplitude, 10 … 55 Hz, every axis (EN60068-2-6)

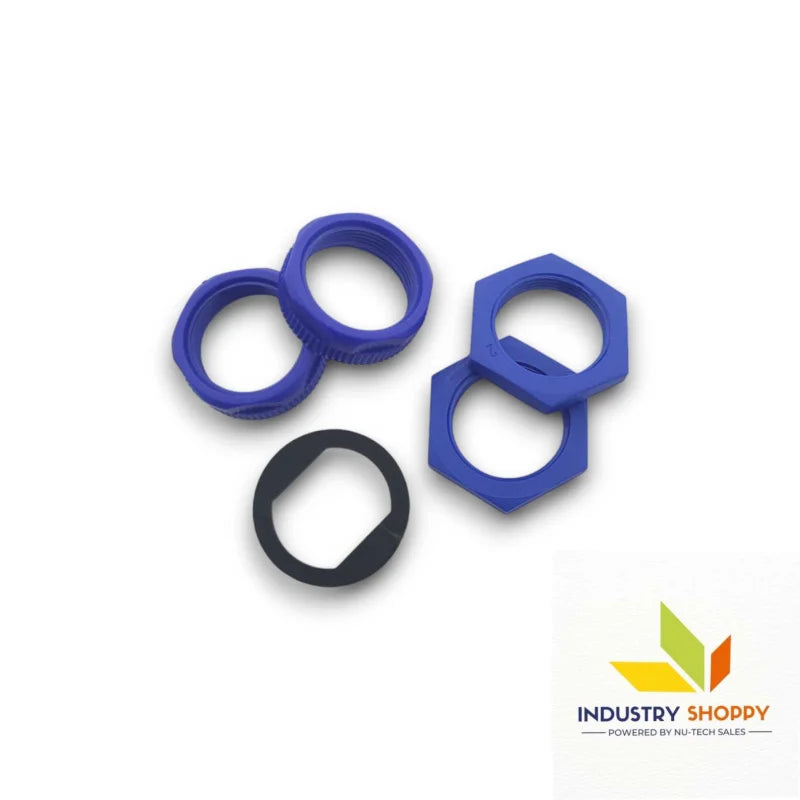

Supplied AccessoriesNuts M18 x 1
Operating Temperature-25 … +55 °C (Without freeze)
Mechanical ProtectionIP67
