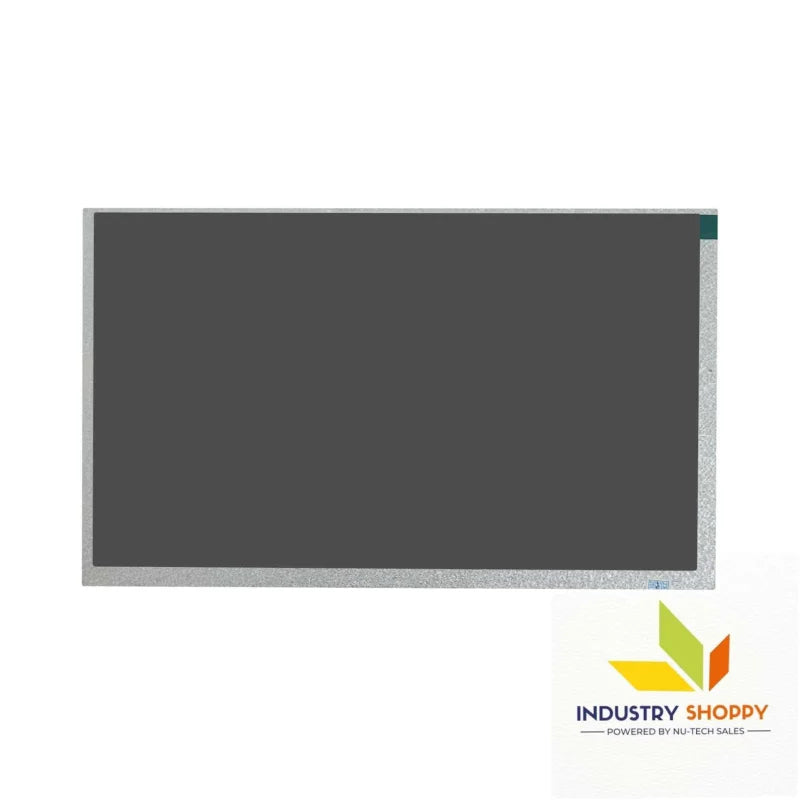

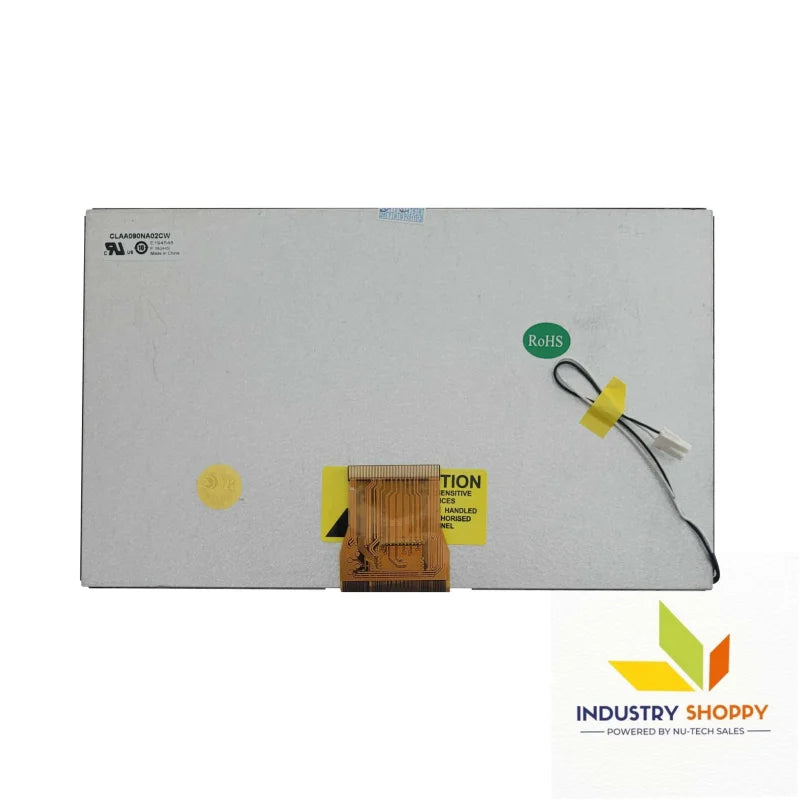

CPT CLAA090NA02CW LCD Module

CPT CLAA090NA02CW LCD Module

The CPT CLAA090NA02CW is a 9.0-inch a-Si TFT-LCD module designed for applications that require high-quality display performance in a larger size format. With a resolution of 800x480 (WVGA) and a pixel density of 133 PPI, this module offers sharp visuals with excellent color accuracy, making it ideal for use in industrial systems, kiosks, and multimedia devices.

This module features a brightness of 450 cd/m² and a contrast ratio of 500:1, ensuring vibrant and clear visuals, even in bright environments. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) ensure that the displayed content remains visible and sharp from multiple perspectives, enhancing its versatility for various applications.

Equipped with an LED backlight, the CLAA090NA02CW offers energy-efficient operation and a long lifespan. Additionally, its antiglare surface treatment reduces reflections and improves readability, making it ideal for use in environments with ambient lighting.

Key Features:

• Brand: CPT

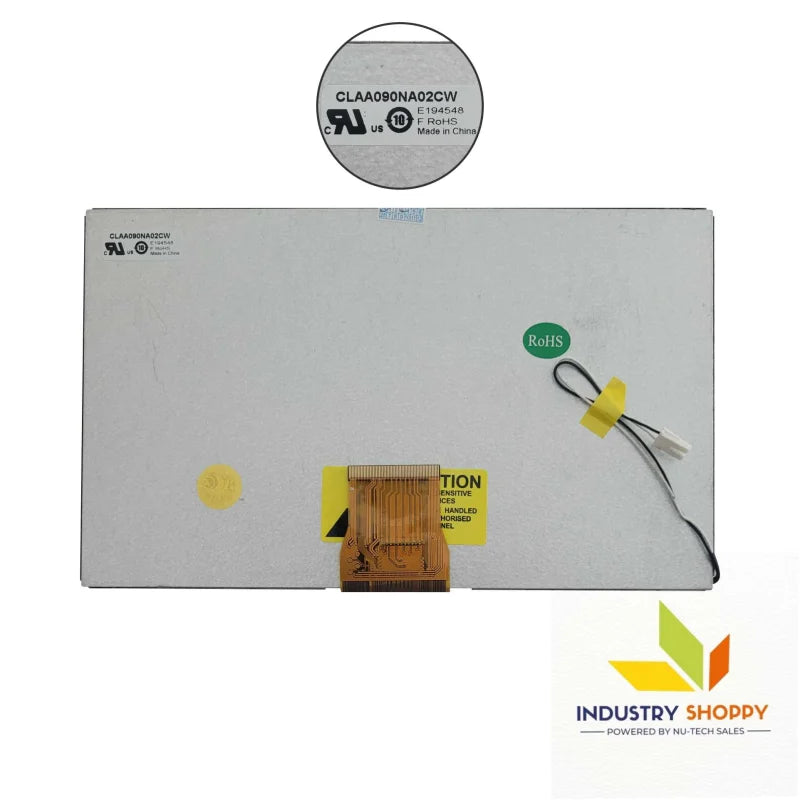

• Model: CLAA090NA02CW
• Diagonal Size: 9.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 198.72(W) × 111.48(H) mm
• Bezel Opening: 201.5(W) × 114.9(H) mm
• Outline Dimensions: 214.5(W) × 131.6(H) × 7.5(D) mm
• Surface Treatment: Antiglare to reduce reflections and enhance visibility
• Brightness: 450 cd/m² (Typical), ideal for use in bright environments
• Contrast Ratio: 500:1 (Typical), providing clear image differentiation
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear visuals from different angles
• Backlight Type: LED for energy-efficient operation with a long lifespan
• Display Mode: TN, Normally White, Transmissive
• Response Time: 30 ms (Typical, Tr/Td) for smooth, responsive visuals

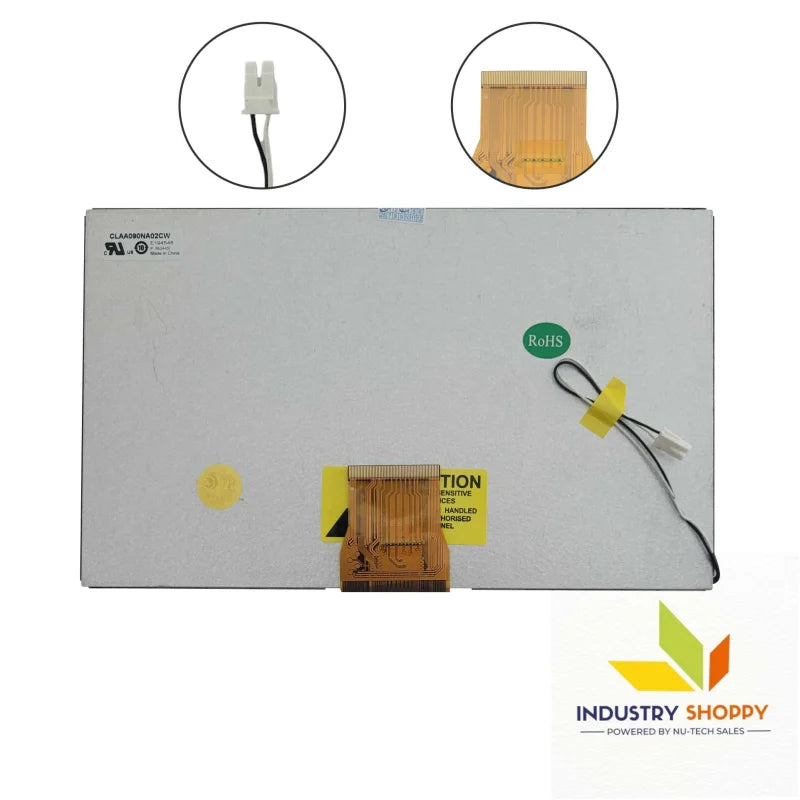

• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for use in various environmental conditions
• Storage Temperature: -30°C to 80°C, allowing for flexible storage options

Applications:

• Industrial Control Panels: Ideal for use in industrial systems requiring larger displays with high resolution and clear visuals
• Kiosk Systems: Perfect for self-service kiosks that require vibrant and sharp visuals for user interaction
• Multimedia Devices: Suitable for multimedia and entertainment devices requiring a compact, high-resolution display
• Point-of-Sale (POS) Displays: Great for retail systems needing a large, vibrant display

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure its continued performance over time
