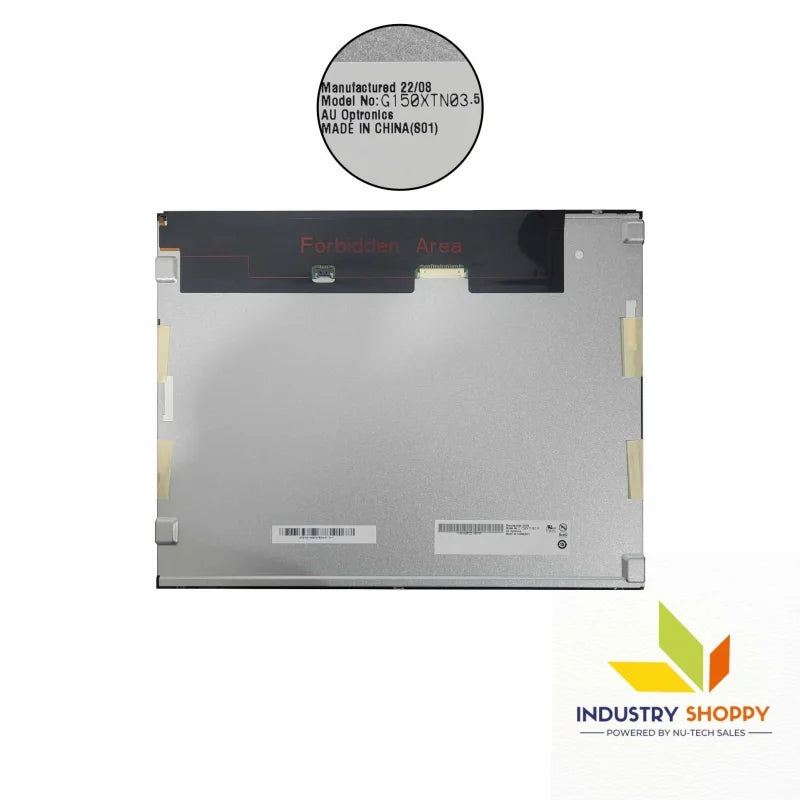

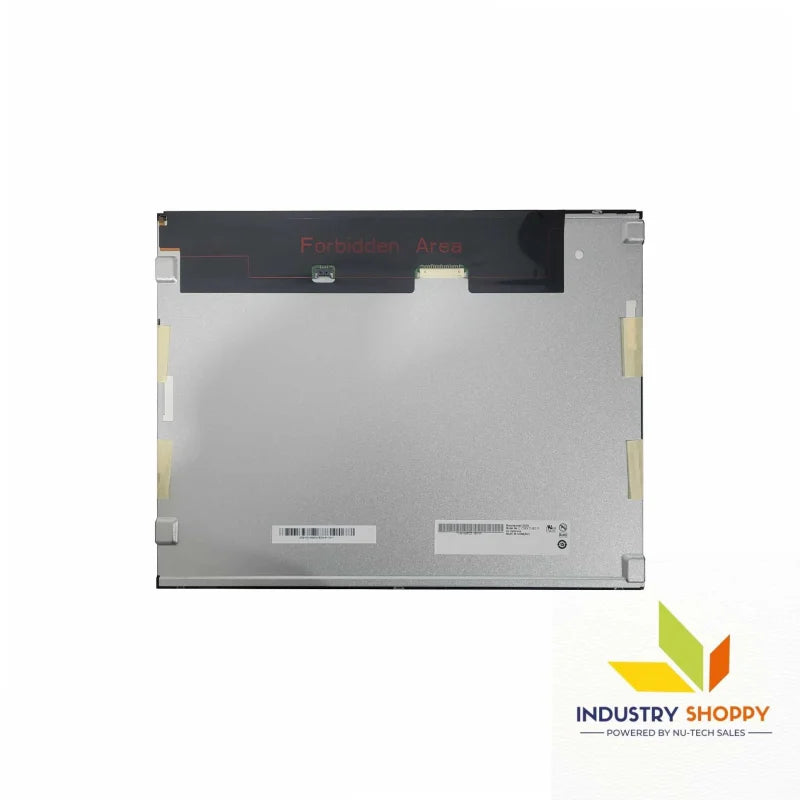

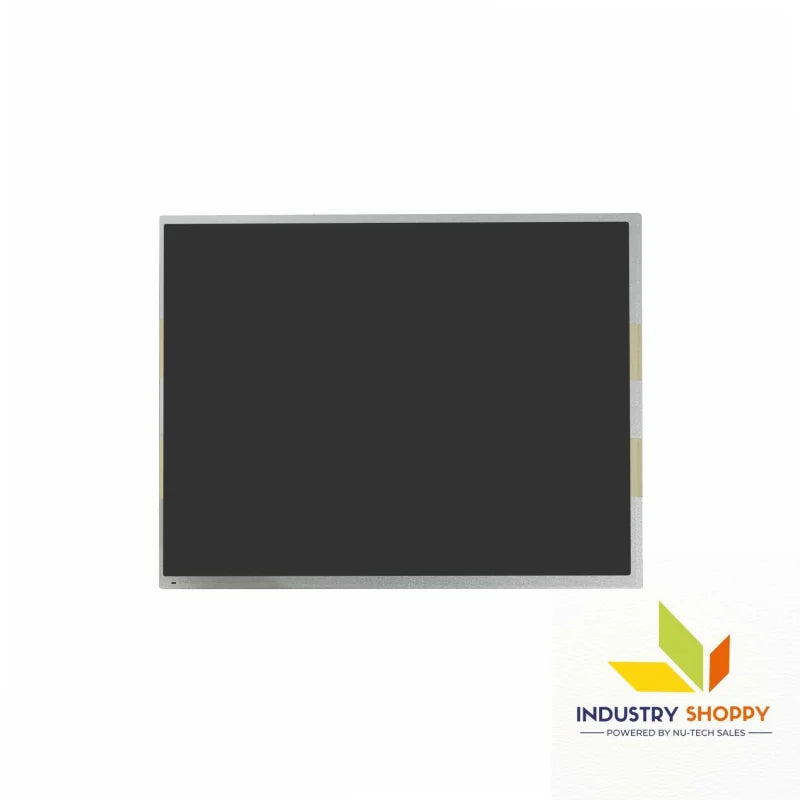

AUO G150XTN03.5 LCD Module

AUO G150XTN03.5 LCD Module

The AUO G150XTN03.5 is a 15-inch a-Si TFT-LCD module designed to provide high-quality display performance for applications requiring medium-sized screens. It features a resolution of 1024x768 (XGA) and a pixel density of 100 PPI, delivering sharp, clear visuals with excellent color fidelity. This makes it an ideal choice for industrial control panels, POS systems, digital signage, and embedded systems.

The G150XTN03.5 offers a brightness of 450 cd/m² and a contrast ratio of 600:1, ensuring that images are clearly visible in both bright and dim environments. With wide viewing angles of 85°/85°/85°/85° (L/R/U/D), this display maintains consistent image clarity from multiple viewing angles, making it suitable for various industrial and commercial applications.

Equipped with an LED backlight, the G150XTN03.5 is energy-efficient and provides a long lifespan, reducing maintenance requirements. The antiglare surface treatment enhances visibility and readability, making the module ideal for use in environments with high ambient light or strong reflections.

Key Features:

• Brand: AUO
• Model: G150XTN03.5
• Diagonal Size: 15 inches
• Resolution: 1024×768 (XGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 304.0(W) × 228.0(H) mm
• Bezel Opening: 307.0(W) × 231.0(H) mm
• Outline Dimensions: 335.5(W) × 261.0(H) × 7.6(D) mm
• Surface Treatment: Antiglare for improved readability in bright environments
• Brightness: 450 cd/m² (Typical), ensuring clear visuals in various lighting conditions
• Contrast Ratio: 600:1 (Typical), delivering vibrant and high-contrast images
• Viewing Angle: 85°/85°/85°/85° (L/R/U/D), providing consistent clarity from different angles
• Backlight Type: LED for energy-efficient performance and long operational life
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visuals

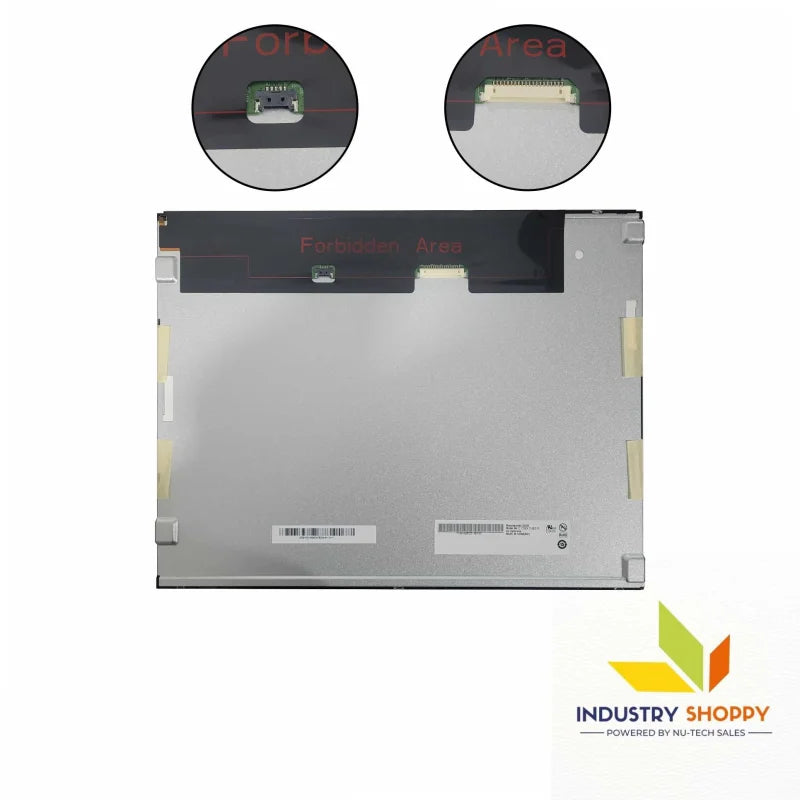

• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for various environmental conditions
• Storage Temperature: -30°C to 80°C, flexible for different storage conditions

Applications:

• Industrial Control Panels: Ideal for medium-sized panels where high-quality visuals are necessary
• Point-of-Sale (POS) Systems: Perfect for retail systems that require a clear, bright display
• Digital Signage: Suitable for advertising or information displays in public spaces
• Embedded Systems: Great for custom applications where a reliable, high-performance display is needed

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance
