AUO G150XG01-V.3 LCD Module
| : Auo |
| : New |
| : G150XG01-V.3 |
| : 15.0 Inch |
| : a-Si TFT-LCD, LCM |
| : 1024(2)×768(2), XGA 85PPI |
Note : All tax and custom duty should be pay by buyer only.
- Description
- Declaration
- Reviews

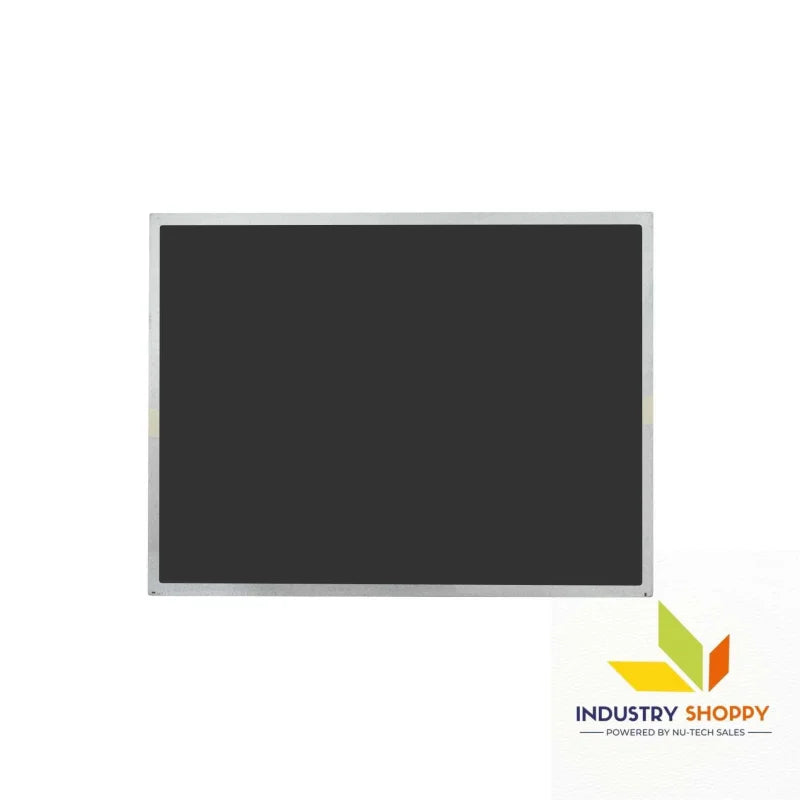

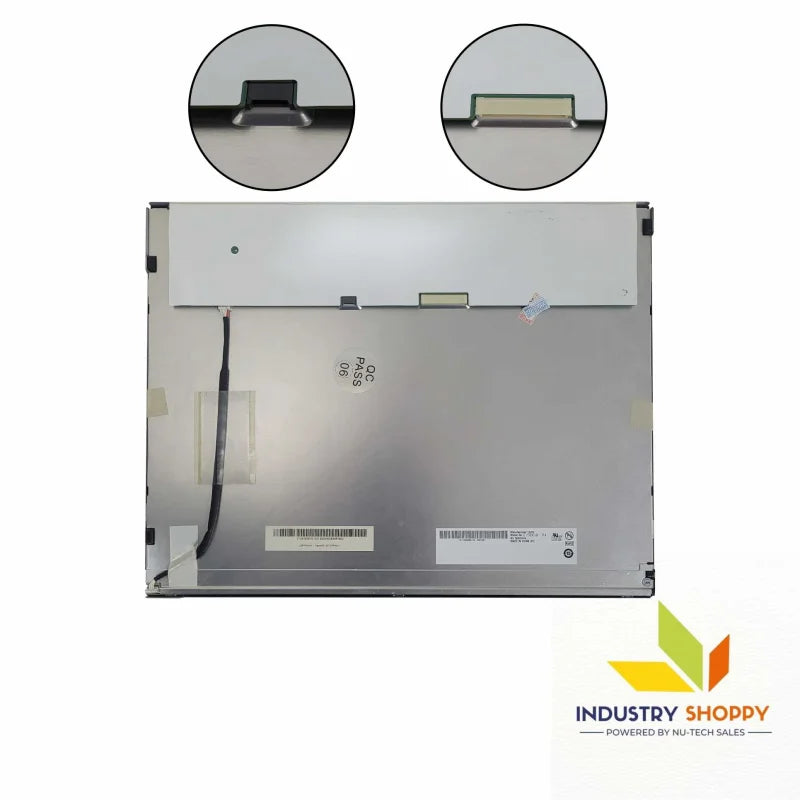

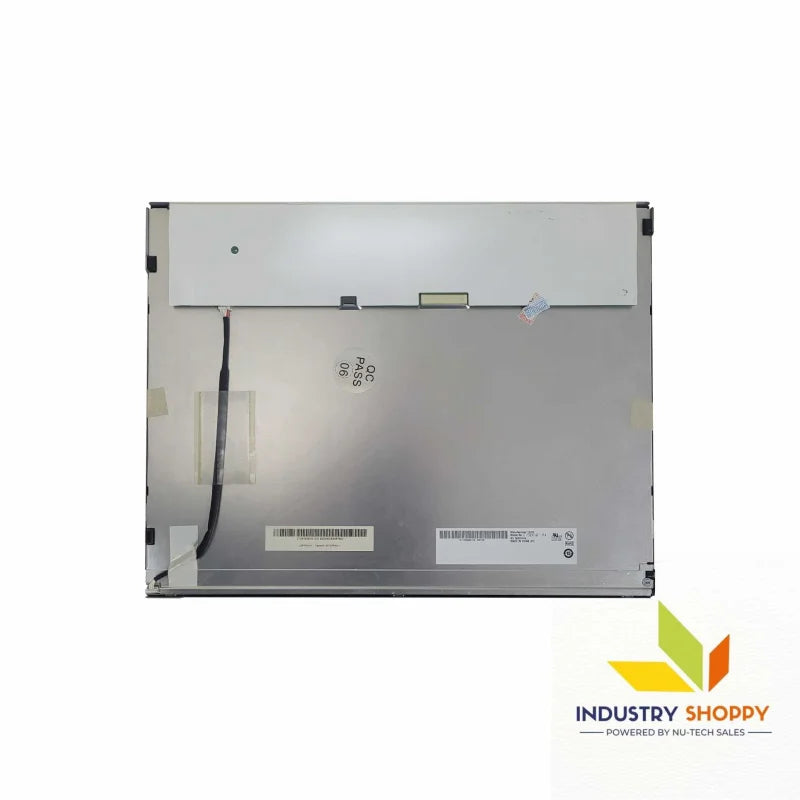

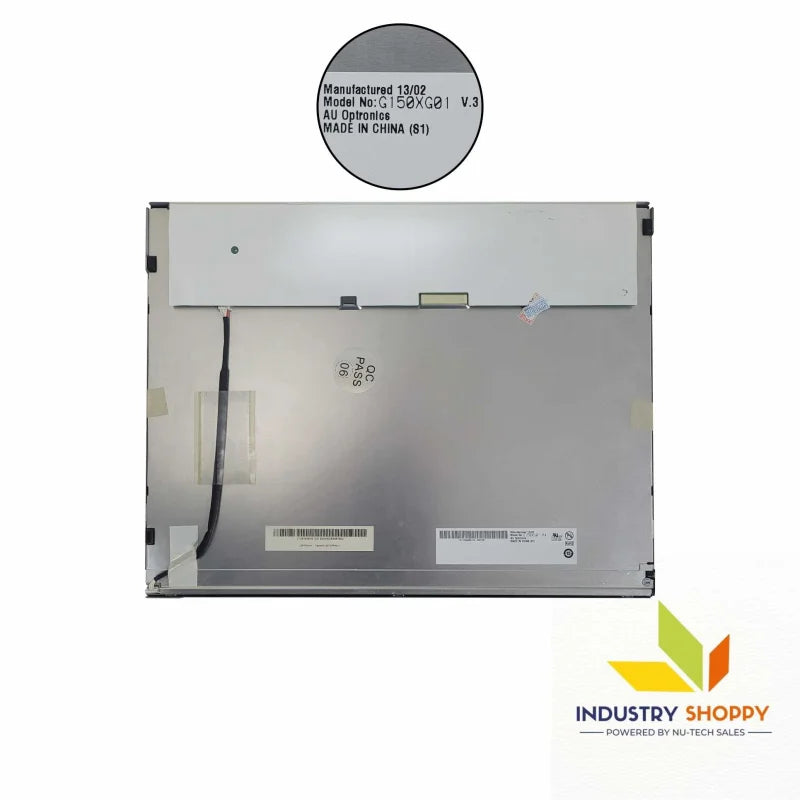

AUO G150XG01-V.3 LCD Module
The AUO G150XG01-V.3 LCD Display is a high-performance 15-inch a-Si TFT-LCD module, designed to meet industrial requirements. With an XGA resolution of 1024×768 pixels and a solid contrast ratio, this display is engineered to provide clear and reliable visuals in demanding environments. The module features an antiglare surface, enhancing readability even in high-glare conditions. This durable and versatile display is ideal for applications that require both quality and longevity.
Key Features:
- Brand: AUO
- Model: G150XG01 V.3
- Diagonal Size: 15.0 inches
- Resolution: 1024×768 (XGA), 85 PPI
- Pixel Format: RGBW Rectangle for detailed and accurate visuals
- Active Area: 304.128(W) × 228.096(H) mm
- Bezel Opening: 310.18(W) × 234.40(H) mm
- Outline Dimensions: 326.5(W) × 253.5(H) × 13.1(D) mm
- Surface Treatment: Antiglare with 3H Hard Coating for enhanced scratch resistance and minimized glare
- Brightness: 400 cd/m² (Typical), ensuring vivid display quality in various lighting conditions
- Contrast Ratio: 700:1 (Typical), providing crisp and clear image quality
- Viewing Angle: 80/80/60/80 (Left/Right/Up/Down), offering flexible viewing options
- Best Viewing Angle: 6 o'clock
- Display Mode: TN, Normally White, Transmissive, designed for consistent and reliable image display
- Response Time: 5.7/2.3 ms (Typical, Tr/Td) for smooth visual transitions
- Display Colors: 262K/16.2M (60% NTSC) for a wide range of color accuracy
- Backlight Type: WLED with a lifespan of 50,000 hours and integrated LED Driver
- Refresh Rate: Standard 60Hz with options for enhanced MEMC Circuit for 120Hz and 240Hz
- Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin Connector for secure and reliable data transfer
- Input Voltage: 3.3V (Typical)
- Operating Temperature: -30°C to 85°C, suitable for extreme industrial conditions
- Storage Temperature: -30°C to 85°C for secure storage in various environments
Applications:
The AUO G150XG01-V.3 LCD Module is best suited for:
- Industrial Machinery: Ideal for display panels in control systems and equipment monitoring.
- Medical Devices: Reliable choice for diagnostic tools and patient monitoring displays.
- Military and Aerospace: Suitable for rugged environments where performance is crucial.
- Transport and Automotive: Perfect for dashboards and in-vehicle information systems.
- Outdoor Digital Signage: Built to withstand diverse weather conditions with its robust construction.
Technical Precautions:
- Handling: Handle with care to avoid pressure on the screen surface or electronic components.
- Electrostatic Discharge (ESD): Ensure proper grounding during installation to prevent ESD damage.
- Temperature Control: Operate within the recommended temperature range (-30°C to 85°C) for maximum efficiency.
- Power Precautions: Always power off the module before connecting or disconnecting to avoid electrical hazards.
- Mounting: Use appropriate mounting fixtures to secure the display without applying excessive force.
-
Ventilation: Ensure adequate ventilation to prevent overheating in enclosed environments.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
