AUO G104VN01-V.0 LCD Module

AUO G104VN01-V.0 LCD Module

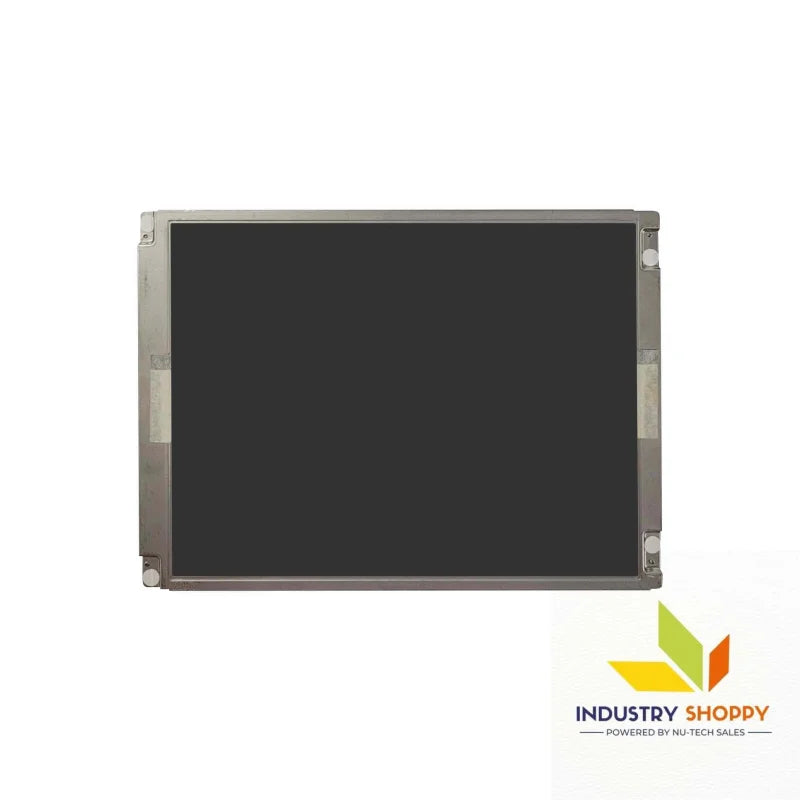

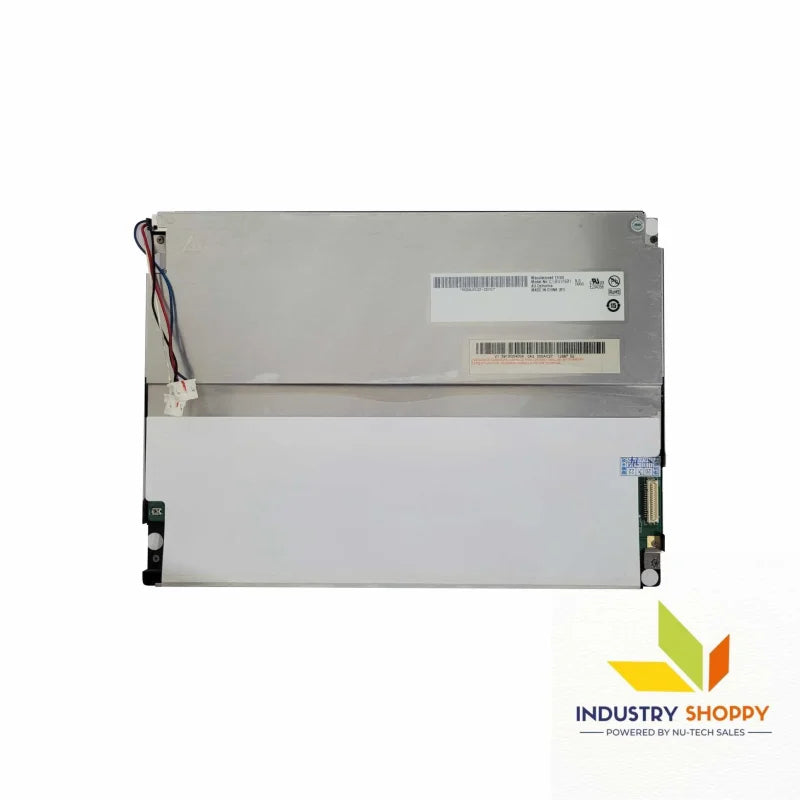

The AUO G104VN01-V.0 is a 10.4-inch a-Si TFT-LCD module designed for high-performance applications requiring clear, vibrant, and reliable display solutions. With a resolution of 1024x768 (XGA) and a pixel density of 100 PPI, this display delivers sharp visuals and accurate color reproduction, making it suitable for a variety of industrial and commercial uses.

Featuring a brightness of 400 cd/m² and a contrast ratio of 600:1, the G104VN01-V.0 ensures excellent visibility, even in environments with high ambient light. Its wide viewing angles of 80°/80°/80°/80° (L/R/U/D) allow for consistent image quality from different viewing positions, making it ideal for multi-angle viewing situations.

Equipped with an LED backlight, this module offers energy efficiency and a long lifespan, minimizing the need for frequent maintenance. The antiglare surface treatment reduces reflections and enhances the display's readability in bright environments.

Key Features:

• Brand: AUO

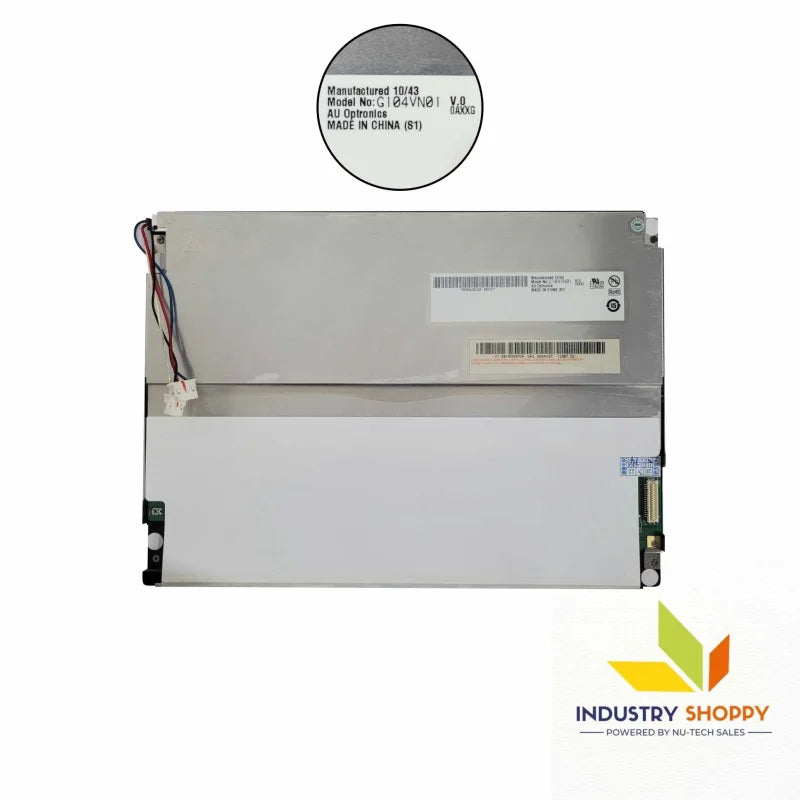

• Model: G104VN01-V.0
• Diagonal Size: 10.4 inches
• Resolution: 1024×768 (XGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 214.2(W) × 161.4(H) mm
• Outline Dimensions: 241.6(W) × 182.3(H) × 8.5(D) mm
• Surface Treatment: Antiglare to improve readability in bright conditions
• Brightness: 400 cd/m² (Typical), ideal for visibility in bright settings
• Contrast Ratio: 600:1 (Typical), ensuring vibrant and clear visuals
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing consistent clarity from various angles
• Backlight Type: LED for energy efficiency and extended lifespan
• Display Mode: Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

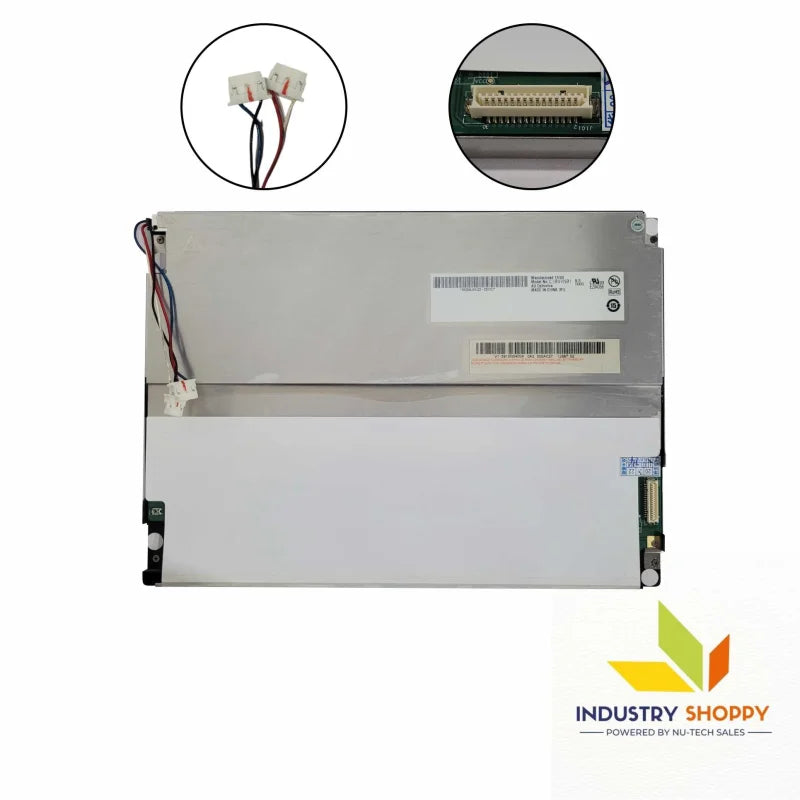

• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for a variety of environments
• Storage Temperature: -30°C to 80°C, adaptable to different storage conditions

Applications:

• Industrial Control Panels: Ideal for applications requiring high-resolution displays in compact formats
• Medical Devices: Perfect for medical equipment where precise and clear visuals are critical
• Point-of-Sale (POS) Systems: Suitable for retail environments that demand vibrant, high-contrast displays
• Embedded Systems: Great for embedded applications that require compact and reliable display solutions

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to prevent damage
• Temperature Limits: Ensure operation within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure optimal brightness and longevity
