AUO G104STN01.0 LCD Module

AUO G104STN01.0 LCD Module

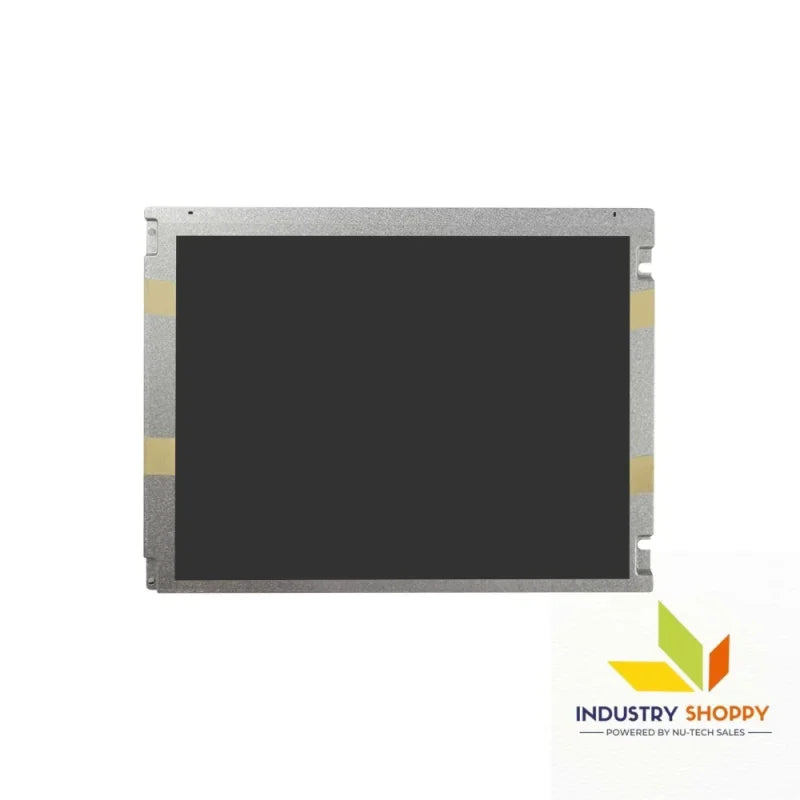

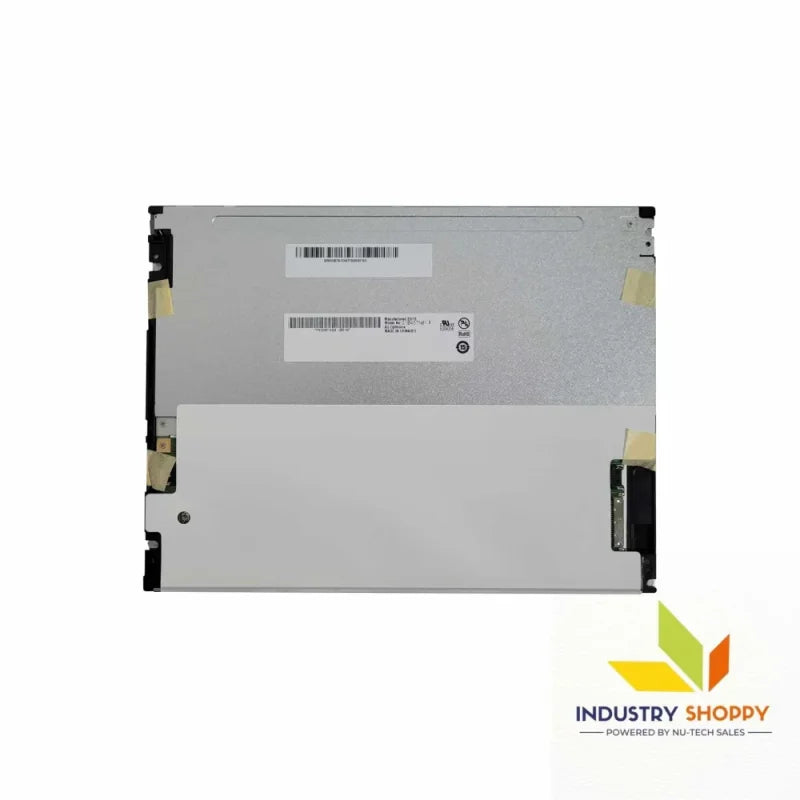

The AUO G104STN01.0 is a 10.4-inch a-Si TFT-LCD module designed for high-performance applications requiring clear and sharp visuals in a compact form factor. With a resolution of 800x600 (SVGA) and a pixel density of 96 PPI, this display delivers vibrant and accurate color reproduction, making it ideal for applications such as industrial control systems, medical devices, POS systems, and more.

The G104STN01.0 offers a brightness of 350 cd/m² and a contrast ratio of 500:1, ensuring clear and visible content in bright environments. With wide viewing angles of 80°/80°/80°/80° (L/R/U/D), the display provides consistent image quality from various angles, making it suitable for multiple viewing positions.

Featuring an LED backlight, the module offers energy-efficient performance and a long lifespan, reducing maintenance costs over time. The antiglare surface treatment minimizes reflections and enhances visibility, making it a great choice for environments with varying ambient light.

Key Features:

• Brand: AUO

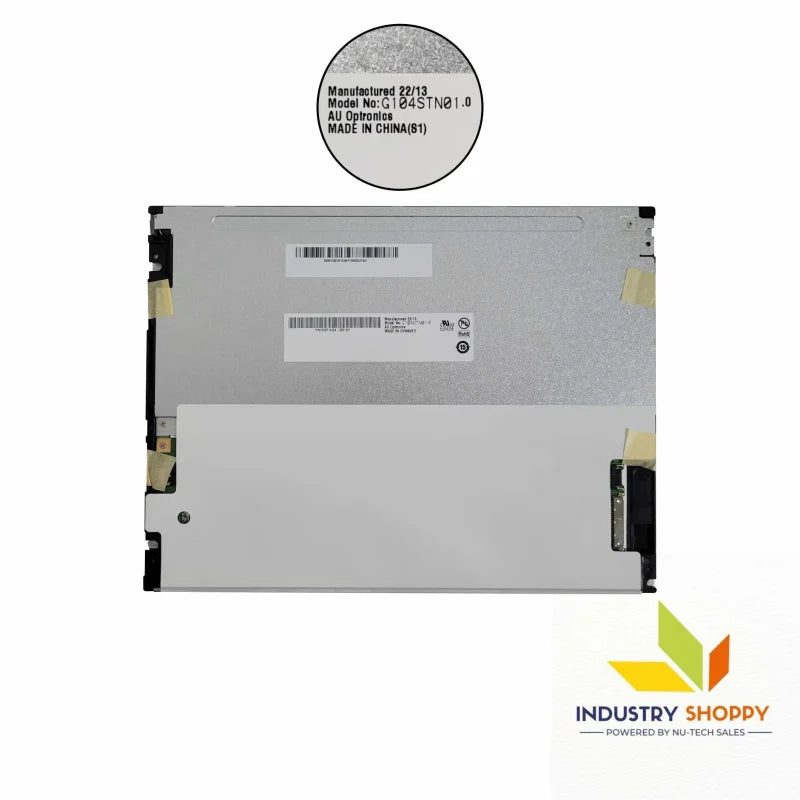

• Model: G104STN01.0
• Diagonal Size: 10.4 inches
• Resolution: 800×600 (SVGA), 96 PPI
• Pixel Format: RGB Vertical Stripe for vibrant color reproduction
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 214.2(W) × 161.4(H) mm
• Outline Dimensions: 241.6(W) × 182.3(H) × 8.5(D) mm
• Surface Treatment: Antiglare for better visibility in bright environments
• Brightness: 350 cd/m² (Typical), ensuring visibility in bright settings
• Contrast Ratio: 500:1 (Typical), delivering vibrant and clear visuals
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing consistent clarity from various angles
• Backlight Type: LED for energy-efficient performance and extended lifespan
• Display Mode: Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals

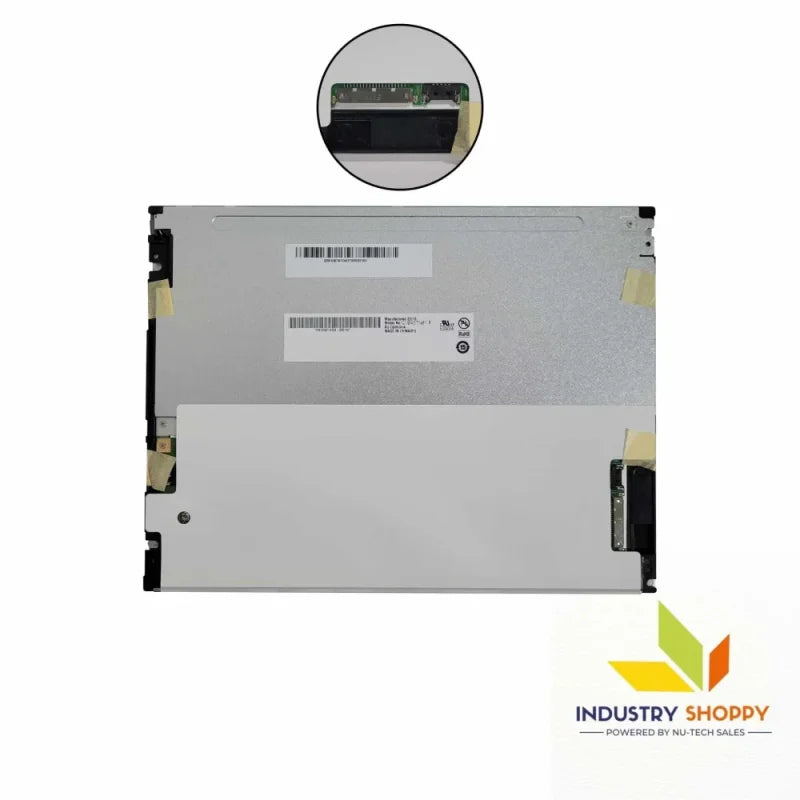

• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for a wide range of environments
• Storage Temperature: -30°C to 80°C, adaptable to various storage conditions

Applications:

• Industrial Control Panels: Ideal for industrial systems that require a high-quality and compact display
• Medical Devices: Suitable for medical equipment that requires clear and reliable visuals
• Point-of-Sale (POS) Systems: Perfect for retail systems needing vibrant and readable displays
• Embedded Systems: Great for embedded systems requiring high-quality displays

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure optimal performance
