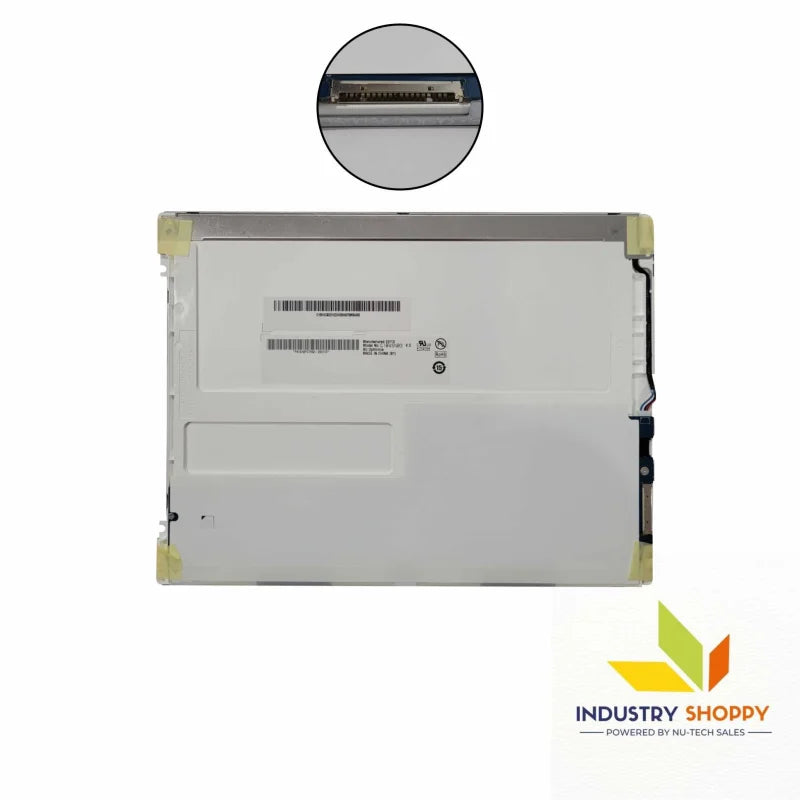

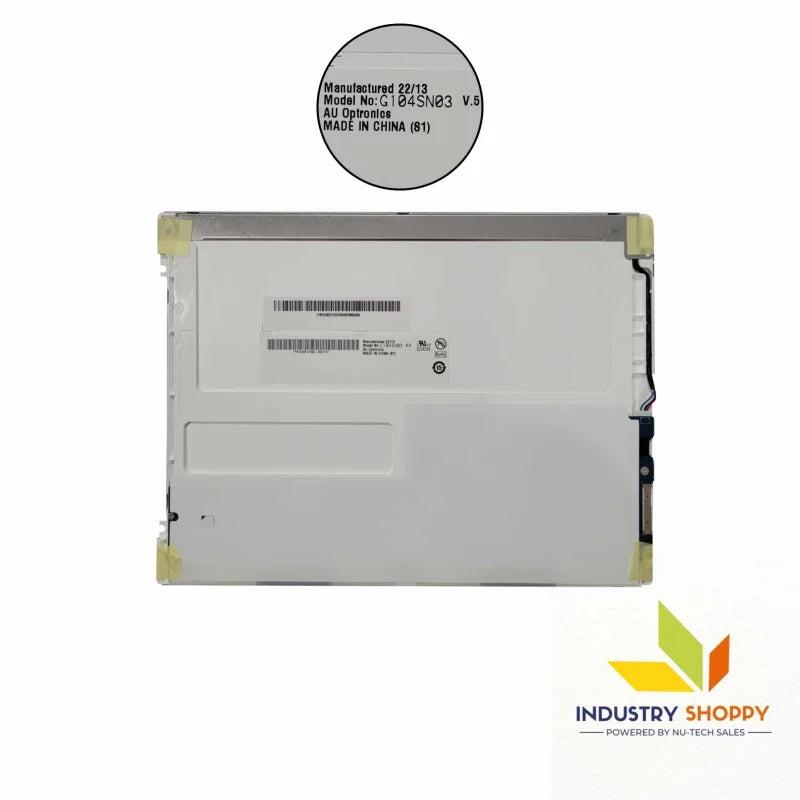

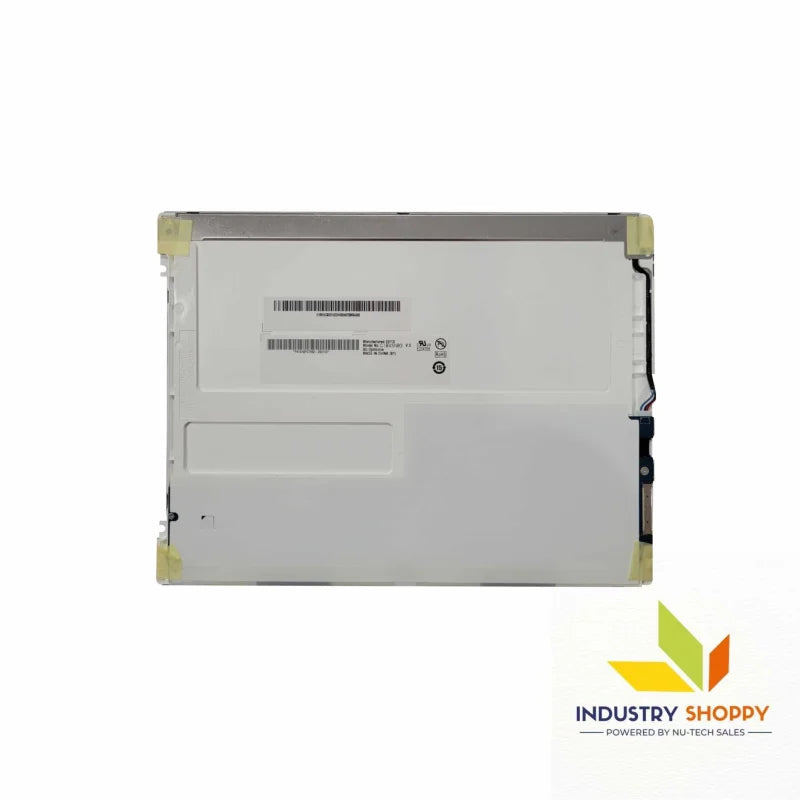

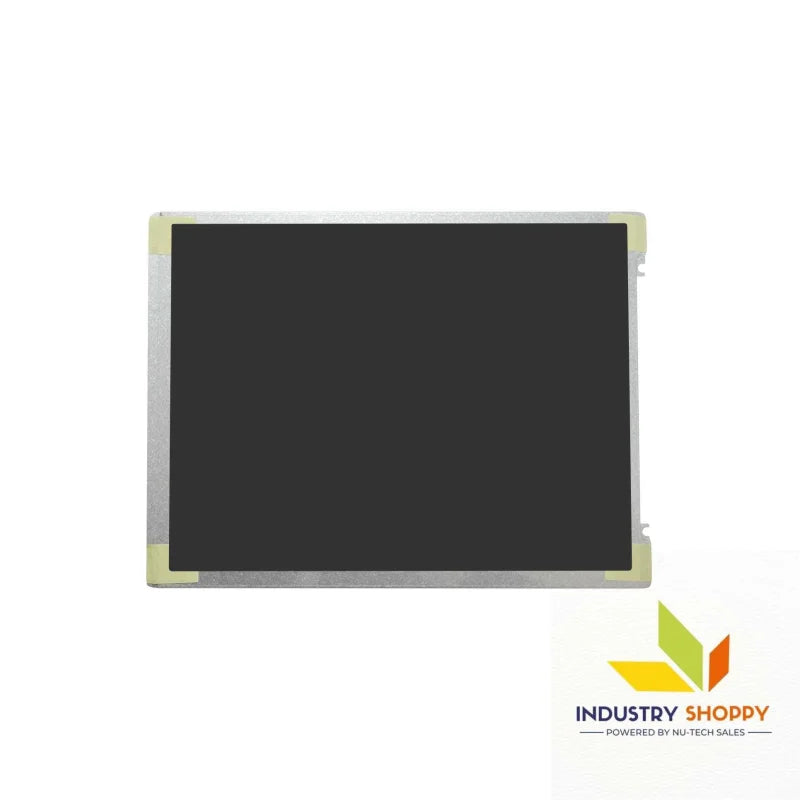

AUO G104SN03-V.5 LCD Module
| : AUO |
| : New |
| : G104SN03-V.5 |
| : 10.4 Inch |
| : a-Si TFT-LCD, LCM
|
| : 800(RGB)×600, SVGA 96PPI
|
Note : All tax and custom duty should be pay by buyer only.
- Description
- Declaration
- Reviews
AUO G104SN03-V.5 LCD Module
The AUO G104SN03-V.5 is a 10.4-inch a-Si TFT-LCD module that delivers high-performance visuals with a resolution of 1024x768 (XGA) and a pixel density of 96 PPI, ensuring sharp, clear, and accurate color reproduction. This display is well-suited for applications in industrial control panels, medical devices, POS systems, and other professional settings that require vibrant and reliable display solutions.
With a brightness of 350 cd/m² and a contrast ratio of 500:1, the G104SN03-V.5 offers good visibility in environments with moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure consistent image clarity from various positions, making it an ideal option for applications that require multi-angle viewing.
Equipped with an LED backlight, this module provides energy efficiency and a long lifespan, which reduces maintenance and replacement costs. Additionally, the antiglare surface treatment enhances readability by minimizing reflections, making it suitable for environments with fluctuating light conditions.
Key Features:
- Brand: AUO
- Model: G104SN03-V.5
- Diagonal Size: 10.4 inches
- Resolution: 1024×768 (XGA), 96 PPI
- Pixel Format: RGB Vertical Stripe for vibrant color reproduction
- Active Area: 211.2(W) × 158.4(H) mm
- Bezel Opening: 214.2(W) × 161.4(H) mm
- Outline Dimensions: 241.6(W) × 182.3(H) × 8.5(D) mm
- Surface Treatment: Antiglare for improved readability in bright environments
- Brightness: 350 cd/m² (Typical), ensuring good visibility in moderate lighting conditions
- Contrast Ratio: 500:1 (Typical), providing vivid, high-contrast visuals
- Viewing Angle: 80°/80°/80°/80° (L/R/U/D), allowing clear visuals from multiple viewing angles
- Backlight Type: LED for energy efficiency and long operational lifespan
- Display Mode: Normally White, Transmissive
- Response Time: 25 ms (Typical, Tr/Td) for smooth visuals
- Signal Interface: LVDS, 40-pin FPC connector
- Input Voltage: 3.3V (Typical for VCC)
- Operating Temperature: -20°C to 70°C, designed for diverse environmental conditions
- Storage Temperature: -30°C to 80°C, adaptable for flexible storage
Applications:
- Industrial Control Panels: Ideal for industrial environments requiring clear and durable displays
- Medical Devices: Suitable for medical equipment where high-quality visuals are essential
- Point-of-Sale (POS) Systems: Perfect for retail systems needing clear and bright displays
- Embedded Systems: Suitable for embedded applications that require reliable and vibrant displays
Technical Precautions:
- Handling: Handle with care to prevent damage to the surface or internal components
- ESD Protection: Use electrostatic discharge (ESD) precautions during installation to prevent component damage
- Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
- Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
- Backlight Maintenance: Regularly inspect the backlight to ensure consistent brightness and longevity
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
