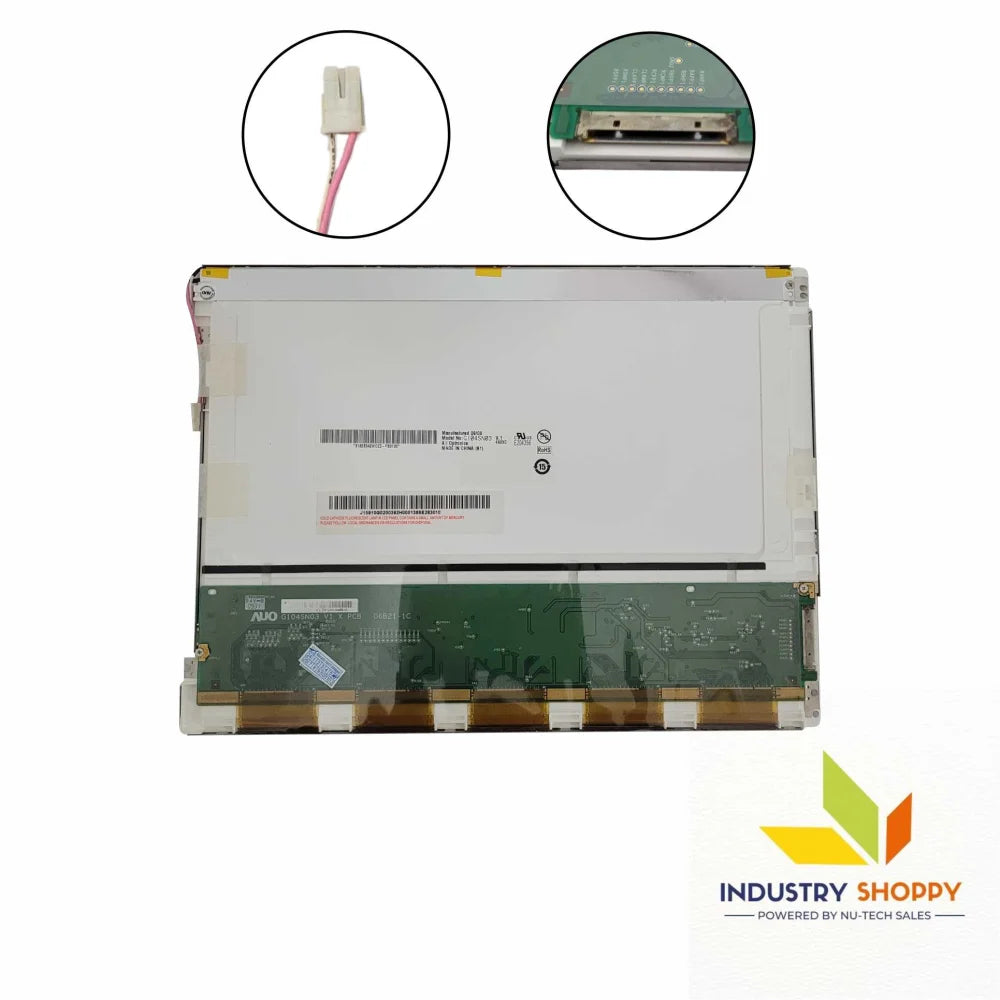

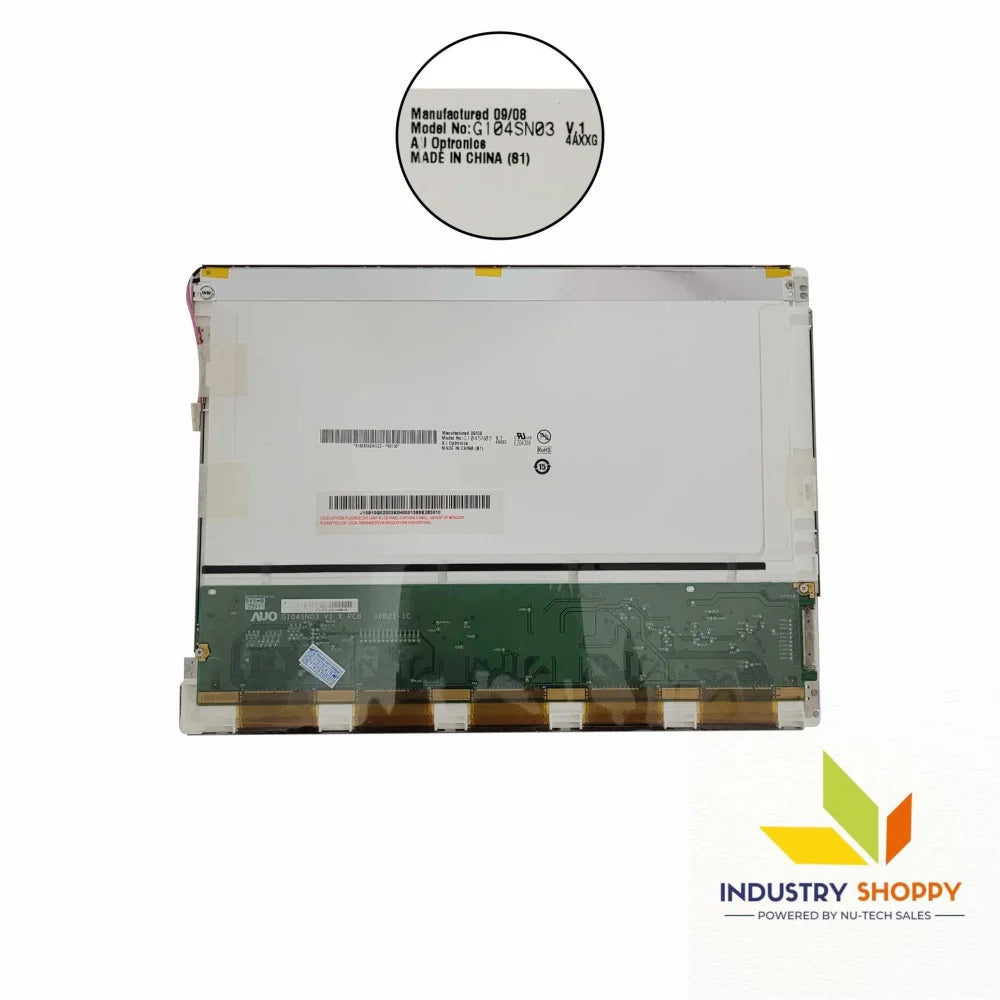

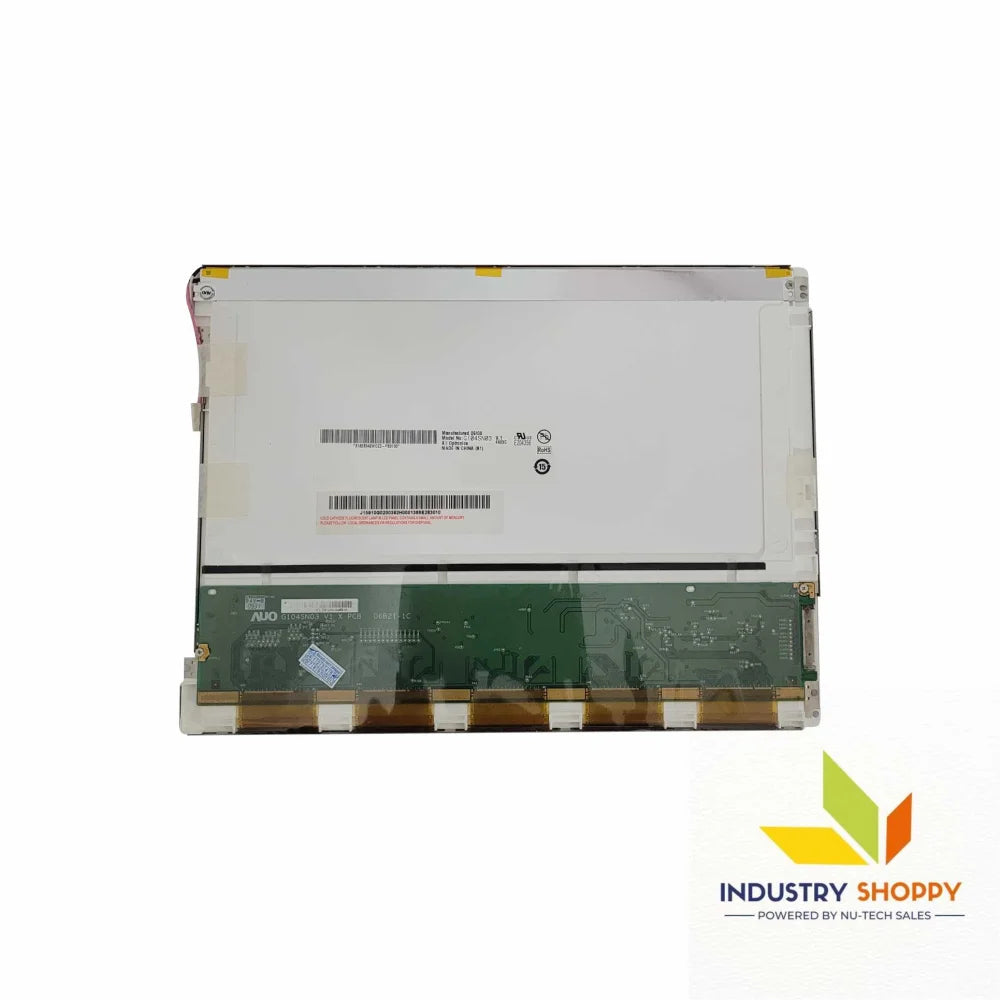

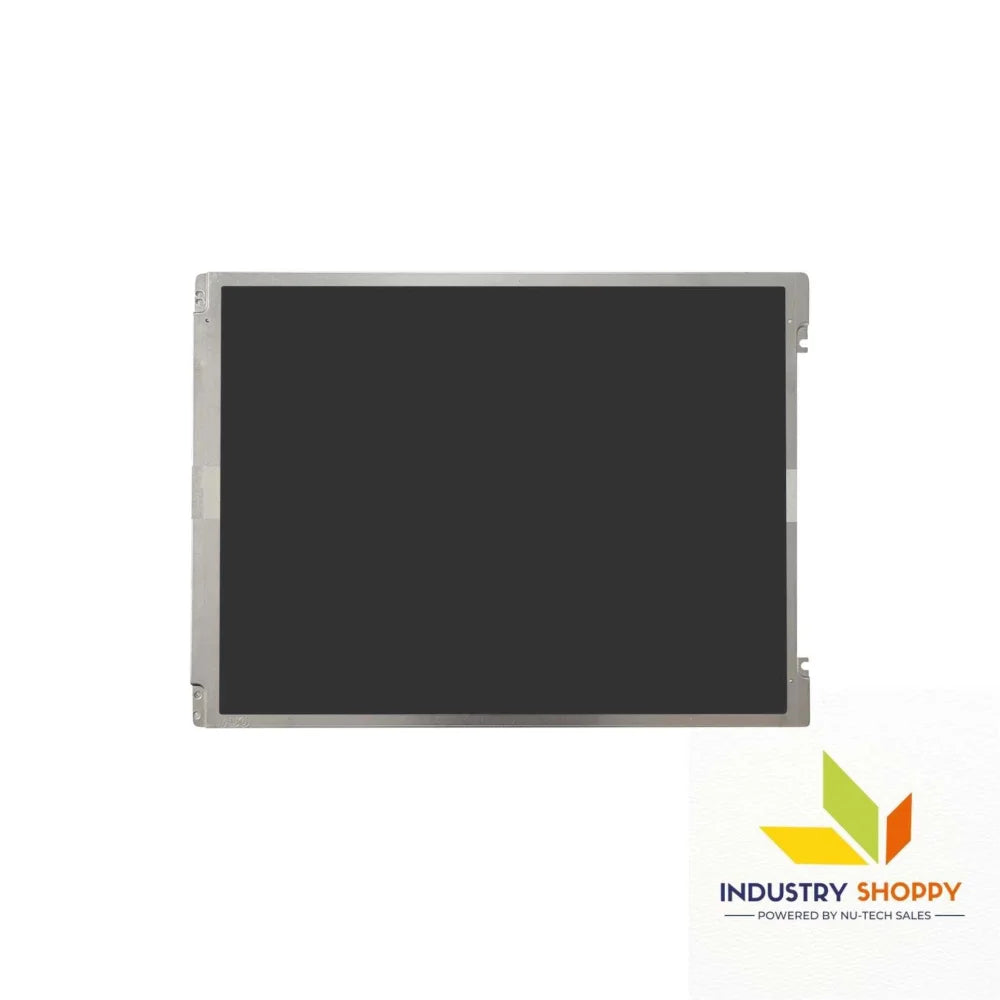

AUO G104SN03-V.1 LCD Module

AUO G104SN03-V.1 LCD Module

The AUO G104SN03-V.1 is a 10.4-inch a-Si TFT-LCD module that provides high-quality visual performance for a range of industrial and commercial applications. Featuring an 800x600 SVGA resolution with a pixel density of 96 PPI, it delivers clear, sharp images with accurate color reproduction, thanks to its RGB Vertical Stripe pixel format.

This module offers a brightness of 300 cd/m² and a contrast ratio of 500:1, making it suitable for use in environments with moderate lighting conditions. The wide viewing angles of 70°/70°/50°/70° (L/R/U/D) ensure that the display remains legible from various positions, providing flexibility for different installation scenarios.

With a WLED backlight, this display ensures a long-lasting lifespan of 50,000 hours, providing reliable performance for extended use. Its antiglare surface treatment reduces reflections and enhances readability in bright environments, making it ideal for industrial control panels, medical devices, and other applications where visual clarity and durability are paramount.

Key Features:

• Brand: AUO
• Model: G104SN03-V.1
• Diagonal Size: 10.4 inches
• Resolution: 800×600 (SVGA), 96 PPI
• Pixel Format: RGB Vertical Stripe for clear and accurate color display
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 213.0(W) × 161.0(H) mm
• Outline Dimensions: 244.2(W) × 183.0(H) × 7.0(D) mm
• Surface Treatment: Antiglare, enhancing readability and reducing reflections
• Brightness: 300 cd/m² (Typical), ensuring good visibility in moderately lit conditions
• Contrast Ratio: 500:1 (Typical), providing sharp differentiation between light and dark areas
• Viewing Angle: 70°/70°/50°/70° (L/R/U/D), offering good visibility from various angles
• Backlight Type: WLED with a 50,000-hour lifespan for extended use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 15 ms (Typical, Tr/Td) for smooth and clear transitions
• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: 0°C to 50°C, ideal for industrial and commercial environments
• Storage Temperature: -20°C to 60°C, suitable for safe storage in diverse conditions

Applications:

• Industrial Control Systems: Perfect for control panels and industrial machinery displays
• Medical Equipment: Suitable for medical devices that require a clear and readable display
• Kiosks and Terminals: Ideal for digital signage and public information systems
• Point-of-Sale (POS) Displays: Reliable for use in retail environments requiring consistent visual output

Technical Precautions:

• Handling: Handle with care to avoid damage to the module and its components
• ESD Protection: Use electrostatic discharge (ESD) precautions to protect the display
• Temperature Limits: Ensure operations stay within the specified temperature range (0°C to 50°C)
• Installation Guidelines: Properly mount the display to avoid pressure on connectors and the screen surface
• Backlight Maintenance: Regularly inspect the backlight, as it has a 50,000-hour lifespan, for long-term reliability
