AUO G101STN01.5 LCD Module

AUO G101STN01.5 LCD Module

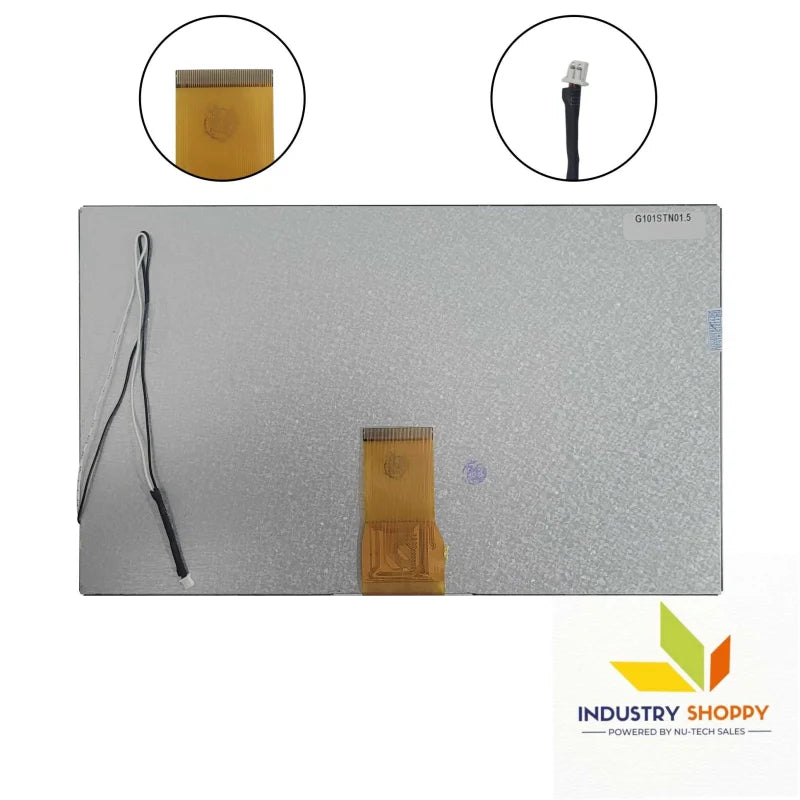

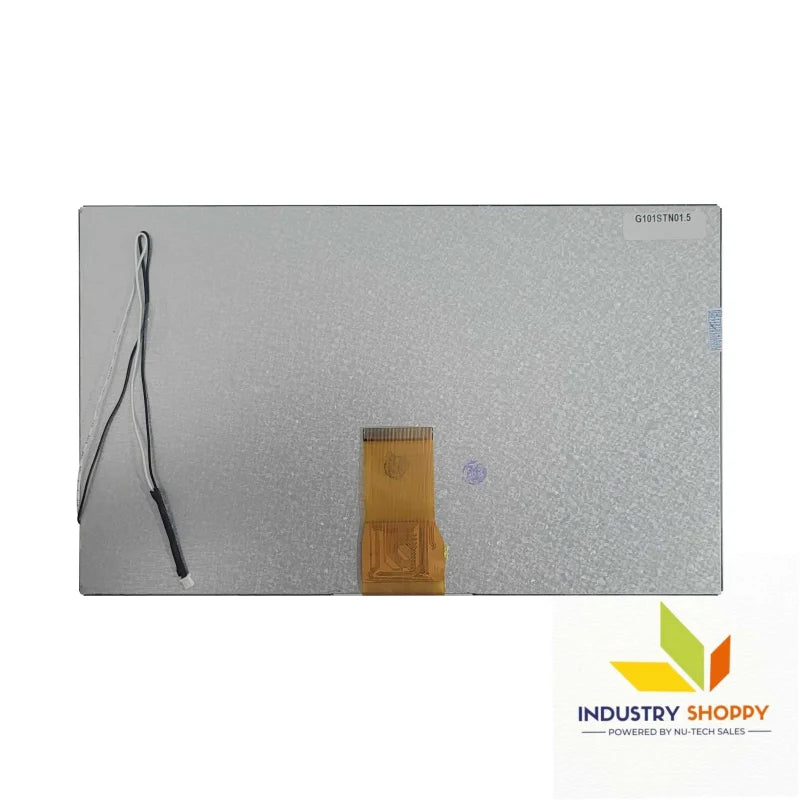

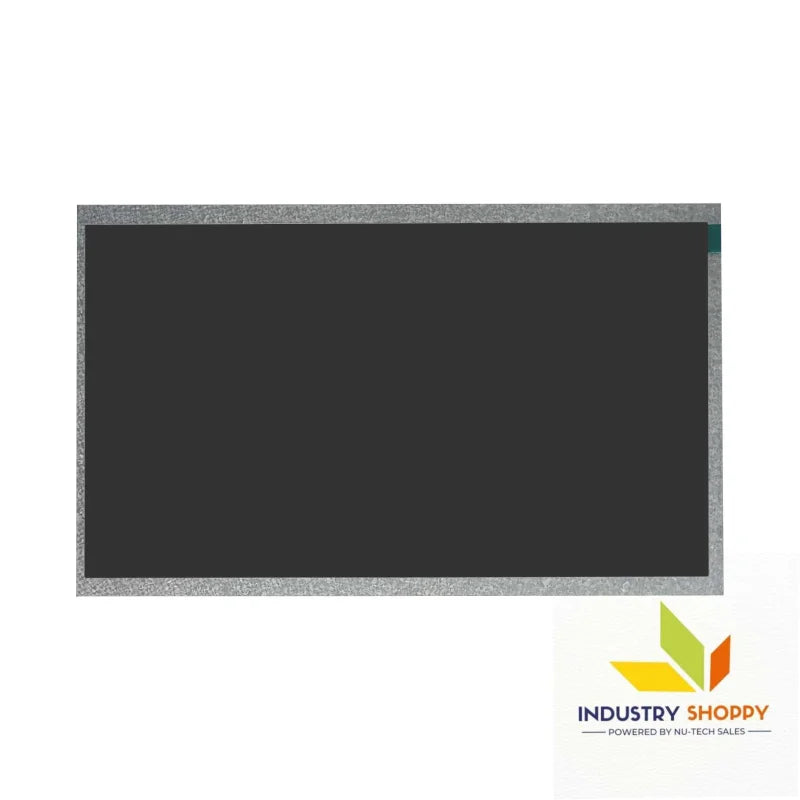

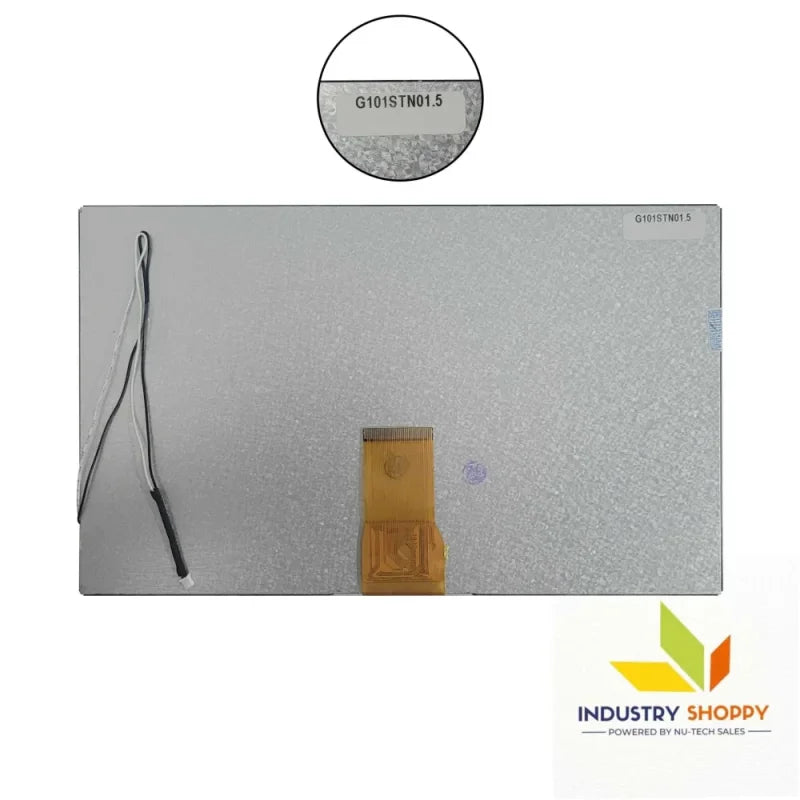

The AUO G101STN01.5 is a 10.1-inch a-Si TFT-LCD module designed to provide high-performance display solutions for a variety of applications. With a resolution of 1024x600 (WSVGA) and a pixel density of 150 PPI, this module offers sharp, clear visuals and vibrant color reproduction, making it ideal for industrial displays, medical devices, POS systems, and other applications requiring a compact yet high-quality visual output.

Featuring a brightness of 350 cd/m² and a contrast ratio of 600:1, the G101STN01.5 is suitable for environments with moderate to high ambient light, ensuring visibility and clarity. The module also offers wide viewing angles of 80°/80°/80°/80° (L/R/U/D), making it versatile for applications that require consistent visual performance from multiple angles.

The module is equipped with an LED backlight, which provides energy efficiency and contributes to a long operational lifespan, minimizing the need for frequent maintenance. The antiglare surface treatment further enhances readability and reduces reflections, making it an excellent choice for environments with varying light conditions.

Key Features:

• Brand: AUO
• Model: G101STN01.5
• Diagonal Size: 10.1 inches
• Resolution: 1024×600 (WSVGA), 150 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 223.6(W) × 125.0(H) mm
• Bezel Opening: 226.8(W) × 128.2(H) mm
• Outline Dimensions: 241.6(W) × 155.5(H) × 9.5(D) mm
• Surface Treatment: Antiglare for improved readability in bright settings
• Brightness: 350 cd/m² (Typical), ideal for visibility in moderate to high ambient light
• Contrast Ratio: 600:1 (Typical), ensuring high-contrast, vibrant visuals
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing clarity from multiple angles
• Backlight Type: LED for energy-efficient operation and a long lifespan
• Display Mode: Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visuals
• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for various environmental conditions
• Storage Temperature: -30°C to 80°C, adaptable for flexible storage

Applications:

• Industrial Control Panels: Perfect for industrial systems requiring compact and high-quality displays
• Medical Devices: Ideal for medical equipment where visual clarity and precision are crucial
• Point-of-Sale (POS) Systems: Suitable for retail applications needing vibrant, reliable displays
• Embedded Systems: Great for embedded applications requiring clear and consistent visuals

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors to maintain reliability during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure consistent performance and longevity
