- AUO G101STN01.2 LCD Module AUO G101STN01.2 LCD Module
















AUO G101STN01.2 LCD Module
| : AUO |
| : New |
| : G101STN01.2 |
| : 10.1 Inch |
| : a-Si TFT-LCD, LCM |
| : 1024(RGB)×600, WSVGA 117PPI |
Note : All tax and custom duty should be pay by buyer only.
- Description
- Declaration
- Reviews

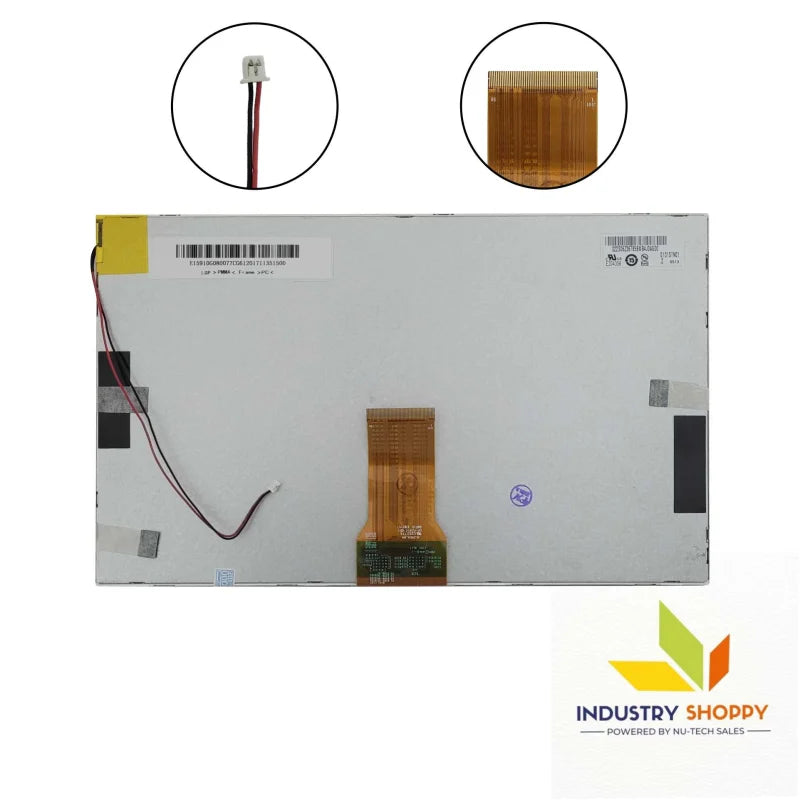

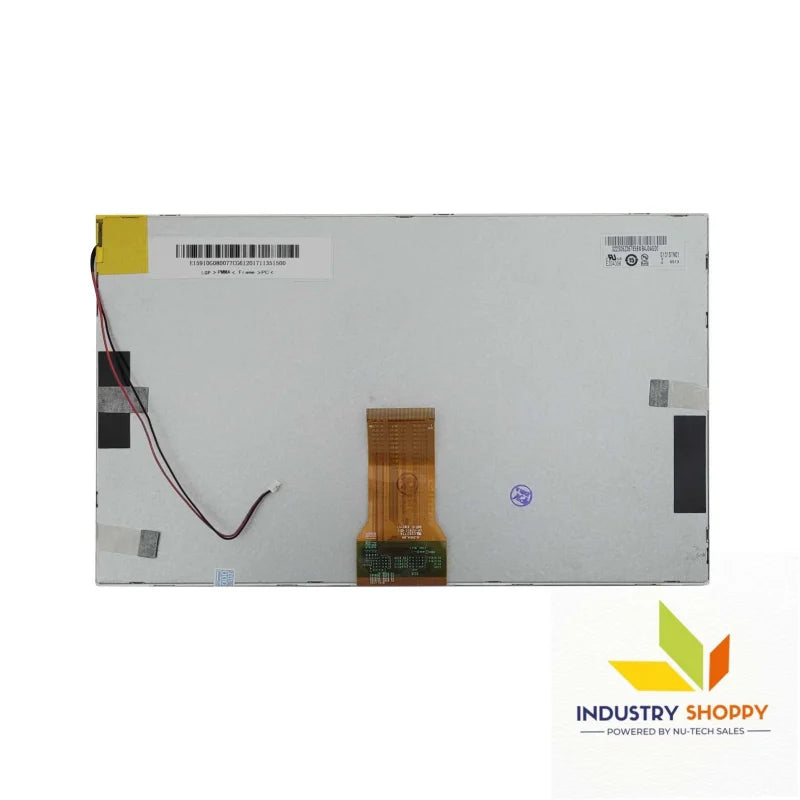

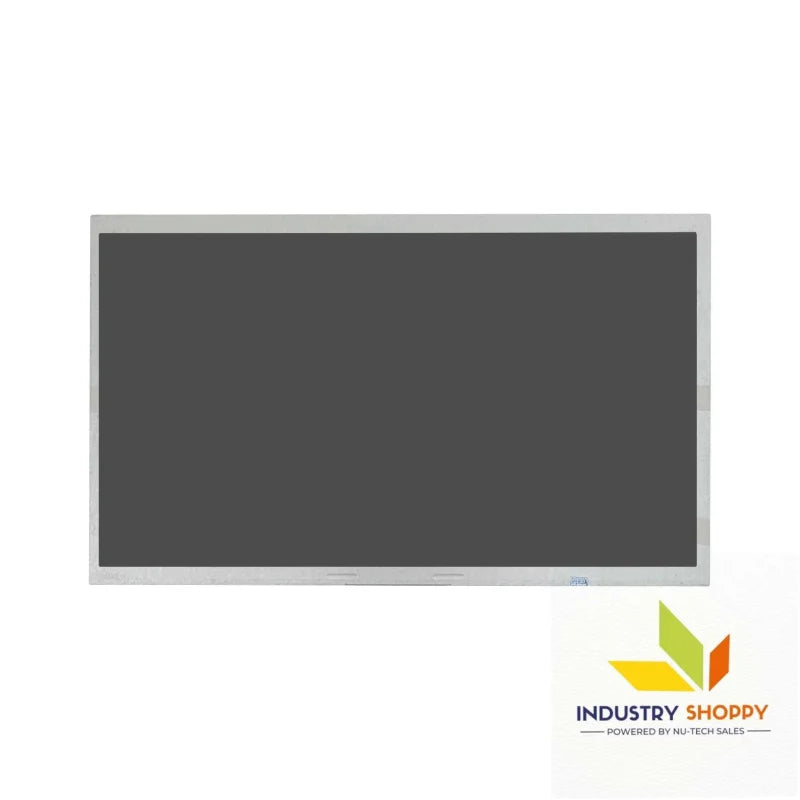

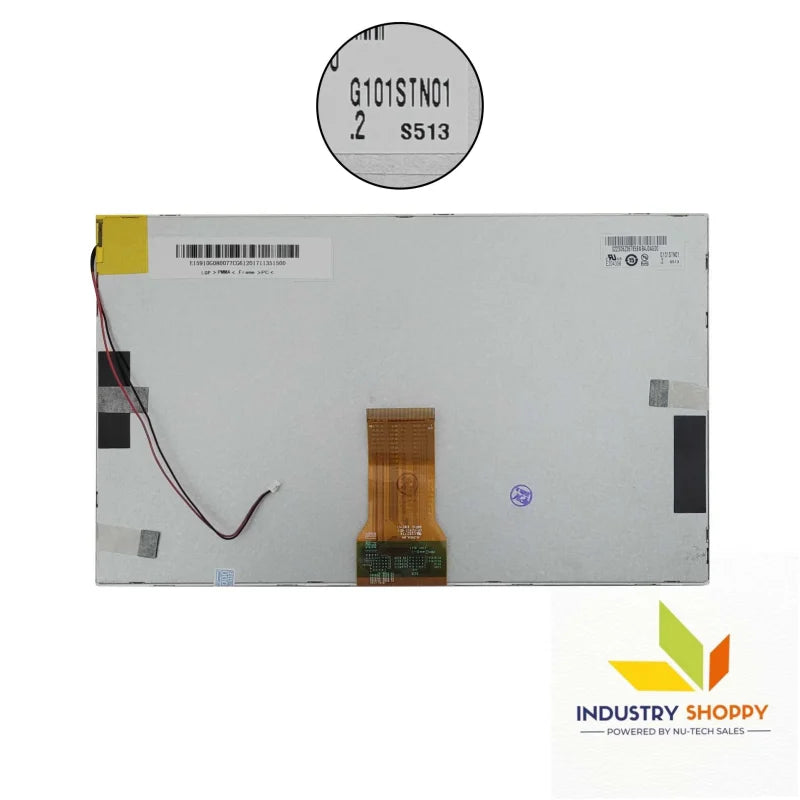

AUO G101STN01.2 LCD Module
The AUO G101STN01.2 is a 10.1-inch a-Si TFT-LCD module designed to offer exceptional performance for a variety of industrial and professional applications. With a resolution of 1024x600 (WSVGA) and a pixel density of 150 PPI, this module delivers clear, sharp visuals and vibrant color reproduction. It is ideal for industrial control panels, POS systems, medical devices, and other applications that require a compact yet high-quality display.
This module features a brightness of 350 cd/m² and a contrast ratio of 600:1, making it suitable for use in environments with moderate ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure consistent image clarity, making it an excellent choice for multi-angle applications.
The LED backlight provides energy efficiency and long-lasting performance, while the antiglare surface treatment enhances readability in environments with fluctuating light conditions, making it ideal for settings where visibility is critical.
Key Features:
- Indus
- Brand: AUO
- Model: G101STN01.2
- Diagonal Size: 10.1 inches
- Resolution: 1024×600 (WSVGA), 150 PPI
- Pixel Format: RGB Vertical Stripe for vivid, accurate color reproduction
- Active Area: 223.6(W) × 125.0(H) mm
- Bezel Opening: 226.8(W) × 128.2(H) mm
- Outline Dimensions: 241.6(W) × 155.5(H) × 9.5(D) mm
- Surface Treatment: Antiglare for better readability in bright environments
- Brightness: 350 cd/m² (Typical), suitable for moderate ambient light
- Contrast Ratio: 600:1 (Typical), providing high-quality visuals with sharp contrast
- Viewing Angle: 80°/80°/80°/80° (L/R/U/D), allowing for consistent clarity from various angles
- Backlight Type: LED, providing energy-efficient operation and long lifespan
- Display Mode: Normally White, Transmissive
- Response Time: 25 ms (Typical, Tr/Td) for smooth, responsive visuals
- Signal Interface: LVDS, 40-pin FPC connector
- Input Voltage: 3.3V (Typical for VCC)
- Operating Temperature: -20°C to 70°C, designed for a wide range of operating conditions
- Storage Temperature: -30°C to 80°C, suitable for flexible storage in various environments
Applications:
- Trial Control Panels: Perfect for industrial systems requiring a compact and high-performance display
- Medical Devices: Ideal for medical equipment where visibility and accuracy are critical
- Point-of-Sale (POS) Systems: Well-suited for retail environments needing clear, vibrant visuals
- Embedded Systems: Great for embedded applications requiring reliable and efficient displays
Technical Precautions:
- Handling: Handle with care to avoid damage to the surface or internal components
- ESD Protection: Use electrostatic discharge (ESD) precautions during installation to avoid damaging the module
- Temperature Limits: Ensure the module operates within the specified temperature range (-20°C to 70°C) for optimal performance
- Installation Guidelines: Avoid excessive pressure on connectors during installation for reliability
- Backlight Maintenance: Regularly inspect the backlight to maintain performance and extend lifespan
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
