AUO G101STN01.0 LCD Module

AUO G101STN01.0 LCD Display

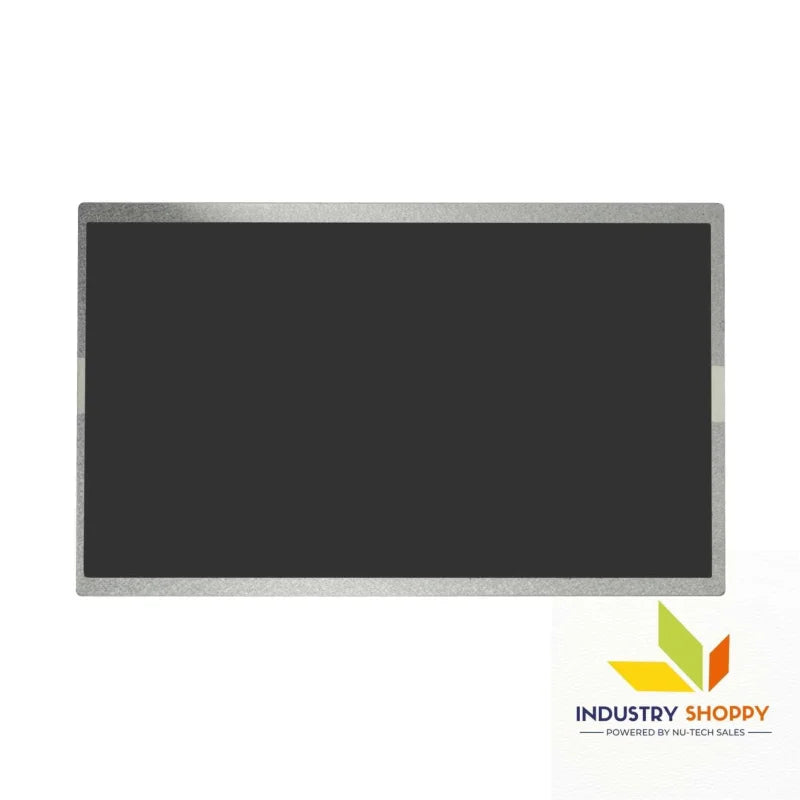

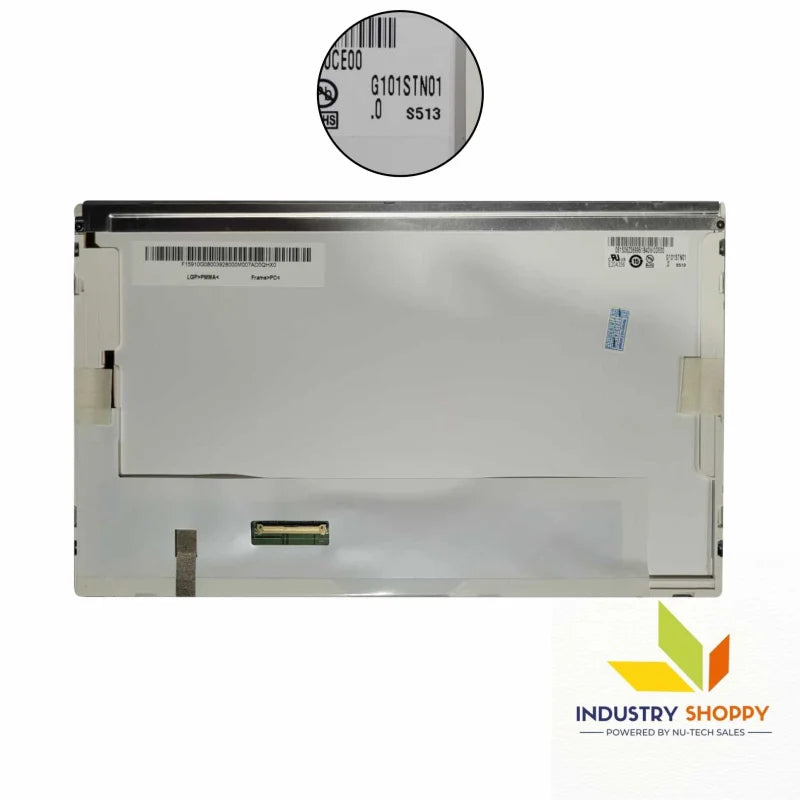

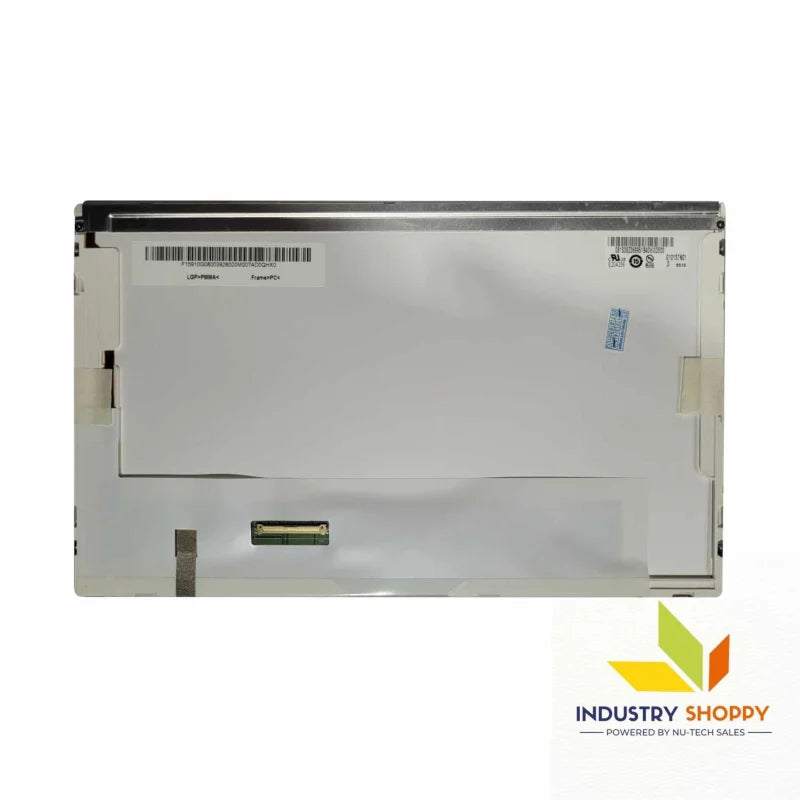

New AUO G101STN01.0 is a 10.1-inch diagonal a-Si TFT-LCD display module from AU Optronics Corp., designed for industrial and medical applications. This LCD module features a resolution of 1024(RGB)×600 (WSVGA), providing crisp and clear visuals with a pixel density of 117 PPI and a 500:1 contrast ratio. The display is equipped with an integral WLED backlight system and LED driver, offering dependable illumination for various uses. It operates effectively within a temperature range of -10°C to 60°C and can be stored in temperatures ranging from -30°C to 70°C. The Antiglare and hard coating (3H) treatment ensures durability and reduces reflections, enhancing readability in different lighting conditions.

Key Features:

• Diagonal Size: 10.1 inches
• Resolution: 1024(RGB)×600, WSVGA, 117 PPI
• Active Area: 222.72(W) × 125.28(H) mm
• Outline Dimension: 235(W) × 143(H) × 5.2(D) mm
• Luminance: 250 cd/m² (Typ.)
• Contrast Ratio: 500:1 (Typ.)
• Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
• Response Time: 7/9 (Typ.)(Tr/Td)
• Panel Type: a-Si TFT-LCD, LCM
• Treatment: Antiglare, Hard coating (3H)
• Operating Mode: TN, Normally White, Transmissive
• Support Color: 262K/16.7M, 45% NTSC
• Signal Interface Type: LVDS (1 ch, 6/8-bit), 40 pins Connector
• Frame Rate: 60Hz
• Power Supply: 3.3V (Typ.)
• Backlight: WLED, 15K hours, With LED Driver
• Operating Temp.: -10 ~ 60 °C
• Storage Temp.: -30 ~ 70 °C

Applications: The AUO G101STN01.0 is ideal for use in medical devices, industrial control panels, and other applications requiring high-resolution displays with reliable performance in varying environmental conditions.

Technical Precautions:

• Temperature Range: Ensure the display operates within -10°C to 60°C. Storage should be within -30°C to 70°C to avoid performance issues.
• Vibration Resistance: Handle with care to avoid excessive vibration; the maximum vibration level is 1.5G (14.7 m/s²).

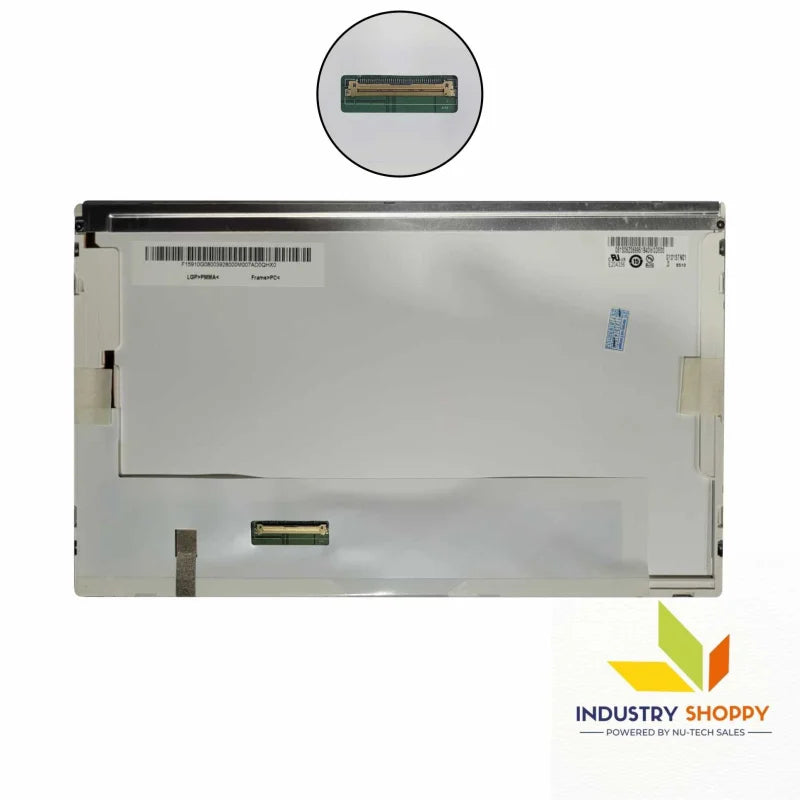

• Connector: Use the specified LVDS (1 ch, 6/8-bit) connector with 40 pins for proper connectivity.
• Power Supply: Maintain a steady 3.3V power supply for optimal operation.
• Backlight Care: The WLED backlight has a lifespan of 15,000 hours. Ensure proper driver compatibility.
