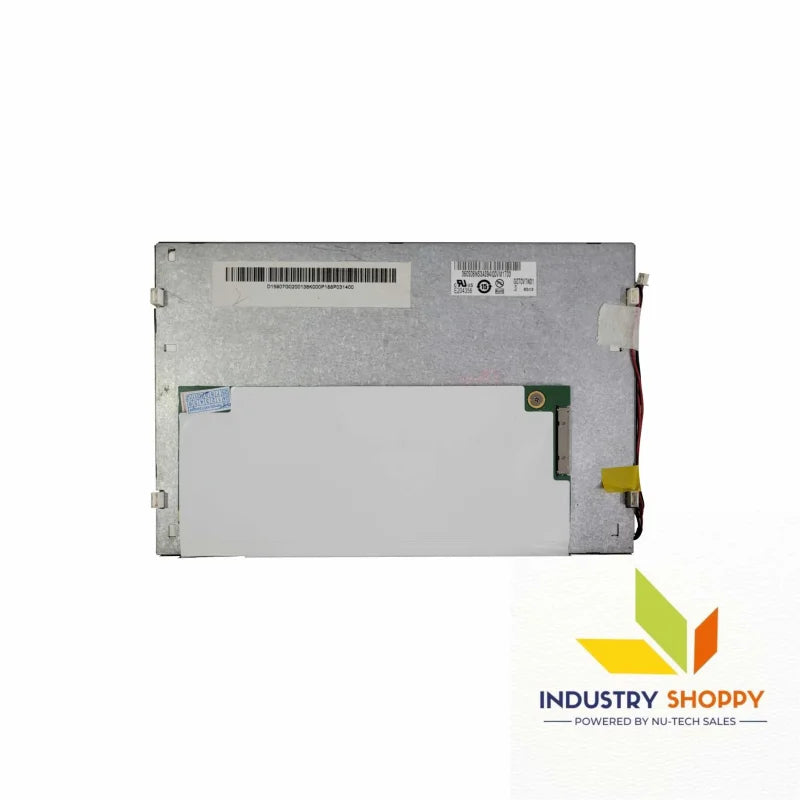

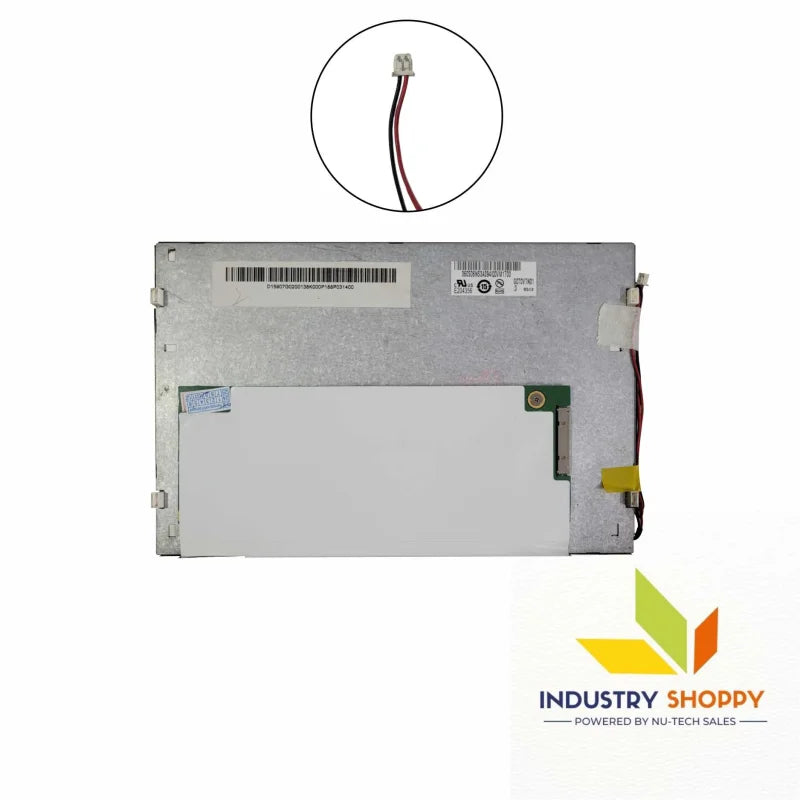

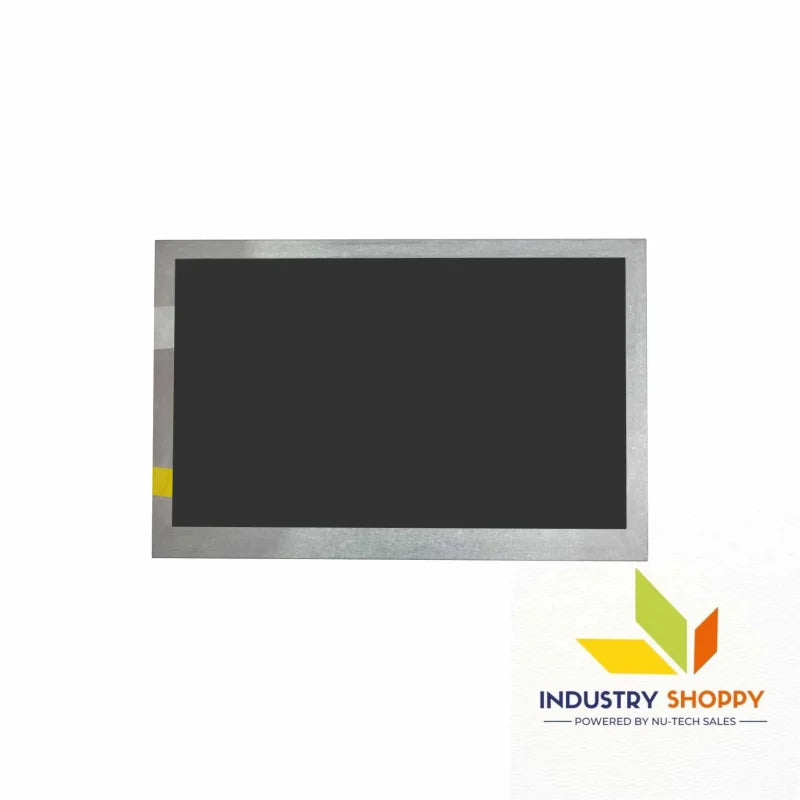

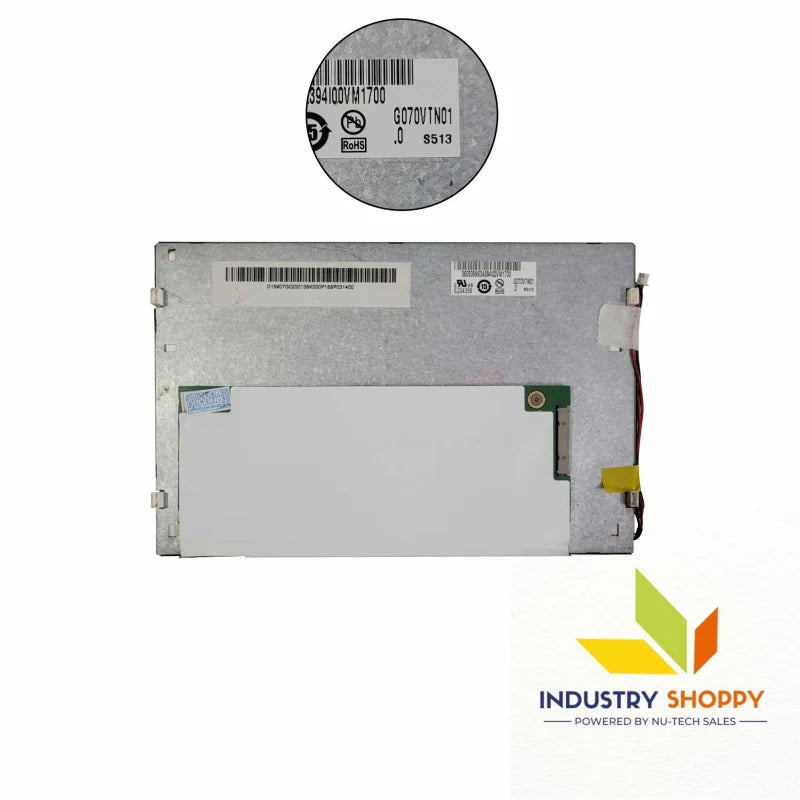

AUO G070VTN01.0 LCD Module

AUO G070VTN01.0 LCD Module

The AUO G070VTN01.0 is a 7.0-inch a-Si TFT-LCD module designed to deliver high-quality visuals for a variety of consumer and industrial applications. With a resolution of 1024x600 and a pixel density of 170 PPI, this module ensures sharp and clear image quality. Its RGB Vertical Stripe pixel format provides vibrant color reproduction, making it suitable for environments that require accurate and consistent visual performance.

This module features a brightness of 500 cd/m², making it highly visible even in bright lighting conditions, and a contrast ratio of 600:1, which ensures deep blacks and clear differentiation between light and dark content. Its wide viewing angles of 70°/70°/50°/70° (L/R/U/D) ensure that the display remains clear from multiple positions, providing flexibility for various installations.

With a WLED backlight, this module offers a long-lasting lifespan of 50,000 hours, ensuring durability for extended use in commercial and industrial settings. The antiglare surface treatment reduces reflections, improving readability and visual comfort in bright environments.

Key Features:

• Brand: AUO
• Model: G070VTN01.0
• Diagonal Size: 7.0 inches
• Resolution: 1024×600 (WSVGA), 170 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and sharp image clarity
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 156.08(W) × 88.92(H) mm
• Outline Dimensions: 165.6(W) × 102.2(H) × 5.5(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright settings
• Brightness: 500 cd/m² (Typical), suitable for use in bright indoor environments
• Contrast Ratio: 600:1 (Typical), providing high contrast for detailed visuals
• Viewing Angle: 70°/70°/50°/70° (L/R/U/D), ensuring visibility from various angles
• Backlight Type: WLED with a 50,000-hour lifespan for extended use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visual transitions
• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for operation in a variety of environments
• Storage Temperature: -30°C to 80°C, supporting safe storage in harsh conditions

Applications:

• Portable Devices: Ideal for handheld devices requiring compact, high-quality displays
• Industrial Equipment: Suitable for control panels and monitoring systems in industrial settings
• Point-of-Sale (POS) Displays: Reliable for retail and customer-facing applications
• Digital Signage: Perfect for kiosks and public information systems requiring vibrant visuals

Technical Precautions:

• Handling: Handle carefully to avoid damage to the display surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions to protect the module during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for reliable performance
• Installation Guidelines: Securely mount the display to prevent stress on connectors and components
• Backlight Maintenance: Regularly inspect the backlight, as it has a 50,000-hour lifespan, to ensure continued reliable performance
