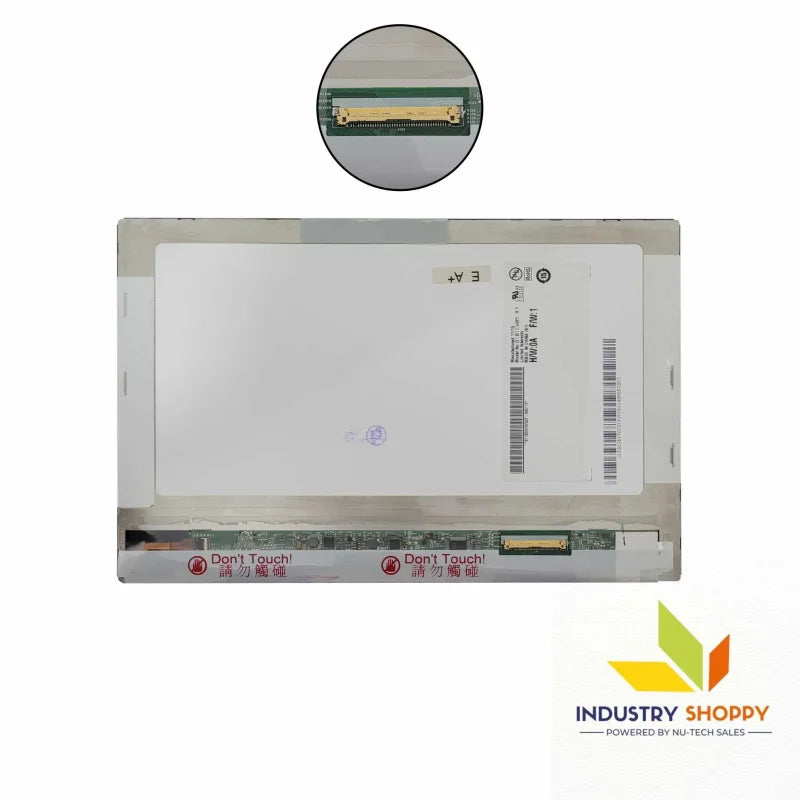

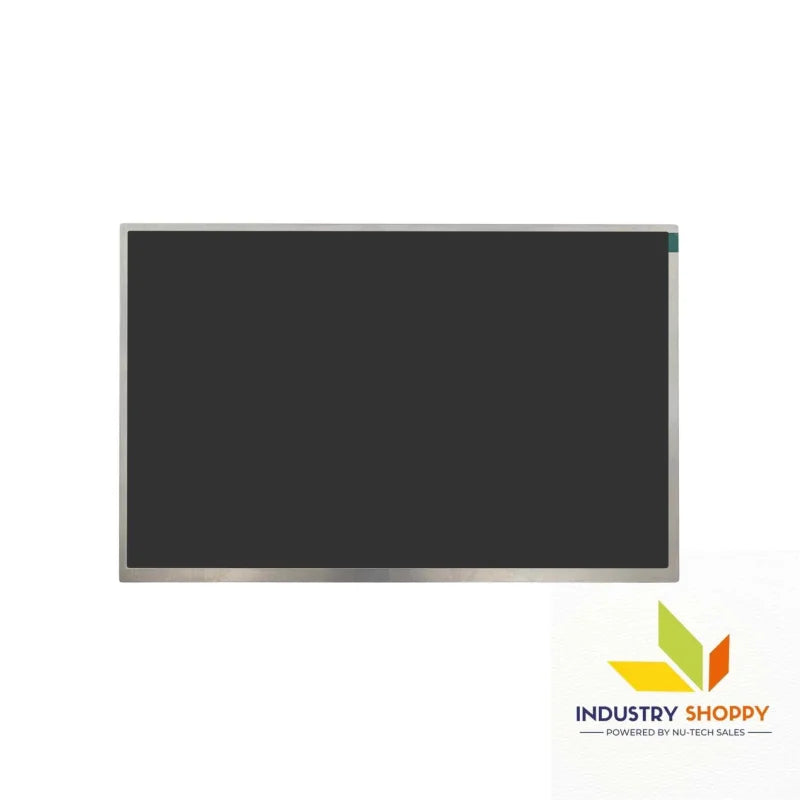

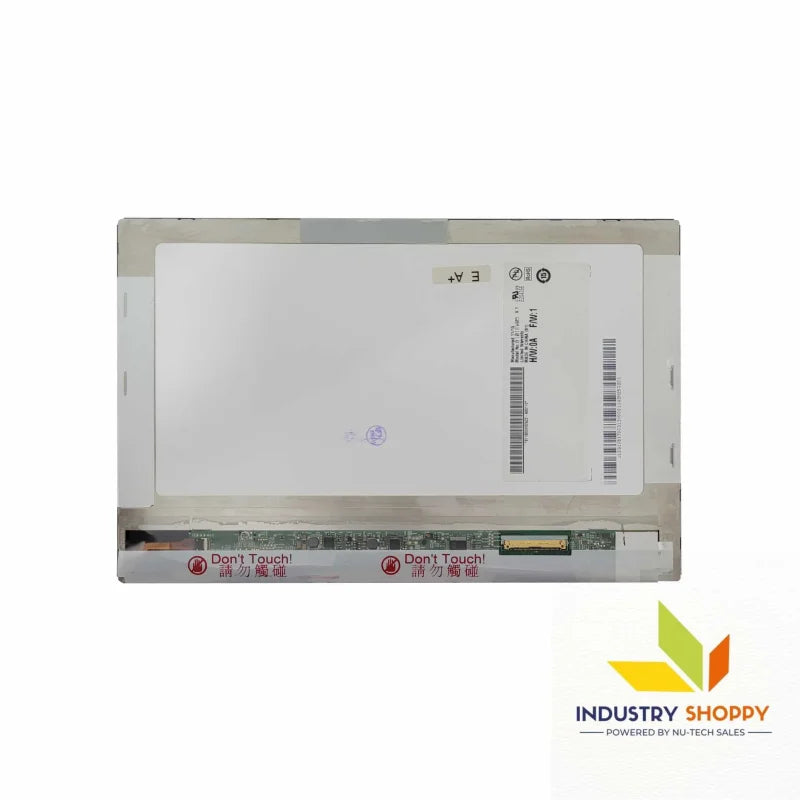

AUO B101EW05-V.1 LCD Module

AUO B101EW05-V.1 LCD Module

The AUO B101EW05-V.1 is a 10.1-inch TFT-LCD module designed to provide high-quality visual performance in a compact and efficient display. It features a resolution of 1280x800 (WXGA) and a pixel density of 149 PPI, delivering clear, crisp images with excellent color fidelity. The RGB Vertical Stripe pixel arrangement ensures accurate and vibrant color reproduction, making it suitable for applications requiring precise visual output.

With a brightness of 300 cd/m² and a contrast ratio of 800:1, the display is ideal for environments with moderate lighting. The module’s wide viewing angles of 85°/85°/80°/80° (L/R/U/D) ensure consistent image clarity from multiple angles, making it versatile for various applications where the display is viewed from different positions.

The LED backlight offers low power consumption and a long lifespan of up to 50,000 hours, ensuring reliable long-term performance. Additionally, the antiglare surface treatment improves visibility and reduces reflections, making the module perfect for use in environments with fluctuating ambient light.

Key Features:

• Brand: AUO
• Model: B101EW05-V.1
• Diagonal Size: 10.1 inches
• Resolution: 1280×800 (WXGA), 149 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 222.72(W) × 138.24(H) mm
• Bezel Opening: 224.8(W) × 141.8(H) mm
• Outline Dimensions: 230.0(W) × 152.0(H) × 6.3(D) mm
• Surface Treatment: Antiglare for improved readability in bright environments
• Brightness: 300 cd/m² (Typical), suitable for moderate ambient lighting
• Contrast Ratio: 800:1 (Typical), ensuring high-quality visuals with good differentiation
• Viewing Angle: 85°/85°/80°/80° (L/R/U/D), providing consistent clarity from multiple angles
• Backlight Type: LED with a lifespan of 50,000 hours for extended use
• Display Mode: Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals
• Signal Interface: LVDS, 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for various operating conditions
• Storage Temperature: -30°C to 80°C, suitable for flexible storage

Applications:

• Industrial Control Panels: Ideal for industrial systems requiring a compact, reliable display with vibrant color reproduction
• Point-of-Sale (POS) Systems: Perfect for retail systems that demand clear visuals and durability
• Medical Devices: Suitable for medical equipment and diagnostic tools requiring a clear and vibrant display
• Portable Devices: Great for handheld devices needing a high-quality display with low power consumption

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
