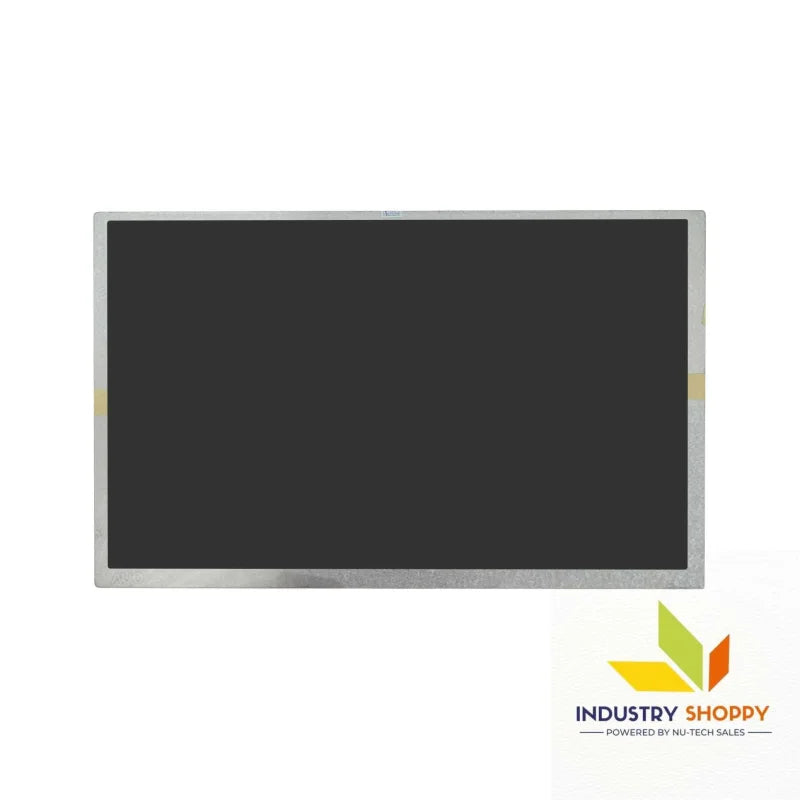

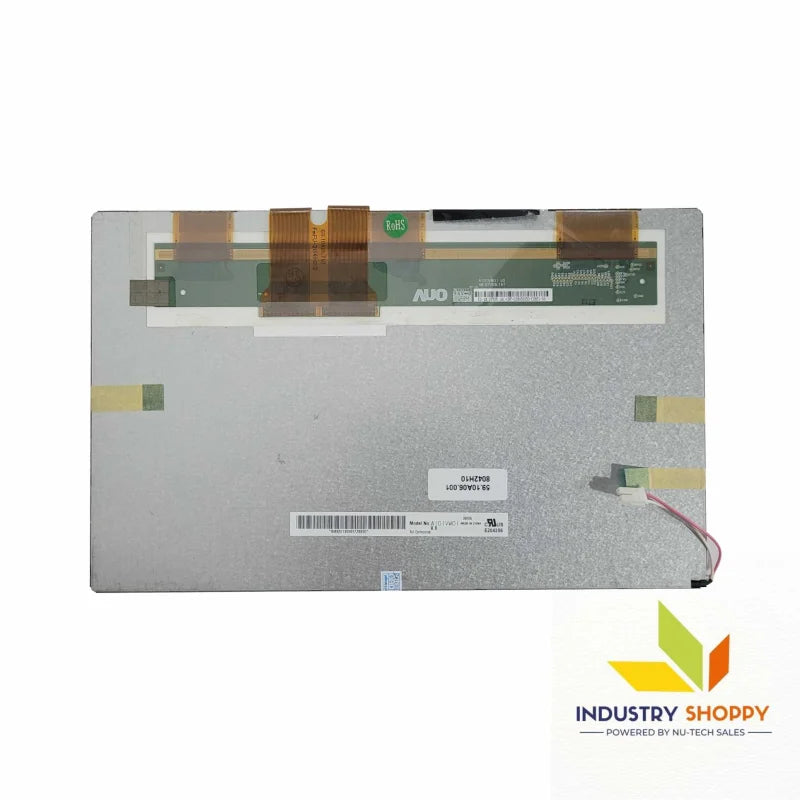

AUO A101VW01-V.0 LCD Module

AUO A101VW01-V.0 LCD Module

The AUO A101VW01-V.0 is a 10.1-inch a-Si TFT-LCD module designed to deliver exceptional display performance for a variety of applications requiring medium-sized, high-resolution screens. With a resolution of 1920x1200 (WUXGA) and a pixel density of 224 PPI, this display ensures sharp and clear visuals, ideal for industrial control panels, POS systems, medical devices, and digital signage.

The A101VW01-V.0 features a brightness of 450 cd/m² and a contrast ratio of 800:1, offering excellent visibility even in bright environments. The wide viewing angles of 85°/85°/85°/85° (L/R/U/D) provide consistent image clarity from various perspectives, ensuring optimal viewing from different angles.

Equipped with an LED backlight, the module provides energy efficiency and a long lifespan, reducing the need for maintenance and replacement. The antiglare surface treatment minimizes reflections, improving readability and enhancing display quality in high ambient light conditions.

Key Features:

• Brand: AUO

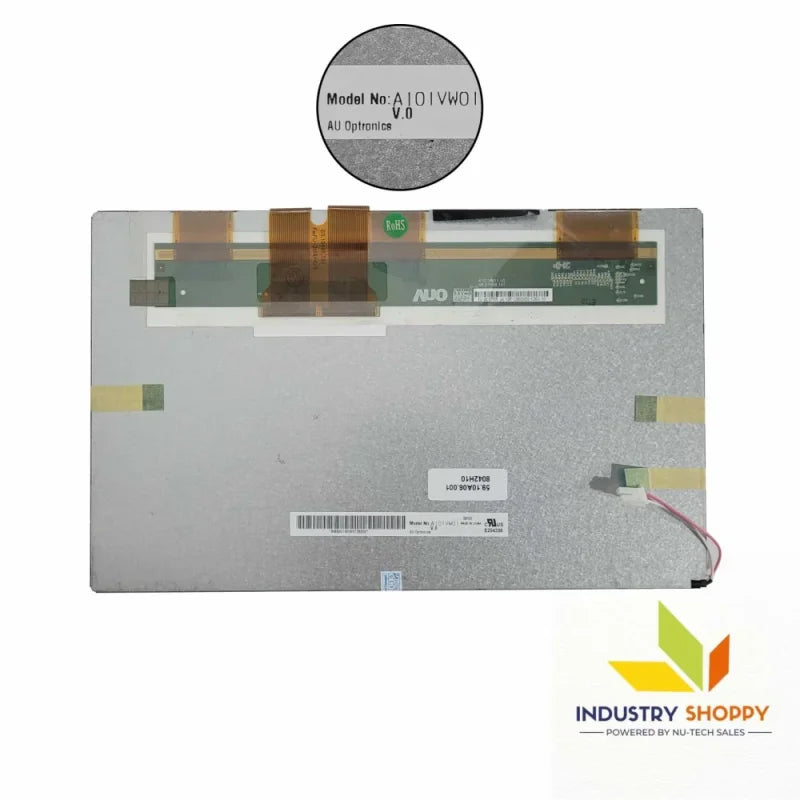

• Model: A101VW01-V.0
• Diagonal Size: 10.1 inches
• Resolution: 1920×1200 (WUXGA), 224 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 222.72(W) × 138.48(H) mm
• Bezel Opening: 225.0(W) × 141.0(H) mm
• Outline Dimensions: 243.0(W) × 163.0(H) × 7.0(D) mm
• Surface Treatment: Antiglare for better readability in bright environments
• Brightness: 450 cd/m² (Typical), ensuring high visibility under various lighting conditions
• Contrast Ratio: 800:1 (Typical), delivering high-quality and vivid visuals
• Viewing Angle: 85°/85°/85°/85° (L/R/U/D), offering clear viewing from all angles
• Backlight Type: LED for energy-efficient performance and extended lifespan
• Display Mode: IPS, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals

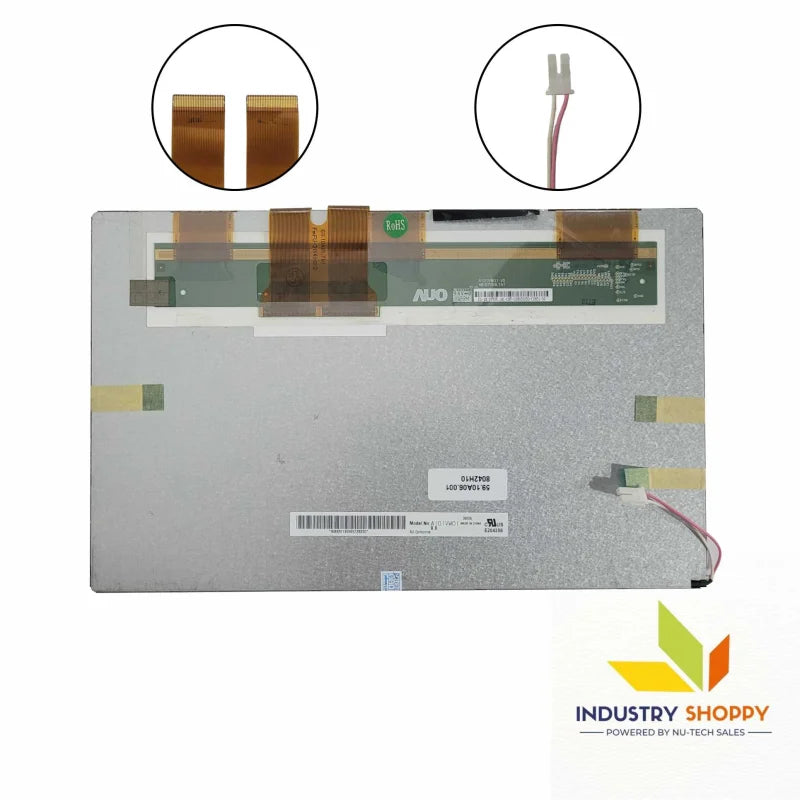

• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to function across a wide range of conditions
• Storage Temperature: -30°C to 80°C, suitable for various storage environments

Applications:

• Industrial Control Panels: Ideal for applications that require compact, high-resolution displays with vibrant visuals
• Medical Devices: Perfect for medical equipment where visibility and clarity are essential
• Point-of-Sale (POS) Systems: Reliable for retail systems requiring a display with rich colors and clear image quality
• Digital Signage: Suitable for public space displays, retail signage, and advertising

Technical Precautions:

• Handling: Handle carefully to avoid damaging the display surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) to ensure long-lasting performance
• Installation Guidelines: Avoid excessive pressure on connectors to maintain the module's reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure optimal brightness and longevity
